DS1EM relay 系列
Panasonic CorporationVersatile SPDT PCB-mounted relays for general-purpose applications
系列图片（7 张）
常见问答
DS1EM relay - 型号列表
共 10 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 线圈电阻 | 深度 | 高度 | 触头材料 | 典型触点布局 | 工作温度 | 端接样式 | 最大功率 | 供电电压 | 开关电压 | 输出浪涌功率 | 直流开关电压 | 长度 | 安装类型 | 端子类型 | 峰值脉冲功率 | 额定直流电流 | 交流开关电压 | 尺寸/外形 | 功能 | 线圈功率 | 隔离类型 | 开关电流 | 最大额定电流 | 峰值脉冲电流（8/20µs） | 绝缘材料 - 类型 | 产品特性 | 工作寿命 | 最高温度限值 | 应用细节 | 抗辐射加固 | 线圈电流 | 线圈电压 | 额定功率 | 可见输出 | 额定交流电压 | 二极管配置 | 触点额定电流 | 直流反向电压（Vr）（最大） | 高侧电压（自举）最大 | 密封 | 包装方式 | 触点形式 | 安装样式 | 封装形式 | 总长度 | 位数 | 继电器类型 | 按下测试类型 | 动作时间 | 应用领域 | 类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

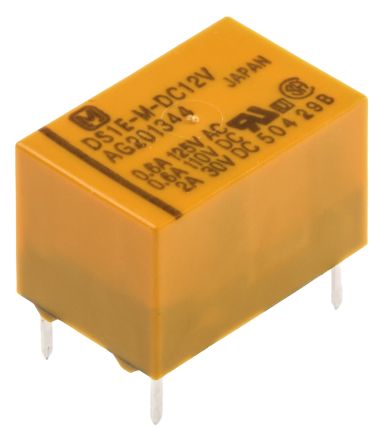

 DS1EM12J RELAY DS1E-M-12V HIGHLY SENSITIVE 1500 V FCC SURGE BREAKDOWN VOLTAGE MINIATURE RELAY Panasonic 单刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 3 A, 12V dc Panasonic Corporation | 89 | ¥40.47 | - | 360 Ω | 9.9mm | 9.9mm | Gold Clad Silver | SPDT | +70°C | 通孔 | 60 W | 12V dc | 250V ac | 125 VA | 220V dc | 15mm | PCB | Through Hole | 125 VA | 60 W | 250V 交流 | 15 x 9.9 x 9.9mm | Y | 400mW | 1500V rms | 3 A | 3 A | 3 A | 1.5kV rms | 环氧密封 | 100000000（机械）次循环，500000（电气）次循环 | +70°C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 DS1EML224 SPDT PCB Mount Latching Relay, 24V dc For Use In General Purpose Applications Panasonic Corporation | 935 | ¥45.83 | - | 1.6 kΩ | 9.9mm | 9.9mm | Gold Clad Silver | SPDT | +70°C | - | 60 W | 24V dc | 250V ac | 125 VA | 220V dc | 15mm | PCB | Through Hole | - | - | - | - | - | - | - | - | - | - | - | - | - | - | General Purpose | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

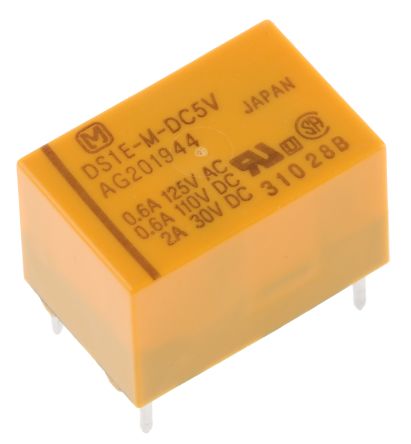

DS1EM5J RELAY DS1E M 5V HIGHLY SENSITIVE 1500 V FCC SURGE BREAKDOWN VOLTAGE MINIATURE RELAY Panasonic 单刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 3 A, 5V dc Panasonic Corporation | 160 | ¥37.31 | - | 62.5 Ω | 9.9mm | 9.9mm | Gold Clad Silver | SPDT | +70°C | 通孔 | 60 W | 5V dc | 250V ac | 125 VA | 220V dc | 15mm | PCB | Through Hole | 125 VA | 60 W | 250V 交流 | 15 x 9.9 x 9.9mm | Y | 400mW | 1500V rms | 3 A | 3 A | 3 A | 1.5kV rms | 环氧密封 | 100000000（机械）次循环，500000（电气）次循环 | +70°C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

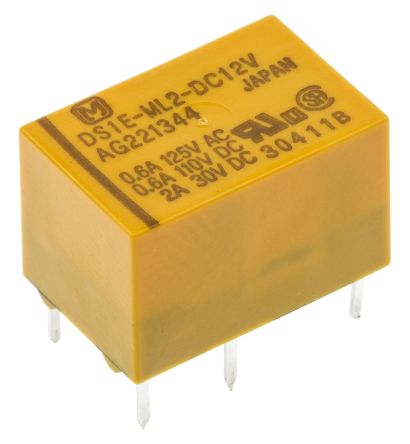

DS1EML212 SPDT PCB Mount Latching Relay, 12V dc For Use In General Purpose Applications Panasonic 单刀双掷 PCB（印刷电路板）安装 自锁继电器, 12V dc, 适用于通用应用 Panasonic Corporation | 46 | ¥49.55 | - | 400 Ω | 9.9mm | 9.9mm | Gold Clad Silver | SPDT | +70°C | 通孔 | 60 W | 12V dc | 250V ac | 125 VA | 220V dc | 15mm | PCB | Through Hole | 125 VA | 60 W | 250V 交流 | 15 x 9.9 x 9.9mm | Y | - | - | - | - | - | - | - | - | - | General Purpose | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 通用 | - |
DS1EML25 SPDT PCB Mount Latching Relay, 5V dc For Use In General Purpose Applications Panasonic 单刀双掷 PCB（印刷电路板）安装 自锁继电器, 5V dc, 适用于通用应用 Panasonic Corporation | 15 | ¥38.05 | - | 69.4 Ω | 9.9mm | 9.9mm | Gold Clad Silver | SPDT | +70°C | 通孔 | 60 W | 5V dc | 250V ac | 125 VA | 220V dc | 15mm | PCB | Through Hole | 125 VA | 60 W | 250V 交流 | 15 x 9.9 x 9.9mm | Y | - | - | - | - | - | - | - | - | - | General Purpose | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 通用 | - |

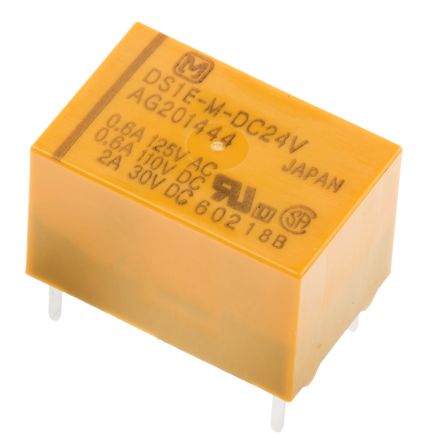

DS1EM24J RELAY DS1E M 24V HIGHLY SENSITIVE 1500 V FCC SURGE BREAKDOWN VOLTAGE MINIATURE RELAY Panasonic 单刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 3 A, 24V dc Panasonic Corporation | 669 | ¥38.21 | - | 1440 Ω | 9.9mm | 9.9mm | Gold Clad Silver | SPDT | +70°C | 通孔 | 60 W | 24V dc | 250V ac | 125 VA | 220V dc | 15mm | PCB | Through Hole | 125 VA | 60 W | 250V 交流 | 15 x 9.9 x 9.9mm | Y | 400mW | 1500V rms | 3 A | 3 A | 3 A | 1.5kV rms | 环氧密封 | 100000000（机械）次循环，500000（电气）次循环 | +70°C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 480 | ¥14.54 | - | 1600 ohm | 9.9 mm | 9.9 mm | Ag/Au Clad | SPDT | -40C to 70C | PC Pin | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | No | 15 mA | 24V | 60W/125VA | No | 250V | No | 3 A | 220V | 16.8VDC | Sealed | Tube/Case | 1 Form C | Through Hole | DIP | 15 mm | 6 | Latching Double Coil | No | 10 ms | - | Miniature Relay |
| 0 | - | 100 ohm | 9.9 mm | 9.9 mm | Ag/Au Clad | SPDT | -40C to 70C | PC Pin | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | No | 60 mA | 6V | 60W/125VA | No | 250V | No | 3 A | 220V | 4.2VDC | Sealed | Tube/Case | 1 Form C | Through Hole | DIP | 15 mm | 6 | Latching Double Coil | No | 10 ms | - | Miniature Relay | |
| 0 | - | 69.4 ohm | 9.9 mm | 9.9 mm | Silver/Gold Clad | SPDT | -40C to 70C | PC Pin | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | No | 72 mA | 5V | 60W/125VA | No | 250 V | No | 3 A | 220 V | 3.5VDC | Sealed | Tube/Case | 1 Form C | Through Hole | DIP | 15 mm | 6 | Latching Double Coil | No | 10 ms | - | - | |
| 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
