cigen-DLG100PS

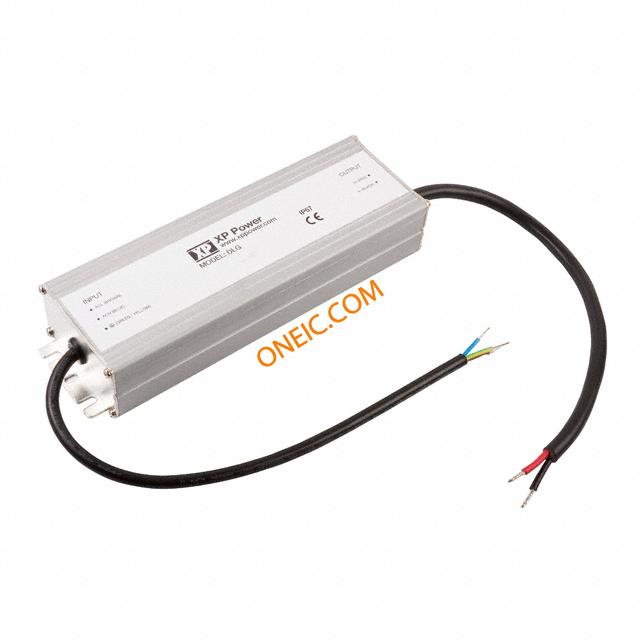

DLG100PS power supplies switch mode - led drivers / psu 系列

XP Power Limited

Versatile AC/DC LED drivers with constant current and voltage options

系列图片（3 张）

文档与媒体

SF_DLG50-150.pdf

SF_DLG70-150-HV.pdf

1766188.pdf

常见问答

内容由 AI 生成，仅供参考

加载中...

03

DLG100PS power supplies switch mode - led drivers / psu - 型号列表

共 4 个型号

制造商零件编号	库存	价格	产品类别	其他名称	标准包装数量	RoHS	SVHC	海关税号	认证机构	效率	输出类型	最大功率	量程（°/s）	功率（瓦）	输出电流	输出数量	LED驱动器通道数	隔离电压	最小输入电压	输出电压（最大）	最大持续工作电压（MCOV）	深度	宽度	长度	重量	安装类型	尺寸/外形	端接样式	类型	产品特性	拓扑	应用	工作温度	输出功率	输入功率	额定电压
2 DLG100PS12 LED DRIVER, AC-DC, CC, CV, 8.3A, 12V LED SUPPLY CC/CV AC/DC 8.5-12V XP POWER	10	¥489.60	-	1470-1069	1	Lead free / RoHS Compliant	:No SVHC (20-Jun-2013)	85423990	CE, EN, IEC, UL	:88%	:Fixed	:100W	:XP POWER - DLG Series	100W	:8.3A	:1	:Constant Current, Constant Voltage	3.75kV (3750V)	:90V	:12V	:305V	:39mm	:68mm	:199mm	1.04	Chassis Mount	8.74" L x 2.68" W x 1.54" H (222.0mm x 68.0mm x 39.0mm)	:Flying Leads	Constant Current, Voltage	OTP, OVP, SCP	AC DC Converter	:Lighting	:70°C	:100W	:Panel	:12V
2 DLG100PS24 LED DRIVER, AC-DC, CC, CV, 4.2A, 24V LED SUPPLY CC/CV AC/DC 14-24V XP POWER	10	¥489.60	-	1470-1070	1	Lead free / RoHS Compliant	:No SVHC (20-Jun-2013)	85423990	CE, EN, IEC, UL	:90%	:Fixed	:100W	:XP POWER - DLG Series	100W	:4.2A	:1	:Constant Current, Constant Voltage	3.75kV (3750V)	:90V	:24V	:305V	:39mm	:68mm	:199mm	1.04	Chassis Mount	8.74" L x 2.68" W x 1.54" H (222.0mm x 68.0mm x 39.0mm)	:Flying Leads	Constant Current, Voltage	OTP, OVP, SCP	AC DC Converter	:Lighting	:70°C	:100W	:Panel	:24V
2 DLG100PS36 LED DRIVER, AC TO DC, CC, CV, 36V, 2.8A LED SUPPLY CC/CV AC/DC 26-36V XP POWER	10	¥425.82	-	1470-1071	1	Lead free / RoHS Compliant	:No SVHC (20-Jun-2013)	85423990	CE, EN, IEC, UL	90%	:Fixed	:100W	:XP POWER - DLG Series	100W	:2.8A	:1	:Constant Current, Constant Voltage	3.75kV (3750V)	:90V	:36V	:305V	:39mm	:68mm	:199mm	1.04	Chassis Mount	8.74" L x 2.68" W x 1.54" H (222.0mm x 68.0mm x 39.0mm)	Wire Leads	Constant Current, Voltage	OTP, OVP, SCP	AC DC Converter	:Lighting	-30°C ~ 70°C	-	-	-
2 DLG100PS48 LED DRIVER, AC-DC, CC, CV, 2.1A, 48V LED SUPPLY CC/CV AC/DC 34-48V XP POWER	10	¥413.71	-	1470-1072	1	Lead free / RoHS Compliant	:No SVHC (20-Jun-2013)	85423990	CE, EN, IEC, UL	:90%	:Fixed	:100W	:XP POWER - DLG Series	100W	:2.1A	:1	:Constant Current, Constant Voltage	3.75kV (3750V)	:90V	:48V	:305V	:39mm	:68mm	:199mm	1.04	Chassis Mount	8.74" L x 2.68" W x 1.54" H (222.0mm x 68.0mm x 39.0mm)	:Flying Leads	Constant Current, Voltage	OTP, OVP, SCP	AC DC Converter	:Lighting	:70°C	:100W	:Panel	:48V
