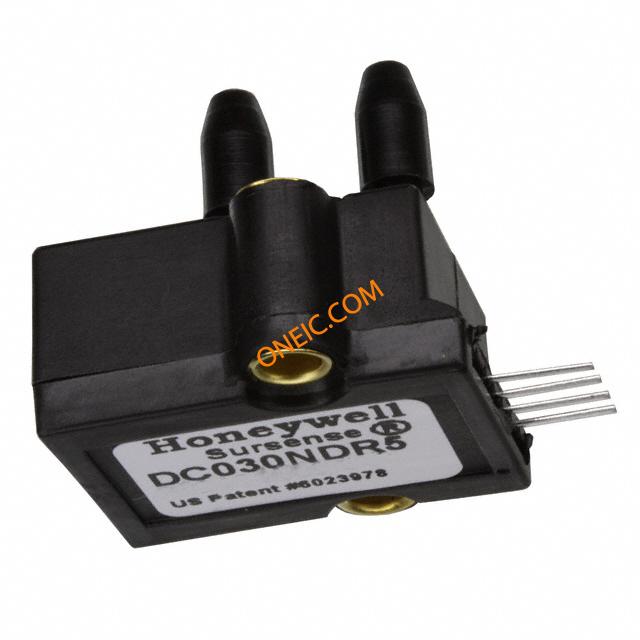

DC030 sensors, transducer 系列
Honeywell International Inc.用于表压和差压的低压力传感器，温度补偿型
霍尼韦尔生产的DC030传感器系列是一款适用于表压和差压测量的低压传感器产品线。这些传感器具有温度补偿功能，确保在广泛的工作温度范围内保持准确性。如果您正在开发工业控制系统、暖通空调应用或需要精确压力监测的任何系统，DC030系列是一个可靠的选择。
值得注意的是，这些传感器如何处理温度变化。内置的温度补偿功能有助于即使在环境条件波动的情况下也能保持准确性，这是许多工业环境中常见的问题。当工程师需要可靠的压力传感而无需频繁校准以应对温度变化时，往往会选择这款产品。
另一个实际的应用场景是在汽车应用中，精确的压力测量对于轮胎压力监测或发动机管理等系统至关重要。DC030系列提供了坚固性和可靠性，使其成为这些严苛环境中的首选产品。
总体而言，如果您寻找一款能够轻松应对各种应用的可靠低压传感器，霍尼韦尔的DC030系列绝对值得考虑。
系列图片（11 张）
文档与媒体
常见问答
DC030 sensors, transducer - 型号列表
共 6 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 交货时间 | 子类别 | 供电电压 | 输出校准 | 信号调理 | 压力范围 | 系列 | 测量制式 | 其他名称 | 标准包装数量 | RoHS | 输出端 | 端口尺寸 | 封装形式 | 端接样式 | 压力类型 | 工作压力 | 工作温度 | 工厂包装数量 | 输出类型 | 额定电压 | 输出电流 | 本体表面处理 | 端接方式 | 安装样式 | 主要材料 | 功能 | 端口样式 | 技术 | 感应方式 | 测量范围 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Board Mount Pressure / Force Sensors 0 to 30in.H2O Differential 4-Pin Sensors, Pressure Transducers, Piezoresistive Silicon SENSOR AMP DIFFERENTIAL 30 H2O Pressure Sensor 1V to 6V 0inH2O to 30inH2O Differential 4-Pin Pressure Sensor 1V to 6V 0inH2O to 30inH2O Differential 4-Pin Product Highlights:Ultra Low Pressure Sensing, down to 1" H20ASIC EnhancedAvailable in Gage and Differential Pressure RangesAvailable in Ratiometric and RegulatedTemperature Compensated over 0 °C to 50 °C [32 °F to 122 °F]Combined Linearity and Hysteresis error Sensor,Pressure,BidirectionalGage,Amplified,+/-30.0inH2O,Barbed Honeywell / Microswitch | 26 | 2: ¥4,517.546 | Board Mount Pressure / Force Sensors | 365 Days | Board Mount Pressure Sensor | 7.0 Vdc to 30.0 Vdc | Yes | Amplified | +/- 30.0 in H2O | DC | Differential, Bidirectional Gage | 480-3100 | 10 | Lead free / RoHS Compliant | 0 V ~ 5V | Male, 0.19" (4.8mm) Tube, Dual | 4-SIP Module | PCB | Differential | 1.08 PSI, 30" H20 | -25°C ~ 85°C | 10 | Analog | 1 V to 6 V | 8 mA | DI-DC | Solder | Through Hole | Pressure | Pressure | Dual Axial Barbless | Piezoelectric | Gage | ±30In.-H2O |
 Board Mount Pressure / Force Sensors +/-30 IN H2O BARBED DIFF, BIDIREC GAGE Sensors, Pressure Transducers, Piezoresistive Silicon SENSOR AMP DIFFERENTIAL 30 H2O Pressure Sensor 0.25V to 4.25V 0inH2O to 30inH2O Differential 4-Pin Pressure Sensor 0.25V to 4.25V 0inH2O to 30inH2O Differential 4-Pin Product Highlights:Ultra Low Pressure Sensing, down to 1" H20ASIC EnhancedAvailable in Gage and Differential Pressure RangesAvailable in Ratiometric and RegulatedTemperature Compensated over 0 °C to 50 °C [32 °F to 122 °F]Combined Linearity and Hysteresis error Honeywell / Microswitch | 362 | 22: ¥32.98 | - | 365 Days | Board Mount Pressure Sensor | 5.0 Vdc +/- 0.1 Vdc | Yes | Amplified | +/- 30.0 in H2O | DC | Differential, Bidirectional Gage | 480-2660-5 | 10 | Lead free / RoHS Compliant | 0 V ~ 4 V | Male, 0.19" (4.8mm) Tube, Dual | 4-SIP Module | PCB | Differential | 1.08 PSI, 30" H20 | -25°C ~ 85°C | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 26 | 1: ¥618.596 | - | 365 Days | Board Mount Pressure Sensor | 7.0 Vdc to 30.0 Vdc | Yes | Amplified | +/- 30.0 in H2O | DC | Differential, Bidirectional Gage | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Sensors, Pressure Transducers, Piezoresistive Silicon Pressure Sensor 0.25V to 4.25V 0inH2O to 30inH2O Gage 4-Pin Pressure Sensor 0.25V to 4.25V 0inH2O to 30inH2O Gage 4-Pin Product Highlights:Ultra Low Pressure Sensing, down to 1" H20ASIC EnhancedAvailable in Gage and Differential Pressure RangesAvailable in Ratiometric and RegulatedTemperature Compensated over 0 °C to 50 °C [32 °F to 122 °F]Combined Linearity and Hysteresis error Honeywell Sensing and Control | 24 | 1: ¥1,159.0185 | - | 365 Days | Board Mount Pressure Sensor | 5.0 Vdc +/- 0.1 Vdc | Yes | Amplified | 0 in H2O to 30.0 in H2O | DC | Differential, Gage | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Honeywell International Inc. | 0 | - | 365 Days | Board Mount Pressure Sensor | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
Honeywell International Inc. | 0 | - | 365 Days | Board Mount Pressure Sensor | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
