DBN-5R5D supercapacitors / ultracapacitor 系列
ELNA America, Inc.Radial supercapacitors with 5.5V rating for energy storage applications
系列图片（7 张）
常见问答
内容由 AI 生成，仅供参考
加载中...
03
DBN-5R5D supercapacitors / ultracapacitor - 型号列表
共 8 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 产品 | 商标名 | RoHS | 容差 | 电容 | 额定电压 | ESR（等效串联电阻） | 直径 | 方向 | 引脚间距 | 封装形式 | 端接样式 | 系列 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

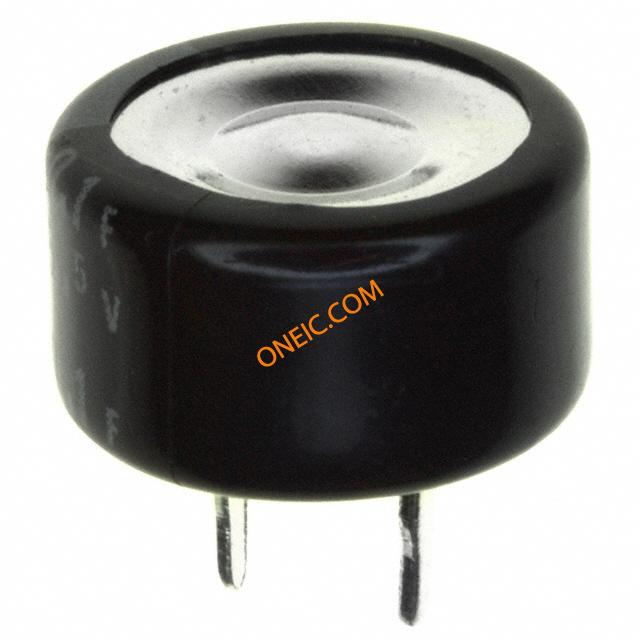

 DBN-5R5D104T CAP SUPER 100MF 5.5V RADIAL CAP SUPER 0.1F 5.5V RADIAL Supercapacitors / Ultracapacitors .1F 5.5V Low Resistance Elna America | 1353 | ¥6.50 | Supercapacitors / Ultracapacitors | Supercapacitors | DYNACAP | RoHS Compliant | - 20 %, + 80 % | 0.1 Farad | 5.5 V | 25 Ohms | 13.5 mm | Horizontal | 5 mm | 7.5 mm | Radial | DBN | - 25 C to + 70 C |

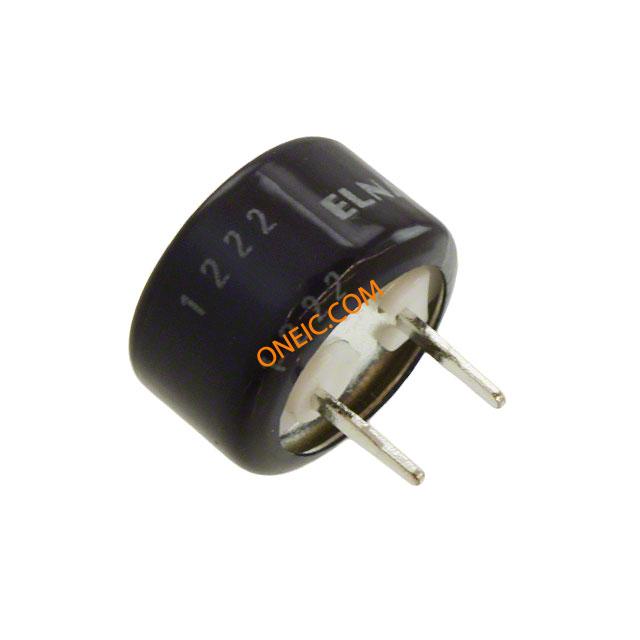

 DBN-5R5D224T CAP SUPER 220MF 5.5V RADIAL CAP SUPER 0.22F 5.5V RADIAL Supercapacitors / Ultracapacitors .22F 5.5V Low Resistance Elna America | 1258 | ¥7.22 | Supercapacitors / Ultracapacitors | Supercapacitors | DYNACAP | RoHS Compliant | - 20 %, + 80 % | 0.22 Farad | 5.5 V | 25 Ohms | 13.5 mm | Horizontal | 5 mm | 7.5 mm | Radial | DBN | - 25 C to + 70 C |

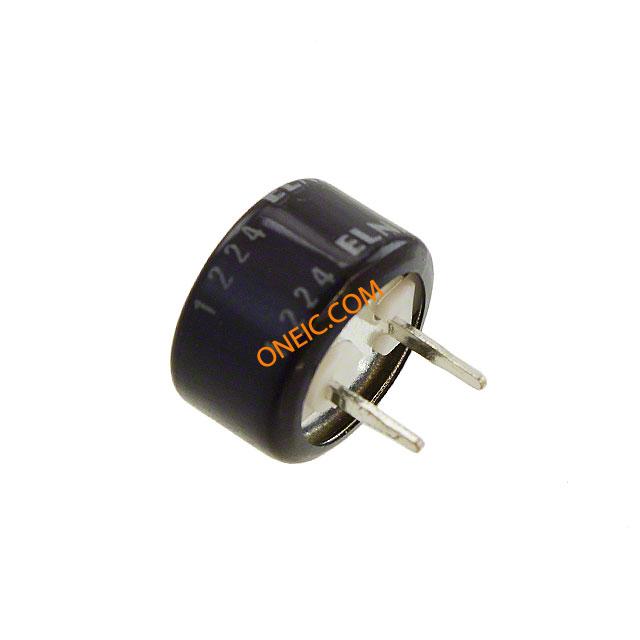

 DBN-5R5D334T CAP SUPER 330MF 5.5V RADIAL CAP SUPER 0.33F 5.5V RADIAL Supercapacitors / Ultracapacitors .33F 5.5V Low Resistance Elna America | 504 | ¥7.22 | Supercapacitors / Ultracapacitors | Supercapacitors | DYNACAP | RoHS Compliant | - 20 %, + 80 % | 0.33 Farad | 5.5 V | 25 Ohms | 13.5 mm | Horizontal | 5 mm | 7.5 mm | Radial | DBN | - 25 C to + 70 C |

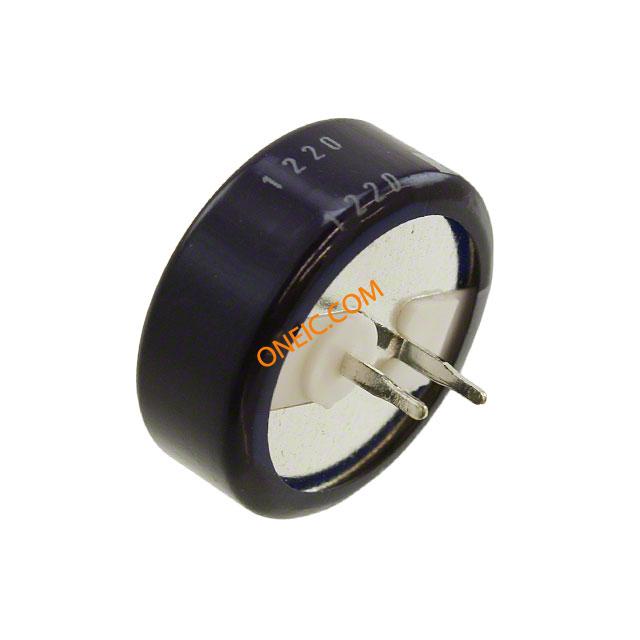

 DBN-5R5D105T CAP SUPER 1F 5.5V RADIAL Supercapacitors / Ultracapacitors 1.0F 5.5V Low Resistance Elna America | 122 | ¥12.56 | Supercapacitors / Ultracapacitors | Supercapacitors | DYNACAP | RoHS Compliant | - 20 %, + 80 % | 1 Farad | 5.5 V | 25 Ohms | 21.5 mm | Horizontal | 5 mm | 8 mm | Radial | DBN | - 25 C to + 70 C |

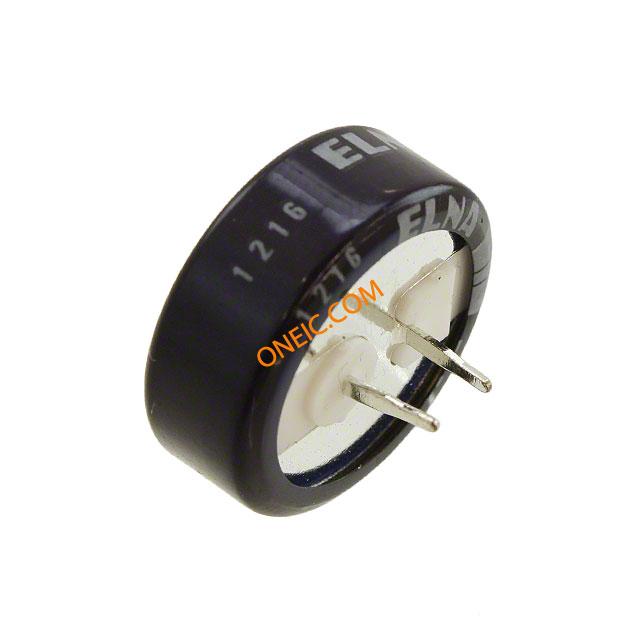

 DBN-5R5D474T CAP SUPER 470MF 5.5V RADIAL CAP SUPER 0.47F 5.5V RADIAL Supercapacitors / Ultracapacitors .47F 5.5V Low Resistance Elna America | 235 | ¥13.56 | Supercapacitors / Ultracapacitors | Supercapacitors | DYNACAP | RoHS Compliant | - 20 %, + 80 % | 0.47 Farad | 5.5 V | 25 Ohms | 21.5 mm | Horizontal | 5 mm | 8 mm | Radial | DBN | - 25 C to + 70 C |
 | 10 | ¥6.75 | Supercapacitors / Ultracapacitors | Supercapacitors | DYNACAP | RoHS Compliant | - 20 %, + 80 % | 0.047 Farad | 5.5 V | 25 Ohms | 13.5 mm | Horizontal | 5 mm | 7.5 mm | Radial | DBN | - 25 C to + 70 C |
| 10 | ¥13.82 | Supercapacitors / Ultracapacitors | Supercapacitors | DYNACAP | RoHS Compliant | - 20 %, + 80 % | 0.47 Farad | 5.5 V | 25 Ohms | 21.5 mm | Horizontal | 5 mm | 8 mm | Radial | DBN | - 25 C to + 70 C |
| 10 | ¥13.39 | Supercapacitors / Ultracapacitors | Supercapacitors | DYNACAP | RoHS Compliant | - 20 %, + 80 % | 1.5 Farads | 5.5 V | 25 Ohms | 21.5 mm | Horizontal | 5 mm | 8 mm | Radial | DBN | - 25 C to + 70 C |
第 1 / 1 页
1
