DB1CA1 switche 系列
Cherry AGHigh-precision snap action switches with versatile configurations and durable materials
系列图片（5 张）
常见问答
DB1CA1 switche - 型号列表
共 5 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 额定电压 | 最大额定电流 | 安装类型 | 操作力 | 电气寿命 | 机械寿命 | 工作温度 | 标准包装数量 | 欧盟RoHS | 电路 | 开关功能 | 差动行程 | 最小输入电压 | 开关功能/额定值 | 深度 | 高度 | 包装方式 | 预行程 | 超行程 | 致动器类型 | 端子类型 | 触头材料 | 总长度 | 执行器材料 | 端接样式 | 按钮样式/尺寸 | 开关驱动电平 | 外壳与棱镜材料 | 工作高度 | 防护等级 | RoHS | 额定交流电压 | 系列 | 电路类型 | 交货时间 | 子类别 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

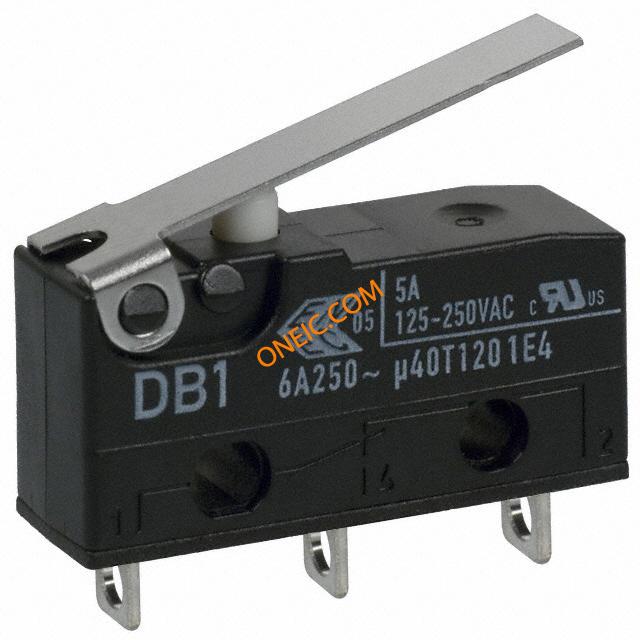

 DB1CA1LB Switch Snap Action N.O./N.C. SPDT Short Straight Lever Solder 6A 250VAC 80VDC 0.59N Screw Mount SWITCH LEVER SPDT 5A SS SLD 125V Switch Snap Action N.O./N.C. SPDT Short Straight Lever Solder 6A 250VAC 80VDC 0.59N Screw Mount Product Highlights: High-precision switch with high repeat accuracy Models available for operating temperatures up to 120°C Rated for currents up to 10 amp at 250VAC Range of auxiliary actuators available (can also be retrofitted); two mounting positions, Variety of contact materials available to suit your application Mechanical life: up to 15 x 106 operations Wide variety of terminal types available Numerous approvals Cherry | 1720 | ¥9.14 | - | 125V | 5A (AC), 1A (DC) | Screw Mount | 60gf | 6,000 Cycles | 15,000,000 Cycles | -40°C ~ 120°C | 1,120 | Compliant | SPDT | On-Mom | 0.020" (0.5mm) | 250 | N.O./N.C. | 6.45 | 19.7 | Bulk | 0.157" (4.0mm) | 0.079" (2.0mm) | Lever, Straight | Solder | Gold Silver Platinum|Silver Nickel | 20 | Stainless Steel/Polybutylene Tere... | Solder Lug | Short Straight Lever | SPDT | Polyethylene Terephthalate/N/A | 0.420" (10.7mm) | IP50 - Dust Protected | Lead free / RoHS Compliant | 125V | DB | SPDT | - | - |
 DB1CA1AA Switch Snap Action N.O./N.C. SPDT Button Solder 6A 250VAC 80VDC 1.47N Screw Mount Switch Snap Action N.O./N.C. SPDT Button Solder 6A 250VAC 80VDC 1.47N Screw Mount Product Highlights: High-precision switch with high repeat accuracy Models available for operating temperatures up to 120°C Rated for currents up to 10 amp at 250VAC Range of auxiliary actuators available (can also be retrofitted); two mounting positions Variety of contact materials available to suit your application Mechanical life: up to 15 x 106 operations Wide variety of terminal types available Numerous approvals Cherry | 10 | ¥6.16 | - | 80@EN | 6@250VAC@EN | Screw Mount | 1.47 | 15000@UL | 15000000 | 120 | - | Compliant | - | - | - | 250 | N.O./N.C. | 6.45 | 15 | - | - | - | - | Solder | Gold Silver Platinum|Silver Nickel | 20 | Polybutylene Terephthalate | - | Button | SPDT | Polyethylene Terephthalate/N/A | - | - | - | - | - | - | 126 Days | Switch Snap Action |
 | 10 | ¥10.54 | - | 125V | 5A (AC), 1A (DC) | Chassis Mount | 65gf | 6,000 Cycles | 15,000,000 Cycles | -40°C ~ 120°C | 560 | - | SPDT | On-Mom | 0.020" (0.5mm) | - | - | - | - | Bulk | 0.157" (4.0mm) | 0.079" (2.0mm) | Lever, Roller | - | - | - | - | Solder Lug | - | - | - | 0.622" (15.8mm) | IP50 - Dust Protected | - | - | - | - | - | - |
DB1CA1RC Switch Snap Action N.O./N.C. SPDT Roller Lever Solder 6A 250VAC 80VDC 0.54N Screw Mount Cherry Electrical | 94 | ¥11.52 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
