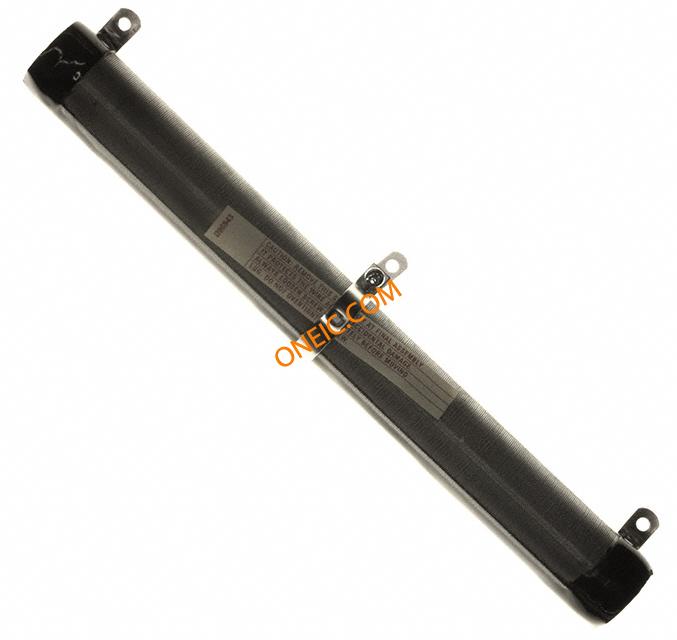

D225K1K wirewound resistor 系列
Ohmite Manufacturing CompanyHigh-power wirewound resistors for chassis mount applications
系列图片（7 张）
文档与媒体
常见问答
D225K1K wirewound resistor - 型号列表
共 4 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 产品 | 商标名 | 标准包装数量 | RoHS | 容差 | 电阻 | 功率（瓦） | 额定功率 | 额定电压 | 电阻值（欧姆） | 长度 | 直径 | 包装方式 | 端接方式 | 安装类型 | 封装形式 | 端接样式 | 类型 | 系列 | 调节方式 | 工作温度 | 温度系数 | 交货时间 | 子类别 | 适用产品/相关产品 | 其他名称 | 海关税号 | 量程（°/s） | 电阻公差 | 基极电阻（R1） | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

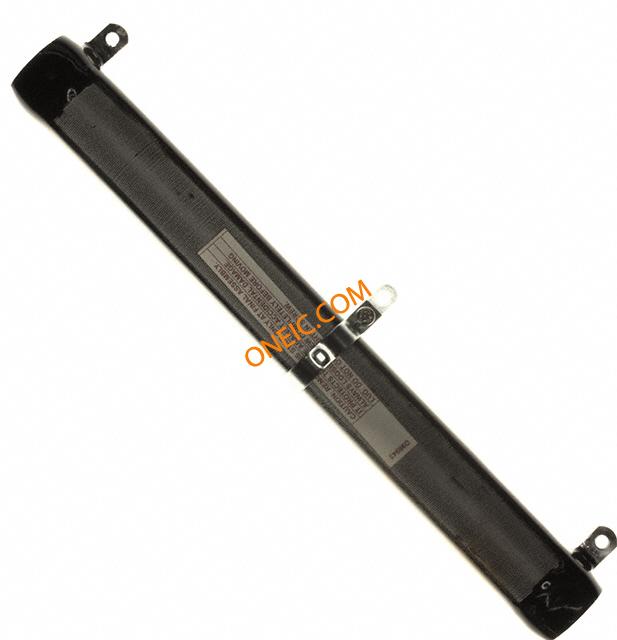

 D225K1K0 Wirewound Resistors - Chassis Mount 225watt 1K 10% RESISTOR POWER ADJ 1K OHM 225W Wirewound Resistors 225watt 1K 10% Res Wirewound 1K Ohm 10% 225W ±260ppm/°C Ceramic RDL Lug Bolt-On Ohmite | 10 | ¥154.36 | Wirewound Resistors | Power Resistors Wirewound Vitreous Enamel | Dividohm | 1 | Contains lead / RoHS non-compliant | ±10% | 1 kOhms | 225W | 225 W | 4.595 kV | 1k | 10.500" (266.70mm) | 1.126" OD, 0.752" ID (28.60mm x 19.10mm) | Bulk | Solder Lug | Chassis Mount | Cylinder, Tube | Solder Lug | Vitreous Enamel Adjustable Power | 210 | Slide | + 25 C to + 350 C | 260 PPM / C | 56 Days | Resistor Fixed Single-Other Mounting | D225K1K0E | D225K1.0K | - | - | - | - | - |
D225K1K5 Wirewound Resistors - Chassis Mount 225watt 1.5K 10% RESISTOR POWER ADJ 1.5K OHM 225W Wirewound Resistors 225watt 1.5K 10% Res Wirewound 1.5K Ohm 10% 225W ±260ppm/°C Ceramic RDL Lug Bolt-On Ohmite | 10 | ¥158.64 | Wirewound Resistors | Power Resistors Wirewound Vitreous Enamel | Dividohm | 1 | Contains lead / RoHS non-compliant | ±10% | 1.5 kOhms | 225W | 225 W | 4.595 kV | 1.5k | 10.500" (266.70mm) | 1.126" OD, 0.752" ID (28.60mm x 19.10mm) | Bulk | Solder Lug | Chassis Mount | Cylinder, Tube | Solder Lug | Vitreous Enamel Adjustable Power | 210 | Slide | + 25 C to + 350 C | 260 PPM / C | 56 Days | Resistor Fixed Single-Other Mounting | D225K1K5E | - | - | - | - | - | - |
 D225K1K5E Wirewound Resistors - Chassis Mount 225watt 1.5K 10% RESISTOR POWER ADJ 1.5K OHM 225W Wirewound Resistors 225watt 1.5K 10% Res Wirewound 1.5K Ohm 10% 225W ±260ppm/°C Ceramic RDL Lug Bolt-On Ohmite | 18 | ¥145.52 | Wirewound Resistors | Power Resistors Wirewound Vitreous Enamel | Dividohm | 1 | RoHS Compliant | ±10% | 1.5 kOhms | 225W | 225 W | 4.595 kV | 1.5k | 10.500" (266.70mm) | 1.126" OD, 0.752" ID (28.60mm x 19.10mm) | Bulk | Solder Lug | Chassis Mount | Cylinder, Tube | Solder Lug | Vitreous Enamel Adjustable Power | 210 | Slide | + 25 C to + 350 C | 260 PPM / C | - | - | - | - | - | - | - | - | - |
 D225K1K0E Wirewound Resistors - Chassis Mount 225watt 1K 10% RESISTOR POWER ADJ 1K OHM 225W RESISTOR; 1 Kilohms; 225 W; + 10; RADIAL LUG; + 260 PPM/ DEGC; WIREWOUND; LUG Wirewound Resistors 225watt 1K 10% Res Wirewound 1K Ohm 10% 225W ±260ppm/°C Ceramic RDL Lug Bolt-On RESISTOR, WIREWOUND, 1KOHM, 225W, 10% Ohmite | 35 | ¥181.20 | Wirewound Resistors | Power Resistors Wirewound Vitreous Enamel | Dividohm | 1 | Compliant | ±10% | 1 kOhms | 225W | 225 W | 4.595 kV | 1k | 10.500" (266.70mm) | 1.126" OD, 0.752" ID (28.60mm x 19.10mm) | Bulk | Solder Lug | Chassis Mount | Cylinder, Tube | Solder Lug | Vitreous Enamel Adjustable Power | 210 | Slide | + 25 C to + 350 C | 260 PPM / C | - | - | - | - | 85332900 | :OHMITE - D225 Series | :± 10% | :Wirewound | 0.318 |
