CKRA4810 solid state relay 系列
Custom Sensors & Technologies (CST)工业导轨安装固态继电器
Custom Sensors & Technologies (CST) 的 CKRA4810 系列是专为工业导轨安装设计的固态继电器。这些继电器广泛应用于需要切换交流或直流负载的各种控制系统中，而无需机械接触。它们特别适用于 HVAC 系统、照明控制和工业自动化面板等应用。
值得注意的是，与传统的电磁继电器相比，这些继电器具有显著的优势。它们没有活动部件，这意味着它们更可靠，使用寿命也更长。工程师在需要能够频繁切换且长时间不降级的坚固解决方案时，往往会选择这种继电器。由于没有触点，它们产生的噪音更少，也不会产生电弧，因此非常适合对电气噪声有要求的环境。
如果你的项目需要快速切换时间和高可靠性，CKRA4810 系列可能是一个很好的选择。它们通常配备过压保护和过流保护等功能，即使在恶劣条件下也能确保安全运行。此外，它们紧凑的尺寸使得它们很容易集成到现有的控制面板或空间有限的新设计中。

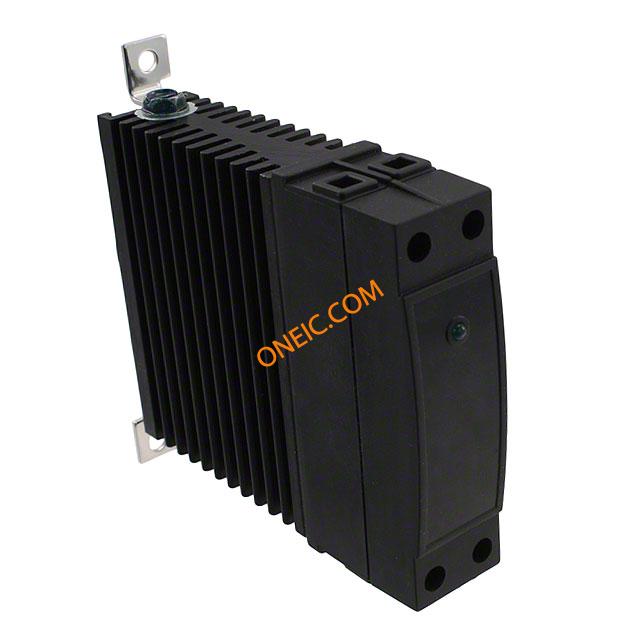

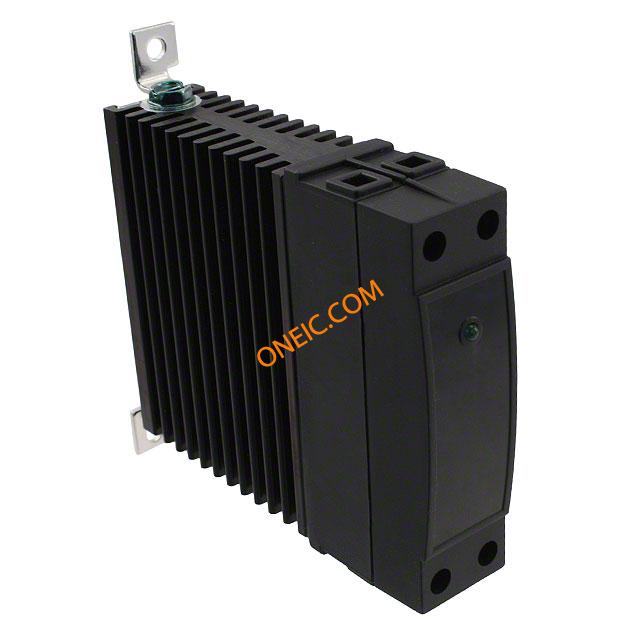

系列图片（7 张）
文档与媒体
常见问答
CKRA4810 solid state relay - 型号列表
共 8 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | 电路 | 输出类型 | 负载电流 | 负载电压 | 最小输入电压 | 包装方式 | 安装类型 | 封装形式 | 端接样式 | 继电器类型 | RoHS | 安装样式 | 产品子类型 | 交货时间 | 子类别 | 输出端 | 开启时间 | 浪涌电流 | 关断延迟时间 | 供电电压 | 电容范围 | 钳位电压 | 介电强度 | LED正向电压 | 断态电压 | 最大额定电流 | 绝缘电阻 | 最小负载要求 | 最小供电电压 | 集电极-发射极饱和电压（最大）@ Vge, Ic | 关态电流（最大） | 输入偏置电流（最大） | 通态峰值电压（最大） | 冲击放电电流 (8/20µs) | 重量 | 排间距 | 端子类型 | 螺钉扭矩 | 内部壳体材料 | 线规或范围 - AWG | 类型 | 系列 | 卡标准 | 控制/显示类型 | 其他规格 | 输出配置 | 开关次数 | 存储接口 | 工作温度 | 光通量 @ 电流/温度 | 工厂包装数量 | 输入逻辑高电平 | 限压电压（最大） | 静态电流（最大） | 深度 | 高度 | 长度 | 尺寸/外形 | 功能 | CAD图纸 | 开关类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Solid State Relays - Industrial Mount DIN SSR 530VAC/10A 90-280VAC In,ZC RELAY SSR SPST 10A@530VAC DIN MT 10A rms DIN Rail Panel Mount, Zero Crossing SCR Solid State Relay, 530V rms Relay SSR 4mA 280V AC-IN 10A 530V AC-OUT 4-Pin Solid State Relay Control Voltage: 90-280 VAC Load Current: 10 Amps Load Voltage: 48-530 VAC Output Configuration: 1A SPST-NO Mounting: DIN Rail Mount 22.5mm width Crydom 10 A 有效值 DIN Rail安装 固态继电器, SCR输出, 零交叉切换, 530 V 有效值 Crydom | 14 | 1: ¥594.388 | Solid State Relays - Industrial Mount | 20 | SPST-NO (1 Form A) | AC, Zero Cross | 10A | 48 ~ 530 V | 90 ~ 280VAC | Bulk | DIN Rail | SSR with Integrated Heat Sink | Screw | Relay | RoHS Compliant | DIN Rail | Industrial Mount | 56 Days | Solid State Relay | SCR | 1/2 Cycle (DC Control), 10.0 msec (AC Control) | 120 | 1/2 Cycle (DC Control), 40.0 msec(AC Control) | 90 VAC to 280 VAC | 8 pF | 1200 | 4000 Vrms | yes | 10 Vrms | 10 A | 10^9 Ohm | 0.15 | 48 VAC to 530 VAC | 1.6 | 10 | 2mA @ 120 Vrms, 4 mA @ 240Vrms | 90 Vrms | 60 | 10 oz. (280g) | 0.8 inch (20mm) | Box Clamp Type | 5.0-6.0 in lb (0.6-0.7Nm) | 22.5 mm | AWG #10 (3mm) | Relays | CKR24 | Solid State Relay | 90-280 VAC | 0.5 | 1A NO | 20 | -40 to 125C | -40 to 80C | 10 | 1 | 90 → 280 V ac | 530 V rms | 0.15 A | 22.5mm | 99mm | 81.9mm | 81.9 x 22.5 x 99mm | Y | 3D CAD Model | Zero Crossing |
Solid State Relays - Industrial Mount DIN SSR 530VAC/10A , 90-280VAC In,ZC RELAY SSR SPST 10A@530VAC W/OVP Relay SSR 4mA 280V AC-IN 10A 530V AC-OUT 4-Pin DINSSR530VAC/10A,90-280VACIn,ZC Crydom | 10 | 1: ¥395.692 | - | 20 | SPST-NO (1 Form A) | AC, Zero Cross | 10A | 48 ~ 530 V | 90 ~ 280VAC | Bulk | DIN Rail | SSR with Integrated Heat Sink | Screw Terminal | Relay | Lead free / RoHS Compliant | DIN Rail | Industrial Mount | 56 Days | Solid State Relay | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Solid State Relays - Industrial Mount DIN SSR 530VAC/10A , 18-36VAC In,ZC RELAY SSR SPST 10A@530VAC DIN MT Solid State Relay Control Voltage: 18-36 VAC Load Current: 10 Amps Load Voltage: 48-530 VAC Output Configuration: 1A SPST-NO Mounting: DIN Rail Mount 22.5mm width Crydom | 10 | 7: ¥411.672 | - | 20 | SPST-NO (1 Form A) | AC, Zero Cross | 10A | 48 ~ 530 V | 18 ~ 36VAC | Bulk | DIN Rail | SSR with Integrated Heat Sink | Screw | Relay | Lead free / RoHS Compliant | DIN Rail | Industrial Mount | - | - | SCR | 1/2 Cycle (DC Control), 10.0 msec (AC Control) | 120 | 1/2 Cycle (DC Control), 40.0 msec(AC Control) | 18 VAC to 36 VAC | 8 pF | 1200 | 4000 Vrms | yes | 4.0 Vrms | 10 A | 10^9 Ohm | 0.15 | 48 VAC to 530 VAC | 1.6 | 10 | 10mA @ 24 Vrms | 18 Vrms | 60 | 10 oz. (280g) | 0.8 inch (20mm) | Box Clamp Type | 5.0-6.0 in lb (0.6-0.7Nm) | 22.5 mm | AWG #10 (3mm) | Relays | CKR24 | Solid State Relay | 18-36 VAC | 0.5 | 1A NO | 20 | -40 to 125C | -40 to 80C | 10 | - | - | - | - | - | - | - | - | - | - | - |
 | 0 | - | 10 | SPST-NO (1 Form A) | AC, Zero Cross | 10A | 48 ~ 530 V | 18 ~ 36VAC | Bulk | DIN Rail | SSR with Integrated Heat Sink | Screw Terminal | Relay | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| 0 | - | 10 | SPST-NO (1 Form A) | AC, Zero Cross | 10A | 48 ~ 530 V | 18 ~ 36VAC | Bulk | DIN Rail | SSR with Integrated Heat Sink | Screw Terminal | Relay | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| 0 | - | 10 | SPST-NO (1 Form A) | AC, Zero Cross | 10A | 48 ~ 530 V | 18 ~ 36VAC | Bulk | DIN Rail | SSR with Integrated Heat Sink | Screw Terminal | Relay | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| 0 | - | 10 | SPST-NO (1 Form A) | AC, Zero Cross | 10A | 48 ~ 530 V | 90 ~ 280VAC | Bulk | DIN Rail | SSR with Integrated Heat Sink | Screw Terminal | Relay | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| 0 | - | 10 | SPST-NO (1 Form A) | AC, Zero Cross | 10A | 48 ~ 530 V | 90 ~ 280VAC | Bulk | DIN Rail | SSR with Integrated Heat Sink | Screw Terminal | Relay | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
