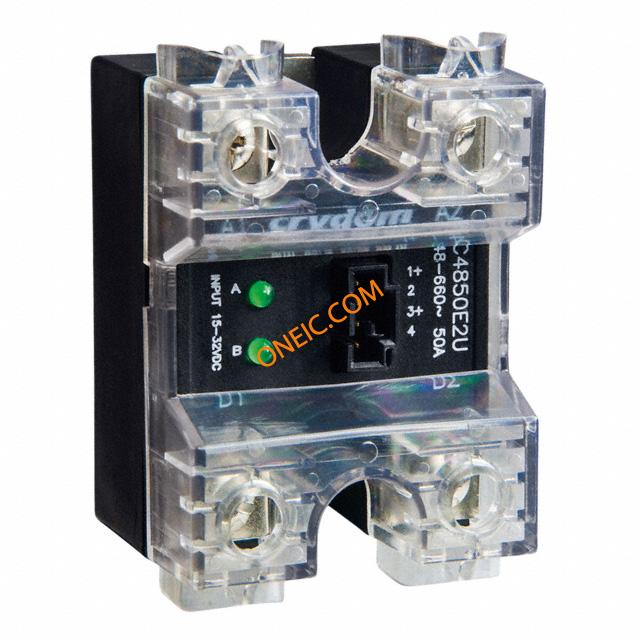

CC4850E2 optoelectronic 系列
Custom Sensors & Technologies (CST)工业用面板安装双通道固态继电器
Custom Sensors & Technologies (CST) 的 CC4850E2 系列是一款坚固的工业双通道固态继电器系列，专为面板安装应用设计。这些继电器常用于控制面板、自动化系统和机械设备中，用于无机械磨损地精确切换电气电路。它们采用晶闸管或其他类似半导体器件工作，这意味着与传统的电磁继电器相比，它们具有更快的切换时间。
一个实际观察是，在可靠性与寿命至关重要的环境中，这些继电器特别有用。由于它们没有活动部件，因此表现出极小的磨损，从而延长了使用寿命。此外，其紧凑的设计使它们非常适合空间受限的应用，例如控制柜和嵌入式系统。当工程师需要一种可靠且持久的解决方案时，他们往往会选择这种继电器，该解决方案不会引入额外的热量或噪音到系统中。另一个优点是它们能够处理高电流，使其适用于从照明控制到电动设备等各种广泛的工业应用。如果您正在从事涉及电力分配或自动化机械设备的项目，CC4850E2 系列可能是您工具箱中的宝贵补充。
系列图片（4 张）
文档与媒体
常见问答
CC4850E2 optoelectronic - 型号列表
共 8 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | RoHS | 电路 | 输出类型 | 负载电流 | 负载电压 | 最小输入电压 | 包装方式 | 安装类型 | 封装形式 | 端接样式 | 继电器类型 | 产品子类型 | 输出端 | 供电电压 | 最大额定电流 | 最小供电电压 | 安装样式 | 类型 | 系列 | 卡标准 | 控制/显示类型 | 输出配置 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Solid State Relays - Industrial Mount Dual IP20 660VAC/50A 15-32VDC,RN RELAY SSR DUAL 50A RNDM PNL MNT Solid State Relay Control Voltage: 15-32 VDC Load Current: 50 Amps Load Voltage: 48-660 VAC Output Configuration: 2A DPST-NO Mounting: Panel Mount Crydom | 10 | 13: ¥736.848 | - | 20 | RoHS Compliant | DPST (2 Form A) | AC | 50A | 48 ~ 660 V | 15 ~ 32VDC | Bulk | Chassis Mount or Panel Mount | Hockey Puck | Screw | Relay | Industrial Mount | SCR | 15 VDC to 32 VDC | 50 A | 48 VAC to 660 VAC | Panel | Relays | Evolution Dual | Solid State Relay | 15-32 VDC | 2A DPST-NO |
Solid State Relays - Industrial Mount Dual IP20 660VAC/50A 15-32VDC,RN RELAY SSR DUAL 50A RNDM PNL MNT Crydom | 10 | 13: ¥748.68 | - | 20 | RoHS Compliant | DPST (2 Form A) | AC | 50A | 48 ~ 660 V | 15 ~ 32VDC | Bulk | Chassis Mount or Panel Mount | Hockey Puck | Screw Terminal | Relay | Industrial Mount | - | - | - | - | - | - | - | - | - | - |
Solid State Relays - Industrial Mount Dual IP20 660VAC/50A 15-32VDC,ZC RELAY SSR DUAL 50A ZERO PNL MNT Solid State Relay Control Voltage: 15-32 VDC Load Current: 50 Amps Load Voltage: 48-660 VAC Output Configuration: 2A DPST-NO Mounting: Panel Mount Crydom | 10 | 13: ¥713.184 | - | 20 | RoHS Compliant | DPST (2 Form A) | AC, Zero Cross | 50A | 48 ~ 660 V | 15 ~ 32VDC | Bulk | Chassis Mount or Panel Mount | Hockey Puck | Screw | Relay | Industrial Mount | SCR | 15 VDC to 32 VDC | 50 A | 48 VAC to 660 VAC | Panel | Relays | Evolution Dual | Solid State Relay | 15-32 VDC | 2A DPST-NO |
Solid State Relays - Industrial Mount Dual IP20 660VAC/50A 15-32VDC,ZC RELAY SSR DUAL 50A ZERO PNL MNT Crydom | 10 | 13: ¥724.948 | - | 20 | RoHS Compliant | DPST (2 Form A) | AC, Zero Cross | 50A | 48 ~ 660 V | 15 ~ 32VDC | Bulk | Chassis Mount or Panel Mount | Hockey Puck | Screw Terminal | Relay | Industrial Mount | - | - | - | - | - | - | - | - | - | - |
Solid State Relays - Industrial Mount Dual IP20 660VAC/50A 15-32VDC,ZC RELAY SSR DUAL 50A ZERO PNL MNT Crydom | 10 | 13: ¥724.948 | - | 20 | RoHS Compliant | DPST (2 Form A) | AC, Zero Cross | 50A | 48 ~ 660 V | 15 ~ 32VDC | Bulk | Chassis Mount or Panel Mount | Hockey Puck | Screw Terminal | Relay | Industrial Mount | - | - | - | - | - | - | - | - | - | - |
Solid State Relays - Industrial Mount Dual IP20 660VAC/50A 15-32VDC,RN RELAY SSR DUAL 50A RNDM PNL MNT Crydom | 10 | 13: ¥748.68 | - | 20 | RoHS Compliant | DPST (2 Form A) | AC | 50A | 48 ~ 660 V | 15 ~ 32VDC | Bulk | Chassis Mount or Panel Mount | Hockey Puck | Screw Terminal | Relay | Industrial Mount | - | - | - | - | - | - | - | - | - | - |
Solid State Relays - Industrial Mount Dual IP20 660VAC/50A 15-32VDC,ZC RELAY SSR DUAL 50A ZERO PNL MNT DualIP20660VAC/50A,15-32VDC,ZC Solid State Relay Control Voltage: 15-32 VDC Load Current: 50 Amps Load Voltage: 48-660 VAC Output Configuration: 2A DPST-NO Mounting: Panel Mount Crydom | 10 | 13: ¥713.184 | - | 20 | RoHS Compliant | DPST (2 Form A) | AC, Zero Cross | 50A | 48 ~ 660 V | 15 ~ 32VDC | Bulk | Chassis Mount or Panel Mount | Hockey Puck | Screw | Relay | Industrial Mount | SCR | 15 VDC to 32 VDC | 50 A | 48 VAC to 660 VAC | Panel | Relays | Evolution Dual | Solid State Relay | 15-32 VDC | 2A DPST-NO |
Solid State Relays - Industrial Mount Dual IP20 660VAC/50A 15-32VDC,RN RELAY SSR DUAL 50A RNDM PNL MNT Solid State Relay Control Voltage: 15-32 VDC Load Current: 50 Amps Load Voltage: 48-660 VAC Output Configuration: 2A DPST-NO Mounting: Panel Mount Crydom | 10 | 13: ¥736.848 | - | 20 | RoHS Compliant | DPST (2 Form A) | AC | 50A | 48 ~ 660 V | 15 ~ 32VDC | Bulk | Chassis Mount or Panel Mount | Hockey Puck | Screw | Relay | Industrial Mount | SCR | 15 VDC to 32 VDC | 50 A | 48 VAC to 660 VAC | Panel | Relays | Evolution Dual | Solid State Relay | 15-32 VDC | 2A DPST-NO |
