C0510X6S0 passive component 系列
TDK CorporationSMD/SMT用多层陶瓷电容器
TDK的C0510X6S0系列是一种适用于表面安装技术（SMT）应用的多层陶瓷电容器。这些组件广泛用于手机、笔记本电脑和汽车电子等空间受限的电子产品中。如果您正在处理需要高频性能和紧凑尺寸的项目，这些电容器是理想的选择。
值得注意的是，它们具有出色的温度稳定性。在广泛的温度范围内，它们能够保持一致的电容值，这对于确保在各种环境条件下可靠运行至关重要。当工程师需要能够在消费电子产品中承受常见热波动而不降低质量的组件时，往往会选择这种电容器。
另一个实用的好处是其坚固性。这些电容器可以承受高纹波电流，并具有良好的静电放电（ESD）防护能力，使其适合可能产生静电的环境。它们在恶劣条件下的可靠性确保了您的设计即使在非理想情况下也能保持稳定并良好运行。
系列图片（5 张）
文档与媒体
常见问答
C0510X6S0 passive component - 型号列表
共 10 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 容差 | 电容 | 额定电压 | 封装形式 | 温度系数 | 零件号别名 | 包装方式 | 端接样式 | 安装孔直径 | 尺寸/外形 | 工作温度 | RoHS | 产品 | 标准包装数量 | 安装类型 | 厚度（最大） | 产品特性 | 应用 | 最小起订量 | 单位包装 | 其他名称 | 类型 | 宽度 | 工厂包装数量 | 抗辐射加固 | 电压 | 深度 | 高度 | 直径 | 结构 | 安装样式 | 线规或范围 - AWG | 失效率 | 系列 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Multilayer Ceramic Capacitors MLCC - SMD/SMT 4.0V 0.1uF X6S 20% Flip Chip 0204 TDK Corporation | 10 | 1: ¥3.332 | Multilayer Ceramic Capacitors MLCC - SMD/SMT | 20 % | 0.1 uF | 4 V | 0204 (Reversed) | X6S | C0510X6S0G104M030AC | Reel | SMD/SMT | 0204 (Reversed) | - | - | RoHS Compliant | - | - | - | - | - | - | - | - | - | - | - | 10000 | - | - | - | - | - | - | - | - | - | - |
| 0 | - | 20 % | 0.022 uF | 4 V | 0402 (1005 metric) | X6S | C0510X6S0G224M | - | SMD/SMT | 0402 | 0.52 mm W x 1 mm L x 0.3 mm H | - 55 C to + 105 C | - | General Type MLCCs | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
 Multilayer Ceramic Capacitors MLCC - SMD/SMT 0204, 0.47uF, 4volts X6S, +/-20% Cap Ceramic 0.47uF 4V X6S 20% SMD 0204 105C Paper T/R TDK Corporation | 10 | 15000: ¥0.4828 | - | 20 % | 0.47 uF | 4 V | 0204 (Reversed) | X6S | C0510X6S0G474M030AC | Reel | SMD/SMT | 0204 (Reversed) | 1 mm W x 0.52 mm L x 0.3 mm H | - 55 C to + 105 C | - | General Type MLCCs | - | - | - | - | - | - | - | - | - | - | - | No | 4VDC | 1 mm | 0.3 mm | Not Required mm | SMT Chip | Surface Mount | Not Required | Not Required | - |
Multilayer Ceramic Capacitors MLCC - SMD/SMT 4.0V 0.1uF X6S 20% Flip Chip 0204 TDK Corporation | 0 | Multilayer Ceramic Capacitors MLCC - SMD/SMT | 20 % | 0.1 uF | 4 V | 0204 (Reversed) | X6S | C0510X6S0G104M | Reel | SMD/SMT | 0204 (Reversed) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 10000 | - | - | - | - | - | - | - | - | - | - | |
 | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
 CAP CER 0.1UF 4V 20% X6S 0204 C0510X6S0G104M Multilayer Ceramic Capacitors MLCC - SMD/SMT 4.0V 0.1uF X6S 20% Flip Chip 0204 TDK Corporation | 45723 | 1: ¥1.972 | Multilayer Ceramic Capacitors MLCC - SMD/SMT | ±20% | 0.1µF | 4V | 0204 (0510 Metric) | X6S | C0510X6S0G104M | Tape & Reel (TR) | SMD/SMT | 0510 (Reversed) | 0.020" L x 0.039" W (0.50mm x 1.00mm) | -55°C ~ 105°C | Lead free / RoHS Compliant | Reverse Geometry Type MLCCs | 15,000 | Surface Mount, MLCC | 0.020" (0.50mm) | Low ESL (Reverse Geometry) | Bypass, Decoupling | 15000 | 15000 | 445-4061-1 | Low ESL Reverse Geometery | - | - | - | - | - | - | - | - | - | - | - | - |
CAP CER 0.47UF 4V 20% X6S 0204 C0510X6S0G474M Multilayer Ceramic Capacitors MLCC - SMD/SMT 0204, 0.47uF, 4volts X6S, +/-20% TDK Corporation | 25910 | 1: ¥3.264 | - | ±20% | 0.47µF | 4V | 0204 (0510 Metric) | X6S | C0510X6S0G474M | Tape & Reel (TR) | SMD/SMT | 0510 (Reversed) | 0.020" L x 0.039" W (0.50mm x 1.00mm) | -55°C ~ 105°C | Lead free / RoHS Compliant | Reverse Geometry Type MLCCs | 15,000 | Surface Mount, MLCC | 0.020" (0.50mm) | Low ESL (Reverse Geometry) | Bypass, Decoupling | 15000 | 15000 | 445-7076-1 | Low ESL Reverse Geometery | 1 mm | - | - | - | - | - | - | - | - | - | - | - |
.jpg){kind=small} CAP CER 1UF 4V 20% X6S 0204 C0510X6S0G105M Multilayer Ceramic Capacitors MLCC - SMD/SMT 0204 1.0uF 4volts X6S +/-20% Low ESL TDK Corporation | 29811 | 1: ¥3.196 | - | ±20% | 1.0µF | 4V | 0204 (0510 Metric) | X6S | C0510X6S0G105M | Tape & Reel (TR) | SMD/SMT | 0510 (Reversed) | 0.020" L x 0.039" W (0.50mm x 1.00mm) | -55°C ~ 105°C | Lead free / RoHS Compliant | Reverse Geometry Type MLCCs | 15,000 | Surface Mount, MLCC | 0.020" (0.50mm) | Low ESL (Reverse Geometry) | Bypass, Decoupling | 15000 | 15000 | 445-9114-1 | Low ESL Reverse Geometery | 1 mm | - | - | - | - | - | - | - | - | - | - | C |
C0510X6S0G224M CAP CER 0.22UF 4V 20% X6S 0204 Multilayer Ceramic Capacitors MLCC - SMD/SMT 220000pF 20% 4Volts TDK Corporation | 31407 | 1: ¥1.972 | - | ±20% | 0.22µF | 4V | 0204 (0510 Metric) | X6S | C0510X6S0G224M | Tape & Reel (TR) | SMD/SMT | 1005 | 0.020" L x 0.039" W (0.50mm x 1.00mm) | -55°C ~ 105°C | Lead free / RoHS Compliant | Reverse Geometry Type MLCCs | 15,000 | Surface Mount, MLCC | 0.020" (0.50mm) | Low ESL (Reverse Geometry) | Bypass, Decoupling | 15000 | 15000 | 445-7075-1 | Low ESL Reverse Geometery | 0.52 mm | - | - | - | - | - | - | - | - | - | - | - |

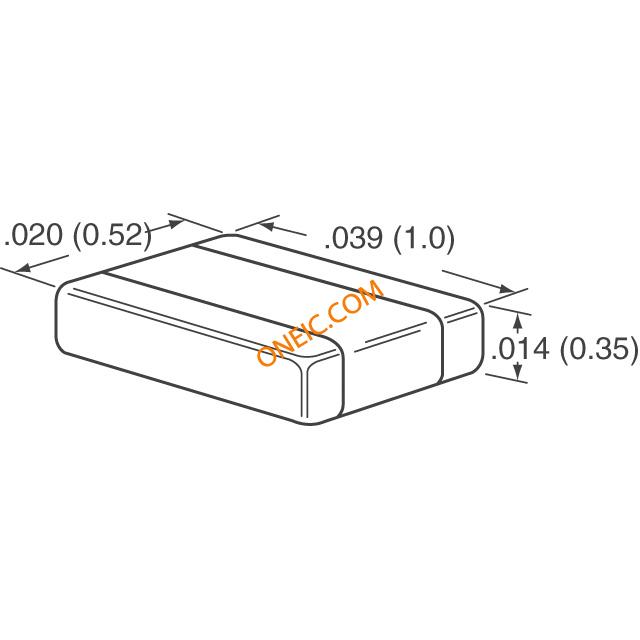

| 27285 | 1: ¥2.788 | - | ±20% | 0.47µF | 6.3V | 0204 (0510 Metric) | X6S | - | Tape & Reel (TR) | - | - | 0.020" L x 0.039" W (0.52mm x 1.00mm) | -55°C ~ 105°C | Lead free / RoHS Compliant | - | 15,000 | Surface Mount, MLCC | 0.014" (0.35mm) | Low ESL (Reverse Geometry) | Bypass, Decoupling | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
