BH-USB emulators / simulator 系列
Blackhawk (EWA Technologies, Inc.)各种DSP和ARM的JTAG仿真器/模拟器
Blackhawk 的 BH-USB 模拟器是 JTAG 模拟器，适用于各种数字信号处理器（DSP）和基于 ARM 的微控制器。如果您正在从事嵌入式系统开发，这些模拟器会非常有用。它们可以高效地调试和测试固件，这对于确保硬件在实际场景中按预期工作至关重要。
值得注意的一点是，这些模拟器支持多种流行的 DSP 和 ARM 架构，使它们成为不同项目中的多功能工具。当工程师需要一种可靠的方法在开发过程中与目标硬件进行接口时，往往会选择这种模拟器。例如，如果您正在处理涉及音频处理或信号分析的项目，拥有一个强大的 JTAG 模拟器可以显著加快开发周期，通过快速反馈代码更改来提供帮助。
另一个实用的观察是，这些模拟器通常附带包含全面文档和示例的软件开发套件（SDK）。这对于刚开始使用特定 DSP 或 ARM 架构的新开发者来说尤其有帮助。总体而言，BH-USB 模拟器为希望简化调试过程并确保嵌入式系统正常工作的任何人提供了坚实解决方案。
系列图片（9 张）
文档与媒体
常见问答
BH-USB emulators / simulator - 型号列表
共 15 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 产品 | RoHS | 接口 | 供电电压 | 核心类型 | 工具类型/特性 | 适用产品/相关产品 | 标准包装数量 | 类型 | 内容 | 其他名称 | 功能 | 机械寿命 | 包装方式 | 尺寸/外形 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Emulators / Simulators USB560BP Emulator Blackhawk USB560BP JTAG Emulator EMULATOR JTAG USB560BP Blackhawk | 10 | 1: ¥20,230.00 | Emulators / Simulators | JTAG Emulators | Not Applicable | JTAG, USB | 5 V | TMS320 | ARM, Cxxxx, TMS320, TMS470, TMS570 Microcontrollers | TI DSP Platforms: C6000, C5000, C2000, ARM Cortex, DaVinci, Omap, Piccolo and More | 1 | In-Circuit Emulator | Emulator, Cable, CD, Documentation | BHUSB560BP | - | - | - | - |
 | 10 | 1: ¥16,222.50 | Emulators / Simulators | JTAG Emulators | Not Applicable | JTAG, USB | 5 V | TMS320 | ARM, Cxxxx, TMS320, TMS470, TMS570 Microcontrollers | TI DSP Platforms: C6000, C5000, C2000, ARM Cortex, DaVinci, Omap, Piccolo and More | 1 | In-Circuit Emulator | Emulator, Adapters, Cables, CD, Documentation, Power Supply | BHUSB560M | - | - | - | - |

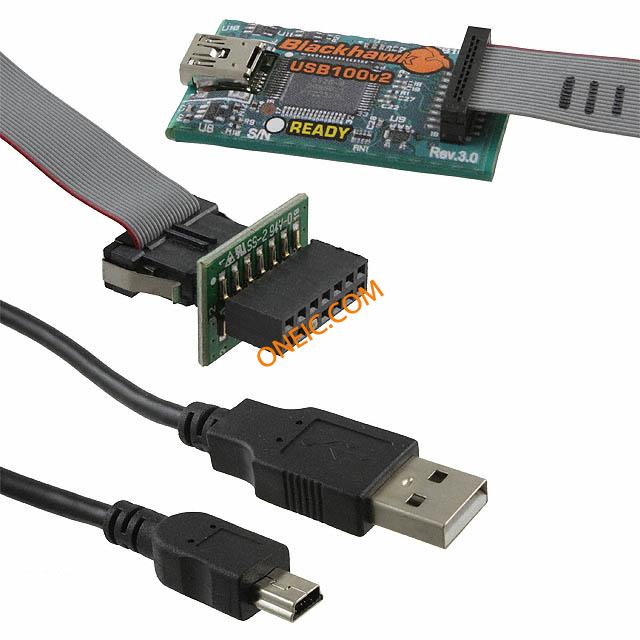

 Emulators / Simulators USB100 JTAG CONTROLR VERSION 2D USB100V2 JTAG CTLR MOD D TI DSP Blackhawk | 79 | 1: ¥673.20 | Emulators / Simulators | JTAG Emulators | RoHS Compliant | JTAG, USB | 1.8 V to 3.3 V | ARM, TMS320 | ARM, TMS320C28x, TMS320C54x, TMS320C55x, TMS320C674x | CCS v4 | 1 | In-Circuit Emulator | Board, Adapter, Cable, Documentation | - | Low cost controller for basic debugging of Texas Instruments DSPs | - | - | 70 mm x 20 mm x 15 mm |
 | 10 | 1: ¥5,760.79 | Emulators / Simulators | JTAG Emulators | Not Applicable | JTAG, USB | 3.3 V to 5 V | TMS320 | ARM, Cxxxx, TMS320, TMS470, TMS570 Microcontrollers | TI DSP Platforms: C6000, C5000, C2000, OMAP, VC33 | 1 | In-Circuit Emulator | Controller Pod, Cable, CD, Documentation | - | - | - | - | - |
 | 17 | 1: ¥2,155.79 | Emulators / Simulators | JTAG Emulators | Not Applicable | JTAG, USB | 3.3 V to 5 V | C2000 | C2000 Microcontrollers | TI DSP Platforms: TMS320C2000 Family F283x, F281x, F280x(x), LF240x | 1 | Controller | Controller Pod, Cable, CD, Documentation | - | - | - | - | - |
 | 0 | Emulators / Simulators | Trace Emulator | Not Applicable | JTAG, USB | 3.3 V | TMS320 | TMS320 Microcontrollers with Trace | - | - | - | - | - | - | Obsolete | - | - | |
 | 0 | Emulators / Simulators | JTAG Emulators | Not Applicable | JTAG, USB | 1.8 V to 3.3 V | TMS320 | TMS320C28x, TMS320C54x, TMS320C55x, TMS320C674x | CCS v3.3 | - | - | - | - | Low cost controller for basic debugging of Texas Instruments DSPs | Obsolete | - | 70 mm x 20 mm x 15 mm | |
 | 0 | Emulators / Simulators | JTAG Emulators | Not Applicable | JTAG, USB | 1.8 V, 3.3 V, 5 V | TMS320 | ARM, Cxxxx, TMS320, TMS470, TMS570 Microcontrollers | - | - | - | - | - | - | Obsolete | - | - | |
 | 0 | Emulators / Simulators | JTAG Emulators | Not Applicable | JTAG, USB | 1.8 V to 3.3 V | TMS320 | ARM, Cxxxx, TMS320, TMS470, TMS570 Microcontrollers | - | - | - | - | - | - | Obsolete | - | - | |
| 10 | 1: ¥20,393.20 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 10 | 1: ¥11,900.00 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
USB100V2 ARM CTLR JTAG TI DSP Emulators / Simulators USB100v2 CONTROLLER FOR ARM / STELLARIS Blackhawk | 125 | 1: ¥673.20 | - | JTAG Emulators | RoHS Compliant | JTAG, USB | 1.8 V, 3.3 V | ARM, TMS320 | ARM, TMS320C28x, TMS320C54x, TMS320C55x, TMS320C64x, TMS320C674x | TMS32028x/54x/55x/674x/64x+, ARM9, ARM Cortexm3/R4/A8 | 1 | Controller | Board, Cables | BHUSB100V2ARM | USB100v2-ARM is a very low-cost controller for basic debugging of Texas Instruments DSPs | - | Bulk | - |
USB510 WIFI JTAG EMU FOR TI DSP Emulators / Simulators USB510 WiFi JTAG EMULATOR Blackhawk | 10 | 1: ¥10,200.00 | - | JTAG Emulators | RoHS Compliant | 820.11 a/b/g/n, USB | 1.8 V, 3.3 V, 5 V | TMS320 | C6000, C5000, C2000, OMAP, DAVINCI, SITARA, TMS470, TMS570, ARM 7/9, ARM Cortex A8/R4/M3, Integra | TI DSP Platforms: C6000, C5000, C2000, OMAP, DaVinci | 1 | Emulator | Emulation Module | BHUSB510W | Wireless JTAG emulator for TI DSPs | - | Bulk | - |
XDS560V2 SYSTEM TRACE STM USB Emulators / Simulators USB560v2 STM EMULATOR (USB-ONLY) Blackhawk | 53 | 1: ¥6,793.20 | - | System Trace Emulators | RoHS Compliant | JTAG, USB | 1.2 V to 4.1 V | ARM | C6000, C5000, C2000, OMAP, DAVINCI, SITARA, TMS470, TMS570, ARM 7/9, ARM Cortex A8/R4/M3 | TI DSP Platforms: C6000, C5000, C2000, OMAP, DaVinci | 1 | Emulator | Emulator, Cable, CD, Documentation | BHUSB560V2 | - | - | Bulk | - |
| 106 | 1: ¥2,006.00 | - | JTAG Emulators | RoHS Compliant | USB | 1.8 V, 3.3 V | - | - | TI XDS2xx | - | - | - | - | The USB200 offers an excellent balance of performance and price placing it in between the super low cost XDS100 and high performance XDS560 class emulators | - | - | - |
