ARV10 switche 系列
Panasonic Corporation各种电压的同轴和射频开关
Panasonic生产的ARV10开关系列设计用于处理不同电压范围内的同轴和射频信号。这些开关常用于需要在射频环境中可靠地进行信号路由和分配的应用场合，例如测试设备、广播设施和无线基础设施。如果您正在处理需要管理高频信号并保持信号完整性的系统，那么这些开关是一个不错的选择。
值得注意的是，它们具有坚固的设计，可以在宽温范围内工作。这使得它们适用于户外安装或温度波动较大的环境。当工程师们需要在无需复杂控制系统的情况下获得可靠的射频信号切换解决方案时，往往会选用这一系列开关。它们提供了一种简单有效的信号路由和隔离方法，适用于各种射频系统。

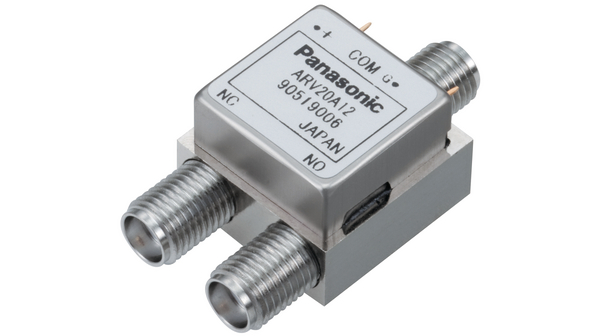

系列图片（3 张）
文档与媒体
常见问答
ARV10 switche - 型号列表
共 12 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | RoHS | VSWR | 电路 | 频率 | 阻抗 | 隔离 | 插入损耗 | 最大频率 | 供电电压 | 输出频率2 | 插入损耗（最大） | 包装方式 | 触点形式 | 封装形式 | 端接样式 | 射频类型 | 拓扑 | 工作温度 | 供应商器件封装 | 线圈功率 | 电感量 | 测试电压 | 额定电压 | 频率组 | 典型衰减 | 阻抗（最大）（Zzt） | 尺寸 | 触头材料 | 触点数 | 继电器类型 | 电路类型 | 连接方式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Coaxial Switches SPDT 12 Volts 8GHz RV COAXIAL SWITCH RF Switch SPDT 0MHz to 8GHz 70dB Panasonic Electric Works | 10 | 1: ¥5,801.964 | - | 5 | RoHS Compliant | 1.35 | SPDT | 8 GHz | 50 Ohms | 70 dB | 0.3 dB | 8GHz | 12 VDC | DC | 0.3dB (max) @ 8GHz | Bulk | SPDT | Module, SMA Connectors | SMA | General Purpose | Reflective | -55°C ~ 85°C | Module | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Coaxial Switches SPDT 12 Volts 8GHz RV COAXIAL SWITCH RF Switch SPDT 0MHz to 8GHz 60dB 5-Pin Panasonic Electric Works | 10 | 1: ¥5,028.464 | - | 5 | RoHS Compliant | 1.4 | SPDT | 8 GHz | 50 Ohms | 60 dB | 0.4 dB | 8GHz | 12 VDC | DC | 0.4dB (max) @ 8GHz | Bulk | SPDT | Module, Pin Contacts | Solder Terminal | General Purpose | Reflective | -55°C ~ 85°C | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Coaxial Switches SPDT 24 Volts 8GHz RV COAXIAL SWITCH RF Switch SPDT 0MHz to 8GHz 70dB Panasonic Electric Works | 10 | 1: ¥5,608.572 | - | 5 | RoHS Compliant | 1.35 | SPDT | 8 GHz | 50 Ohms | 70 dB | 0.3 dB | 8GHz | 24 VDC | DC | 0.3dB (max) @ 8GHz | Bulk | SPDT | Module, SMA Connectors | SMA | General Purpose | Reflective | -55°C ~ 85°C | Module | - | - | - | - | - | - | - | - | - | - | - | - | - |
Coaxial Switches SPDT 12 Volts 8GHz RV COAXIAL SWITCH RF Switch SPDT 0MHz to 8GHz 60dB 5-Pin Panasonic Electric Works | 10 | 1: ¥5,221.788 | - | 5 | RoHS Compliant | 1.4 | SPDT | 8 GHz | 50 Ohms | 60 dB | 0.4 dB | 8GHz | 12 VDC | DC | 0.4dB (max) @ 8GHz | Bulk | SPDT | Module, Pin Contacts | Solder Terminal | General Purpose | Reflective | -55°C ~ 85°C | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Coaxial Switches SPDT 4.5 Volts 8GHz RV COAXIAL SWITCH RF Switch SPDT 0MHz to 8GHz 60dB 5-Pin Panasonic Electric Works | 10 | 1: ¥5,221.788 | - | 5 | RoHS Compliant | 1.4 | SPDT | 8 GHz | 50 Ohms | 60 dB | 0.4 dB | 8GHz | 4.5 VDC | DC | 0.4dB (max) @ 8GHz | Bulk | SPDT | Module, Pin Contacts | Solder Terminal | General Purpose | Reflective | -55°C ~ 85°C | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Coaxial Switches SPDT 12 Volts 8GHz RV COAXIAL SWITCH RF Switch SPDT 0MHz to 8GHz 70dB Signal relay 12 VDC 205.7 Ohm 700 mW SMA, ARV10A12, Panasonic Panasonic Electric Works | 10 | 1: ¥5,020.10 | - | 5 | RoHS Compliant | 1.35 | SPDT | 8 GHz | 50 Ohms | 70 dB | 0.3 dB | 8GHz | 12 VDC | DC | 0.3dB (max) @ 8GHz | Bulk | SPDT | Module, SMA Connectors | SMA | General Purpose | Reflective | -55°C ~ 85°C | Module | 12 | 205.7 | 0.5 | 1.35@ 8.0 GHz | General Purpose | 70 dB@ 8.0 GHz | 50 Ohm | 33.4 x 17.8 x 13.3 mm | Au plated | 1 change-over (CO) | Monostable | SPDT | SMA |
Coaxial Switches SPDT 4.5 Volts 8GHz RV COAXIAL SWITCH RF Switch SPDT 0MHz to 8GHz 70dB Panasonic Electric Works | 10 | 1: ¥5,801.964 | - | 5 | RoHS Compliant | 1.35 | SPDT | 8 GHz | 50 Ohms | 70 dB | 0.3 dB | 8GHz | 4.5 VDC | DC | 0.3dB (max) @ 8GHz | Bulk | SPDT | Module, SMA Connectors | SMA | General Purpose | Reflective | -55°C ~ 85°C | Module | - | - | - | - | - | - | - | - | - | - | - | - | - |
Coaxial Switches SPDT 4.5 Volts 8GHz RV COAXIAL SWITCH RF Switch SPDT 0MHz to 8GHz 60dB 5-Pin Panasonic Electric Works | 10 | 1: ¥5,028.464 | - | 5 | RoHS Compliant | 1.4 | SPDT | 8 GHz | 50 Ohms | 60 dB | 0.4 dB | 8GHz | 4.5 VDC | DC | 0.4dB (max) @ 8GHz | Bulk | SPDT | Module, Pin Contacts | Solder Terminal | General Purpose | Reflective | -55°C ~ 85°C | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Coaxial Switches SPDT 4.5 Volts 8GHz RV COAXIAL SWITCH RF Switch SPDT 0MHz to 8GHz 70dB Panasonic Electric Works | 10 | 1: ¥5,608.572 | - | 5 | RoHS Compliant | 1.35 | SPDT | 8 GHz | 50 Ohms | 70 dB | 0.3 dB | 8GHz | 4.5 VDC | DC | 0.3dB (max) @ 8GHz | Bulk | SPDT | Module, SMA Connectors | SMA | General Purpose | Reflective | -55°C ~ 85°C | Module | - | - | - | - | - | - | - | - | - | - | - | - | - |
Coaxial Switches SPDT 24 Volts 8GHz RV COAXIAL SWITCH RF Switch SPDT 0MHz to 8GHz 60dB 5-Pin Panasonic Electric Works | 10 | 1: ¥5,221.788 | - | 5 | RoHS Compliant | 1.4 | SPDT | 8 GHz | 50 Ohms | 60 dB | 0.4 dB | 8GHz | 24 VDC | DC | 0.4dB (max) @ 8GHz | Bulk | SPDT | Module, Pin Contacts | Solder Terminal | General Purpose | Reflective | -55°C ~ 85°C | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Coaxial Switches SPDT 24 Volts 8GHz RV COAXIAL SWITCH RF Switch SPDT 0MHz to 8GHz 70dB Panasonic Electric Works | 10 | 1: ¥5,801.964 | - | 5 | RoHS Compliant | 1.35 | SPDT | 8 GHz | 50 Ohms | 70 dB | 0.3 dB | 8GHz | 24 VDC | DC | 0.3dB (max) @ 8GHz | Bulk | SPDT | Module, SMA Connectors | SMA | General Purpose | Reflective | -55°C ~ 85°C | Module | - | - | - | - | - | - | - | - | - | - | - | - | - |
Coaxial Switches SPDT 24 Volts 8GHz RV COAXIAL SWITCH RF Switch SPDT 0MHz to 8GHz 60dB 5-Pin Panasonic Electric Works | 10 | 1: ¥5,028.464 | - | 5 | RoHS Compliant | 1.4 | SPDT | 8 GHz | 50 Ohms | 60 dB | 0.4 dB | 8GHz | 24 VDC | DC | 0.4dB (max) @ 8GHz | Bulk | SPDT | Module, Pin Contacts | Solder Terminal | General Purpose | Reflective | -55°C ~ 85°C | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
