78RB08 switche 系列

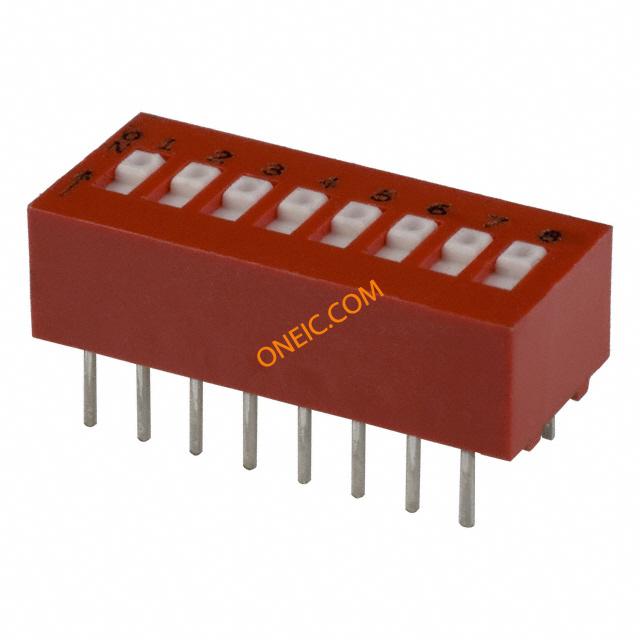

Grayhill, Inc.8位凹入式DIP开关，适用于PC使用
Grayhill, Inc. 的78RB08系列是一款8位凹入式DIP开关，专为个人计算机应用设计。这些开关常用于需要用户可选设置的各种系统中，例如BIOS设置、配置选项或硬件控制面板。如果您正在开发嵌入式系统或主板，很可能会遇到这些开关。
值得注意的是，它们具有紧凑的设计；这些凹入式开关的紧凑设计使其在空间受限的环境中非常理想，同时不会牺牲功能。工程师通常会选择这种开关，因为它们既可靠又易于使用，可以通过螺丝刀进行操作，同时也能够防止意外更改。另一个实用之处在于其坚固的构造，这确保了即使在频繁处理的环境中也能保证长期耐用性。
系列图片（9 张）
文档与媒体
常见问答
78RB08 switche - 型号列表
共 8 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | RoHS | 电路 | 触点额定值 @ 电压 | 方向 | 致动器类型 | 安装类型 | 执行器水平位置 | 位数 | 可清洗 | 包装方式 | 额定电压 | 最大额定电流 | 开关功能/额定值 | 端子类型 | 按钮样式/尺寸 | 开关驱动电平 | 工作温度 | 其他名称 | 交货时间 | 子类别 | 适用产品/相关产品 | 欧盟RoHS | 密封 | 深度 | 高度 | 柱间距 | 接触镀层 | 触头材料 | 总长度 | 系列 | 电气寿命 | 机械寿命 | 海关税号 | 最大触点电流 | 间距 | 重量 | 典型触点布局 | 极数 | 介电强度 | 端接方式 | 触点形式 | 安装样式 | 类型 | 电路类型 | 制造商全称 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switch DIP ON OFF SPST 8 Recessed Slide 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole Tube SWITCH DIP RECESSED 8POS SEALED grayhill | 208 | 1: ¥22.168 | - | Rail / Tube | Lead free / RoHS Compliant | SPST | 0.15A @ 30VDC | Side Actuated | Standard | Through Hole | Recessed | 8 | Yes | - | 30 V | 0.15@30VDC A | ON OFF | PC Pins | Recessed Slide | SPST | -40 to 85 °C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Switch DIP OFF ON SPST 8 Recessed Slide 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole Tube Switch DIP OFF ON SPST 8 Recessed Slide 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube SW DIP RECESSED SEALED 8POS 30V SWITCH, DIP, 8 POS, SPST, RECESSED SLIDE grayhill | 4894 | 1: ¥7.956 | - | Rail / Tube | Lead free / RoHS Compliant | SPST | 0.15A @ 30VDC | Top Actuated | Standard | Through Hole | Recessed | 8 | Yes | Tube | 30 V | 0.15@30VDC A | OFF ON | PC Pins | Recessed Slide | SPST | -40 to 85 °C | GH7212 | - | - | - | Compliant | Tape(Polyester Film)/Base | 9.65 | 6.73 | 2.54 | Gold/Nickel Barrier | Copper Alloy | 22.4 | :78 | 2000/Switch | 2000/Switch | 85365005 | :150mA | :2.54mm | 0.002 | :SPST | - | - | - | - | - | - | - | - |
Switch DIP OFF ON SPST 8 Recessed Slide 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole Tube SWITCH DIP RECESSED 8POS UNSLD grayhill | 10 | 12: ¥11.22 | - | Rail / Tube | Lead free / RoHS Compliant | SPST | 0.15A @ 30VDC | Side Actuated | Standard | Through Hole | Recessed | 8 | No | - | 30 V | 0.15@30VDC A | OFF ON | PC Pins | Recessed Slide | SPST | -40 to 85 °C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Switch DIP OFF ON SPST 8 Recessed Slide 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole Tube Switch DIP OFF ON SPST 8 Recessed Slide 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube SW DIP RECESSED UNSEAL 8POS 30V Switch; DIP; 0.880 in. L x 0.245 in. W x 0.380 in. H; 8; SPST; Thru-Hole Switch,DIP;0.880in.Lx0.245in.Wx0.380in.H;8;SPST;Thru-Hole 78 Series SPST 8 Position Top Actuated Through Hole DIP Switch grayhill | 620 | 1: ¥7.208 | - | Rail / Tube | Lead free / RoHS Compliant | SPST | 0.15A @ 30VDC | Top Actuated | Standard | Through Hole | Recessed | 8 | No | Tube | 30 V | 0.15@30VDC A | OFF ON | PC Pins | Recessed Slide | SPST | -40 to 85 °C | GH7213 | - | - | - | Compliant | Base | 9.65 | 6.73 | 2.54 | Gold/Nickel Barrier | Copper Alloy | 22.4 | 78 | 2000/Switch | 2000/Switch | - | - | - | - | - | 1 | 750V | PCBPins | SPSTx8 | PCB | DIP | SPST | 78Series |
 SWITCH 8 POS DIP RECESSED SEALED Switch DIP OFF ON SPST 8 Recessed Slide 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole Tube Grayhill Inc | 94 | 1: ¥5.712 | - | 12 | Contains lead / RoHS non-compliant | SPST | 0.15A @ 30VDC | Top Actuated | Standard | Through Hole | Recessed | 8 | Yes | Tube | - | - | - | - | - | - | - | GH1249 | 365 Days | Switch DIP | 78RB08ST | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
SWITCH 8 POS DIP RECESSED UNSLD Switch DIP OFF ON SPST 8 Recessed Slide 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole Tube Grayhill Inc | 20 | 1: ¥21.08 | - | 12 | Contains lead / RoHS non-compliant | SPST | 0.15A @ 30VDC | Top Actuated | Standard | Through Hole | Recessed | 8 | No | Tube | - | - | - | - | - | - | - | GH1258 | 56 Days | Switch DIP | 78RB08T | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Grayhill | 0 | - | - | - | - | - | - | - | - | - | - | - | Tube | - | - | - | - | - | - | - | - | 56 Days | Switch DIP | 78RB08RAT | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
Grayhill | 0 | - | - | - | - | - | - | - | - | - | - | - | Tube | - | - | - | - | - | - | - | - | 56 Days | Switch DIP | 78RB08SRAT | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
