76RSB06 switche 系列

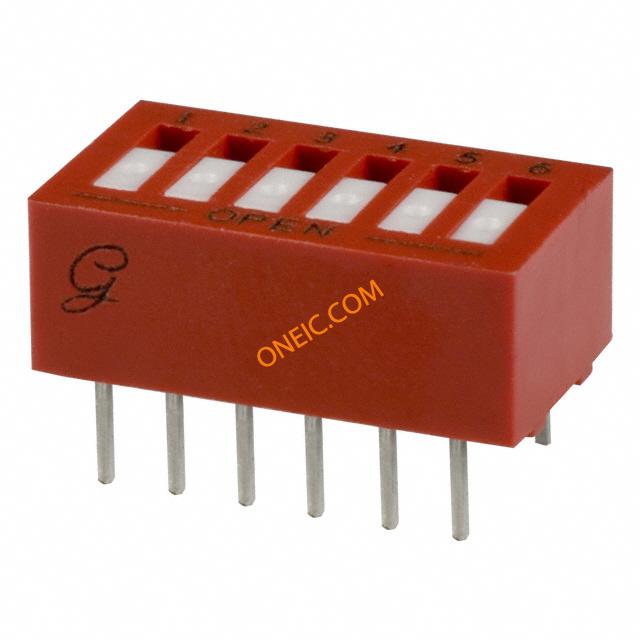

Grayhill, Inc.带凹入摇杆的DIP开关，6位
Grayhill, Inc. 的 76RSB06 开关是一款紧凑型DIP开关，适用于需要离散控制设置的应用。这些开关采用凹陷式摇杆设计，有助于防止意外切换，并与标准DIP开关相比提供了更明显的触觉反馈。它们有六个位置，因此非常适合需要多种配置选项但空间有限的应用。
如果您正在开发嵌入式系统、控制面板或任何需要用户可选配置的设备，这些开关将是不错的选择。值得注意的是，这些开关非常坚固，在频繁切换时不会退化，因此适用于工业和消费类应用。工程师在需要可靠、节省空间且易于使用的配置控制时往往会选用这种开关。凹陷式设计还通过减少开关的整体尺寸增加了美观性，特别是在面板设计中，可用空间非常有限的情况下尤为有益。
系列图片（7 张）
文档与媒体
常见问答
76RSB06 switche - 型号列表
共 7 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | RoHS | 电路 | 触点额定值 @ 电压 | 包装方式 | 方向 | 致动器类型 | 安装类型 | 执行器水平位置 | 位数 | 可清洗 | 欧盟RoHS | 额定电压 | 最大额定电流 | 开关功能/额定值 | 密封 | 深度 | 高度 | 柱间距 | 端子类型 | 接触镀层 | 触头材料 | 总长度 | 按钮样式/尺寸 | 开关驱动电平 | 电气寿命 | 机械寿命 | 工作温度 | 其他名称 | 交货时间 | 子类别 | 适用产品/相关产品 | 安装样式 | 海关税号 | 抗辐射加固 | 开关功能 | 最大触点电流 | 直流反向电压（Vr）（最大） | 间距 | 重量 | 端接样式 | 典型触点布局 | 已删除 | 电路结构 | 转换前位置数 | 介电强度 | 端接方式 | 触点形式 | 类型 | 制造商全称 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switch DIP ON OFF SPST 6 Recessed Rocker 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole Tube Switch DIP ON OFF SPST 6 Recessed Rocker 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube SWITCH DIP RECESS RCKR 6POS grayhill | 10 | 1: ¥34.0068 | - | Rail / Tube | Lead free / RoHS Compliant | SPST | 0.15A @ 30VDC | Tube | Top Actuated | Rocker | Through Hole | Recessed | 6 | No | Compliant | 30 V | 0.15@30VDC A | ON OFF | Base | 9.65 | 7.42 | 2.54 | PC Pins | Gold/Nickel Barrier | Copper Alloy | 17.3 | Recessed Rocker | SPST | 2000/Switch | 2000/Switch | -40 to 85 °C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Switch DIP ON OFF SPST 6 Recessed Rocker 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole Tube Switch DIP ON OFF SPST 6 Recessed Rocker 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube SWITCH DIP RECESS RCKR 6POS 30V SWITCH, DIP, 6POS, SPST, RECESSED ROCKER Switch,Dip,SPST,6Pos.RecessedRocker,.15A,30VDC,ThroughHole grayhill | 900 | 15: ¥38.4656 | - | Rail / Tube | Lead free / RoHS Compliant | SPST | 0.15A @ 30VDC | Tube | Top Actuated | Rocker | Through Hole | Recessed | 6 | Yes | Compliant | 30 V | 0.15@30VDC A | ON OFF | Tape(Polyester Film)/Base | 9.65 mm | 7.42 mm | 2.54 | PC Pins | Gold/Nickel Barrier | Copper Alloy | 17.3 mm | Recessed Rocker | SPST | 2000/Switch | 2000 | -40 to 85 °C | GH7157 | - | - | - | Through Hole | 85365005 | No | ON OFF | :150mA | 30V | 2.5 mm | 0.002 | PC Pins | :SPST | Compliant | :SPST-CO | 6 | - | - | - | - | - |
Switch DIP ON OFF SPST 6 Recessed Rocker 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole Tube Switch DIP ON OFF SPST 6 Recessed Rocker 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube SWITCH DIP RECESS RCKR UNSL 6POS Switch,DIP;0.680in.Lx0.380in.W;6;SPST;Thru-Hole;0.1in.;0.02in. grayhill | 10 | 1: ¥32.2932 | - | Rail / Tube | Lead free / RoHS Compliant | SPST | 0.15A @ 30VDC | Tube | Top Actuated | Rocker | Through Hole | Recessed | 6 | No | Compliant | 30 V | 0.15@30VDC A | ON OFF | Base | 9.65 | 7.42 | 2.54 | PC Pins | Gold/Nickel Barrier | Copper Alloy | 17.3 | Recessed Rocker | SPST | 2000/Switch | 2000/Switch | -40 to 85 °C | GH7158 | - | - | - | PCB | - | - | - | - | - | - | - | - | - | - | - | - | 750V | PCBPins | SPSTx6 | DIP | 76Series |
Switch DIP ON OFF SPST 6 Recessed Rocker 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole Tube Switch DIP ON OFF SPST 6 Recessed Rocker 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube SWITCH DIP RECESS RCKR SLD 6POS grayhill | 10 | 1: ¥35.462 | - | Rail / Tube | Lead free / RoHS Compliant | SPST | 0.15A @ 30VDC | Tube | Top Actuated | Rocker | Through Hole | Recessed | 6 | Yes | Compliant | 30 V | 0.15@30VDC A | ON OFF | Tape(Polyester Film)/Base | 9.65 | 7.42 | 2.54 | PC Pins | Gold/Nickel Barrier | Copper Alloy | 17.3 | Recessed Rocker | SPST | 2000/Switch | 2000/Switch | -40 to 85 °C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 0 | - | 15 | Contains lead / RoHS non-compliant | SPST | 0.15A @ 30VDC | Tube | Top Actuated | Rocker | Through Hole | Recessed | 6 | Yes | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | GH1266 | 56 Days | Switch DIP | 76RSB06ST76RSB06SLT | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
SWITCH 6POS DIP RECESS ROCK UNSL Switch DIP ON OFF SPST 6 Recessed Rocker 0.15A 30VDC PC Pins 20000Cycle/SwitchCycle 2.54mm Thru-Hole Tube Grayhill Inc | 62 | 1: ¥21.08 | - | 15 | Contains lead / RoHS non-compliant | SPST | 0.15A @ 30VDC | Tube | Top Actuated | Rocker | Through Hole | Recessed | 6 | No | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | GH1276 | 56 Days | Switch DIP | 76RSB06LT76RSB06T | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Grayhill | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 56 Days | Not Specified | 76RSB06SLT | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
