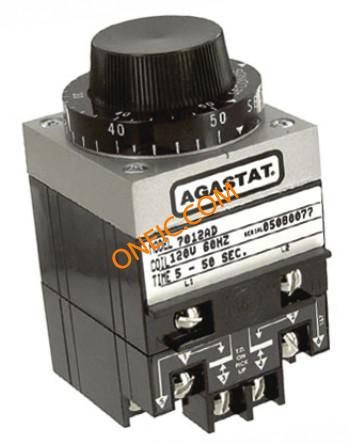

7012AD time delay & timing relay 系列
TE Connectivity Ltd.具有各种功能的电空时间继电器
TE Connectivity的7012AD系列是一款用于工业应用中精确控制的电空定时继电器。这些继电器具有多种功能，使其适用于各种项目和系统，特别是需要定时序列和延迟的应用。如果您正在开发自动化生产线、物料搬运系统或任何需要同步的过程，这些继电器可以成为有价值的工具。
值得注意的是，它们的设计非常坚固，适合恶劣环境。当工程师需要能够在振动和其他工业条件下工作的可靠定时解决方案时，往往会选择这种继电器。另一个实用之处在于，它们能够处理广泛的输入电压范围，使它们能够适应不同的系统要求，而无需额外的转换设备。
7012AD系列还提供了灵活的定时选项，允许用户精确设置延迟和持续时间。在需要高度定时精度的应用中，例如输送机系统或包装机械，这种灵活性至关重要。气动操作提供了一种干净且安全的方式来操作继电器，在可能存在电气火花危险的环境中尤为重要。
总体而言，如果您正在寻找一种能够在工业环境中承受考验的可靠且多功能的定时解决方案，TE Connectivity的7012AD系列绝对值得考虑。
系列图片（5 张）
文档与媒体
常见问答
7012AD time delay & timing relay - 型号列表
共 11 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 零件号别名 | 量程（°/s） | 工作模式 | 供电电压 | 系列 | 触点形式 | RoHS | 输入电压（最大） | 安装类型 | 端接样式 | 其他规格 | 工作温度 | 操作方式 | 延迟时间 | 最大电压 | 连接器阻抗 | 开关功能/额定值 | 触点额定值 @ 电压 | 开关时间（Ton, Toff）（最大） | 致动器类型 | 安装样式 | 面板尺寸 | 类型 | 继电器类型 | 制造商全称 | 产品子类型 | 控制方式 | 可编程特性 | 工作范围 | 标准包装规格 | 额定电压 | 机械寿命 | 海关税号 | 开通延迟时间 | 首抽头延迟 | 最大额定电流 | 深度 | 长度 | 重量 | 端子类型 | 典型触点布局 | 定时调节方式 | 有铅工艺兼容 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 10 | 3: ¥6,184.332 | - | 7-1423157-2 | 5 s to 50 s | On Delay | 110 VAC, 120 VAC | 7000 | 2 Form C (DPDT-BM) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Time Delay & Timing Relays 2FormC DPDT 110V 10A RELAY,ELECTROPENUMATIC;TIMING;ON DELAY Electromechanical Relay DPDT 10A 110/120VAC Panel Mount Electromechanical Relay DPDT 10A 110/120VAC Panel Mount Product Highlights:7000 Electropneumatic Timing SeriesTime Delay RelayInput Voltage = 110 VAC, 120 VACContact Arrangement = 2 Form C, DPDT, 2 C/OContact Rating = 10A @ 240 VAC RELAY,ELECTROPENUMATIC;TIMING;ONDELAY;DPDT;110/120VAC;5-50SEC 7012ADL=RLY,STD,ON,2P,120VAC,5 TE Connectivity / P&B | 11 | 1: ¥3,169.208 | - | 1423157-9 | 5 s to 50 s | On Delay | 110 VAC, 120 VAC | 7000 Electropneumatic Timing - Industrial | 2 Form C (DPDT-BM) | No | 110, 120 | Panel | Screw | ±5% | -30 – 75 | 接通延迟 | 5 - 50 秒 | 240 V ac | 2 Form C，DPDT，2 C/O | DPDT | 10 A at 240 VAC | 5 – 50 | 交流 | Panel | 114.8 x 65.3 x 71.9 mm [ 4.523 x 2.572 x 2.832 in ] | TimeDelayRelay | 延时 | Series7000 | 机电式继电器 | 旋钮 | 辅助开关 - 即刻传输 | 5 → 50 s | - | 10A,240VAC | New At Mouser | - | - | - | - | - | - | - | - | - | - | - |
| 10 | 6: ¥2,283.032 | - | 3-1755074-4 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Time Delay & Timing Relays DPDT 10A 110/120VAC 5-50sec.Delay Relay Relay,Electropneumatic,Timing,OffDelay Electromechanical Relay DPDT 10A 110/120VAC Panel Mount Electromechanical Relay DPDT 10A 110/120VAC Panel Mount Product Highlights:7000 Electropneumatic Timing SeriesTime Delay RelayInput Voltage = 110 VAC, 120 VACContact Arrangement = 2 Form C, DPDT, 2 C/OContact Rating = 10A @ 240 VAC TIME DELAY RELAY, DPDT, 50SEC, 120VAC Relay;Electropneumatic;Timing;OnDelay;DPDT;Ctrl-V120/110AC;5-50sec. 7012AD=RLY,STD,ON,2P,120VAC,50 TE Connectivity / Axicom | 12 | 1: ¥2,450.652 | Time Delay & Timing Relays | 1423157-8 | 5 s to 50 s | On Delay | 120 VAC | 7000 - Industrial | 2 Form C (DPDT-BM) | RoHS Compliant | :120VAC | Panel | - | :50s | +74°C | - | - | 30 V dc, 600 V ac | - | DPDT | 10 A at 240 VAC | - | - | - | - | - | - | - | - | - | - | 5 → 50 s | - | - | - | 85364900 | :5s | :5s to 50s | 15 A | 3.09in | 2.57in | 1.025 | Screw | :DPDT | :Knob | :No |
Time Delay & Timing Relays RELAY,ELECTROPENUMATIC;TIMING;ONDELAY;DPDT;110/120VAC;5-50SEC TE Connectivity / P&B | 28 | 1: ¥4,105.16 | - | 1-1423157-0 | 5 s to 50 s | On Delay | 110 VAC, 120 VAC | 7000 Electropneumatic Timing - Industrial | - | No | - | - | Screw | - | - | - | - | - | - | - | - | - | - | Panel | - | TimeDelayRelay | - | Series7000 | - | - | - | - | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 10 | 7: ¥3,158.056 | - | 1755074-5 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 10 | 5: ¥3,559.146 | - | 6-1423157-2 | 5 s to 50 s | On Delay | 110 VAC, 120 VAC | 7000 | 2 Form C (DPDT-BM) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 10 | 6: ¥3,814.734 | - | 7-1437440-6 | 5 s to 50 s | On Delay | 110 VAC, 120 VAC | 7000 | 2 Form C (DPDT-BM) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 10 | 4: ¥2,662.54 | - | 9-1423157-0 | 5 s to 50 s | On Delay | 110 VAC, 120 VAC | 7000 | 2 Form C (DPDT-BM) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Time Delay & Timing Relays RELAY STD ON 2P 120VAC Electromechanical Relay DPDT 10A 110/120VAC Panel Mount Electromechanical Relay DPDT 10A 110/120VAC Panel Mount Product Highlights:7000 Electropneumatic Timing SeriesTime Delay RelayInput Voltage = 110 VAC, 120 VACContact Arrangement = 2 Form C, DPDT, 2 C/OContact Rating = 10A @ 240 VAC 7012ADTX=RLY,STD,ON,2P,120VAC, TE Connectivity | 10 | 20: ¥2,900.744 | - | 1-1423157-1 | 不带 | - | - | - | - | - | 110, 120 | 面板安装 | 螺纹式端子 | ±5% | -30 – 75 | 接通延迟 | 5 - 50 秒 | - | 2 Form C，DPDT，2 C/O | - | - | 5 – 50 | 交流 | - | 114.8 x 65.3 x 71.9 mm [ 4.523 x 2.572 x 2.832 in ] | - | 延时 | - | 机电式继电器 | 旋钮 | 辅助开关 - 两步定时, 适用于水平操作的硬件和调整 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 14 | 1: ¥3,344.58 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
