570-003 connector 系列
EDAC Inc.EDAC 570系列汽车连接器
EDAC Inc. 的570-003连接器系列专为汽车应用中的坚固可靠电气连接而设计。这些连接器广泛应用于各种汽车子系统中，包括电源分配、照明和娱乐信息系统。如果您正在从事需要在恶劣环境中提供高可靠性连接的项目，例如发动机舱或车厢内部，那么这些连接器是一个不错的选择。
值得注意的是其耐用性。该系列产品经过工程设计，能够承受汽车环境中常见的振动、冲击和温度波动。当工程师需要能够在不频繁维护或更换的情况下承受汽车使用环境严苛条件的连接器时，往往会选用这一系列。另一个实用的优势在于其模块化设计，这使得在需要时可以轻松安装和重新配置线束。
570系列连接器还以其广泛的针脚配置而闻名，使其具有足够的灵活性以适应不同的汽车设计。这种灵活性对于汽车行业来说至关重要，因为不同制造商和车型之间的标准化程度差异很大。总体而言，如果您正在寻找适用于汽车项目的可靠且灵活的连接器解决方案，那么EDAC 570系列绝对值得考虑。
系列图片（17 张）
文档与媒体
常见问答
570-003 connector - 型号列表
共 9 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | RoHS | 连接器类型 | 标准包装数量 | 工厂包装数量 | 接触镀层 | 排数 | 位数 | 产品特性 | 海关税号 | 重量 | 安装类型 | 连接器性别 | SVHC | 额定电压 | 锁定特性 | 系列 | 适用产品/相关产品 | 工作温度 | 产品 | 其他名称 | 颜色 | 间距 | 包装方式 | 端接方式 | 触头类型 | 触点数 | 接触件端接 | 长度 | 屏蔽 | 电缆端接方式 | 材料阻燃等级 | 柱间距 | 基体材料 | 紧固类型 | 安装样式 | 本体材料 | 包装数量 | 连接器 - 电缆 | 绝缘材料 - 材质 | SPG | 备注 | 适配器系列 | 单元数量 | 防护等级 | 最大额定电流 | 连接器类型 - 电压输入 | 电缆长度 | 线缆护套颜色 | 触头材料 | 壳体材料 | 触点材料 - 柱 | 极数格式 | 量程（°/s） | 加载位置数 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 10 | 25: ¥51.884 | - | RoHS Compliant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

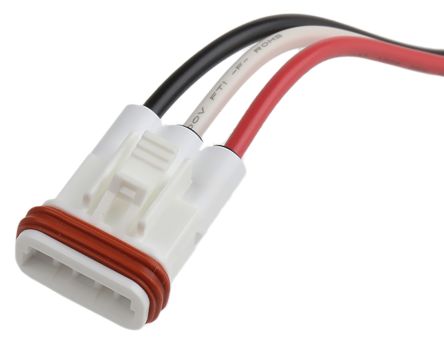

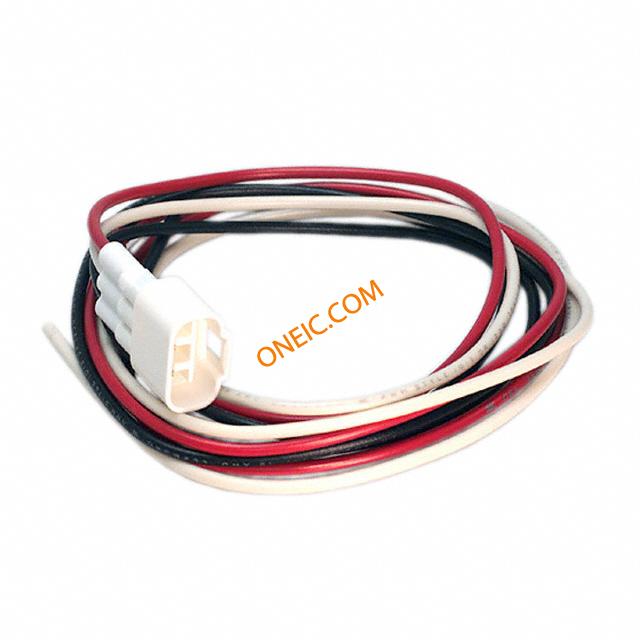

 Automotive Connectors CABLE ASSY PLUG 10A WATERPROOF ASSEMBLY PLUG 3POS WATERPROOF EDAC | 10 | 100: ¥51.00 | - | RoHS Compliant | Plug to Cable | 100 | 100 | Tin | 1 | 3 | Waterproof | - | - | - | - | - | - | - | - | - | - | Connectors | 151-1021 | Multiple, Individual | - | - | - | - | - | - | 0.328' (100.00mm, 3.94") | Unshielded | Crimp | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

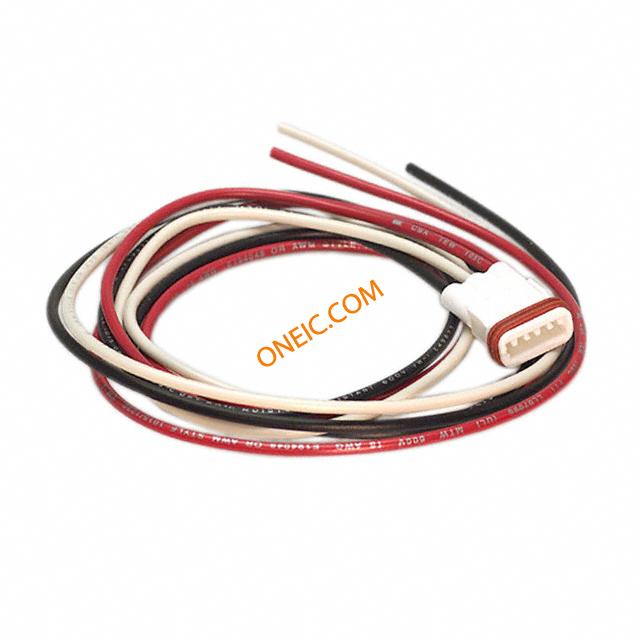

 Automotive Connectors CABLE ASSY RECEP 10A WATERPROOF ASSEMBLY RECEPT 3POS WATERPROOF EDAC | 10 | 100: ¥67.592 | - | RoHS Compliant | Socket to Individual Wire Leads | 100 | 100 | Tin | 1 | 3 | Waterproof | - | - | - | - | - | - | - | - | - | - | Connectors | 151-1023 | Multiple, Individual | - | - | - | - | - | - | 0.656' (200.00mm, 7.87") | Unshielded | Crimp | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Automotive Connectors PLUG PCB ASSY 10A WATERPROOF CONN PLUG 3POS WATERPROOF PCB CONNECTOR, HEADER, 3POS, 1ROW EDAC | 238 | 1: ¥37.06 | - | RoHS Compliant | Plug | 250 | 50 | Tin | 1 | 3 | Waterproof | 85366930 | 0 | Through Hole | :Header | - | - | - | - | - | - | Connectors | 151-1022 | White | :5.8mm | Bulk | Solder | Male Pin | :3 | :Through Hole Vertical | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | :EDAC - 570 Series | All |
| 10 | 100: ¥47.192 | - | RoHS Compliant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 CONN PLUG 3POS WATERPROOF Rack & Panel Connectors 3POS PLUG CONNECTOR, HOUSING, PLUG, 3POS, 5.8MM CONNECTOR, PLUG, WIRE MOUNT, IP67, 3WAY Connector: wire-wire; 570; plug; male; PIN:3; IP67; Locking: lock sale EDAC Inc | 246 | 1: ¥23.664 | Rack & Panel Connectors | RoHS Compliant | Plug | 1 | 100 | - | 1 | 3 | Waterproof | 85369010 | 0 | Free Hanging (In-Line) | :Plug | :No SVHC (20-Jun-2013) | 300V | :Latch | :570 Waterproof | :570 Series Crimp Contacts | -40...105°C | - | - | - | :5.8mm | Bulk | - | Male Pin | 68 | Crimp | - | - | - | UL94V-0 | 5.8mm | PBT | Latch Lock | SMD/SMT | :PBT (Polybutylene Terephthalate) | 75 | plug | silicone rubber | 75 | Contacts Not Provided | 570 | 1 | IP67 | - | - | - | - | - | - | - | - | - | - |
 CONN RECEPTACLE 3POS WATERPROOF Rack & Panel Connectors 3POS RECEPTACLE CONNECTOR, HOUSING, RECEPTACLE, 3POS, 5.8MM CONNECTOR, RECPT, WIRE MOUNT, IP67, 3WAY Connector: wire-wire; 570; plug; female; PIN:3; IP67; Locking: lock sale EDAC Inc | 350 | 1: ¥25.364 | Rack & Panel Connectors | RoHS Compliant | Receptacle | 1 | 100 | - | 1 | 3 | Waterproof | 85369010 | 0 | Free Hanging (In-Line) | :Receptacle | :No SVHC (20-Jun-2013) | 300V | :Latch | :570 Waterproof | :570 Series Crimp Contacts | -40...105°C | - | - | - | :5.8mm | Bulk | - | Female Socket | 8 | Crimp | - | - | - | UL94V-0 | 5.8mm | PBT | Latch Lock | PCB | :PBT (Polybutylene Terephthalate) | 40 | plug | silicone rubber | 40 | Contacts Not Provided | 570 | 1 | IP67 | - | - | - | - | - | - | - | - | - | - |
 570 Series Male Compact Power Connector Plug 3P Cable Mount,Crimp Termination,10A 300V ac CABLE ASSY, PLUG, WIRE FREE, 915MM, 3WAY EDAC 570系列 线对线连接器 插头 公, 3P, 电缆安装安装, 压接端接, 10A 300 V 交流, -40 → +105 °C EDAC | 10 | 1: ¥75.616 | - | - | :Free Ends | - | - | Tin | - | - | - | 85369010 | 0.001 | Cable Mount | Male | :No SVHC (20-Jun-2013) | 300 V ac | :Latch | 570 | :570 Series Crimp Contacts | +105°C | - | - | - | - | - | Crimp | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 10A | Plug | :36" | :Black | Brass | PBT | :PBT (Polybutylene Terephtalate) | 3P | - | - |
 570 Series Female Compact Power Connector Socket 3P Cable Mount,Crimp Termination,10A 300V ac CABLE ASSY, RCPT, WIRE FREE, 915MM, 3WAY EDAC 570系列 线对线连接器 插座 母, 3P, 电缆安装安装, 压接端接, 10A 300 V 交流, -40 → +105 °C EDAC | 12 | 1: ¥96.48 | - | - | :Free Ends | - | - | Tin | - | - | - | 85369010 | 0.001 | Cable Mount | Female | :No SVHC (20-Jun-2013) | 300 V ac | :Latch | 570 | :570 Series Crimp Contacts | +105°C | - | - | - | - | - | Crimp | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 10A | Socket | :36" | :Black | Brass | PBT | :PBT (Polybutylene Terephtalate) | 3P | - | - |
