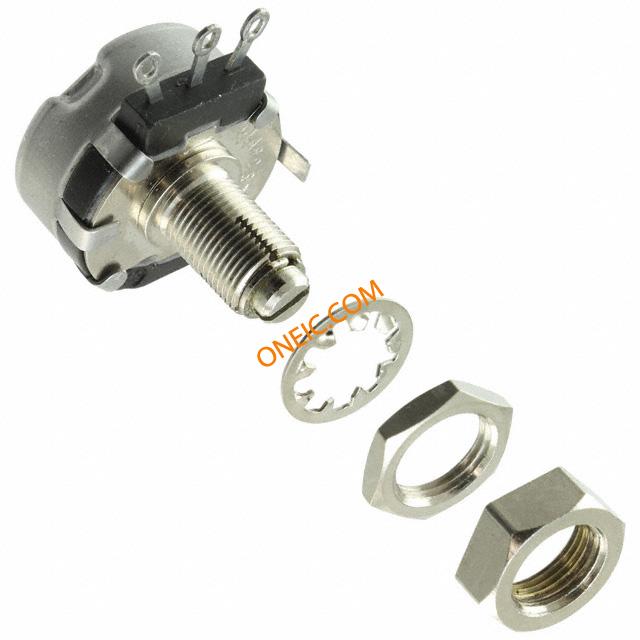

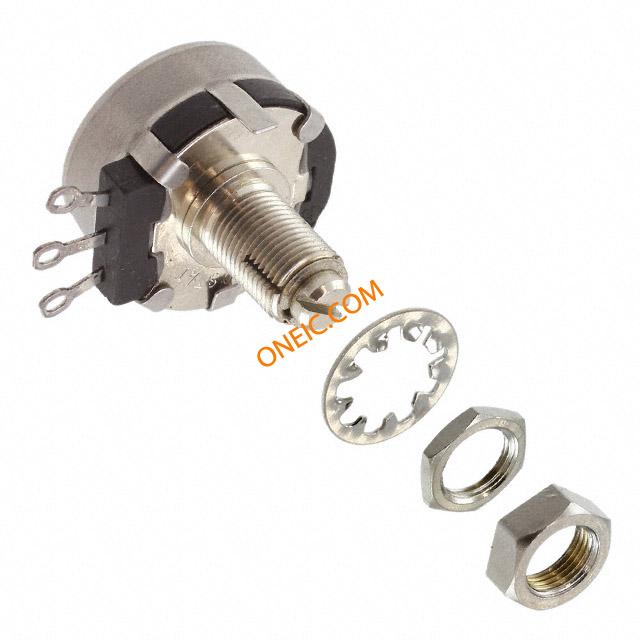

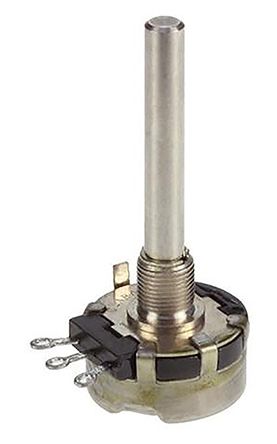

53C25 potentiometers, variable resistor 系列
Honeywell International Inc.工业用可变电阻器，阻值可选
霍尼韦尔生产的53C25系列精密工业电位器适用于高精度控制应用。这些电位器具有多种阻值选择，因此在不同需求的应用中都非常灵活。如果您正在从事需要精细调整的项目，例如校准设备、控制面板或自动化机械，那么这些电位器是一个不错的选择。
值得一提的是它们的耐用性；这些电位器设计用于承受恶劣环境，这对于工业环境来说至关重要。工程师通常会选择这种电位器，因为它们提供可靠且寿命长的组件，能够在振动和温度波动的情况下保持性能稳定。另一个实用的好处是它们易于集成——这些电位器通常具有标准连接器和安装选项，简化了安装和维护工作。
广泛的选择阻值范围使得设计更加灵活，无论是对于敏感应用所需的高阻值还是对于通用用途所需的低阻值。总体而言，53C25系列是工程师实现精确控制机制的理想解决方案。
系列图片（29 张）
文档与媒体
常见问答
53C25 potentiometers, variable resistor - 型号列表
共 6 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 产品 | 标准包装规格 | 标准包装数量 | RoHS | 线性度 | 容差 | 电阻 | 元件类型 | 额定功率 | 额定电压 | 最大频率 | 电阻公差 | 锥度 | 轴细节 | 基体材料 | 安装类型 | 端子类型 | 衬套螺纹 | 安装样式 | 轴直径 | 端接样式 | 衬套/护套类型 | 轴和轴承长度 | 旋转寿命（最小循环次数） | 系列 | UNSPSC代码 | 圈数 | 类型属性 | UNSPSC商品 | 工作温度 | 功率（瓦） | 电阻值（欧姆） | 旋转范围 | 包装方式 | 本体尺寸 | 致动器类型 | 执行器长度 | 执行器直径 | 电阻材料 | 类型 | 调节方式 | 欧盟RoHS | 深度 | 高度 | 总长度 | 技术 | 零件号别名 | 轴径 | 尺寸/外形 | 端接方式 | 旋转角度 | 刀片材料 | 开关次数 | 结工作温度 | 工作频率 | 初始电阻（最小） | 长度 | 直径 | 端子样式 | 功能 | 其他规格 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Potentiometers 500KOhm 20% 2W 6.35mm Res Conductive Plastic POT 500K Ohm 10% 2W 1(Elec)/1(Mech)Turn 6.35mm (30.17 X 27.78 X 36.12mm) Solder Lug Panel Mount Potentiometers, Encoders and Resolvers, Potentiometers, Conductive Plastic POT 500K OHM 2W CONDUCT PLASTIC IndustrialPotentiometers 53 Series Industrial Potentiometer, Conductive Plastic Element, Solder lug Terminals, 2 W Power Rating, 500 kOhm Resistance Value Honeywell International Inc. | 97 | 1: ¥91.256 | Potentiometers | Potentiometer | 100 | 100 | No | ± 5 % | 10 % | 500 kOhms | Conductive Plastic | 2 W | 500 V | 312° | ± 10 % | Linear | Slotted | 27.8 mm [1.094 in] diameter max. except at terminal standoff | Panel Mount | Solder lug | 9,53 mm [0.375 in] x 32 NEF-2A | Panel | 6,35 mm [0.25 in] | Solder Lug | 12,7 mm[0.5 in] | 15.88 mm | 25000 cycles | 53 | 41113633 | Single | Industrial | 41113633 Potentiometers | - 40 C to + 120 C | 2W | 500k | 312° | Bulk | Round - 1.094" Dia x 0.563" L (27.78mm x 14.29mm) | Slotted Shaft | 0.625" (15.88mm) | 0.250" (6.35mm) | Conductive Plastic | Potentiometer | Side Adjustment | Not Compliant | 27.78 | 36.12 | 30.17 | Conductive Plastic | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Potentiometers 50K Ohm 10% 2W 6.35mm Potentiometers, Encoders and Resolvers, Potentiometers, Conductive Plastic POT 50K OHM 2W CONDUCT PLASTIC Pot;Cnd Pl;Rest 50 Kilohms;Panel;Linear;Pwr-Rtg 2W;Shaft Dia 0.25in Pot;CndPl;Rest50Kilohms;Panel;Linear;Pwr-Rtg2W;ShaftDia0.25In 53 Series Industrial Potentiometer, Conductive Plastic Element, Solder lug Terminals, 2 W Power Rating, 50 kOhm Resistance Value Honeywell International Inc. | 57 | 1: ¥53.38 | Potentiometers | Potentiometer | 100 | 100 | No | ±5% | 10 % | 50 kOhms | Conductive Plastic | 2 W | 500 V | 312° | ± 10 % | Linear | Slotted | 27.8 mm [1.094 in] diameter max. except at terminal standoff | Panel Mount | Solder lug | 9,53 mm [0.375 in] x 32 NEF-2A | Panel | 6,35 mm [0.25 in] | Solder Lug | 12,7 mm[0.5 in] | 15.88 mm | 25000 cycles | 53 | 41113633 | Single | Industrial | 41113633 Potentiometers | - 40 C to + 120 C | 2W | 50k | 312° | Bulk | Round - 1.094" Dia x 0.563" L (27.78mm x 14.29mm) | Slotted Shaft | 0.625" (15.88mm) | 0.250" (6.35mm) | Conductive Plastic | Potentiometer | Side Adjustment | - | - | - | - | - | RV4LAYSA503A | 0.25" | 1.094"Dia×0.56"L | Lug | 312° | ConductivePlastic | 25000Cycles | +120°C | - | - | - | - | - | - | - |
 Potentiometers 500 Ohm 2W Res Conductive Plastic POT 500 Ohm 10% 2W 1(Elec)/1(Mech)Turn 6.35mm (30.17 X 27.78 X 36.12mm) Solder Lug Panel Mount Potentiometers, Encoders and Resolvers, Potentiometers, Conductive Plastic POT 500 OHM 2W CONDUCT PLASTIC IndustrialPotentiometers 53 Series Industrial Potentiometer, Conductive Plastic Element, Solder lug Terminals, 2 W Power Rating, 500 Ohm Resistance Value Honeywell International Inc. | 81 | 1: ¥91.256 | Potentiometers | Potentiometer | 100 | 100 | No | ± 5 % | 10 % | 500 Ohms | Conductive Plastic | 2 W | 500 V | 312° | ± 10 % | Linear | Slotted | 27.8 mm [1.094 in] diameter max. except at terminal standoff | Panel Mount | Solder lug | 9,53 mm [0.375 in] x 32 NEF-2A | Panel | 6,35 mm [0.25 in] | Solder Lug | 12,7 mm[0.5 in] | 15.88 mm | 25000 cycles | 53 | 41113633 | Single | Industrial | 41113633 Potentiometers | - 40 C to + 120 C | 2W | 500 | 312° | Bulk | Round - 1.094" Dia x 0.563" L (27.78mm x 14.29mm) | Slotted Shaft | 0.625" (15.88mm) | 0.250" (6.35mm) | Conductive Plastic | Potentiometer | Side Adjustment | Not Compliant | 27.78 | 36.12 | 30.17 | Conductive Plastic | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Potentiometers 50Ohm 10% 2W 6.35mm Res Conductive Plastic POT 50 Ohm 10% 2W 1(Elec)/1(Mech)Turn 6.35mm (30.17 X 27.78 X 36.12mm) Solder Lug Panel Mount Potentiometers, Encoders and Resolvers, Potentiometers, Conductive Plastic POT 50 OHM 2W CONDUCT PLASTIC IndustrialPotentiometers 53 Series Industrial Potentiometer, Conductive Plastic Element, Solder lug Terminals, 2 W Power Rating, 50 Ohm Resistance Value Honeywell International Inc. | 915 | 1: ¥91.256 | Potentiometers | Potentiometer | 100 | 100 | No | ± 5 % | 10 % | 50 Ohms | Conductive Plastic | 2 W | 500 V | 312° | ± 10 % | Linear | Slotted | 27.8 mm [1.094 in] diameter max. except at terminal standoff | Panel Mount | Solder lug | 9,53 mm [0.375 in] x 32 NEF-2A | Panel | 6,35 mm [0.25 in] | Solder Lug | 12,7 mm[0.5 in] | 15.88 mm | 25000 cycles | 53 | 41113633 | Single | Industrial | 41113633 Potentiometers | - 40 C to + 120 C | 2W | 50 | 312° | Bulk | Round - 1.094" Dia x 0.563" L (27.78mm x 14.29mm) | Slotted Shaft | 0.625" (15.88mm) | 0.250" (6.35mm) | Conductive Plastic | Potentiometer | Side Adjustment | Not Compliant | 27.78 | 36.12 | 30.17 | Conductive Plastic | RV4LAYSA500A | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Potentiometers 5K Ohm 10% 2W 6.35mm Potentiometers, Encoders and Resolvers, Potentiometers, Conductive Plastic IND POTENTIOMETER POT 5K OHM 2W COND PLASTIC IndustrialPotentiometers 53 Series Industrial Potentiometer, Conductive Plastic Element, Solder lug Terminals, 2 W Power Rating, 5 kOhm Resistance Value Honeywell 53C 系列 5kΩ ±10% 线性 电位器 , 2W, 6.35 mm 直径轴 SMD Honeywell International Inc. | 79 | 1: ¥79.832 | Potentiometers | Potentiometer | 100 | 100 | No | ± 5 % | 10 % | 5 kOhms | Conductive Plastic | 2 W | 500 V | 312° | ± 10 % | Linear | Slotted | 27.8 mm [1.094 in] diameter max. except at terminal standoff | Panel Mount | Solder lug | 9,53 mm [0.375 in] x 32 NEF-2A | Panel | 6,35 mm [0.25 in] | Solder Lug | 12,7 mm[0.5 in] | 15.88 mm | 25000 cycles | 53 | 41113633 | Single | Industrial | 41113633 Potentiometers | - 40 C to + 120 C | 2W | 5k | 312° | * | * | * | * | * | Conductive Plastic | - | Side Adjustment | - | - | - | - | - | - | 6.35 mm | 27.79 (Dia.) x 30.18mm | - | - | - | - | - | 1 | 5kΩ | 30.18mm | 27.79mm | 焊片 | Y | 线性 |
 Potentiometers RESISTIVE & OPTICAL Res Conductive Plastic POT 5M Ohm 20% 2W 1(Elec)/1(Mech)Turn 6.35mm (30.17 X 27.78 X 36.12mm) Solder Lug Panel Mount Potentiometers, Encoders and Resolvers, Potentiometers, Conductive Plastic IND POTENTIOMETER IndustrialPotentiometers 53 Series Industrial Potentiometer, Conductive Plastic Element, Solder lug Terminals, 2 W Power Rating, 5 MOhm Resistance Value Honeywell International Inc. | 10 | 1: ¥51.204 | - | Potentiometer | 100 | 100 | Lead free / RoHS Compliant | ± 5 % | 20 % | 5 MOhms | Conductive Plastic | 2 W | 500 V | 312° | ± 20 % | Linear | Slotted | 27.8 mm [1.094 in] diameter max. except at terminal standoff | Panel Mount | Solder lug | 9,53 mm [0.375 in] x 32 NEF-2A | Panel | 6,35 mm [0.25 in] | Solder Lug | 12,7 mm[0.5 in] | 15,88 mm [0.625 in] | 25000 cycles | * | 41113633 | 1(Elec)|1(Mech) | Industrial | 41113633 Potentiometers | - 40 C to + 120 C | - | - | - | - | - | - | - | - | - | Potentiometer | - | Not Compliant | 27.78 | 36.12 | 30.17 | Conductive Plastic | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
