cigen-5174C

5174C cable, wire & assemblie 系列

Alpha Wire Corporation

Alpha Wire Corporation

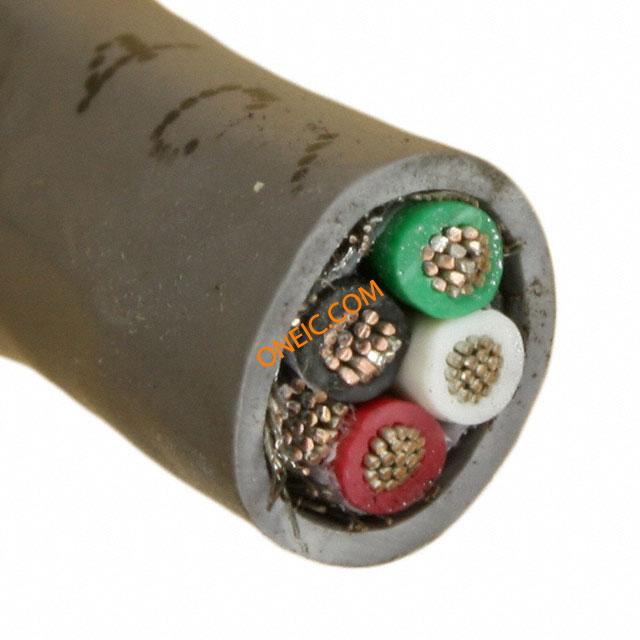

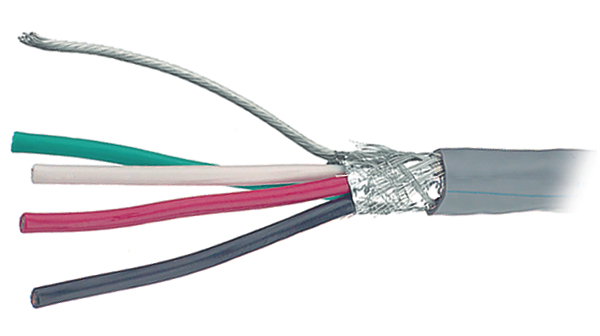

16AWG 4 - core slate multi - conductor cables

系列图片（5 张）

文档与媒体

5174C%20SL002.pdf

5174C%20SL005.pdf

429272.pdf

常见问答

内容由 AI 生成，仅供参考

加载中...

03

5174C cable, wire & assemblie - 型号列表

共 6 个型号

制造商零件编号	库存	价格	产品类别	电缆类型	导线线规	线缆护套颜色	线规或范围 - AWG	护套（绝缘）直径	核心数	标准包装数量	RoHS	SVHC	海关税号	电压	额定电压	导体绞线	导体数量	颜色	长度	重量	包装方式	屏蔽	屏蔽类型	外径（标称值）	屏蔽覆盖率	屏蔽材料	总长度	导体材料	外径	导体绝缘	护套（绝缘）材料	护套（绝缘）厚度	产品特性	工作温度	电缆对数	类型	用途	系列	其他名称	导体类型	增强颜色	横截面形状
3 5174C SL005 Multi-Conductor Cables 16AWG 4C SHIELD 100ft SPOOL SLATE CABLE 16 AWG 4 COND 100' SHLD CABLE, 16AWG, 4 CORE, SLATE, 30.5M Alpha Wire	20	¥2,491.50	Multi-Conductor Cables	Multi-Conductor	16	Gray	:16AWG	0.316" (8.03mm)	:4	1	RoHS Compliant	:No SVHC (20-Jun-2013)	85444995	300V	300 V	19/0.0117"	4	Slate	100 ft	9 lbs	Spool	Shielded	Foil, Braid	:8.8mm	100%, 70%	Suprashield®; Copper, Tinned	:100ft	Copper, Tinned	:8.8mm	Poly-Vinyl Chloride (PVC)	Polyvinyl Chloride (PVC)	0.032" (0.81mm)	Drain Wire, Rip Cord	-30°C ~ 80°C	19 x 0.0117	Xtra-Guard 1	Communication, Control	-	-	-	-	-
2 5174C SL002 Multi-Conductor Cables 16AWG 4C SHIELD 500ft SPOOL SLATE 5174C SLATE 500 FT CABLE, 16AWG, 4 CORE, SLATE, 152.4M Alpha Wire	10	¥9,947.88	Multi-Conductor Cables	Multi-Conductor	16	Gray	:16AWG	0.316" (8.03mm)	:4	1	RoHS Compliant	:No SVHC (20-Jun-2013)	85444995	300V	300 V	19/0.0117"	4	Slate	500 ft	44.500 lbs	Spool	Shielded	Foil, Braid	:8.8mm	100%, 70%	Suprashield®; Aluminum	:500ft	Copper, Tinned	8.64 mm	Poly-Vinyl Chloride (PVC)	Polyvinyl Chloride (PVC)	0.032" (0.81mm)	Point-Of-Sale Equipment	-30°C ~ 105°C	19 x 0.0117	Xtra-Guard 1	-	5174	-	-	-	-
5174C SL001 CABLE XTRA-GRD1 16AWG 4COND1000zzz CABLE 16 AWG 4 COND 1000' SHLD CABLE, 16AWG, 4 CORE, SLATE, 304.8M Xtra-Guard-Performance-Cable, Xtra-Guard-1, 4 Conductor, 16 AWG, SupraShield Premium Foil Braid, 300 V, PVC Jacket, PVC Insulation, 0.316 Jacket Diameter, 0.032 Jacket Thickness, 19/0117 Stranding Alpha Wire	15	¥15,048.66	-	Multi-Conductor	16 AWG	:Slate	:16AWG	0.316" (8.03mm)	:4	1	Lead free / RoHS Compliant	:No SVHC (20-Jun-2013)	85444995	300V	:300V	19/0.0117"	4	Slate	1000' (304.8m)	1	-	-	Foil, Braid	:8.8mm	100%, 70%	Suprashield®; Copper, Tinned	:1000ft	Copper, Tinned	:8.8mm	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	0.032" (0.81mm)	Drain Wire, Rip Cord	-30°C ~ 80°C	-	-	Communication, Control	-	5174CSL001	-	-	-
5174C BK199 5174C BLACK 1000 = 1000 FT Alpha Wire	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
5174C Data cable shielded 4 AWG 16, 5174C, Alpha Wire Alpha Wire	0		-	Data cable	16	grey	16 AWG	8.8	4	-	-	-	-	-	-	-	-	-	-	-	Sold by meter	shielded	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Copper strand tin-plated	black	AWG 16
5174C SL199 ALPHA WIRE	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
