cigen-5172C

5172C 系列

Alpha Wire Corporation

Alpha Wire Corporation

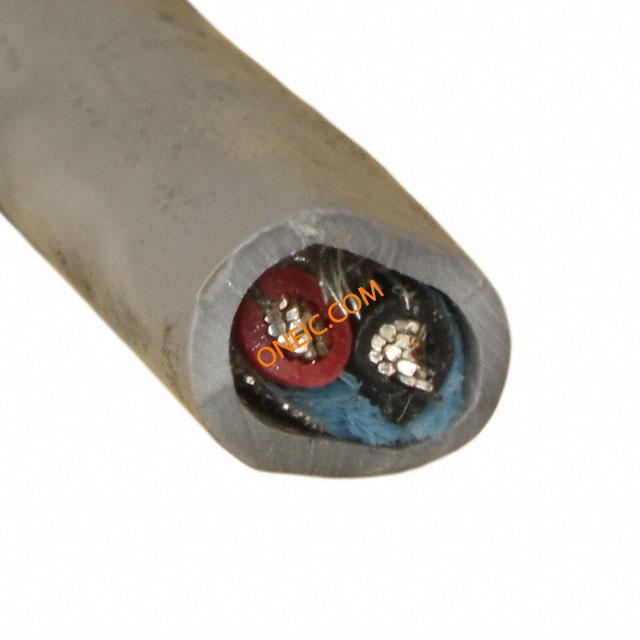

16AWG 2 - core slate cables in various lengths

系列图片（3 张）

文档与媒体

5172C%20SL002.pdf

1684242.pdf

5172C%20SL001.pdf

429265.pdf

5172C%20SL005.pdf

常见问答

内容由 AI 生成，仅供参考

加载中...

03

5172C - 型号列表

共 7 个型号

制造商零件编号	库存	价格	产品类别	额定电压	导体数量	屏蔽	电缆类型	导线线规	线缆护套颜色	屏蔽材料	导体材料	外径	电缆对数	护套（绝缘）厚度	标准包装数量	RoHS	SVHC	海关税号	电压	导体绞线	颜色	长度	重量	包装方式	屏蔽类型	屏蔽覆盖率	总长度	导体绝缘	线规或范围 - AWG	护套（绝缘）直径	护套（绝缘）材料	类型	产品特性	工作温度	用途	外径（标称值）	系列	核心数	标准	绝缘材料 - 材质	线规或范围 - mm²	应用细节	温度额定值	结工作温度	其他名称
3 5172C SL005 Multi-Conductor Cables 16AWG 2C SHIELD 100ft SPOOL SLATE CABLE 16 AWG 2 COND 100' SHLD Cable; Shielded; 2; 16 AWG; 19 x 0.0117; Aluminum/Polyester/Aluminum Foil; 30m CABLE, 16AWG, 2 CORE, SLATE, 30.5M Alpha Wire	10	¥3,334.32	Multi-Conductor Cables	300 V	2	Shielded	Multi-Pair	16	Gray	Suprashield®; Copper, Tinned	Copper, Tinned	:7.06mm	19 x 0.0117	0.032" (0.81mm)	1	RoHS Compliant	:No SVHC (20-Jun-2013)	85444995	300V	19/0.0117"	Slate	100 ft	60 lbs	Spool	Foil, Braid	100%, 70%	:100ft	Poly-Vinyl Chloride (PVC)	:16AWG	0.278" (7.06mm)	Polyvinyl Chloride (PVC)	Xtra-Guard 1	Drain Wire, Rip Cord	-30°C ~ 80°C	Communication, Control	-	-	-	-	-	-	-	-	-	-
2 5172C SL001 Multi-Conductor Cables 16AWG 2C SHIELD 1000ft SPOOL SLATE CABLE 16 AWG 2 COND 1000' SHLD CABLE, 16AWG, 2 CORE, SLATE, 304.8M Xtra-Guard-Performance-Cable, Xtra-Guard-1, 2 Conductor, 16 AWG, SupraShield Premium Foil Braid, 300 V, PVC Jacket, PVC Insulation, 0.278 Jacket Diameter, 0.032 Jacket Thickness, 19/0117 Stranding Alpha Wire	10	¥9,069.06	Multi-Conductor Cables	300 V	2	Shielded	Multi-Pair	16	Gray	Suprashield®; Copper, Tinned	Copper, Tinned	7.11 mm	19 x 0.0117	0.032" (0.81mm)	1	RoHS Compliant	:No SVHC (20-Jun-2013)	85444995	300V	19/0.0117"	Slate	1000 ft	60 lbs	Spool	Foil, Braid	100%, 70%	:1000ft	Poly-Vinyl Chloride (PVC)	:16AWG	0.278" (7.06mm)	Polyvinyl Chloride (PVC)	Xtra-Guard 1	Point-Of-Sale Equipment	-30°C ~ 80°C	Communication, Control	:7.2mm	5172	:2	-	-	-	-	-	-	5172CSL001
2 5172C SL002 Multi-Conductor Cables 16AWG 2C SHIELD 500ft SPOOL SLATE 5172C SLATE 500 FT CABLE, 16AWG, 2 CORE, SLATE, 152.4M Alpha Wire	10	¥7,012.44	Multi-Conductor Cables	300 V	2	Shielded	Multi-Conductor	16	Gray	Suprashield®; Aluminum	Copper, Tinned	7.11 mm	19 x 0.0117	0.032" (0.81mm)	1	RoHS Compliant	:No SVHC (20-Jun-2013)	85444995	300V	19/0.0117"	Slate	500 ft	60 lbs	Spool	Foil, Braid	100%, 70%	:500ft	Poly-Vinyl Chloride (PVC)	:16AWG	0.278" (7.06mm)	Polyvinyl Chloride (PVC)	Xtra-Guard 1	Point-Of-Sale Equipment	-30°C ~ 105°C	-	:7.2mm	5172	:2	-	-	-	-	-	-	-
5172C BK199 5172C BLACK 1000 = 1000 FT Alpha Wire	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
5172CSL002 Cable,Shielded;2;16AWG;19x0.0117;Aluminum/Polyester/AluminumFoil Alpha Wire	0		-	300V	2Cond	Aluminum⁄Polyester⁄AluminumFoil	Shielded	16	Gray	Aluminum/Polyester/Aluminum,TinnedCopper	TinnedCopper	0.28"	19×0.0117	0.017in.	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	ULTypeCM,AWMStyle2464,CSACMGFT4,CE	Color-CodedPremiumPVC	16AWG	Forhightechnologyincontrolledenvironments,point-of-saleequipment,computerperipherals,industrialprocesscontrols	-20to+80°C(AWM),-20to+75°C(CM)	75°C	-
5172CSL005 Cable,Shielded;2;16AWG;19x0.0117;Aluminum/Polyester/AluminumFoil Alpha Wire	0		-	300V	2Cond	Aluminum⁄Polyester⁄AluminumFoil	Shielded	16	Gray	Aluminum/Polyester/Aluminum,TinnedCopper	TinnedCopper	0.28"	19×0.0117	0.017in.	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	ULTypeCM,AWMStyle2464,CSACMGFT4,CE	Color-CodedPremiumPVC	16AWG	Forhightechnologyincontrolledenvironments,point-of-saleequipment,computerperipherals,industrialprocesscontrols	-20to+80°C(AWM),-20to+75°C(CM)	75°C	-
5172C SL199 ALPHA WIRE	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

第 1 / 1 页

1
