500SSP1S1M6 switche 系列
E-Switch, Inc.Slide switches for various electrical applications
系列图片（5 张）
常见问答
内容由 AI 生成，仅供参考
加载中...
03
500SSP1S1M6 switche - 型号列表
共 6 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | 类型 | 系列 | 卡标准 | 电路 | 额定电压 | 开关功能 | 触点额定值 @ 电压 | 方向 | 触点形式 | 致动器类型 | 安装类型 | 接触镀层 | 端接样式 | 安装样式 | RoHS | 触点额定电流 | 工作温度 | 其他名称 | 材料阻燃等级 | 触头材料 | 电路类型 | 标准包装规格 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 500SSP1S1M6REB Slide Switches 2A 240VAC On-None-On SPDT SWITCH SLIDE SPDT .4VA GOLD R/A Series 500 Slide Switches E-Switch | 10 | ¥11.88 | - | 1 | Switches | 500 | Slide Switch | SPDT | 20 V | On-On | 0.4VA @ 20VAC/DC | Right Angle | SPDT | Standard | Panel Mount | Gold | PC Pin | PC Mount | - | - | - | Q1437957 | - | - | - | - |

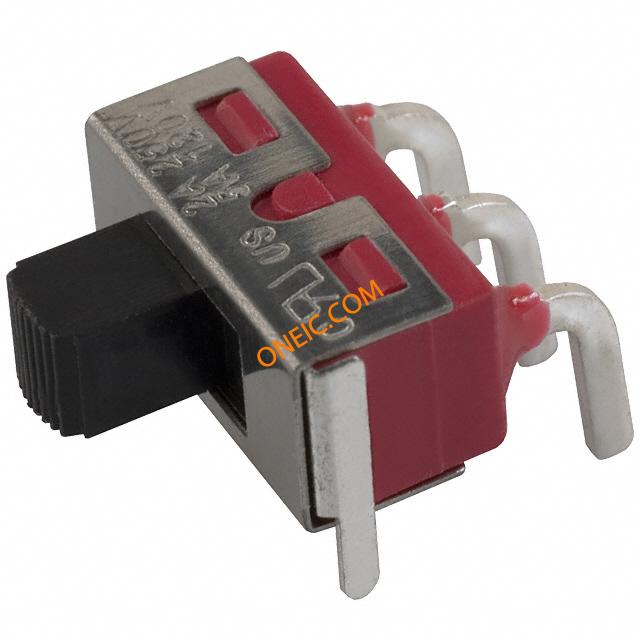

 500SSP1S1M6QEA SWITCH SLIDE SPDT SILVR 5A RTANG SWITCH SLIDE SPDT SILVR 5A 120V Slide Switches SPDT RA SLIDE PC MNT Switch Slide ON None ON SPDT Side Slide 5A 250VAC 28VDC PC Pins Bracket Mount/Through Hole Series 500 Slide Switches E-Switch | 83 | ¥11.59 | Slide Switches | 1 | Slide Switch | 500S | Slide Switch | SPDT | 120 V | On-On | 5A @ 120VAC | Right Angle | SPDT | Standard | Through Hole | Silver | PC Pin | Through Hole | RoHS Compliant | 5 A at 120 V | - 30 C to + 85 C | - | UL 94 V-0 | Copper Alloy | SPDT | - |

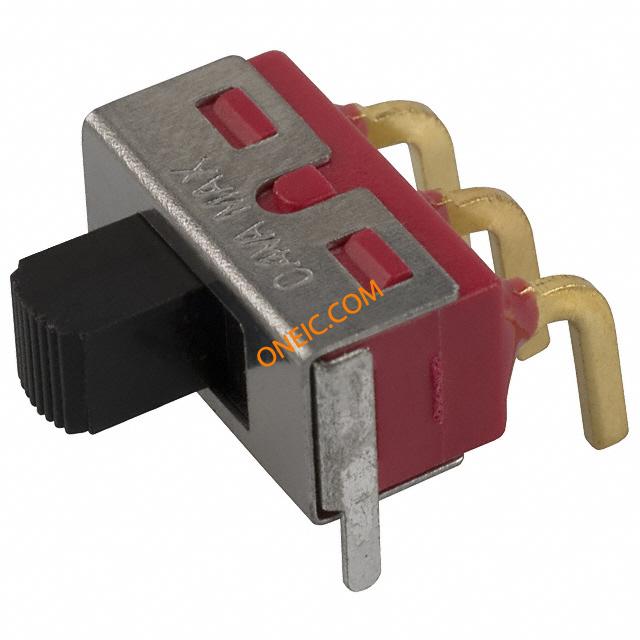

 500SSP1S1M6REA SWITCH SLIDE SPDT .4VA GOLD RA SW SLIDE SPDT .4VA GOLD RA 20V Slide Switches SPDT ON-ON PC MNT Series 500 Slide Switches E-Switch | 2697 | ¥12.36 | Slide Switches | 1 | Slide Switch | 500 | Slide Switch | SPDT | 120 V | On-On | 0.4VA @ 20VAC/DC | Right Angle | SPDT | Standard | Through Hole | Gold | PC Pin | - | RoHS Compliant | 5 A at 120 V | - 30 C to + 85 C | - | - | - | - | 1 |
 | 238 | ¥11.83 | - | 162 | - | * | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 61 | ¥12.74 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 0 | - | - | Switches | - | Slide Switch | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
第 1 / 1 页
1
