Yamaichi Electronics Co., Ltd.- PC 卡插槽

Yamaichi Electronics Co., Ltd.（山一电机株式会社）成立于1956年，总部位于日本东京，是全球电子行业互连技术领域的专业制造商。公司专注于设计和生产高可靠性连接器、测试插座及相关互连方案。产品系列涵盖IC测试和老化插座、存储卡连接器（如SD、CFexpress卡座）、FPC/FFC连接器、板对板连接器以及定制高速连接器等。Yamaichi在半导体测试插座方面尤其突出，其产品用于集成电路的晶圆级和封装级测试。公司还提供适用于工厂自动化和汽车电子的坚固型工业连接器。Yamaichi在日本、亚洲和欧洲设有制造基地，并拥有全球销售网络。在测试插座市场中，Yamaichi被视为技术领先的利基型企业，与Enplas、ISC等公司竞争，其专利接触设计确保了卓越的信号完整性和耐用性。其产品对于全球半导体制造商和测试实验室至关重要，能够满足严苛环境下的高可靠性要求。

MODELS

PC 卡插槽 - 型号列表共 72 个型号

制造商零件编号	价格/库存	RoHS	Pitch	Termination Style	Contact Material	Number of Contacts	Series	Mounting Style	Life	Product	Product Type	Number of Positions / Contacts	Contact Plating	Operating Temperature Range	Body Orientation	Gender	Housing Material	Termination Method	rohs	Package Type	Socket Mounting Type	Number of Rows	连接器类型	主体向性	触点材料	端接方法	外壳材料	触点数目	触点电镀	节距	Mounting Type	Contact resistance	Contact body material	Operating temperature	Insulation resistance	Insulator material	Card Type	Orientation	A	C	B	For housing	Surface of contact sleeve	Insertion - Extraction Style	Current Rating	最高工作温度	高度	安装类型	额定电流	最低工作温度	Poles	插座安装类型	封装类型	Rated current	D	Positioning pin	行数	Product Category	Height	Maximum Operating Temperature	Minimum Operating Temperature	Device Mounting Type	系列号	额定电压	G	H	Packaging	Temperature range	Actuation	Contact material
4 IC51-0324-453 Test & Burn-In Sockets 32Pin PLCC Burn-in Skt 1.27 pitch Yamaichi Electronics	询价	RoHS Compliant	1.27 mm	Solder Pin	Beryllium Copper	32	IC51	Through Hole	New At Mouser	-	PLCC	32	Gold	- 55 C to + 170 C	Straight	Female	PES	Solder	Not Applicable	-	-	-	母座	直	铍铜	焊接	PES	32	金镀镍	1.27mm	Through Hole	≤30 mOhm	BeCu	-55...+170 °C	≥1000 MOhm	PES	-	-	35	9	30	PLCC-32	Ni + Au	-	1A	+170°C	19.5mm	通孔	1A	-55°C	-	-	-	1 A	-	-	-	Test & Burn-In Sockets	19.5mm	+170°C	-55°C	-	-	-	-	-	-	-	-	-
FPS009-2920-0 Memory Card Connectors SD Card Conn Top Mnt Push-Push Yamaichi Electronics	询价	RoHS Compliant	1.27 mm	SMD	Copper Alloy	8	FPS	SMD/SMT	New At Mouser	Card Connectors	-	-	-	-	-	-	-	-	-	-	-	1	-	-	-	-	-	-	-	-	Top	-	-	-	-	-	SD	Horizontal	-	-	-	-	-	Push-Push	-	-	-	-	-	-	-	-	-	-	-	-	-	Memory Card Connectors	-	-	-	-	-	-	-	-	-	-	-	-
2 IC149-112-042-B5 Test & Burn-In Sockets 112pin 0.65pitch QFP IC Skt Yamaichi Electronics	询价	RoHS Compliant	0.65 mm	Solder Tail	Copper Alloy	112	IC149	SMD/SMT	New At Mouser	QFP Sockets	QFP	112	Gold	- 25 C to + 85 C	Straight	Female	Nylon, PPS	Solder	Not Applicable	QFP	Surface Mount	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 IC149-100-025-B5 Test & Burn-In Sockets 100pin 0.5 pitch QFP IC Skt Yamaichi Electronics	询价	RoHS Compliant	0.5 mm	Solder Tail	Copper Alloy	100	IC149	SMD/SMT	New At Mouser	QFP Sockets	QFP	100	Gold	- 25 C to + 85 C	Straight	Female	Nylon, PPS	Solder	Not Applicable	QFP	Surface Mount	-	-	-	-	-	-	-	-	-	-	≤30 mOhm	BeCu	-25...+85 °C	≥500 MOhm	PPS	-	-	26	11	26	QFP-100	2.5...4.5 μm Ni + 0.3 μm Au	-	-	-	-	-	-	-	100	-	-	-	12.6	without	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 IC120-0324-309 Test & Burn-In Sockets 32Pin PLCC Burn-in Skt 1.27 pitch Yamaichi Electronics	询价	RoHS Compliant	1.27 mm	Solder Pin	Beryllium Copper	32	IC120	Through Hole	New At Mouser	PLCC Sockets	PLCC	32	Gold	- 40 C to + 170 C	Straight	Female	PES, PPS	Solder	Not Applicable	PLCC	Through Hole	-	母座	直	铍铜	焊接	PEI，PPS	32	金镀镍	1.27mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	1A	+107°C	19.3mm	通孔	1A	-40°C	-	-	-	-	-	-	-	-	-	-	-	Through Hole	IC120	700 V 交流	-	-	-	-	-	-
4 IC51-1004-809 Test & Burn-In Sockets 100Pin QFP Burn-in Skt 0.50 pitch Yamaichi Electronics	询价	RoHS Compliant	0.5 mm	Solder Pin	Beryllium Copper	100	IC51	Through Hole	New At Mouser	-	QFP	100	Gold	- 55 C to + 170 C	Straight	Female	PEI, PES, PSU	Solder	Not Applicable	QFP	Surface Mount	-	母座	直	铍铜	焊接	PEI，PES，PSU	100	金镀镍	0.5mm	-	≤30 mOhm	BeCu	-55...+170 °C	≥1000 MOhm	PES	-	-	-	-	-	SQFP-100	-	-	-	-	-	-	-	-	-	表面安装	QFP	1 A	-	-	-	-	-	-	-	-	-	-	36	39	-	-	-	-
3 IC189-0162-019 Test & Burn-In Sockets 16Pin SOP Burn-in Skt 1.27 pitch Yamaichi Electronics	询价	RoHS Compliant	1.27 mm	Solder Pin	Beryllium Copper	16	IC189	Through Hole	New At Mouser	SOP Sockets	SOP	16	Gold	- 40 C to + 150 C	Straight	Female	PEI	Solder	Compliant	SOP	Through Hole	2	母座	直	铍铜	焊接	PEI	16	金镀镍	1.27mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	通孔	SOP	-	-	-	2	-	-	-	-	-	-	-	-	-	-	-	-	-
3 IC149-064-008-B5 Test & Burn-In Sockets 64pin 0.8 pitch QFP IC Skt Yamaichi Electronics	询价	RoHS Compliant	0.8 mm	Solder Tail	Copper Alloy	64	IC149	SMD/SMT	New At Mouser	QFP Sockets	QFP	64	Gold	- 25 C to + 85 C	Straight	Female	Nylon, PPS	Solder	Not Applicable	QFP	Surface Mount	-	-	-	-	-	-	-	-	-	-	≤30 mOhm	BeCu	-25...+85 °C	≥500 MOhm	PPS	-	-	26	8.5	26	QFP-64	2.5...4.5 μm Ni + 0.3 μm Au	-	-	-	-	-	-	-	64	-	-	-	10.1	without	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 IC149-100-014-B5 Test & Burn-In Sockets 100pin 065pitch QFP IC Skt Yamaichi Electronics	询价	RoHS Compliant	0.65 mm	Solder Tail	Copper Alloy	100	IC149	SMD/SMT	New At Mouser	QFP Sockets	QFP	100	Gold	- 25 C to + 85 C	Straight	Female	Nylon, PPS	Solder	Not Applicable	QFP	Surface Mount	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 IC149-080-012-B5 Test & Burn-In Sockets 80pin 0.8 pitch QFP IC Skt Yamaichi Electronics	询价	RoHS Compliant	0.8 mm	Solder Tail	Copper Alloy	80	IC149	SMD/SMT	New At Mouser	QFP Sockets	QFP	80	Gold	- 25 C to + 85 C	Straight	Female	Nylon, PPS	Solder	Not Applicable	QFP	Surface Mount	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 IC51-0162-1035 Test & Burn-In Sockets 16Pin SOP Burn-in Skt 1.27 pitch Yamaichi Electronics	询价	RoHS Compliant	1.27 mm	Solder Pin	Beryllium Copper	16	IC51	Through Hole	New At Mouser	-	SOP	16	Gold	- 55 C to + 170 C	Straight	Female	PEI	Solder	Compliant	SOP	Surface Mount	2	母座	直	铍铜	焊接	PEI	16	金镀镍	1.27mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	表面安装	SOP	-	-	-	2	-	-	-	-	-	-	-	-	-	-	-	-	-
4 IC120-0444-306 Test & Burn-In Sockets 44Pin PLCC Burn-in Skt 1.27 pitch Yamaichi Electronics	询价	RoHS Compliant	1.27 mm	Solder Pin	Beryllium Copper	44	IC120	Through Hole	New At Mouser	PLCC Sockets	PLCC	44	Gold	- 40 C to + 170 C	Straight	Female	PES, PPS	Solder	Not Applicable	PLCC	Through Hole	-	母座	直	铍铜	焊接	PEI，PPS	44	金镀镍	1.27mm	-	≤30 mOhm	BeCu	-40...+170 °C	<gt/>1000 MOhm	PPS + PEI	-	-	28	19.3	28	-	Ni + Au	-	1A	+107°C	19.3mm	通孔	1A	-40°C	44	-	-	1 A	-	-	-	-	-	-	-	Through Hole	IC120	700 V 交流	-	-	-	-	-	-
3 IC51-0444-400 Test & Burn-In Sockets 44Pin PLCC Burn-in Skt 1.27 pitch Yamaichi Electronics	询价	RoHS Compliant	1.27 mm	Solder Pin	Beryllium Copper	44	IC51	Through Hole	New At Mouser	-	PLCC	44	Gold	- 55 C to + 170 C	Straight	Female	PES	Solder	Not Applicable	-	-	-	母座	直	铍铜	焊接	PES	44	金镀镍	1.27mm	Through Hole	-	-	-	-	-	-	-	-	-	-	-	-	-	1A	+170°C	20mm	通孔	1A	-55°C	-	-	-	-	-	-	-	-	20mm	+170°C	-55°C	-	-	-	-	-	-	-	-	-
3 IC191-0482-004 Test & Burn-In Sockets 48Pin TSOP Burn-in Skt 0.50 pitch Yamaichi Electronics	询价	RoHS Compliant	0.5 mm	Solder Pin	Beryllium Copper	48	IC191	Through Hole	New At Mouser	-	TSOP	48	Gold	- 40 C to + 170 C	Straight	Female	PEI	Solder	Compliant	TSOP	Through Hole	2	母座	直	铍铜	焊接	PEI	48	金镀镍	1mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	通孔	TSOP	-	-	-	2	-	-	-	-	-	-	-	-	-	-	-	-	-
3 IC149-080-017-B5 Test & Burn-In Sockets 80pin 0.65pitch QFP IC Skt Yamaichi Electronics	询价	RoHS Compliant	0.65 mm	Solder Tail	Copper Alloy	80	IC149	SMD/SMT	New At Mouser	QFP Sockets	QFP	80	Gold	- 25 C to + 85 C	Straight	Female	Nylon, PPS	Solder	Not Applicable	QFP	Surface Mount	-	-	-	-	-	-	-	-	-	-	≤30 mOhm	BeCu	-25...+85 °C	≥500 MOhm	PPS	-	-	26	8.1	26	QFP-80	2.5...4.5 μm Ni + 0.3 μm Au	-	-	-	-	-	-	-	80	-	-	-	9.7	without	-	-	-	-	-	-	-	-	-	-	-	-	-	-
FMS006-2620-0 Memory Card Connectors SIM Card Conn 6pin Top Mnt Push-Push Yamaichi Electronics	询价	RoHS Compliant	1.27 mm	SMD	Copper Alloy	6	FMS006	-	-	Card Connectors	-	-	-	-	-	-	-	-	-	-	-	2	-	-	-	-	-	-	-	-	Top	-	-	-	-	-	SIM	Horizontal	-	-	-	-	-	Push-Push	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Reel	-	-	-
FMS006-3900-0 Memory Card Connectors SIM Card Conn 6pin Top Mnt Tray Type Yamaichi Electronics	询价	RoHS Compliant	1.27 mm	SMD	Copper Alloy	6	FMS006	-	-	Card Connectors	-	-	-	-	-	-	-	-	-	-	-	2	-	-	-	-	-	-	-	-	Top	-	-	-	-	-	SIM	Horizontal	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

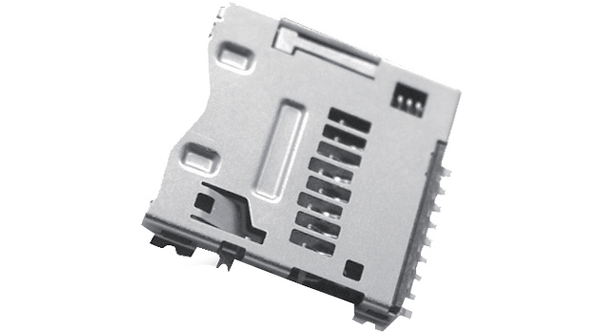

PJS008-2003-0 Memory Card Connectors MicroSD Card Conn Revrs Mnt Push-Push Yamaichi Electronics	询价	RoHS Compliant	1.1 mm	SMD	Copper Alloy	8	PJS008	-	-	Card Connectors	-	-	-	-	-	-	-	-	-	-	-	1	-	-	-	-	-	-	-	-	Reverse	-	-	-	-	-	microSD	Horizontal	-	-	-	-	-	Push-Push	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-25...+85 °C	Push / Push	Ni+Au
PJS008U-3000-0 Memory Card Connectors MicroSD Card Conn Ver Dip Mnt Manual Yamaichi Electronics	询价	RoHS Compliant	1.1 mm	Through Hole	Copper Alloy	8	PJS008	-	-	Card Connectors	-	-	-	-	-	-	-	-	-	-	-	1	-	-	-	-	-	-	-	-	-	-	-	-	-	-	microSD	Vertical	-	-	-	-	-	Manual-Manual (Slide In-Slide Out)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
FMS008-6001-0 Memory Card Connectors SIM Card Conn 8pin Top Mnt Push-Push Yamaichi Electronics	询价	RoHS Compliant	1.27 mm	SMD	Copper Alloy	8	FMS006	-	-	Card Connectors	-	-	-	-	-	-	-	-	-	-	-	2	-	-	-	-	-	-	-	-	Top	-	-	-	-	-	SIM	Horizontal	-	-	-	-	-	Push-Push	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
