TAIYO YUDEN CO., LTD.- 通用电感器
02
MODELS通用电感器 - 型号列表共 3,250 个型号
| 制造商零件编号 | 价格/库存 | Package/Case | Type | Maximum DC Current | Tolerance | Maximum DC Resistance | Standard Package | Packaging | DC Resistance (DCR) | Size / Dimension | Mounting Type | Other Names | Dimensions | Operating Temperature Range | Termination Style | Case Length | Case Height | Case Width | RoHS | Inductance | Current Rating | Operating Temperature | rohs | Core Material | Product Height | Height - Seated (Max) | Frequency - Self Resonant | Shielding | Frequency - Test | Self Resonant Frequency | Package / Case | Supplier Device Package | Q @ Freq | Minimum Quality Factor | Series | Q Minimum | Test Frequency | Product Range | Inductance Tolerance | Inductor Case Style | Self Resonant Frequency Min | DC Resistance Max | Weight (kg) | Tariff No. | Operating Temp Range | Rad Hardened | Failure Rate | Case Size | Tolerance (+ or -) | Military Standard | Product Length (mm) | Product Depth (mm) | Product Height (mm) | Technology | DC Current | DC Resistance | Product Diameter (mm) | Current - Saturation | Q | Filter Type | Height (Max) | Product | Life | DC Current Rating | Inductor Construction | SVHC | Q Factor | Current | Number of Lines | メーカ | インダクタンス | 公差 | 最大 DC 電流 | 最大 DC 抵抗 | 動作温度範囲 | 自己共振周波数 | パッケージ/ケース | 寸法 | 末端様式 | ケースの高さ | ケースの長さ | ケースの幅 | パッケージ化 | シリーズ | Material - Core | Impedance | Impedance @ Frequency | Application | Depth | Height | Length | Material | 系列 | 直流电阻 (DCR) | 高度（最大值） | 额定电流 | 封装/外壳 | 滤波器类型 | 不同频率时的阻抗 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HK10052N2S-T Ind High Frequency Chip Multi-Layer 2.2nH 0.3nH 100MHz 8Q-Factor Ceramic 700mA 0402 T/R taiyo yuden | 询价 | 0402 | High Frequency Chip | 700 mA | 0.3 nH | 130 mOhm | Tape & Reel | Tape & Reel (TR) | 130 mOhm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | Surface Mount | 587-1503-1 | 0.5 mm W x 1 mm L x 0.5 mm H | - 55 C to + 125 C | SMD/SMT | 1 mm | 0.5 mm | 0.5 mm | RoHS Compliant | 2.2 nH | 700mA | -55°C ~ 85°C | Lead free / RoHS Compliant | Ceramic | 0.55 mm | 0.022" (0.55mm) | 6GHz | Unshielded | 100MHz | 10000 MHz | 0402 (1005 metric) | 0402 (1005 Metric) | 8 @ 100MHz | 8@100MHz | - | 8 | 100 MHz | - | - | - | - | - | - | - | -55C to 125C | No | Not Required | 0402 | 0.3nH | Not Required | 1.05 mm | 0.55 mm | 0.55 mm | Multi-Layer | 700 mA | 0.13 ohm | Not Required mm | - | 8 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

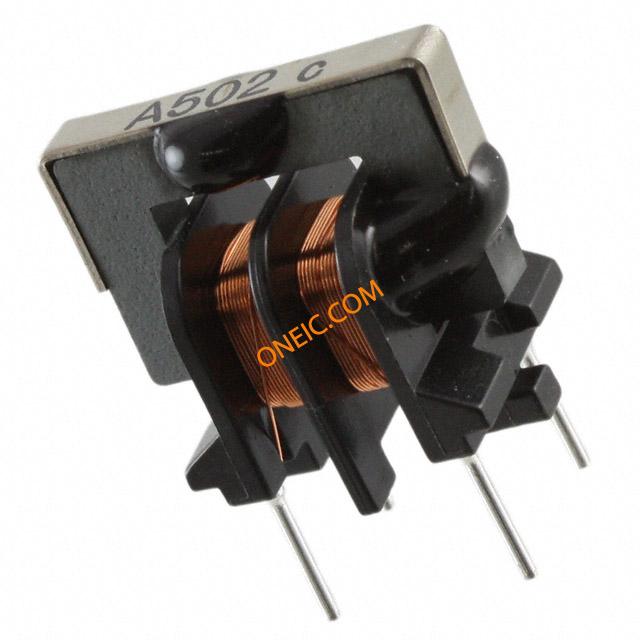

 | 询价 | Vertical, 4 PC Pin | Leaded Common Mode Choke Coils for AC Lines | 320 mA | - 10 %, + 100 % | 2.5 Ohms | 500 | Bulk | 2.5 Ohm Max | 0.669" L x 0.433" W (17.00mm x 11.00mm) | Through Hole | 587-2791 | 11 mm W x 17 mm L x 16 mm H | - 25 C to + 105 C | Radial | 17 mm | 16 mm | 11 mm | RoHS Compliant | 5mH | - | -25°C ~ 105°C | - | - | - | - | - | - | - | - | - | - | - | - | TLF | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Power Line | 0.630" (16.00mm) | Common Mode Filters | - | - | - | - | - | 320mA | 2 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

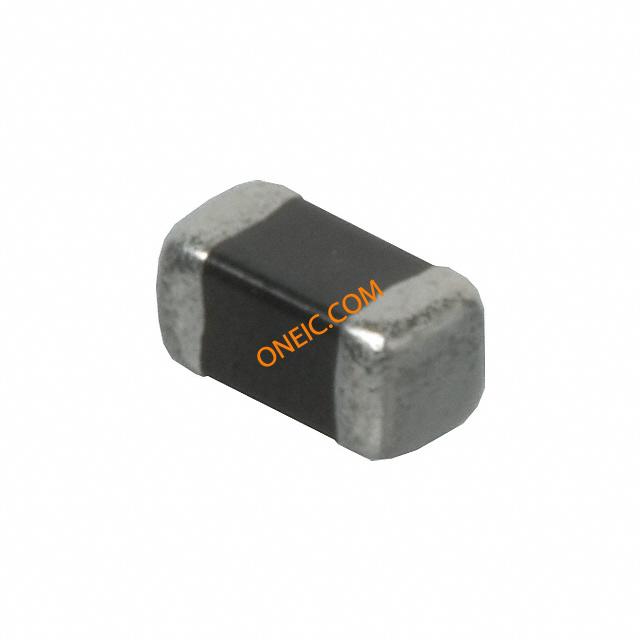

 LK16082R7K-T Ind Chip Shielded Multi-Layer 2.7uH 10% 10MHz 35Q-Factor Ferrite 30mA 0603 T/R taiyo yuden | 询价 | 0603 | Chip | 30 mA | 10 % | 1.15 Ohm | Tape & Reel | Tape & Reel (TR) | 1.15 Ohm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | Surface Mount | 587-1583-1 | 0.8 mm W x 1.6 mm L x 0.8 mm H | - 40 C to + 85 C | SMD/SMT | 1.6 mm | 0.8 mm | 0.8 mm | RoHS 認証 | 2.7 uH | 30mA | -40°C ~ 85°C | Lead free / RoHS Compliant | Ferrite | 0.95 mm | 0.037" (0.95mm) | 40MHz | Shielded | 10MHz | 40 MHz | 0603 (1608 metric) | 0603 (1608 Metric) | 35 @ 10MHz | 35@10MHz | LK | - | - | :TAIYO YUDEN - LK Series | :± 10% | :0603 ^1608 Metric] | :40MHz | :1.15ohm | 0.002 | 85339000 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Mouser 初 | - | - | - | - | - | - | Taiyo Yuden | 2.7 uH | 10 % | 30 mA | 1.15 Ohms | - 40 C to + 85 C | 40 MHz | 0603 (1608 metric) | 0.8 mm W x 1.6 mm L x 0.8 mm H | SMD/SMT | 0.8 mm | 1.6 mm | 0.8 mm | Reel | LK | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
HK100510NJ-T Ind High Frequency Chip Multi-Layer 10nH 5% 100MHz 8Q-Factor Ceramic 340mA 0402 T/R taiyo yuden | 询价 | 0402 | High Frequency Chip | 340 mA | 5 % | 310 mOhm | Tape & Reel | Tape & Reel (TR) | 310 mOhm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | Surface Mount | 587-1519-1 | 0.5 mm W x 1 mm L x 0.5 mm H | - 55 C to + 125 C | SMD/SMT | 1 mm | 0.5 mm | 0.5 mm | RoHS Compliant | 10 nH | 340mA | -55°C ~ 85°C | Lead free / RoHS Compliant | Ceramic | 0.55 mm | 0.022" (0.55mm) | 3.2GHz | Unshielded | 100MHz | 4300 MHz | 0402 (1005 metric) | 0402 (1005 Metric) | 8 @ 100MHz | 8@100MHz | - | 8 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
HK10058N2J-T Ind High Frequency Chip Multi-Layer 8.2nH 5% 100MHz 8Q-Factor Ceramic 380mA 0402 T/R taiyo yuden | 询价 | 0402 | High Frequency Chip | 380 mA | 5 % | 280 mOhm | Tape & Reel | Tape & Reel (TR) | 280 mOhm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | Surface Mount | 587-1517-1 | 0.5 mm W x 1 mm L x 0.5 mm H | - 55 C to + 125 C | SMD/SMT | 1 mm | 0.5 mm | 0.5 mm | RoHS Compliant | 8.2 nH | 380mA | -55°C ~ 85°C | Lead free / RoHS Compliant | Ceramic | 0.55 mm | 0.022" (0.55mm) | 3.6GHz | Unshielded | 100MHz | 4900 MHz | 0402 (1005 metric) | 0402 (1005 Metric) | 8 @ 100MHz | 8@100MHz | - | 8 | - | :TAIYO YUDEN - HK Series | :± 5% | :0402 [1005 Metric] | :3.6GHz | :0.28ohm | 0.000001 | 85339000 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | :300mA | :Multilayer | :No SVHC (20-Jun-2013) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
HK1005R12J-T Ind High Frequency Chip Multi-Layer 120nH 5% 100MHz 8Q-Factor Ceramic 200mA 0402 T/R taiyo yuden | 询价 | 0402 | High Frequency Chip | 200 mA | 5 % | 1.6 Ohm | Tape & Reel | Tape & Reel (TR) | 1.6 Ohm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | Surface Mount | 587-1532-1 | 0.5 mm W x 1 mm L x 0.5 mm H | - 55 C to + 125 C | SMD/SMT | 1 mm | 0.5 mm | 0.5 mm | RoHS Compliant | 120 nH | 200mA | -55°C ~ 85°C | Lead free / RoHS Compliant | Ceramic | 0.55 mm | 0.022" (0.55mm) | 600MHz | Unshielded | 100MHz | 800 MHz | 0402 (1005 metric) | 0402 (1005 Metric) | 8 @ 100MHz | 8@100MHz | - | 8 | 100 MHz | - | - | - | - | - | - | - | -55C to 125C | No | Not Required | 0402 | 5% | Not Required | 1.05 mm | 0.55 mm | 0.55 mm | Multi-Layer | 200 mA | 1.6 ohm | Not Required mm | - | 8 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 HK1608R10J-T Ind High Frequency Chip Multi-Layer 100nH 5% 100MHz 12Q-Factor Ceramic 300mA 0603 T/R taiyo yuden | 询价 | 0603 | High Frequency Chip | 300 mA | 5 % | 1 Ohm | Tape & Reel | Tape & Reel (TR) | 100 mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | Surface Mount | 587-1557-1 | 0.8 mm W x 1.6 mm L x 0.8 mm H | - 40 C to + 85 C | SMD/SMT | 1.6 mm | 0.8 mm | 0.8 mm | RoHS Compliant | 100 nH | 300mA | -40°C ~ 85°C | Lead free / RoHS Compliant | Ceramic | 0.95 mm | 0.037" (0.95mm) | 600MHz | Unshielded | 100MHz | 1000 MHz | 0603 (1608 metric) | 0603 (1608 Metric) | 12 @ 100MHz | 12@100MHz | - | 12 | - | :TAIYO YUDEN - HK Series | :± 5% | :0603 ^1608 Metric] | :600MHz | :1ohm | 0.002 | 85339000 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | :12 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
HK1608R12J-T Ind High Frequency Chip Multi-Layer 120nH 5% 50MHz 8Q-Factor Ceramic 300mA 0603 T/R taiyo yuden | 询价 | 0603 | High Frequency Chip | 300 mA | 5 % | 1.2 Ohm | Tape & Reel | Tape & Reel (TR) | 1.2 Ohm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | Surface Mount | 587-1558-1 | 0.8 mm W x 1.6 mm L x 0.8 mm H | - 40 C to + 85 C | SMD/SMT | 1.6 mm | 0.8 mm | 0.8 mm | RoHS Compliant | 120 nH | 300mA | -40°C ~ 85°C | Lead free / RoHS Compliant | Ceramic | 0.95 mm | 0.037" (0.95mm) | 500MHz | Unshielded | 50MHz | 800 MHz | 0603 (1608 metric) | 0603 (1608 Metric) | 8 @ 100MHz | 8@50MHz | - | 8 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
HK1608R22J-T Ind High Frequency Chip Multi-Layer 220nH 5% 50MHz 8Q-Factor Ceramic 300mA 0603 T/R taiyo yuden | 询价 | 0603 | High Frequency Chip | 300 mA | 5 % | 1.5 Ohm | Tape & Reel | Tape & Reel (TR) | 1.5 Ohm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | Surface Mount | 587-1561-1 | 0.8 mm W x 1.6 mm L x 0.8 mm H | - 40 C to + 85 C | SMD/SMT | 1.6 mm | 0.8 mm | 0.8 mm | RoHS Compliant | 220 nH | 300mA | -40°C ~ 85°C | Lead free / RoHS Compliant | Ceramic | 0.95 mm | 0.037" (0.95mm) | 400MHz | Unshielded | 50MHz | 600 MHz | 0603 (1608 metric) | 0603 (1608 Metric) | 8 @ 100MHz | 8@50MHz | - | 8 | - | :TAIYO YUDEN - HK Series | :± 5% | :0603 ^1608 Metric] | :400MHz | :1.5ohm | 0.002 | 85411000 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | :8 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 询价 | 10.3 X 10.3 X 5 | Power | 1.8 A | 20 % | 119.6 mOhm | Tape & Reel | Tape & Reel (TR) | 119.6 mOhm Max | 0.394" L x 0.386" W (10.00mm x 9.80mm) | Surface Mount | 587-1700-2 | 9.8 mm W x 10 mm L x 5 mm H | - 25 C to + 105 C | SMD/SMT | 10 mm | 5 mm | 9.8 mm | RoHS Compliant | 47 uH | 1.8A | -25°C ~ 105°C | Lead free / RoHS Compliant | Ferrite | 5 mm | 0.197" (5.00mm) | 7MHz | Shielded | 100kHz | 7 MHz | - | - | - | - | NR | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 2A | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 询价 | 1212 | Power | 1.04 A | 20 % | 144 mOhm | Tape & Reel | Tape & Reel (TR) | 144 mOhm Max | 0.118" L x 0.118" W (3.00mm x 3.00mm) | Surface Mount | 587-1649-1 | 3 mm W x 3 mm L x 1.5 mm H | - 25 C to + 120 C | SMD/SMT | 3 mm | 1.5 mm | 3 mm | RoHS Compliant | 4.7 uH | 1.04A | -25°C ~ 120°C | Lead free / RoHS Compliant | Ferrite | 1.5 mm | 0.059" (1.50mm) | 40MHz | Shielded | 100kHz | 40 MHz | - | - | - | - | NR | - | 0.1 MHz | - | - | - | - | - | - | - | -25C to 120C | No | Not Required | 1212 | 20% | Not Required | 3.1 mm | 3.1 mm | 1.5 mm | Wirewound | 1040 mA | 0.144 ohm | Not Required mm | 1.02A | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Ferrite | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 询价 | 1007 | Power Chip | 920 mA | 20 % | 260 mOhm | Tape & Reel | Tape & Reel (TR) | 260 mOhm Max | 0.098" L x 0.072" W (2.50mm x 1.80mm) | Surface Mount | 587-1621-1 | 1.8 mm W x 2.5 mm L x 1.8 mm H | - 40 C to + 105 C | SMD/SMT | 2.5 mm | 1.8 mm | 1.8 mm | RoHS Compliant | 4.7 uH | 920mA | -40°C ~ 105°C | Lead free / RoHS Compliant | Ferrite | 2 mm | 0.079" (2.00mm) | 41MHz | Unshielded | 7.96MHz | 41 MHz | 1007 (2518 metric) | 1007 (2518 Metric) | - | - | CBC | - | 7.96 MHz | - | - | - | - | - | - | - | -40C to 105C | No | Not Required | 1007 | 20% | Not Required | 2.7 mm | 2 mm | 2 mm | Wirewound | 920 mA | 0.26 ohm | Not Required mm | 680mA | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 询价 | 1210 | Power Chip | 780 mA | 20 % | 351 mOhm | Tape & Reel | Tape & Reel (TR) | 351 mOhm Max | 0.126" L x 0.100" W (3.20mm x 2.50mm) | Surface Mount | 587-1626-1 | 2.5 mm W x 3.2 mm L x 2.5 mm H | - 40 C to + 105 C | SMD/SMT | 3.2 mm | 2.5 mm | 2.5 mm | RoHS Compliant | 22 uH | 780mA | -40°C ~ 105°C | Lead free / RoHS Compliant | Ferrite | 2.7 mm | 0.106" (2.70mm) | 17MHz | Unshielded | 100kHz | 17 MHz | 1210 (3225 metric) | 1210 | - | - | CBC | - | - | :TAIYO YUDEN - CB Series | :± 20% | :1210 [3225 Metric] | :17MHz | :0.27ohm | 0.002 | 85045095 | - | - | - | - | - | - | - | - | - | - | - | - | - | 620mA | - | - | - | - | - | :780mA | :Wirewound | :No SVHC (20-Jun-2013) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 询价 | 1210 | Power Chip | 1.01 A | 20 % | 100(Typ) mOhm | Tape & Reel | Tape & Reel (TR) | 130 mOhm Max | 0.126" L x 0.100" W (3.20mm x 2.50mm) | Surface Mount | 587-1624-1 | 2.5 mm W x 3.2 mm L x 2.5 mm H | - 40 C to + 105 C | SMD/SMT | 3.2 mm | 2.5 mm | 2.5 mm | RoHS Compliant | 4.7 uH | 1.01A | -40°C ~ 105°C | Lead free / RoHS Compliant | Ferrite | 2.7 mm | 0.106" (2.70mm) | 70MHz | Unshielded | 100kHz | 70 MHz | 1210 (3225 metric) | 1210 | - | - | CBC | - | 0.1 MHz | :TAIYO YUDEN - CB Series | :± 20% | :1210 ^3225 Metric] | :70MHz | :0.1ohm | 0.002 | 85411000 | -40C to 105C | No | Not Required | 1210 | 20% | Not Required | 3.4 mm | 2.7 mm | 2.7 mm | Wirewound | 1010 mA | 0.13 ohm | Not Required mm | 1.25A | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 询价 | 0603 | High Current Chip Bead | 2 A | 25 % | 50 mOhm | Cut Tape | Reel | 50 mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | Surface Mount | 587-1740-1 | 1.6 x 0.8 x 0.8mm | - 40 C to + 125 C | SMD/SMT | 1.6 mm | 0.8 mm | 0.8 mm | RoHS Compliant | - | 2A | - | Lead free / RoHS Compliant | Ferrite | 0.95 mm | - | - | - | - | - | 0603 (1608 metric) | - | - | - | - | - | 100 MHz | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Differential Mode - Single | 0.039" (1.00mm) | Ferrite Beads | New At Mouser | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 150 Ohm | 150 Ohm @ 100MHz | Automotive, Computer Peripherals, Differential Transmission Line, High Frequency Noise Counter, Mobile Devices, Power Line, Waveform Correction of Digital Signals | 0.8mm | 0.8mm | 1.6mm | Ferrite | FBM | 50 mOhm Max | 0.039" (1.00mm) | 2A | 0603 (1608 Metric) | Differential Mode - Single | 150 Ohm @ 100MHz |
 | 询价 | 0603 (1608 Metric) | Multilayer | 30 mA | ±10% | 1 Ohms | Tape & Reel | Tape & Reel (TR) | 1 Ohm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | Surface Mount | 587-1582-1 | 0.8 mm W x 1.6 mm L x 0.8 mm H | - 40 C to + 85 C | SMD/SMT | 1.6 mm | 0.8 mm | 0.8 mm | RoHS Compliant | 2.2µH | 30mA | -40°C ~ 85°C | Lead free / RoHS Compliant | - | - | 0.037" (0.95mm) | 45MHz | Shielded | 10MHz | 45 MHz | 0603 (1608 metric) | 0603 (1608 Metric) | 35 @ 10MHz | - | LK | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
LK160868NM-T Ind Chip Shielded Multi-Layer 68nH 20% 50MHz 10Q-Factor Ferrite 150mA 0603 T/R taiyo yuden | 询价 | 0603 | Chip | 150 mA | 20 % | 300 mOhm | Tape & Reel | Tape & Reel (TR) | 300 mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | Surface Mount | 587-1598-6 | 0.8 mm W x 1.6 mm L x 0.8 mm H | - 40 C to + 85 C | SMD/SMT | 1.6 mm | 0.8 mm | 0.8 mm | RoHS Compliant | 68 nH | 150mA | -40°C ~ 85°C | Lead free / RoHS Compliant | Ferrite | 0.95 mm | 0.037" (0.95mm) | 250MHz | Shielded | 50MHz | 250 MHz | 0603 (1608 Metric) | 0603 (1608 Metric) | 10 @ 50MHz | 10@50MHz | LK | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
LK1608R10K-T Ind Chip Shielded Multi-Layer 100nH 10% 25MHz 15Q-Factor Ferrite 150mA 0603 T/R taiyo yuden | 询价 | 0603 | Chip | 150 mA | 10 % | 350 mOhm | Tape & Reel | Tape & Reel (TR) | 350 mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | Surface Mount | 587-1566-1 | 0.8 mm W x 1.6 mm L x 0.8 mm H | - 40 C to + 85 C | SMD/SMT | 1.6 mm | 0.8 mm | 0.8 mm | RoHS Compliant | 100 nH | 150mA | -40°C ~ 85°C | Lead free / RoHS Compliant | Ferrite | 0.95 mm | 0.037" (0.95mm) | 240MHz | Shielded | 25MHz | 240 MHz | 0603 (1608 metric) | 0603 (1608 Metric) | 15 @ 25MHz | 15@25MHz | LK | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 HK060368NJ-T Ind High Frequency Chip Multi-Layer 68nH 5% 100MHz 4Q-Factor Ceramic 80mA 0201 T/R taiyo yuden | 询价 | 0201 | High Frequency Chip | 80 mA | 5 % | 2.66 Ohm | Tape & Reel | Tape & Reel (TR) | 2.66 Ohm Max | 0.024" L x 0.012" W (0.60mm x 0.30mm) | Surface Mount | 587-1495-1 | 0.3 mm W x 0.6 mm L x 0.3 mm H | - 55 C to + 125 C | SMD/SMT | 0.6 mm | 0.3 mm | 0.3 mm | RoHS Compliant | 68 nH | 80mA | -55°C ~ 125°C | Lead free / RoHS Compliant | Ceramic | 0.33 mm | 0.013" (0.33mm) | 1.1GHz | Unshielded | 100MHz | 1500 MHz | 0201 (0603 metric) | 0201 (0603 Metric) | 4 @ 100MHz | 4@100MHz | - | 4 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
HK10051N0S-T Ind High Frequency Chip Multi-Layer 1nH 0.3nH 100MHz 8Q-Factor Ceramic 900mA 0402 T/R taiyo yuden | 询价 | 0402 | High Frequency Chip | 900 mA | 0.3 nH | 80 mOhm | Tape & Reel | Tape & Reel (TR) | 80 mOhm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | Surface Mount | 587-1498-1 | 0.5 mm W x 1 mm L x 0.5 mm H | - 55 C to + 125 C | SMD/SMT | 1 mm | 0.5 mm | 0.5 mm | RoHS Compliant | 1 nH | 900mA | -55°C ~ 85°C | Lead free / RoHS Compliant | Ceramic | 0.55 mm | 0.022" (0.55mm) | 10GHz | Unshielded | 100MHz | 13000 MHz | 0402 (1005 metric) | 0402 (1005 Metric) | 8 @ 100MHz | 8@100MHz | - | 8 | 100 MHz | :TAIYO YUDEN - HK Series | :± 0.3nH | :0402 ^1005 Metric] | :10GHz | :0.08ohm | 0.002 | 85339000 | -55C to 125C | No | Not Required | 0402 | 0.3nH | Not Required | 1.05 mm | 0.55 mm | 0.55 mm | Multi-Layer | 900 mA | 0.08 ohm | Not Required mm | - | 8 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
第 1 / 163 页
