TAIYO YUDEN CO., LTD.- 高频电感器

太阳诱电株式会社（TAIYO YUDEN CO., LTD.）自1950年创立以来，总部位于日本东京，是全球领先的被动电子元器件及模块制造商。公司秉持从材料开发入手的商品化理念，专注于先进陶瓷与介电材料技术的研发。核心产品涵盖多层陶瓷电容器（MLCC）、绕线型与叠层型电感器、LC/EMI滤波器以及射频前端模块。特别在声表面波（SAW）谐振器和薄膜体声波谐振器（FBAR）双工器与滤波器领域技术卓越，广泛应用于4G/5G智能手机。同时，公司还生产锂离子电容器等能源器件和光记录媒体。太阳诱电的产品深入应用在IT基础设施、消费电子、汽车电子和工业设备等领域，其中车规级MLCC和电感器符合严格的AEC-Q200可靠性标准。在竞争激烈的全球MLCC市场中，太阳诱电稳居前三至前五名，并在小型化、大容量和高频特性方面保持技术优势。公司的芯片电感器和射频器件也享有极高的行业地位，客户涵盖全球主要电子设备制造商。近年来，公司积极布局不断扩大的电动汽车和可再生能源市场，强化与利益相关方的双赢合作，致力于可持续发展的未来。

MODELS

高频电感器 - 型号列表共 263 个型号

制造商零件编号	价格/库存	Package/Case	Type	Inductance	Maximum DC Current	Tolerance	Maximum DC Resistance	Core Material	Product Height	Standard Package	RoHS	Packaging	Current Rating	DC Resistance (DCR)	Height - Seated (Max)	Frequency - Self Resonant	Shielding	Supplier Device Package	Size / Dimension	Operating Temperature	Mounting Type	Frequency - Test	rohs	Other Names	Dimensions	Operating Temperature Range	Termination Style	Self Resonant Frequency	Case Length	Case Height	Package / Case	Case Width	Product Range	Inductance Tolerance	Inductor Case Style	Self Resonant Frequency Min	DC Resistance Max	Weight (kg)	Tariff No.	Series	Minimum Quality Factor	Q @ Freq	DC Current Rating	Operating Temp Range	Rad Hardened	Failure Rate	Case Size	Tolerance (+ or -)	Test Frequency	Military Standard	Product Length (mm)	Product Depth (mm)	Product Height (mm)	Technology	DC Current	Product Diameter (mm)	Current - Saturation	DC Resistance	Q Minimum	メーカ	インダクタンス	公差	最大 DC 電流	最大 DC 抵抗	動作温度範囲	自己共振周波数	パッケージ/ケース	寸法	末端様式	ケースの高さ	ケースの長さ	ケースの幅	パッケージ化	シリーズ	Life	Inductor Construction	SVHC	Q	Depth	Height	Length	Maximum Operating Temperature	Maximum Self Resonant Frequency	Minimum Operating Temperature	Q Factor	Product Depth
6 LK16082R7K-T Ind Chip Shielded Multi-Layer 2.7uH 10% 10MHz 35Q-Factor Ferrite 30mA 0603 T/R taiyo yuden	询价	0603	Chip	2.7 uH	30 mA	10 %	1.15 Ohm	Ferrite	0.95 mm	Tape & Reel	RoHS 認証	Tape & Reel (TR)	30mA	1.15 Ohm Max	0.037" (0.95mm)	40MHz	Shielded	0603 (1608 Metric)	0.063" L x 0.031" W (1.60mm x 0.80mm)	-40°C ~ 85°C	Surface Mount	10MHz	Lead free / RoHS Compliant	587-1583-1	0.8 mm W x 1.6 mm L x 0.8 mm H	- 40 C to + 85 C	SMD/SMT	40 MHz	1.6 mm	0.8 mm	0603 (1608 metric)	0.8 mm	:TAIYO YUDEN - LK Series	:± 10%	:0603 ^1608 Metric]	:40MHz	:1.15ohm	0.002	85339000	LK	35@10MHz	35 @ 10MHz	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Taiyo Yuden	2.7 uH	10 %	30 mA	1.15 Ohms	- 40 C to + 85 C	40 MHz	0603 (1608 metric)	0.8 mm W x 1.6 mm L x 0.8 mm H	SMD/SMT	0.8 mm	1.6 mm	0.8 mm	Reel	LK	Mouser 初	-	-	-	-	-	-	-	-	-	-	-
6 HK10058N2J-T Ind High Frequency Chip Multi-Layer 8.2nH 5% 100MHz 8Q-Factor Ceramic 380mA 0402 T/R taiyo yuden	询价	0402	High Frequency Chip	8.2 nH	380 mA	5 %	280 mOhm	Ceramic	0.55 mm	Tape & Reel	RoHS Compliant	Tape & Reel (TR)	380mA	280 mOhm Max	0.022" (0.55mm)	3.6GHz	Unshielded	0402 (1005 Metric)	0.039" L x 0.020" W (1.00mm x 0.50mm)	-55°C ~ 85°C	Surface Mount	100MHz	Lead free / RoHS Compliant	587-1517-1	0.5 mm W x 1 mm L x 0.5 mm H	- 55 C to + 125 C	SMD/SMT	4900 MHz	1 mm	0.5 mm	0402 (1005 metric)	0.5 mm	:TAIYO YUDEN - HK Series	:± 5%	:0402 [1005 Metric]	:3.6GHz	:0.28ohm	0.000001	85339000	-	8@100MHz	8 @ 100MHz	:300mA	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	8	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	:Multilayer	:No SVHC (20-Jun-2013)	-	-	-	-	-	-	-	-	-
5 HK1608R10J-T Ind High Frequency Chip Multi-Layer 100nH 5% 100MHz 12Q-Factor Ceramic 300mA 0603 T/R taiyo yuden	询价	0603	High Frequency Chip	100 nH	300 mA	5 %	1 Ohm	Ceramic	0.95 mm	Tape & Reel	RoHS Compliant	Tape & Reel (TR)	300mA	100 mOhm Max	0.037" (0.95mm)	600MHz	Unshielded	0603 (1608 Metric)	0.063" L x 0.031" W (1.60mm x 0.80mm)	-40°C ~ 85°C	Surface Mount	100MHz	Lead free / RoHS Compliant	587-1557-1	0.8 mm W x 1.6 mm L x 0.8 mm H	- 40 C to + 85 C	SMD/SMT	1000 MHz	1.6 mm	0.8 mm	0603 (1608 metric)	0.8 mm	:TAIYO YUDEN - HK Series	:± 5%	:0603 ^1608 Metric]	:600MHz	:1ohm	0.002	85339000	-	12@100MHz	12 @ 100MHz	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	12	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	:12	-
5 HK1608R22J-T Ind High Frequency Chip Multi-Layer 220nH 5% 50MHz 8Q-Factor Ceramic 300mA 0603 T/R taiyo yuden	询价	0603	High Frequency Chip	220 nH	300 mA	5 %	1.5 Ohm	Ceramic	0.95 mm	Tape & Reel	RoHS Compliant	Tape & Reel (TR)	300mA	1.5 Ohm Max	0.037" (0.95mm)	400MHz	Unshielded	0603 (1608 Metric)	0.063" L x 0.031" W (1.60mm x 0.80mm)	-40°C ~ 85°C	Surface Mount	50MHz	Lead free / RoHS Compliant	587-1561-1	0.8 mm W x 1.6 mm L x 0.8 mm H	- 40 C to + 85 C	SMD/SMT	600 MHz	1.6 mm	0.8 mm	0603 (1608 metric)	0.8 mm	:TAIYO YUDEN - HK Series	:± 5%	:0603 ^1608 Metric]	:400MHz	:1.5ohm	0.002	85411000	-	8@50MHz	8 @ 100MHz	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	8	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	:8	-
7 CBC3225T220MR Ind Power Chip Wirewound 22uH 20% 100KHz Ferrite 780mA 1210 T/R taiyo yuden	询价	1210	Power Chip	22 uH	780 mA	20 %	351 mOhm	Ferrite	2.7 mm	Tape & Reel	RoHS Compliant	Tape & Reel (TR)	780mA	351 mOhm Max	0.106" (2.70mm)	17MHz	Unshielded	1210	0.126" L x 0.100" W (3.20mm x 2.50mm)	-40°C ~ 105°C	Surface Mount	100kHz	Lead free / RoHS Compliant	587-1626-1	2.5 mm W x 3.2 mm L x 2.5 mm H	- 40 C to + 105 C	SMD/SMT	17 MHz	3.2 mm	2.5 mm	1210 (3225 metric)	2.5 mm	:TAIYO YUDEN - CB Series	:± 20%	:1210 [3225 Metric]	:17MHz	:0.27ohm	0.002	85045095	CBC	-	-	:780mA	-	-	-	-	-	-	-	-	-	-	-	-	-	620mA	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	:Wirewound	:No SVHC (20-Jun-2013)	-	-	-	-	-	-	-	-	-
5 CBC3225T4R7MR Ind Power Chip Wirewound 4.7uH 20% 100KHz Ferrite 1.01A 1210 T/R taiyo yuden	询价	1210	Power Chip	4.7 uH	1.01 A	20 %	100(Typ) mOhm	Ferrite	2.7 mm	Tape & Reel	RoHS Compliant	Tape & Reel (TR)	1.01A	130 mOhm Max	0.106" (2.70mm)	70MHz	Unshielded	1210	0.126" L x 0.100" W (3.20mm x 2.50mm)	-40°C ~ 105°C	Surface Mount	100kHz	Lead free / RoHS Compliant	587-1624-1	2.5 mm W x 3.2 mm L x 2.5 mm H	- 40 C to + 105 C	SMD/SMT	70 MHz	3.2 mm	2.5 mm	1210 (3225 metric)	2.5 mm	:TAIYO YUDEN - CB Series	:± 20%	:1210 ^3225 Metric]	:70MHz	:0.1ohm	0.002	85411000	CBC	-	-	-	-40C to 105C	No	Not Required	1210	20%	0.1 MHz	Not Required	3.4 mm	2.7 mm	2.7 mm	Wirewound	1010 mA	Not Required mm	1.25A	0.13 ohm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
5 HK10051N0S-T Ind High Frequency Chip Multi-Layer 1nH 0.3nH 100MHz 8Q-Factor Ceramic 900mA 0402 T/R taiyo yuden	询价	0402	High Frequency Chip	1 nH	900 mA	0.3 nH	80 mOhm	Ceramic	0.55 mm	Tape & Reel	RoHS Compliant	Tape & Reel (TR)	900mA	80 mOhm Max	0.022" (0.55mm)	10GHz	Unshielded	0402 (1005 Metric)	0.039" L x 0.020" W (1.00mm x 0.50mm)	-55°C ~ 85°C	Surface Mount	100MHz	Lead free / RoHS Compliant	587-1498-1	0.5 mm W x 1 mm L x 0.5 mm H	- 55 C to + 125 C	SMD/SMT	13000 MHz	1 mm	0.5 mm	0402 (1005 metric)	0.5 mm	:TAIYO YUDEN - HK Series	:± 0.3nH	:0402 ^1005 Metric]	:10GHz	:0.08ohm	0.002	85339000	-	8@100MHz	8 @ 100MHz	-	-55C to 125C	No	Not Required	0402	0.3nH	100 MHz	Not Required	1.05 mm	0.55 mm	0.55 mm	Multi-Layer	900 mA	Not Required mm	-	0.08 ohm	8	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	8	-	-	-	-	-	-	-	-
6 HK1005R22J-T Ind High Frequency Chip Multi-Layer 220nH 5% 100MHz 8Q-Factor Ceramic 200mA 0402 T/R taiyo yuden	询价	0402	High Frequency Chip	220 nH	200 mA	5 %	4.2 Ohm	Ceramic	0.55 mm	Tape & Reel	RoHS Compliant	Tape & Reel (TR)	200mA	4.2 Ohm Max	0.022" (0.55mm)	450MHz	Unshielded	0402 (1005 Metric)	0.039" L x 0.020" W (1.00mm x 0.50mm)	-55°C ~ 85°C	Surface Mount	100MHz	Lead free / RoHS Compliant	587-1790-1	0.5 mm W x 1 mm L x 0.5 mm H	- 55 C to + 125 C	SMD/SMT	700 MHz	1 mm	0.5 mm	0402 (1005 metric)	0.5 mm	:TAIYO YUDEN - HK Series	:± 5%	:0402 [1005 Metric]	:450MHz	:4.2ohm	0.00227	85339000	-	8@100MHz	8 @ 100MHz	:120mA	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	8	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	:Multilayer	:No SVHC (20-Jun-2013)	-	-	-	-	-	-	-	-	-

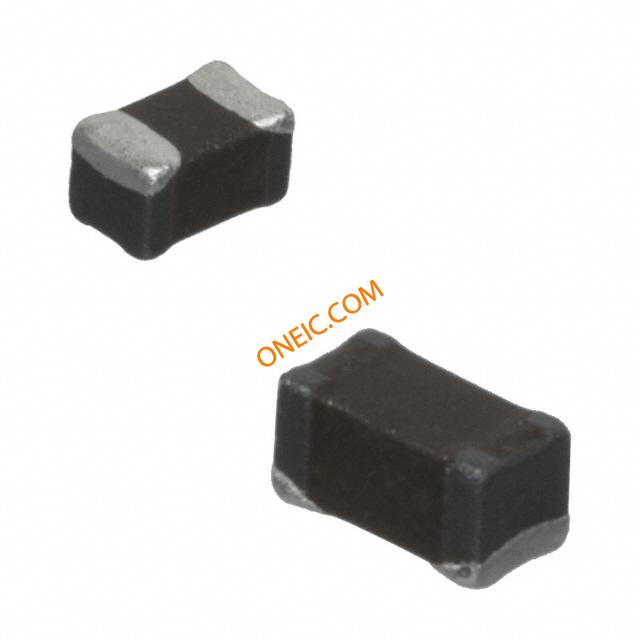

5 CBMF1608T470K Ind Power Chip Wirewound 47uH 10% 2.52MHz Ferrite 140mA 0603 T/R taiyo yuden	询价	0603	Power Chip	47 uH	140 mA	10 %	3.25 Ohm	Ferrite	1 mm	Tape & Reel	RoHS Compliant	Tape & Reel (TR)	140mA	3.25 Ohm Max	0.039" (1.00mm)	11MHz	Unshielded	0603 (1608 Metric)	0.063" L x 0.031" W (1.60mm x 0.80mm)	-40°C ~ 105°C	Surface Mount	2.52MHz	Lead free / RoHS Compliant	587-1722-2	0.8 mm W x 1.6 mm L x 0.8 mm H	- 40 C to + 105 C	SMD/SMT	11 MHz	1.6 mm	0.8 mm	0603 (1608 metric)	0.8 mm	:TAIYO YUDEN - CB Series	:± 10%	:0603 ^1608 Metric]	:11MHz	:2.5ohm	0	85045020	CBMF	-	-	:140mA	-40C to 105C	No	Not Required	0603	10%	2.52 MHz	Not Required	1.8 mm	1 mm	1 mm	Wirewound	140 mA	Not Required mm	50mA	3.25 ohm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
6 LBM2016T1R0J Ind Chip Wirewound 1uH 5% 7.96MHz 30Q-Factor Ferrite 385mA 0806 T/R taiyo yuden	询价	0806	Chip	1 uH	385 mA	5 %	494 mOhm	Ferrite	1.8 mm	Tape & Reel	RoHS Compliant	Tape & Reel (TR)	385mA	494 mOhm Max	0.071" (1.80mm)	220MHz	Unshielded	0806 (2016 Metric)	0.079" L x 0.063"W (2.00mm x 1.60mm)	-40°C ~ 105°C	Surface Mount	7.96MHz	Lead free / RoHS Compliant	587-1805-2	2 x 1.6 x 1.6mm	- 40 C to + 105 C	SMD/SMT	220 MHz	2 mm	1.6 mm	0806 (2016 metric)	1.6 mm	:TAIYO YUDEN - LBM Series	:± 5%	:0806	:220MHz	:0.38ohm	0	85045095	LBM	30@7.96MHz	30 @ 7.96MHz	-	-40C to 105C	No	Not Required	0806	5%	7.96 MHz	Not Required	2.2 mm	1.8 mm	1.8 mm	Wirewound	385 mA	Not Required mm	-	0.494 ohm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	30	1.6mm	1.6mm	2mm	+105°C	220MHz	-40°C	-	-

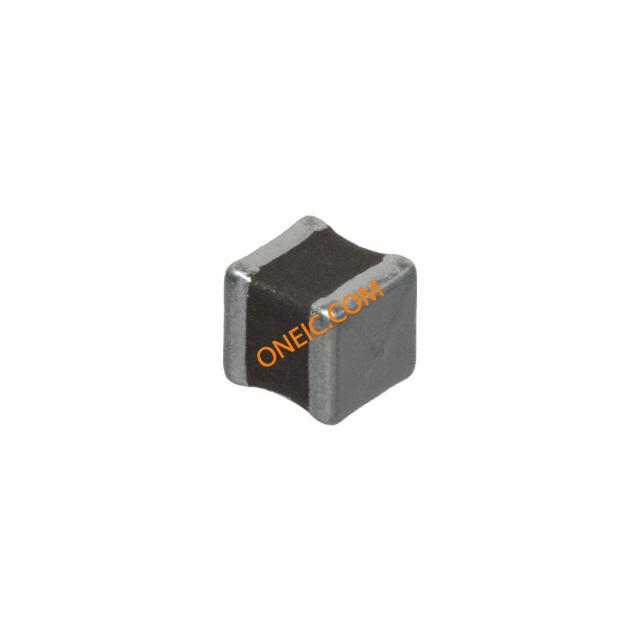

6 CBC2016T100M Ind Power Chip Wirewound 10uH 20% 2.52MHz Ferrite 350mA 0806 T/R taiyo yuden	询价	0806	Power Chip	10 uH	350 mA	20 %	1.066 Ohm	Ferrite	1.8 mm	Tape & Reel	RoHS Compliant	Tape & Reel (TR)	350mA	1.066 Ohm Max	0.071" (1.80mm)	32MHz	Unshielded	0806 (2016 Metric)	0.079" L x 0.063"W (2.00mm x 1.60mm)	-40°C ~ 105°C	Surface Mount	2.52MHz	Lead free / RoHS Compliant	587-1606-1	1.6 mm W x 2 mm L x 1.6 mm H	- 40 C to + 105 C	SMD/SMT	32 MHz	2 mm	1.6 mm	0806 (2016 metric)	1.6 mm	:TAIYO YUDEN - CB Series	:± 20%	:0806	:32MHz	:0.82ohm	0.002	85339000	CBC	-	-	:350mA	-40C to 105C	No	Not Required	0806	20%	2.52 MHz	Not Required	2.2 mm	1.8 mm	1.8 mm	Wirewound	350 mA	Not Required mm	380mA	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
7 CK2125R10M-T Ind Chip Shielded Multi-Layer 100nH 20% 25MHz 15Q-Factor Ferrite 500mA 0805 T/R taiyo yuden	询价	0805	Chip	100 nH	500 mA	20 %	160 mOhm	Ferrite	1.05 mm	Tape & Reel	RoHS 認証	Tape & Reel (TR)	500mA	160 mOhm Max	0.057" (1.45mm)	235MHz	Unshielded	0805 (2012 Metric)	0.079" L x 0.049" W (2.00mm x 1.25mm)	-40°C ~ 85°C	Surface Mount	25MHz	Lead free by exemption / RoHS Compliant	587-1685-1	2 x 1.25 x 0.85mm	- 40 C to + 85 C	SMD/SMT	235 MHz	2 mm	1.25 mm	0805 (2012 metric)	1.25 mm	:TAIYO YUDEN - CK Series	:± 20%	:0805 ^2012 Metric]	:235MHz	:0.16ohm	0.002	85339000	CK	15@25MHz	15 @ 25MHz	-	-40C to 85C	No	Not Required	0805	20%	25 MHz	Not Required	2.3 mm	1.45 mm	1.05 mm	Multi-Layer	500 mA	Not Required mm	-	0.16 ohm	-	Taiyo Yuden	100 nH	20 %	500 mA	80 mOhms	- 40 C to + 85 C	235 MHz	0805 (2012 metric)	1.25 mm W x 2 mm L x 1.25 mm H	SMD/SMT	1.25 mm	2 mm	1.25 mm	Reel	CK	Mouser 初	-	-	15	1.25mm	0.85mm	2mm	+85°C	235MHz	-40°C	-	1.45 mm

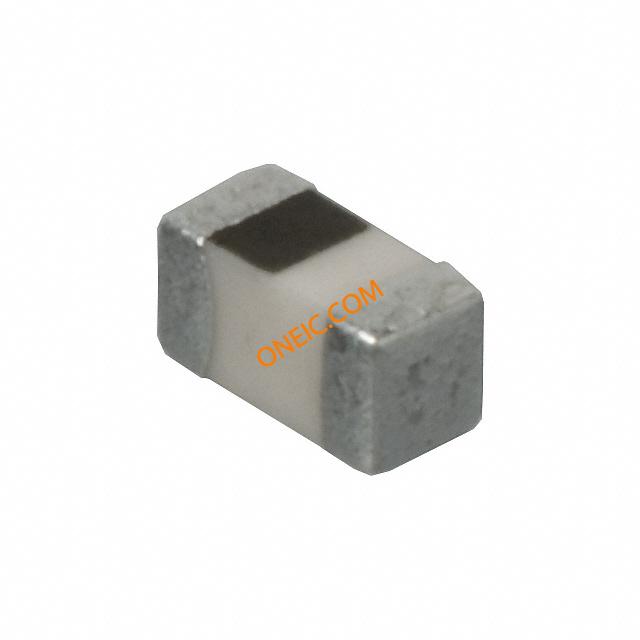

3 HK21255N6S-T Ind High Frequency Chip Multi-Layer 5.6nH 0.3nH 100MHz 15Q-Factor Ceramic 300mA 0805 T/R taiyo yuden	询价	0805	High Frequency Chip	5.6 nH	300 mA	0.3 nH	230 mOhm	Ceramic	1.05 mm	Tape & Reel	RoHS Compliant	Tape & Reel (TR)	300mA	230 mOhm Max	0.047" (1.20mm)	3.2GHz	Unshielded	0805 (2012 Metric)	0.079" L x 0.049" W (2.00mm x 1.25mm)	-40°C ~ 85°C	Surface Mount	100MHz	Lead free / RoHS Compliant	LG HK 2125 5N6S-T	1.25 mm W x 2 mm L x 1 mm H	- 40 C to + 85 C	SMD/SMT	5400 MHz	2 mm	1 mm	0805 (2012 Metric)	1.25 mm	:TAIYO YUDEN - HK Series	:± 0.3nH	:0805 ^2012 Metric]	:3.2GHz	:0.23ohm	0.002	85339000	-	15@100MHz	15 @ 100MHz	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	15	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	1.45 mm
3 CB2016T100M Ind Power Chip Wirewound 10uH 20% 2.52MHz Ferrite 520mA 0806 T/R taiyo yuden	询价	0806	Power Chip	10 uH	520 mA	20 %	650 mOhm	Ferrite	1.8 mm	Tape & Reel	RoHS Compliant	Tape & Reel (TR)	520mA	650 mOhm Max	0.071" (1.80mm)	32MHz	Unshielded	0806 (2016 Metric)	0.079" L x 0.063"W (2.00mm x 1.60mm)	-40°C ~ 105°C	Surface Mount	2.52MHz	Lead free / RoHS Compliant	LQ CB 2016T100M	1.6 mm W x 2 mm L x 1.6 mm H	- 40 C to + 105 C	SMD/SMT	32 MHz	2 mm	1.6 mm	0806 (2016 Metric)	1.6 mm	:TAIYO YUDEN - CB Series	:± 20%	:0806	:32MHz	:0.5ohm	0.002	85339000	CB	-	-	:520mA	-	-	-	-	-	-	-	-	-	-	-	-	-	250mA	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
5 CB2518T1R0M Ind Power Chip Wirewound 1uH 20% 7.96MHz Ferrite 1.5A 1007 T/R taiyo yuden	询价	1007	Power Chip	1 uH	1.5 A	20 %	78 mOhm	Ferrite	2 mm	Tape & Reel	RoHS Compliant	Tape & Reel (TR)	1.5A	78 mOhm Max	0.079" (2.00mm)	100MHz	Unshielded	1007 (2518 Metric)	0.098" L x 0.072" W (2.50mm x 1.80mm)	-40°C ~ 105°C	Surface Mount	7.96MHz	Lead free / RoHS Compliant	587-2184-2	1.8 mm W x 2.5 mm L x 1.8 mm H	- 40 C to + 105 C	SMD/SMT	100 MHz	2.5 mm	1.8 mm	1007 (2518 metric)	1.8 mm	:TAIYO YUDEN - CB Series	:± 20%	:1007	:100MHz	:0.06ohm	0	85045095	CB	-	-	:1.5A	-	-	-	-	-	-	-	-	-	-	-	-	-	1.2A	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
6 CBMF1608T2R2M Ind Power Chip Wirewound 2.2uH 20% 7.96MHz Ferrite 560mA 0603 T/R taiyo yuden	询价	0603	Power Chip	2.2 uH	560 mA	20 %	221 mOhm	Ferrite	1 mm	Tape & Reel	RoHS Compliant	Tape & Reel (TR)	560mA	221 mOhm Max	0.039" (1.00mm)	80MHz	Unshielded	0603 (1608 Metric)	0.063" L x 0.031" W (1.60mm x 0.80mm)	-40°C ~ 105°C	Surface Mount	7.96MHz	Lead free / RoHS Compliant	587-1718-2	1.6 x 0.8 x 0.8mm	- 40 C to + 105 C	SMD/SMT	80 MHz	1.6 mm	0.8 mm	0603 (1608 metric)	0.8 mm	:TAIYO YUDEN - CB Series	:± 20%	:0603 ^1608 Metric]	:80MHz	:0.17ohm	0	85045095	CBMF	-	-	-	-40C to 105C	No	Not Required	0603	20%	7.96 MHz	Not Required	1.8 mm	1 mm	1 mm	Wirewound	560 mA	Not Required mm	190mA	0.221 ohm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	0.8mm	0.8mm	1.6mm	+105°C	80MHz	-40°C	-	-

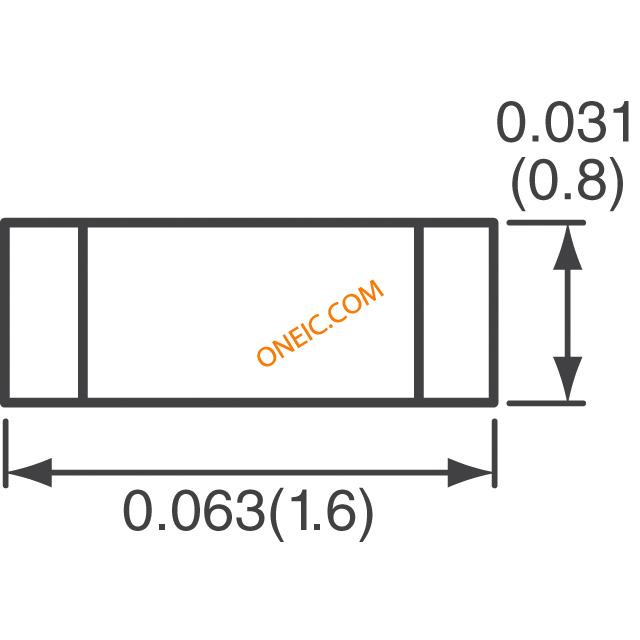

5 LB1608T100M Ind Chip Wirewound 10uH 20% 2.52MHz Ferrite 60mA 0603 T/R taiyo yuden	询价	0603	Chip	10 uH	60 mA	20 %	910 mOhm	Ferrite	0.9 mm	Tape & Reel	RoHS Compliant	Tape & Reel (TR)	60mA	910 mOhm Max	0.035" (0.90mm)	32MHz	Unshielded	0603 (1608 Metric)	0.063" L x 0.031" W (1.60mm x 0.80mm)	-25°C ~ 105°C	Surface Mount	2.52MHz	Lead free / RoHS Compliant	587-2243-1	0.8 mm W x 1.6 mm L x 0.8 mm H	- 40 C to + 105 C	SMD/SMT	32 MHz	1.6 mm	0.8 mm	0603 (1608 metric)	0.8 mm	:TAIYO YUDEN - LB Series	:± 20%	:0603 ^1608 Metric]	:32MHz	:0.7ohm	0	85045095	LB	-	-	-	-40C to 105C	No	Not Required	0603	20%	2.52 MHz	Not Required	1.7 mm	0.9 mm	0.9 mm	Wirewound	60 mA	Not Required mm	-	0.91 ohm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
5 LB2016T1R5M Ind Chip Wirewound 1.5uH 20% 7.96MHz Ferrite 380mA 0806 T/R taiyo yuden	询价	0806	Chip	1.5 uH	380 mA	20 %	143 mOhm	Ferrite	1.8 mm	Tape & Reel	RoHS Compliant	Tape & Reel (TR)	380mA	143 mOhm Max	0.071" (1.80mm)	80MHz	Unshielded	0806 (2016 Metric)	0.079" L x 0.063"W (2.00mm x 1.60mm)	-25°C ~ 105°C	Surface Mount	7.96MHz	Lead free / RoHS Compliant	587-2498-1	1.6 mm W x 2 mm L x 1.6 mm H	- 40 C to + 105 C	SMD/SMT	80 MHz	2 mm	1.6 mm	0806 (2016 Metric)	1.6 mm	:TAIYO YUDEN - LB Series	:± 20%	:0806	:80MHz	:0.11ohm	0	85045095	LB	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
5 LB2016T680K Ind Chip Wirewound 68uH 10% 2.52MHz Ferrite 55mA 0806 T/R taiyo yuden	询价	0806	Chip	68 uH	55 mA	10 %	3.9 Ohm	Ferrite	1.8 mm	Tape & Reel	RoHS Compliant	Tape & Reel (TR)	55mA	3.9 Ohm Max	0.071" (1.80mm)	10MHz	Unshielded	0806 (2016 Metric)	0.079" L x 0.063"W (2.00mm x 1.60mm)	-25°C ~ 105°C	Surface Mount	2.52MHz	Lead free / RoHS Compliant	587-2505-1	1.6 mm W x 2 mm L x 1.6 mm H	- 40 C to + 105 C	SMD/SMT	10 MHz	2 mm	1.6 mm	0806 (2016 metric)	1.6 mm	:TAIYO YUDEN - LB Series	:± 10%	:0806	:10MHz	:3ohm	0	85045095	LB	-	-	:55mA	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
5 LB2518T331K Ind Chip Wirewound 330uH 10% 796KHz Ferrite 30mA 1007 T/R taiyo yuden	询价	1007	Chip	330 uH	30 mA	10 %	9.1 Ohm	Ferrite	2 mm	Tape & Reel	RoHS 認証	Tape & Reel (TR)	30mA	9.1 Ohm Max	0.079" (2.00mm)	4.5MHz	Unshielded	1007 (2518 Metric)	0.098" L x 0.072" W (2.50mm x 1.80mm)	-25°C ~ 105°C	Surface Mount	796kHz	Lead free / RoHS Compliant	587-2518-1	1.8 mm W x 2.5 mm L x 1.8 mm H	- 40 C to + 105 C	SMD/SMT	4.5 MHz	2.5 mm	1.8 mm	1007 (2518 Metric)	1.8 mm	:TAIYO YUDEN - LB Series	:± 10%	:1007	:4.5MHz	:7ohm	0	85045095	LB	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Taiyo Yuden	330 uH	10 %	30 mA	7 Ohms	- 40 C to + 105 C	4.5 MHz	1007 (2518 metric)	1.8 mm W x 2.5 mm L x 1.8 mm H	SMD/SMT	1.8 mm	2.5 mm	1.8 mm	Reel	LB	Mouser 初	-	-	-	-	-	-	-	-	-	-	-
