Silicon Laboratories Inc.- 环境监测传感器

Silicon Laboratories Inc.（简称Silicon Labs）是一家全球性半导体公司，成立于1996年，总部位于美国德克萨斯州奥斯汀。该公司专注于高性能、模拟密集型混合信号集成电路的研发与销售。其产品使模拟世界与数字计算在机顶盒、电视、手机等众多应用中实现连接。核心产品线包括8位EFM8和32位EFM32微控制器系列，以及支持蓝牙、Zigbee、Thread和私有协议的多协议无线SoC EFR32系列。Silicon Labs还提供业界领先的隔离解决方案，如数字隔离器和隔离栅极驱动器，以及包括时钟、振荡器和缓冲器在内的精密定时器件。其产品组合还扩展到环境与光学传感器以及广播音视频组件。公司采用先进的CMOS工艺技术，提供高度集成的解决方案，显著降低功耗和电路板面积。Silicon Labs被公认为物联网（IoT）市场的领导者，服务于智能家居、工业自动化和汽车电子等领域。凭借世界级工程团队和强大的知识产权组合，公司持续推动无线连接和高效能处理的创新。其股票在纳斯达克上市，代码为SLAB。

MODELS

环境监测传感器 - 型号列表共 15 个型号

制造商零件编号	价格/库存	Packaging	Accuracy	Response Time	Sensor Type	Humidity Range	Operating Temperature	Voltage - Supply	Standard Package	Output	Series	RH Range	Supply Voltage - Max	Minimum Operating Temperature	RH Accuracy	Maximum Operating Temperature	Supply Voltage - Min	RoHS	Mounting Style	Package / Case	Output Type	rohs	Description/Function	Full Temp Accuracy	Digital Output - Number of Bits	Digital Output - Bus Interface	Temperature Threshold	Pin Ct.	Package Type	Temp Range	NDA	NCNR	Typical Operating Supply Voltage	Function	EU RoHS	Maximum Operating Temperature	Standard Package Name	Package Height	Mounting	PCB	Minimum Operating Temperature	Interface Type	Package Width	Resolution	Supplier Package	Package Length	Maximum Operating Supply Voltage	Minimum Operating Supply Voltage	Pin Count	Lead Shape	Other Names	输出	传感器类型	湿度范围	操作温度	电压 - 电源	响应时间	精度

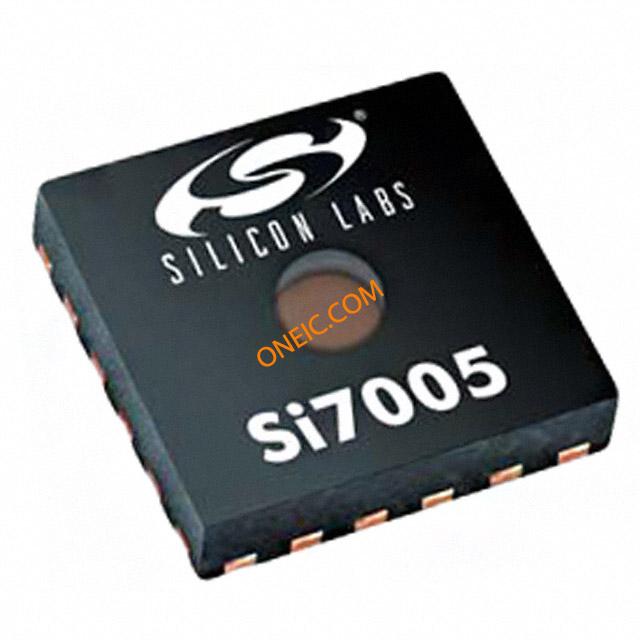

2 SI7005-B-FM1R Temp Sensor Digital Serial (I2C) 24-Pin PQFN EP T/R Silicon Laboratories	询价	Tape and Reel	±0.5°C	8s	Humidity and Temperature	0 ~ 100% RH	0°C ~ 70°C	2.1 V ~ 3.6 V	1,000	Digital, I²C	Si7005	0 % to 100 %	3.6 V	0 C	3 %	+ 70 C	2.1 V	RoHS Compliant	-	-	Digital	Lead free / RoHS Compliant	-	-	-	-	-	-	-	-	-	-	3.3	Temp Sensor	Compliant	70	QFN	1.36(Max)	Surface Mount	24	0	Serial (I2C)	4	14	PQFN EP	4	3.6	2.1	24	No Lead	336-2332-2	Digital, I²C	Humidity and Temperature	0 ~ 100% RH	0°C ~ 70°C	2.1 V ~ 3.6 V	8s	±3% RH
SI7005-B-GM IC SENSOR TEMP/HUM DGTL 12PIN Silicon Laboratories Inc	询价	Tube	±3% RH	8s	Humidity and Temperature	0 ~ 100% RH	-40°C ~ 85°C	2.1 V ~ 3.6 V	75	Digital, I²C	Si7005	0 % to 100 %	3.6 V	- 40 C	+/- 3 %	+ 85 C	2.1 V	RoHS Compliant	SMD/SMT	QFN-24	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SI7005-B-FM IC SENSOR TEMP/HUM DGTL 12PIN Silicon Laboratories Inc	询价	Tube	±3% RH	8s	Humidity and Temperature	0 ~ 100% RH	0°C ~ 70°C	2.1 V ~ 3.6 V	75	Digital, I²C	Si7005	0 % to 100 %	3.6 V	0 C	3 %	+ 70 C	2.1 V	RoHS Compliant	SMD/SMT	QFN-24	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SI7005-B-FM1 IC SENSOR RH&T DIGITAL 24QFN Silicon Laboratories Inc	询价	Tube	±3% RH	8s	Humidity and Temperature	0 ~ 100% RH	0°C ~ 70°C	2.1 V ~ 3.6 V	75	Digital, I²C	Si7005	0 % to 100 %	3.6 V	0 C	3 %	+ 70 C	2.1 V	RoHS Compliant	SMD/SMT	QFN-24	Analog	Lead free / RoHS Compliant	A digital relative humidity and temperature sensor	+/- 0.5 C	14	I2C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SI7005-B-GM1 IC SENSOR RH&T DIGITAL 24QFN Silicon Laboratories Inc	询价	Tube	±3% RH	8s	Humidity and Temperature	0 ~ 100% RH	-40°C ~ 85°C	2.1 V ~ 3.6 V	75	Digital, I²C	Si7005	0 % to 100 %	3.6 V	- 40 C	+/- 3 %	+ 85 C	2.1 V	RoHS Compliant	SMD/SMT	QFN-24	Analog	Lead free / RoHS Compliant	A digital relative humidity and temperature sensor	+/- 0.5 C	14	I2C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Si7015-A10-GM Board Mount Humidity Sensors Digital RH (+/-3%) & temp sensor Silicon Labs	询价	Tube	3%	18S	Humidity and Temperature	0 ~ 100% RH	-40°C ~ 85°C	1.9 V ~ 3.6 V	75	I²C	Si7015	0 % to 80 %	3.6 V	- 40 C	+/- 4.5 %	+ 85 C	1.9 V	RoHS Compliant	SMD/SMT	QFN-24	Digital	Lead free / RoHS Compliant	A monolithic CMOS IC integrating humidity and temperature sensor elements, an analog-to-digital converter	+/- 1 C	7 bit	I2C	- 10 C to + 85 C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Si7013-A10-GM Board Mount Humidity Sensors Digital RH (+/-2%) & 2-Zone temp sensor Silicon Labs	询价	Tube	±2% RH	18S	Humidity and Temperature	0 ~ 100% RH	-40°C ~ 85°C	1.9 V ~ 3.6 V	75	I²C	Si7013	0 % to 80 %	3.6 V	- 40 C	+/- 3 %	+ 85 C	1.9 V	RoHS Compliant	SMD/SMT	DFN-6	Digital	Lead free / RoHS Compliant	A monolithic CMOS IC integrating humidity and temperature sensor elements, an analog-to-digital converter	+/- 0.4 C	7 bit	I2C	- 10 C to + 85 C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Si7013-A10-GM1 Board Mount Humidity Sensors Digital RH (+/-2%) & 2-Zone temp sensor Silicon Labs	询价	Reel	±2% RH	18S	Humidity and Temperature	0 ~ 100% RH	-40°C ~ 85°C	1.9 V ~ 3.6 V	100	I²C	Si7013	0 % to 80 %	3.6 V	- 40 C	+/- 3 %	+ 85 C	1.9 V	RoHS Compliant	SMD/SMT	DFN-6	Digital	Lead free / RoHS Compliant	A monolithic CMOS IC integrating humidity and temperature sensor elements, an analog-to-digital converter	+/- 0.4 C	7 bit	I2C	- 10 C to + 85 C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Si7021-A10-GM Board Mount Humidity Sensors Digital RH (+/-2%) & temp sensor Silicon Labs	询价	Tube	±2% RH	18S	Humidity and Temperature	0 ~ 100% RH	-40°C ~ 85°C	1.9 V ~ 3.6 V	75	I²C	Si7021	0 % to 80 %	3.6 V	- 40 C	+/- 3 %	+ 85 C	1.9 V	RoHS Compliant	SMD/SMT	DFN-6	Digital	Lead free / RoHS Compliant	A monolithic CMOS IC integrating humidity and temperature sensor elements, an analog-to-digital converter	+/- 0.4 C	7 bit	I2C	- 10 C to + 85 C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Si7021-A10-GM1 Board Mount Humidity Sensors Digital RH (+/-2%) & temp sensor Silicon Labs	询价	Reel	±2% RH	18S	Humidity and Temperature	0 ~ 100% RH	-40°C ~ 85°C	1.9 V ~ 3.6 V	75	I²C	Si7021	0 % to 80 %	3.6 V	- 40 C	+/- 3 %	+ 85 C	1.9 V	RoHS Compliant	SMD/SMT	DFN-6	Digital	Lead free / RoHS Compliant	A monolithic CMOS IC integrating humidity and temperature sensor elements, an analog-to-digital converter	+/- 0.4 C	7 bit	I2C	- 10 C to + 85 C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Si7020-A10-GM1 Board Mount Humidity Sensors Digital RH (+/-3%) & temp sensor Silicon Labs	询价	Reel	±3% RH	18S	Humidity and Temperature	0 ~ 100% RH	-40°C ~ 85°C	1.9 V ~ 3.6 V	75	I²C	Si7020	0 % to 80 %	3.6 V	- 40 C	+/- 4 %	+ 85 C	1.9 V	RoHS Compliant	SMD/SMT	DFN-6	Digital	Lead free / RoHS Compliant	A monolithic CMOS IC integrating humidity and temperature sensor elements, an analog-to-digital converter	+/- 0.4 C	7 bit	I2C	- 10 C to + 85 C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Si7020-A10-GM Board Mount Humidity Sensors Digital RH (+/-3%) & temp sensor Silicon Labs	询价	Tube	±3% RH	18S	Humidity and Temperature	0 ~ 100% RH	-40°C ~ 85°C	1.9 V ~ 3.6 V	75	I²C	Si7020	0 % to 80 %	3.6 V	- 40 C	+/- 4 %	+ 85 C	1.9 V	RoHS Compliant	SMD/SMT	DFN-6	Digital	Lead free / RoHS Compliant	A monolithic CMOS IC integrating humidity and temperature sensor elements, an analog-to-digital converter	+/- 0.4 C	7 bit	I2C	- 10 C to + 85 C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Si7015-A10-FM Board Mount Humidity Sensors Digital RH (+/-3%) & temp sensor Silicon Labs	询价	Tube	3%	18S	Humidity and Temperature	0 ~ 100% RH	0°C ~ 70°C	1.9 V ~ 3.6 V	75	I²C	Si7015	0 % to 80 %	3.6 V	0 C	+/- 4.5 %	+ 70 C	1.9 V	RoHS Compliant	SMD/SMT	QFN-24	Digital	Lead free / RoHS Compliant	A monolithic CMOS IC integrating humidity and temperature sensor elements, an analog-to-digital converter	+/- 1 C	7 bit	I2C	- 10 C to + 85 C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SI7015-A10-FM1 Board Mount Humidity Sensors Digital RH (+/-3%) & temp sensor Silicon Labs	询价	Reel	3%	18S	Humidity and Temperature	0 ~ 100% RH	0°C ~ 70°C	1.9 V ~ 3.6 V	100	I²C	SI7015	0 % to 80 %	3.6 V	0 C	+/- 4.5 %	+ 70 C	1.9 V	RoHS Compliant	SMD/SMT	QFN-24	Digital	Lead free / RoHS Compliant	A monolithic CMOS IC integrating humidity and temperature sensor elements, an analog-to-digital converter	+/- 1 C	7 bit	I2C	- 10 C to + 85 C	24	QFN	0 to 70C	N	N	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SI7015-A10-GM1 Board Mount Humidity Sensors Digital RH (+/-3%) & temp sensor Silicon Labs	询价	Reel	3%	18S	Humidity and Temperature	0 ~ 100% RH	-40°C ~ 85°C	1.9 V ~ 3.6 V	75	I²C	SI7015	0 % to 80 %	3.6 V	- 40 C	+/- 4.5 %	+ 85 C	1.9 V	RoHS Compliant	SMD/SMT	QFN-24	Digital	Lead free / RoHS Compliant	A monolithic CMOS IC integrating humidity and temperature sensor elements, an analog-to-digital converter	+/- 1 C	7 bit	I2C	- 10 C to + 85 C	24	QFN	-40 to 85C	N	N	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
