Sharp Corporation- 电源管理IC

夏普公司创立于1912年，总部位于日本大阪，是一家全球化的综合性电子企业。其夏普微电子部门负责半导体与电子元器件的销售和市场推广，美洲夏普微电子（SMA）设在华盛顿州卡马斯，是重要的区域分支。产品线涵盖液晶显示屏（LCD）、光电器件（LED、激光二极管）、存储器（闪存）、图像传感器（CCD/CMOS）以及射频元件。同时提供显示驱动IC、触摸屏控制器等接口方案，广泛用于消费电子、汽车、工业和医疗设备等领域。夏普在液晶显示领域享有盛誉，尤其是中小尺寸面板在移动和车载市场占据领先地位。尽管整体半导体营收未进入全球前十，但在光电耦合器、特种存储器和高端图像传感器等细分市场保持竞争优势。凭借长期的技术积累和完善的全球支持体系，夏普成为寻求先进电子解决方案制造商的可信赖伙伴。公司持续在物联网、节能器件和智能传感等方向进行创新。

电源管理IC - 型号列表

共 385 个型号

制造商零件编号	库存	价格	额定电压	输出数量	封装形式	工作温度	输出类型	输出电流	标准包装数量	最小输入电压	包装方式	安装类型	产品类别	工厂包装数量	RoHS	安装样式	负载调整率	机械寿命	最大功耗	供应商器件封装	电源调整率	稳压器拓扑	稳压器数量	其他名称	供电电压	极性	输入偏置电流（最大）	类型	电压负载调整率	静态电流（最大）	欧盟RoHS	位数	标准封装名称	精度	包装数量	产品特性	电压基准	开关频率	同步整流	共模抑制比、电源抑制比（典型）	频率	额定功率	最小供电电压	拓扑	段数	内部连接
2 PQ2CF1J0000H Low Dropout Regulators - LDO CHOP 4.5V-30V 2.5A sleeve 50kH IC REG BST FLYBK ADJ 2.5A TO220 Sharp Microelectronics	-		4.5 V to 35 V	1	TO-220	+ 80 C	Adjustable	2.5 A	50	35 V	Tube	Through Hole	Low Dropout Regulators - LDO	500	RoHS Compliant	Through Hole	1.5 %	Obsolete	-	TO-220	-	-	-	425-2340-5	-	-	-	Step-Up (Boost), Flyback	-	-	-	-	-	-	-	-	-	50kHz	No	-	-	-	-	-	-	-
PQ05DZ1UJ00H Linear Regulators - Standard LDO 5.0V 1.0A 3Kpcs IC REG LDO 5V 1A SC63 Sharp Microelectronics	-		5 V	1	SC-63	+ 80 C	Fixed	1 A	3,000	24 V	Reel	Surface Mount	Linear Regulators - Standard	3000	RoHS Compliant	SMD/SMT	2 %	Obsolete	8000 mW	SC-63	2.5 %	Positive Fixed	1	425-2630-2	0.2V @ 500mA	Positive	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 PQ1KA333MZPH Low Dropout Regulators - LDO LDO 3.3v0.3A IC REG LDO 3.3V 0.3A SOT23-6 Sharp Microelectronics	-		3.3 V	1	SOT-23L	+ 85 C	Fixed	0.3 A	5,000	15 V	Tape & Reel (TR)	Surface Mount	Low Dropout Regulators - LDO	5000	RoHS Compliant	SMD/SMT	2 %	Obsolete	0.4 W	SOT-23-6	0.5 %	Positive Fixed	1	425-2673-1	0.4V @ 300mA	-	0.55 mA	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PQ033DZ01ZPH Low Dropout Regulators - LDO LDO 3.3V 1.0A 3Kpcs Sharp Microelectronics	-		3.3 V	1	SC-63	+ 85 C	Fixed	1 A	-	9 V	Tape	-	Low Dropout Regulators - LDO	3000	RoHS Compliant	SMD/SMT	1 %	Obsolete	5 W	-	1 %	-	-	-	-	-	3 mA	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PQ050DZ01ZZH Low Dropout Regulators - LDO LDO 5.0V 1A Sleeve Sharp Microelectronics	10	2250: ¥2.5636	5 V	1	SC-63	+ 85 C	Fixed	1 A	-	10 V	Sleeve	-	Low Dropout Regulators - LDO	3000	RoHS Compliant	SMD/SMT	1 %	End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer.	5 W	-	1 %	-	-	-	-	-	3 mA	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PQ12DZ5UJ00H Linear Regulators - Standard PQ120DNA1ZPH IC REG LDO 12V 0.5A SC63 Sharp Microelectronics	10	1: ¥3.332	12 V	1	SC-63-3	+ 80 C	Fixed	0.5 A	3,000	24 V	Reel	Surface Mount	Linear Regulators - Standard	3000	RoHS Compliant	SMD/SMT	2 %	End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer.	8000 mW	SC-63	2.5 %	Positive Fixed	1	425-2283-2	0.2V @ 300mA	Positive	-	-	-	-	-	-	-	-	-	-	-	-	-	60 dB	-	-	-	-	-	-
2 PQ018EZ02ZPH Low Dropout Regulators - LDO LDO 1.8V 2A IC REG LDO 1.8V 2A SC63 LDO Voltage Regulators LDO 1.8V 2A Sharp Microelectronics	4058	1: ¥10.336	1.8 V	1	SC-63	+ 85 C	Fixed	2 A	3,000	10 V	Reel	Surface Mount	Low Dropout Regulators - LDO	3000	RoHS Compliant	SMD/SMT	2 %	End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer.	8 W	SC-63	1 %	Positive Fixed	1	425-2550-2	-	-	1 mA	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PQ025Y3H3ZZH Low Dropout Regulators - LDO LDO 2.5V 3.5A sleeve IC REG LDO 2.5V 3.5A SC63 Sharp Microelectronics	-		2.5 V	1	TO-263	+ 80 C	Fixed	3.5 A	50	7 V	Sleeve	Surface Mount	Low Dropout Regulators - LDO	900	RoHS Compliant	SMD/SMT	0.5 %	Obsolete	35 W	SC-63	0.1 %	Positive Fixed	1	425-2241-5	-	-	5 mA	-	1 %	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

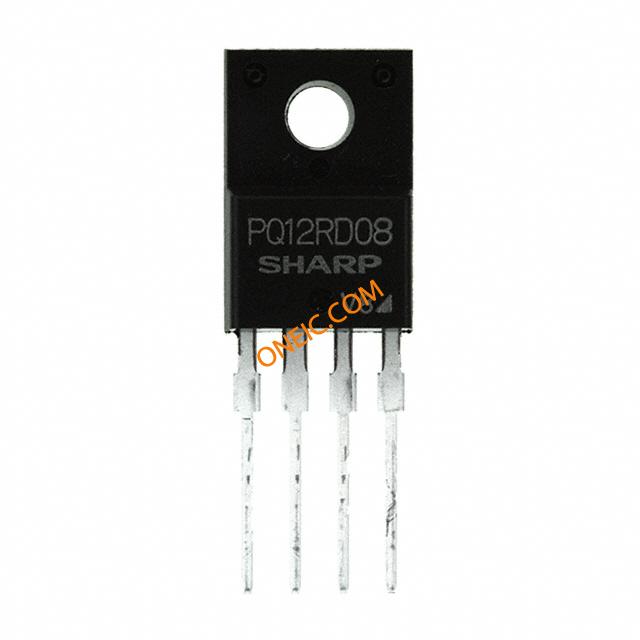

PQ12RD08J00H Low Dropout Regulators - LDO PQ120DNA1ZZH IC REG LDO 12V 0.8A TO220-4 Sharp Microelectronics	-		12 V	1	TO-220	+ 80 C	Fixed	800 mA	50	20 V	Sleeve	Through Hole	Low Dropout Regulators - LDO	1000	RoHS Compliant	Through Hole	2 %	Obsolete	10 W	TO-220-4	2.5 %	Positive Fixed	1	425-2285-5	-	-	-	-	3 %	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 PQ120RDA1SZH Low Dropout Regulators - LDO LDO 12.0V1A IC REG LDO 12V 1A TO220-4 Sharp Microelectronics	-		12 V	1	TO-220	+ 85 C	Fixed	1 A	1,000	24 V	Sleeve	Through Hole	Low Dropout Regulators - LDO	1000	RoHS Compliant	Through Hole	-	Obsolete	-	TO-220-4	-	Positive Fixed	1	-	-	-	-	-	3 %	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PQ6CB11X1CP LED DRVR 6Segment 3.3V/5V 6-Pin LED Lighting Drivers LED Driver USB-6 Max 6 LEDs in series IC LED DRIVER WHITE BCKLGT 6-SMD sharp microelectronics	1472	1: ¥8.908	2.7 V to 5.5 V	1	6-SMD	+ 125 C	-	-	Tape & Reel	30V	Reel	Surface Mount	LED Lighting Drivers	3000	RoHS Compliant	SMD/SMT	-	-	350 mW	6-SMD	-	-	-	425-2645-2	2.7 to 5.5 V	-	-	White LED	-	-	Compliant	6	-	-	-	-	-	-	-	-	1MHz ~ 1.4MHz	350 mW	5.5	Step-Up (Boost)	6	Yes
PQ090RDA1SZ7 PQ090RDA1SZ PRODUCED IN INDONESIA sharp microelectronics	10	1000: ¥2.7003	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PQ12SZ51 Standard Regulator Pos 12V 0.5A 3-Pin(2+Tab) SC-63 Sleeve sharp microelectronics	10	6000: ¥5.5372	24 V	1	3SC-63	-20 to 80 °C	Fixed	0.5 A	Tape & Reel	0.5@300mA	Sleeve	Surface Mount	-	-	-	-	2 %	-	8000 mW	-	2.5 %	-	-	-	0.2@300mA V	Positive	-	Linear	-	10 mA	Supplier Unconfirmed	3	SC-63	±2.5 %	SC-63	Low Power Loss	-	-	-	-	-	-	-	-	-	-
PQ30VB11 LDO Regulator Pos 1.5V to 30V1.5V to 30V 1A/1A 4-Pin(4+Tab) TO-220 sharp microelectronics	10	2000: ¥8.228	11 V	2	4TO-220	-20 to 80 °C	Adjustable	1\|1 A	Rail / Tube	-	-	Through Hole	-	-	-	-	1 %	-	12500 mW	-	2.5 %	-	-	-	-	Positive	-	-	-	7 mA	-	-	-	-	-	-	1.275 V	-	-	-	-	-	-	-	-	-
PQ018ENA1ZZH Low Dropout Regulators - LDO LDO 1.8V 1A Sleeve IC REG LDO 1.8V 1A SC63 Sharp Microelectronics	10	2210: ¥3.6992	1.8 V	1	SC-63	-40°C ~ 85°C	Fixed	1 A	50	1.8V	Sleeve	Surface Mount	Low Dropout Regulators - LDO	900	RoHS Compliant	SMD/SMT	-	End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer.	-	SC-63	-	Positive Fixed	1	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PQ120RDA1SZ7 PQ120RDA1SZ PRODUCED IN INDONESIA sharp microelectronics	10	1000: ¥2.7003	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PQ1T361M2ZP Standard Regulator Pos 3.6V 0.15A 5-Pin SOT-23 sharp microelectronics	10	3000: ¥2.5255	1.8 V	1	5SOT-23	-40 to 80 °C	Fixed	0.15 A	Tape & Reel	-	-	Surface Mount	-	-	-	-	150 mV	-	350 mW	-	0.15 %/V	-	-	-	0.45@300mA\|0.09@60mA\|0.22@150mA V	Positive	-	Linear	-	0.065 mA	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 PQ050RDA1SZH Low Dropout Regulators - LDO LDO 5.0V 1A LDO Regulator Pos 5V 1A 5-Pin(5+Tab) TO-220 Sleeve IC REG LDO 5V 1A TO220-4 Sharp Microelectronics	-		5 V	1	TO-220	+ 85 C	Fixed	1 A	50	24 V	Sleeve	Through Hole	Low Dropout Regulators - LDO	1000	RoHS Compliant	Through Hole	-	Obsolete	-	TO-220-4	-	Positive Fixed	1	-	-	Positive	-	LDO	3 %	8	Compliant	5	TO-220	±3	TO-220	Low Current Dissipation\|Low Power...	-	-	-	-	-	-	-	-	-	-
PQ080RDA1SZ7 PQ080RDA1SZ PRODUCED IN INDONESIA sharp microelectronics	10	1000: ¥2.7003	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 PQ07VZ012ZPH Low Dropout Regulators - LDO LDO 1.5V to 7.0V 1A IC REG LDO ADJ 1A SC63 LDO Voltage Regulators LDO 1.5V to 7.0V 1A Sharp Microelectronics	15000	5: ¥8.16	1.5 V to 7 V	1	SC-63	+ 80 C	Adjustable	1 A	3,000	10 V	Reel	Surface Mount	Low Dropout Regulators - LDO	3000	RoHS Compliant	SMD/SMT	2 %	End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer.	8 W	SC-63	2.5 %	Positive Adjustable	1	425-2265-2	-	-	4 mA	-	2 %	-	-	-	-	-	-	-	1.275 V	-	-	-	-	-	-	-	-	-
