Sensata Technologies Holding N.V.- 专用继电器
专用继电器 - 型号列表
共 22 个型号| 制造商零件编号 | 库存 | 价格 | 标准包装数量 | RoHS | 线圈类型 | 隔离 | 电阻 | 线圈电流 | 释放时间 | 线圈电阻 | 供电电压 | 开关电压 | 接触电阻 | Vgs(th)（最大）@ Id | 开关电流 | 最大开关负载 | 绝缘电阻 | 集电极-发射极饱和电压（最大）@ Vge, Ic | 触点额定电流 | 通态电流（It (RMS)）（最大） | 包装方式 | 触点形式 | 触头类型 | 安装类型 | 触头材料 | 端接样式 | 接触件端接 | 典型触点布局 | 类型 | 继电器类型 | 释放值 | 卡标准 | 必须动作（继电器术语，指必须吸合） | 动作时间 | 工作温度 | 其他名称 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

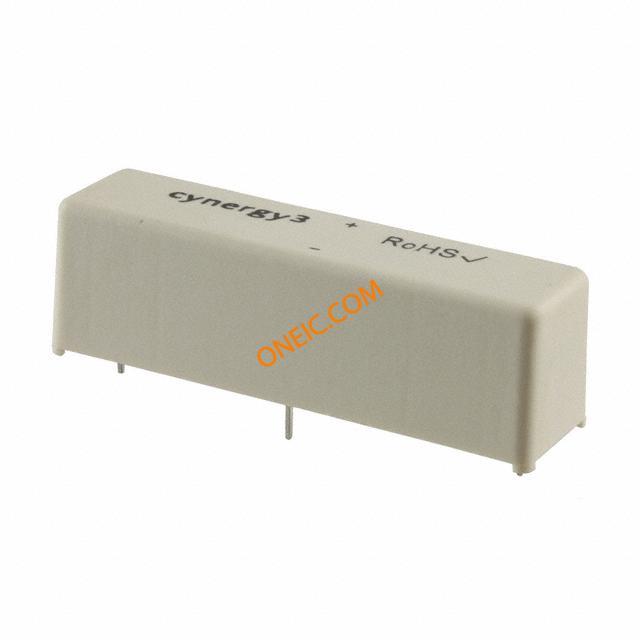

 RELAY REED SPST 3A 12V Reed Relays SPST-NO 3A 12VDC 150Ohm Thru-Hole RELAY;10KV12VSPNORHODIUM-PCBMOUNT Relays Reed Relays Contact Configuration: 1A SPST-NO Mounting: PC Board Switching Current: 3 Amps Switching Voltage: 1000 Volts Sensata Technologies Holding N.V. | - | 20 | RoHS Compliant Part | Non Latching | 10 kv | 240 ohm | 80mA | 2ms | 150 Ohms | 12VDC | 1000VAC, 1000VDC - Max | 50 ohms (15 ohms) | 1.25 VDC | 3 Amps | 10^9 operations | 10^10 ohms (10^13 ohns) | 9 VDC | 3A | 4 A | Tray | SPST-NO (1 Form A) | Rhodium | Through Hole | Rhodium (Rh) | PC Pin | 17 kv | 1A SPST-NO | Relays | Reed | 1.25 V | Reed Relay | 9 V | 3ms | -20°C ~ 70°C | - | |
 RELAY REED SPST 3A 24V Reed Relays SPST-NO 3A 24VDC 780Ohm Thru-Hole RELAY;10KV24VSPNORHODIUM-PCBMOUNT Relays Reed Relays Contact Configuration: 1A SPST-NO Mounting: PC Board Switching Current: 3 Amps Switching Voltage: 1000 Volts Sensata Technologies Holding N.V. | - | 20 | RoHS Compliant Part | Non Latching | 10 kv | 925 ohm | 30.7mA | 2ms | 780 Ohms | 24VDC | 1000VAC, 1000VDC - Max | 50 ohms (15 ohms) | 4 VDC | 3 Amps | 10^9 operations | 10^10 ohms (10^13 ohns) | 20 VDC | 3A | 4 A | Tray | SPST-NO (1 Form A) | Rhodium | Through Hole | Rhodium (Rh) | PC Pin | 17 kv | 1A SPST-NO | Relays | Reed | 4 V | Reed Relay | 20 V | 3ms | -20°C ~ 70°C | - | |
RELAY REED SPST 3A 5V Reed Relays SPST-NO 3A 5VDC 28Ohm Thru-Hole RELAY;10KV05VSPNORHODIUM-PCBMOUNT Relays Reed Relays Contact Configuration: 1A SPST-NO Mounting: PC Board Switching Current: 3 Amps Switching Voltage: 1000 Volts Sensata Technologies Holding N.V. | - | 20 | RoHS Compliant Part | Non Latching | 15 kv | 38 ohm | 178.57mA | 2ms | 28 Ohms | 5VDC | 1000VAC, 1000VDC - Max | 50 ohms (15 ohms) | 0.5 VDC | 3 Amps | 10^9 operations | 10^10 ohms (10^13 ohns) | 3.7 VDC | 3A | 4 A | Tray | SPST-NO (1 Form A) | Rhodium | Through Hole | Rhodium (Rh) | PC Pin | 17 kv | 1A SPST-NO | Relays | Reed | 0.5 V | Reed Relay | 3.7 V | 3ms | -20°C ~ 70°C | - | |
 RELAY REED SPST 3A 12V Reed Relays SPST-NC 3A 12VDC 240Ohm Thru-Hole RELAY;10KV12VSPNCRHODIUM-FLYINGLEADHVCONTACTCONNECTIONS Relays Reed Relays Contact Configuration: 1B SPST-NC Mounting: PC Board Switching Current: 3 Amps Switching Voltage: 1000 Volts Sensata Technologies Holding N.V. | - | 20 | RoHS Compliant Part | Non Latching | 10 kv | 150 ohm | 50mA | 3ms | 240 Ohms | 12VDC | 1000VAC, 1000VDC - Max | 50 ohms (15 ohms) | 1.25 VDC | 3 Amps | 10^9 operations | 10^10 ohms (10^13 ohns) | 9 VDC | 3A | 4 A | Tray | SPST-NC (1 Form B) | Rhodium | Through Hole | Rhodium (Rh) | PC Pin | 17 kv | 1B SPST-NC | Relays | Reed | 1.25 V | Reed Relay | 9 V | 2ms | -20°C ~ 70°C | - | |
 RELAY REED SPST 3A 24V Reed Relays SPST-NC 3A 24VDC 925Ohm Thru-Hole RELAY;10KV24VSPNCRHODIUM-FLYINGLEADHVCONTACTCONNECTIONS Relays Reed Relays Contact Configuration: 1B SPST-NC Mounting: PC Board Switching Current: 3 Amps Switching Voltage: 1000 Volts Sensata Technologies Holding N.V. | - | 20 | RoHS Compliant Part | Non Latching | 10 kv | 780 ohm | 25.9mA | 3ms | 925 Ohms | 24VDC | 1000VAC, 1000VDC - Max | 50 ohms (15 ohms) | 4 VDC | 3 Amps | 10^9 operations | 10^10 ohms (10^13 ohns) | 20 VDC | 3A | 4 A | Tray | SPST-NC (1 Form B) | Rhodium | Through Hole | Rhodium (Rh) | PC Pin | 17 kv | 1B SPST-NC | Relays | Reed | 4 V | Reed Relay | 20 V | 2ms | -20°C ~ 70°C | - | |
RELAY REED SPST 3A 5V Reed Relays SPST-NC 3A 5VDC 38Ohm Thru-Hole RELAY;10KV05VSPNCRHODIUM-FLYINGLEADHVCONTACTCONNECTIONS Relays Reed Relays Contact Configuration: 1B SPST-NC Mounting: PC Board Switching Current: 3 Amps Switching Voltage: 1000 Volts Sensata Technologies Holding N.V. | - | 20 | RoHS Compliant Part | Non Latching | 10 kv | 28 ohm | 131.5mA | 3ms | 38 Ohms | 5VDC | 1000VAC, 1000VDC - Max | 50 ohms (15 ohms) | 0.5 VDC | 3 Amps | 10^9 operations | 10^10 ohms (10^13 ohns) | 3.7 VDC | 3A | 4 A | Tray | SPST-NC (1 Form B) | Rhodium | Through Hole | Rhodium (Rh) | PC Pin | 17 kv | 1B SPST-NC | Relays | Reed | 0.5 V | Reed Relay | 3.7 V | 2ms | -20°C ~ 70°C | DBR70510-ND | |
 RELAY REED SPST 3A 5V Reed Relays SPST-NO 3A 5VDC 28Ohm RELAY;10KV05VSPNORHODIUM-FLYINGLEADHVCONTACTCONNECTIONS Relays Reed Relays Contact Configuration: 1A SPST-NO Mounting: Flying Leads Switching Current: 3 Amps Switching Voltage: 1000 Volts Sensata Technologies Holding N.V. | - | 20 | RoHS Compliant Part | Non Latching | 10 kv | 38 ohm | 178.57mA | 2ms | 28 Ohms | 5VDC | 1000VAC, 1000VDC - Max | 50 ohms (15 ohms) | 0.5 VDC | 3 Amps | 10^9 operations | 10^10 ohms (10^13 ohns) | 3.7 VDC | 3A | 4 A | Tray | SPST-NO (1 Form A) | Rhodium | Through Hole | Rhodium (Rh) | PC Pin, Wire Leads | 17 kv | 1A SPST-NO | Relays | Reed | 0.5 V | Reed Relay | 3.7 V | 3ms | -20°C ~ 70°C | DAR70510F-ND | |
 RELAY REED SPST 3A 5V RELAY;10KV05VSPNORHODIUM-SOLDERTURRETHVCONTACTCONNECTIONS Relays Reed Relays Contact Configuration: 1A SPST-NO Mounting: Base Mount Switching Current: 3 Amps Switching Voltage: 1000 Volts Sensata Technologies Holding N.V. | - | 20 | RoHS Compliant Part | Non Latching | 10 kv | 38 ohm | 178.57mA | 2ms | 28 Ohms | 5VDC | 1000VAC, 1000VDC - Max | 50 ohms (15 ohms) | 0.5 VDC | 3 Amps | 10^9 operations | 10^10 ohms (10^13 ohns) | 3.7 VDC | 3A | 4 A | Tray | SPST-NO (1 Form A) | Rhodium | Chassis Mount | Rhodium (Rh) | Solder Turret | 17 kv | 1A SPST-NO | Relays | Reed | 0.5 V | Reed Relay | 3.7 V | 3ms | -20°C ~ 70°C | DAR70510P-ND | |
RELAY REED SPST 3A 12V Reed Relays SPST-NO 3A 12VDC 150Ohm RELAY;10KV12VSPNORHODIUM-FLYINGLEADHVCONTACTCONNECTIONS Relays Reed Relays Contact Configuration: 1A SPST-NO Mounting: Flying Leads Switching Current: 3 Amps Switching Voltage: 1000 Volts Sensata Technologies Holding N.V. | - | 20 | RoHS Compliant Part | Non Latching | 10 kv | 240 ohm | 80mA | 2ms | 150 Ohms | 12VDC | 1000VAC, 1000VDC - Max | 50 ohms (15 ohms) | 1.25 VDC | 3 Amps | 10^9 operations | 10^10 ohms (10^13 ohns) | 9 VDC | 3A | 4 A | Tray | SPST-NO (1 Form A) | Rhodium | Through Hole | Rhodium (Rh) | PC Pin, Wire Leads | 17 kv | 1A SPST-NO | Relays | Reed | 1.25 V | Reed Relay | 9 V | 3ms | -20°C ~ 70°C | DAR71210F-ND | |
RELAY REED SPST 3A 12V Reed Relays SPST-NO 3A 12VDC 150Ohm Panel Mount RELAY;10KV12VSPNORHODIUM-SOLDERTURRETHVCONTACTCONNECTIONS Relays Reed Relays Contact Configuration: 1A SPST-NO Mounting: Base Mount Switching Current: 3 Amps Switching Voltage: 1000 Volts Sensata Technologies Holding N.V. | - | 20 | RoHS Compliant Part | Non Latching | 10 kv | 240 ohm | 80mA | 2ms | 150 Ohms | 12VDC | 1000VAC, 1000VDC - Max | 50 ohms (15 ohms) | 1.25 VDC | 3 Amps | 10^9 operations | 10^10 ohms (10^13 ohns) | 9 VDC | 3A | 4 A | Tray | SPST-NO (1 Form A) | Rhodium | Chassis Mount | Rhodium (Rh) | Solder Turret | 17 kv | 1A SPST-NO | Relays | Reed | 1.25 V | Reed Relay | 9 V | 3ms | -20°C ~ 70°C | DAR71210P-ND | |
RELAY REED SPST 3A 24V Reed Relays SPST-NO 3A 24VDC 780Ohm RELAY;10KV24VSPNORHODIUM-FLYINGLEADHVCONTACTCONNECTIONS Relays Reed Relays Contact Configuration: 1A SPST-NO Mounting: Flying Leads Switching Current: 3 Amps Switching Voltage: 1000 Volts Sensata Technologies Holding N.V. | - | 20 | RoHS Compliant Part | Non Latching | 10 kv | 925 ohm | 30.7mA | 2ms | 780 Ohms | 24VDC | 1000VAC, 1000VDC - Max | 50 ohms (15 ohms) | 4 VDC | 3 Amps | 10^9 operations | 10^10 ohms (10^13 ohns) | 20 VDC | 3A | 4 A | Tray | SPST-NO (1 Form A) | Rhodium | Through Hole | Rhodium (Rh) | PC Pin, Wire Leads | 17 kv | 1A SPST-NO | Relays | Reed | 4 V | Reed Relay | 20 V | 3ms | -20°C ~ 70°C | DAR72410F-ND | |
RELAY REED SPST 3A 24V RELAY;10KV24VSPNORHODIUM-SOLDERTURRETHVCONTACTCONNECTIONS Relays Reed Relays Contact Configuration: 1A SPST-NO Mounting: Base Mount Switching Current: 3 Amps Switching Voltage: 1000 Volts Sensata Technologies Holding N.V. | - | 20 | RoHS Compliant Part | Non Latching | 10 kv | 925 ohm | 30.7mA | 2ms | 780 Ohms | 24VDC | 1000VAC, 1000VDC - Max | 50 ohms (15 ohms) | 4 VDC | 3 Amps | 10^9 operations | 10^10 ohms (10^13 ohns) | 20 VDC | 3A | 4 A | Tray | SPST-NO (1 Form A) | Rhodium | Chassis Mount | Rhodium (Rh) | Solder Turret | 17 kv | 1A SPST-NO | Relays | Reed | 4 V | Reed Relay | 20 V | 3ms | -20°C ~ 70°C | DAR72410P-ND | |
 RELAY REED SPST 3A 24V Reed Relays SPST-NO 3A 24VDC 780Ohm Panel Mount RELAY;10KV24VSPNORHODIUM-PCBMOUNT1/4SPADEHVCONNECTIONS Relays Reed Relays Contact Configuration: 1A SPST-NO Mounting: Base Mount Switching Current: 3 Amps Switching Voltage: 1000 Volts Sensata Technologies Holding N.V. | - | 20 | RoHS Compliant Part | Non Latching | 10 kv | 925 ohm | 30.7mA | 2ms | 780 Ohms | 24VDC | 1000VAC, 1000VDC - Max | 50 ohms (15 ohms) | 4 VDC | 3 Amps | 10^9 operations | 10^10 ohms (10^13 ohns) | 20 VDC | 3A | 4 A | Tray | SPST-NO (1 Form A) | Rhodium | Chassis Mount | Rhodium (Rh) | Quick Connect - 0.250" (6.3mm) | 17 kv | 1A SPST-NO | Relays | Reed | 4 V | Reed Relay | 20 V | 3ms | -20°C ~ 70°C | - | |
RELAY REED SPST 3A 5V RELAY;10KV05VSPNORHODIUM-PCBMOUNT1/4SPADEHVCONNECTIONS Relays Reed Relays Contact Configuration: 1A SPST-NO Mounting: Base Mount Switching Current: 3 Amps Switching Voltage: 1000 Volts Sensata Technologies Holding N.V. | - | 20 | RoHS Compliant Part | Non Latching | 10 kv | 38 ohm | 178.57mA | 2ms | 28 Ohms | 5VDC | 1000VAC, 1000VDC - Max | 50 ohms (15 ohms) | 0.5 VDC | 3 Amps | 10^9 operations | 10^10 ohms (10^13 ohns) | 3.7 VDC | 3A | 4 A | Bulk | SPST-NO (1 Form A) | Rhodium | Chassis Mount | Rhodium (Rh) | Quick Connect - 0.250" (6.3mm) | 17 kv | 1A SPST-NO | Relays | Reed | 0.5 V | Reed Relay | 3.7 V | 3ms | -20°C ~ 70°C | DAR70510S-ND | |
RELAY REED SPST 3A 12V Reed Relays SPST-NO 3A 12VDC 150Ohm Thru-Hole RELAY;10KV12VSPNORHODIUM-PCBMOUNT1/4SPADEHVCONNECTIONS Relays Reed Relays Contact Configuration: 1A SPST-NO Mounting: Base Mount Switching Current: 3 Amps Switching Voltage: 1000 Volts Sensata Technologies Holding N.V. | - | 20 | RoHS Compliant Part | Non Latching | 10 kv | 240 ohm | 80mA | 2ms | 150 Ohms | 12VDC | 1000VAC, 1000VDC - Max | 50 ohms (15 ohms) | 1.25 VDC | 3 Amps | 10^9 operations | 10^10 ohms (10^13 ohns) | 9 VDC | 3A | 4 A | Bulk | SPST-NO (1 Form A) | Rhodium | Chassis Mount | Rhodium (Rh) | Quick Connect - 0.250" (6.3mm) | 17 kv | 1A SPST-NO | Relays | Reed | 1.25 V | Reed Relay | 9 V | 3ms | -20°C ~ 70°C | DAR71210S-ND | |
RELAY REED SPST 3A 5V Reed Relays SPST-NC 3A 5VDC 38Ohm RELAY;10KV05VSPNCRHODIUM-SOLDERTURRETHVCONTACTCONNECTIONS Relays Reed Relays Contact Configuration: 1B SPST-NC Mounting: Flying Leads Switching Current: 3 Amps Switching Voltage: 1000 Volts Sensata Technologies Holding N.V. | - | 20 | RoHS Compliant Part | Non Latching | 10 kv | 28 ohm | 131.5mA | 3ms | 38 Ohms | 5VDC | 1000VAC, 1000VDC - Max | 50 ohms (15 ohms) | 0.5 VDC | 3 Amps | 10^9 operations | 10^10 ohms (10^13 ohns) | 3.7 VDC | 3A | 4 A | Tray | SPST-NC (1 Form B) | Rhodium | Through Hole | Rhodium (Rh) | PC Pin, Wire Leads | 17 kv | 1B SPST-NC | Relays | Reed | 0.5 V | Reed Relay | 3.7 V | 2ms | -20°C ~ 70°C | DBR70510F-ND | |
RELAY REED SPST 3A 5V Reed Relays SPST-NC 3A 5VDC 38Ohm Panel Mount RELAY;10KV05VSPNCRHODIUM-PCBMOUNT1/4SPADEHVCONNECTIONS Relays Reed Relays Contact Configuration: 1B SPST-NC Mounting: Base Mount Switching Current: 3 Amps Switching Voltage: 1000 Volts Sensata Technologies Holding N.V. | - | 20 | RoHS Compliant Part | Non Latching | 10 kv | 28 ohm | 131.5mA | 3ms | 38 Ohms | 5VDC | 1000VAC, 1000VDC - Max | 50 ohms (15 ohms) | 0.5 VDC | 3 Amps | 10^9 operations | 10^10 ohms (10^13 ohns) | 3.7 VDC | 3A | 4 A | Tray | SPST-NC (1 Form B) | Rhodium | Chassis Mount | Rhodium (Rh) | Solder Turret | 17 kv | 1B SPST-NC | Relays | Reed | 0.5 V | Reed Relay | 3.7 V | 2ms | -20°C ~ 70°C | DBR70510P-ND | |
RELAY REED SPST 3A 12V Reed Relays SPST-NC 3A 12VDC 240Ohm RELAY;10KV12VSPNCRHODIUM-SOLDERTURRETHVCONTACTCONNECTIONS Relays Reed Relays Contact Configuration: 1B SPST-NC Mounting: Flying Leads Switching Current: 3 Amps Switching Voltage: 1000 Volts Sensata Technologies Holding N.V. | - | 20 | RoHS Compliant Part | Non Latching | 10 kv | 150 ohm | 50mA | 3ms | 240 Ohms | 12VDC | 1000VAC, 1000VDC - Max | 50 ohms (15 ohms) | 1.25 VDC | 3 Amps | 10^9 operations | 10^10 ohms (10^13 ohns) | 9 VDC | 3A | 4 A | Tray | SPST-NC (1 Form B) | Rhodium | Through Hole | Rhodium (Rh) | PC Pin, Wire Leads | 17 kv | 1B SPST-NC | Relays | Reed | 1.25 V | Reed Relay | 9 V | 2ms | -20°C ~ 70°C | DBR71210F-ND | |
RELAY REED SPST 3A 12V Reed Relays SPST-NC 3A 12VDC 240Ohm Panel Mount RELAY;10KV12VSPNCRHODIUM-PCBMOUNT1/4SPADEHVCONNECTIONS Relays Reed Relays Contact Configuration: 1B SPST-NC Mounting: Base Mount Switching Current: 3 Amps Switching Voltage: 1000 Volts Sensata Technologies Holding N.V. | - | 20 | RoHS Compliant Part | Non Latching | 10 kv | 150 ohm | 50mA | 3ms | 240 Ohms | 12VDC | 1000VAC, 1000VDC - Max | 50 ohms (15 ohms) | 1.25 VDC | 3 Amps | 10^9 operations | 10^10 ohms (10^13 ohns) | 9 VDC | 3A | 4 A | Tray | SPST-NC (1 Form B) | Rhodium | Chassis Mount | Rhodium (Rh) | Solder Turret | 17 kv | 1B SPST-NC | Relays | Reed | 1.25 V | Reed Relay | 9 V | 2ms | -20°C ~ 70°C | DBR71210P-ND | |
RELAY REED SPST 3A 24V Reed Relays SPST-NC 3A 24VDC 925Ohm RELAY;10KV24VSPNCRHODIUM-SOLDERTURRETHVCONTACTCONNECTIONS Relays Reed Relays Contact Configuration: 1B SPST-NC Mounting: Flying Leads Switching Current: 3 Amps Switching Voltage: 1000 Volts Sensata Technologies Holding N.V. | - | 20 | RoHS Compliant Part | Non Latching | 10 kv | 780 ohm | 25.9mA | 3ms | 925 Ohms | 24VDC | 1000VAC, 1000VDC - Max | 50 ohms (15 ohms) | 4 VDC | 3 Amps | 10^9 operations | 10^10 ohms (10^13 ohns) | 20 VDC | 3A | 4 A | Tray | SPST-NC (1 Form B) | Rhodium | Through Hole | Rhodium (Rh) | PC Pin, Wire Leads | 17 kv | 1B SPST-NC | Relays | Reed | 4 V | Reed Relay | 20 V | 2ms | -20°C ~ 70°C | DBR72410F-ND |
