Semtech Corporation- 电源管理解决方案

升特公司（Semtech Corporation）成立于1960年，总部位于美国加利福尼亚州卡马里奥，是一家全球领先的高性能模拟与混合信号半导体供应商。公司致力于为电源管理、电路保护、无线和传感以及信号完整性等领域提供先进的解决方案。Semtech是全球公认的LoRa®技术的先驱和推动者，该技术已成为低功耗广域网（LPWAN）的事实标准，支撑全球物联网应用。其产品组合包括用于远距离低功耗无线连接的LoRa®收发器IC，以及最新推出的LoRa Edge™地理定位平台。在保护器件方面，Semtech提供全面的瞬态电压抑制（TVS）和静电放电（ESD）保护产品，如RailClamp®、uClamp®和RClamp®系列，用于保护高速数据接口。公司的电源管理解决方案涵盖低压差线性稳压器（LDO）、DC-DC转换器和无线充电IC，适用于便携式和工业设备。Semtech的信号完整性产品包括用于光模块和高速视频的先进驱动器与接收器，确保数据传输的可靠性。公司的集成电路广泛应用于通信、数据中心、工业自动化、汽车和消费电子等多个市场。凭借数十年的创新和数千项专利，Semtech在电路保护领域拥有稳固的市场地位，并通过其LoRa生态系统成为低功耗广域网连接领域的领导者。由全球合作伙伴联盟支持的广泛LoRaWAN®生态系统，进一步巩固了Semtech在智慧城市、智能农业和物流等领域的赋能角色。

MODELS

电源管理解决方案 - 型号列表共 9 个型号

制造商零件编号	价格/库存	Primary Input Voltage	No. of Outputs	Output Current	No. of Pins	Weight (kg)	Tariff No.	Number of Outputs	Packaging	Mounting Type	Supplier Device Package	Operating Temperature	Standard Package	Other Names	Voltage - Input	rohs	Output Voltage	Operating Temperature Min	Operating Temperature Max	Package / Case	Type	Synchronous Rectifier	Frequency - Switching	Output Type	Current - Output	Voltage - Output	PWM Type	Package/Case	MSL	Pin Count	Supplier Package	EU RoHS	Maximum Operating Temperature	Standard Package Name	Switching Frequency	Switching Regulator	Maximum Output Current	Minimum Input Voltage	Minimum Operating Temperature	Maximum Input Voltage	Lead Shape	Line Regulation	Mounting	Load Regulation	Switching Frequency Max	Efficiency	Package Width	PCB	Package Length	Package Height	Output Voltage	Applications	Operating Temp Range	Voltage Regulator Type	Package Type	Operating Temperature Classification	Topology	Rad Hardened	DELETED
4 SC4524CSETRT Conv DC-DC Single Step Down 3V to 28V 8-Pin SOIC EP T/R Semtech	询价	:30V	:1	:2A	:8	0.00001	85411000	1	Tape and Reel	Surface Mount	8-SOIC-EP	-40°C ~ 105°C	2,500	SC4524CSETR	3 V ~ 28 V	Lead free / RoHS Compliant	:30V	:-40°C	:85°C	:8-SOIC	Step Down	No	300kHz ~ 1.3MHz	Adjustable	2A	1 V ~ 26.88 V	Current Mode	8-SOIC (0.154", 3.90mm Width) Exposed Pad	:-	8	SOIC EP	Compliant	105	SOIC	200 to 2000	Yes	2	3	-40	28	Gull-wing	0.005%/V(Typ)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 SC4525CSETRT Conv DC-DC Single Step Down 3V to 28V 8-Pin SOIC EP T/R Semtech	询价	:28V	:1	:3A	:8	0	85423990	1	Tape and Reel	Surface Mount	8-SOIC-EP	-40°C ~ 105°C	2,500	SC4525CSETR	3 V ~ 28 V	Lead free / RoHS Compliant	:28V	-	-	:8-SOIC	Step Down	No	300kHz ~ 1.3MHz	Adjustable	3A	1 V ~ 26.88 V	Current Mode	8-SOIC (0.154", 3.90mm Width) Exposed Pad	:-	8	SOIC EP	Compliant	105	SOIC	200 to 2000	Yes	3	3	-40	28	Gull-wing	0.005%/V(Typ)	-	-	:2MHz	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 SC185QULTRT Conv DC-DC Single Step Down 2.9V to 5.5V 16-Pin MLPQ-UT EP T/R Semtech	询价	:5V	:1	:4A	:12	0.000001	85423990	1	Tape and Reel	Surface Mount	16-MLPQ-UT (3x3)	-40°C ~ 85°C	3,000	SC185QULTR	2.9 V ~ 5.5 V	Lead free / RoHS Compliant	:3.3V	:-40°C	:85°C	:12-MLPQ	Step Down	Yes	1.5MHz	Fixed	4A	3.3V	Voltage Mode	16-UFQFN Exposed Pad	-	16	MLPQ-UT EP	Compliant	85	DFN	1275 to 1725	Yes	4	2.9	-40	5.5	No Lead	-	Surface Mount	0.3%(Typ)	-	95	3.1(Max)	16	3.1(Max)	0.55(Max)	3.3	-	-	-	-	-	-	-	-
2 SC185LULTRT IC BUCK SYNC 2.5V 4A 16MLPQ Semtech	询价	:5V	:1	:4A	:12	0	85423990	1	Tape & Reel (TR)	Surface Mount	16-MLPQ-UT (3x3)	-40°C ~ 85°C	3,000	SC185LULTR	2.9 V ~ 5.5 V	Lead free / RoHS Compliant	:2.5V	:-40°C	:85°C	16-UFQFN Exposed Pad	Step-Down (Buck)	Yes	1.5MHz	Fixed	4A	2.5V	Voltage Mode	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

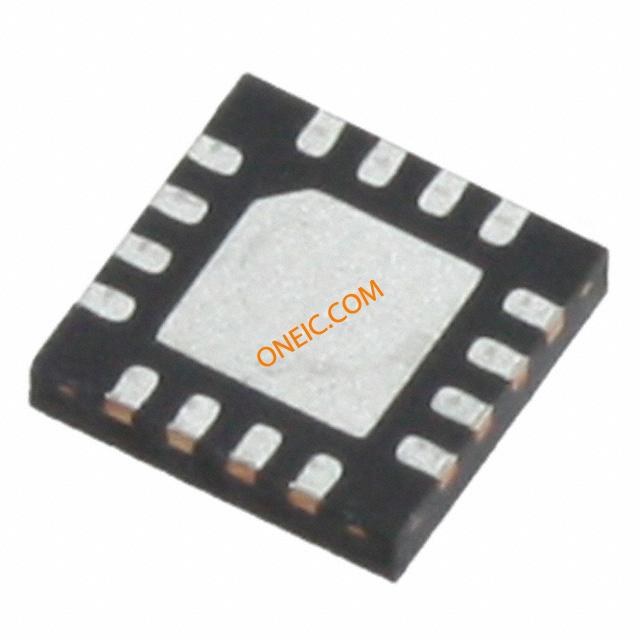

3 SC185EULTRT IC BUCK SYNC 1.2V 4A 16MLPQ Semtech	询价	:5V	:1	:4A	:12	0	85423990	1	Tape & Reel (TR)	Surface Mount	16-MLPQ-UT (3x3)	-40°C ~ 85°C	3,000	SC185EULTR	2.9 V ~ 5.5 V	Lead free / RoHS Compliant	:1.2V	:-40°C	:85°C	16-UFQFN Exposed Pad	Step-Down (Buck)	Yes	1.5MHz	Fixed	4A	1.2V	Voltage Mode	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

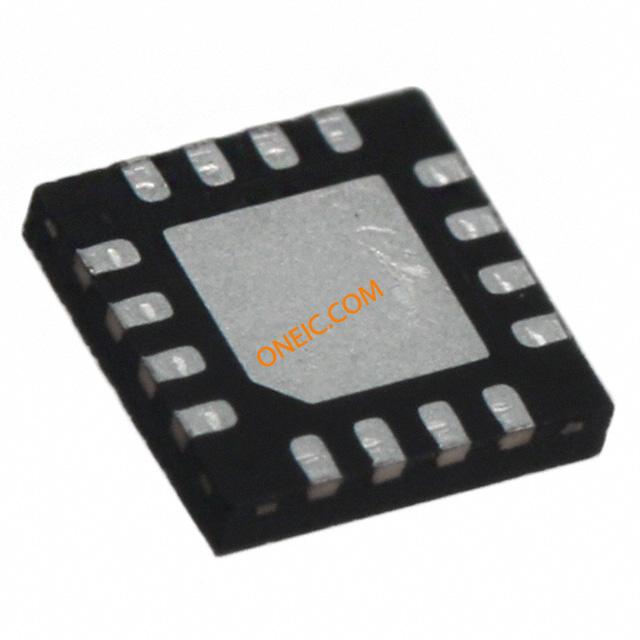

3 SC185HULTRT IC BUCK SYNC 1.5V 4A 16MLPQ Semtech	询价	:5V	:1	:4A	:12	0	85423990	1	Tape & Reel (TR)	Surface Mount	16-MLPQ-UT (3x3)	-40°C ~ 85°C	3,000	SC185HULTR	2.9 V ~ 5.5 V	Lead free / RoHS Compliant	:1.5V	:-40°C	:85°C	16-UFQFN Exposed Pad	Step-Down (Buck)	Yes	1.5MHz	Fixed	4A	1.5V	Voltage Mode	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 SC4524DSETRT IC BUCK ADJ 2A 8SOIC Semtech	询价	:30V	:1	:2A	:8	0	85423990	1	Tape & Reel (TR)	Surface Mount	8-SOIC-EP	-40°C ~ 105°C	2,500	SC4524DSETR	3 V ~ 18 V	Lead free / RoHS Compliant	:30V	:-40°C	:85°C	:8-SOIC	Step-Down (Buck)	No	300kHz ~ 1.3MHz	Adjustable	2A	1 V ~ 17.28 V	Current Mode	8-SOIC (0.154", 3.90mm Width) Exposed Pad	:-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 SC2595STRT IC REG DDR 8SOIC Semtech	询价	:5V	:1	1.5 A	:8	0	85423990	1	Tape & Reel (TR)	Surface Mount	8-SOIC-EP	-40°C ~ 105°C	2,500	SC2595STR	2.5 V ~ 5 V	Lead free / RoHS Compliant	-	:-40°C	:105°C	-	-	-	-	-	-	-	-	8-SOIC (0.154", 3.90mm Width) Exposed Pad	:-	8	-	-	-	-	-	-	-	-	-	-	-	-	Surface Mount	0.5%	-	-	-	-	-	-	-	Converter, DDR	-40C to 105C	Linear	SOIC EP	Industrial	Standard	No	Compliant
2 SC172MLTRT Conv DC-DC Single Step Down 3V to 5.5V 10-Pin MLPD EP T/R SEMTECH	询价	:5.5V	:1	:2A	:10	0	85423990	-	-	-	-	-	-	-	-	-	:5.225V	:-40°C	:85°C	:10-MLPD	-	-	-	-	-	-	-	-	:-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
