机架配件 - 型号列表
共 4 个型号| 制造商零件编号 | 库存 | 价格 | 商标名 | 标准包装数量 | RoHS | 认证机构 | 效率 | 输出功率 | 功率（瓦） | 工作模式 | 额定电压 | 输出电流 | 输出数量 | 隔离电压 | 最小输入电压 | 输出电流/通道 | 重量 | 安装类型 | 安装样式 | 面板安装类型 | 尺寸/外形 | 端接样式 | 类型 | 系列 | 产品特性 | 拓扑 | 应用领域 | 额定等级 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

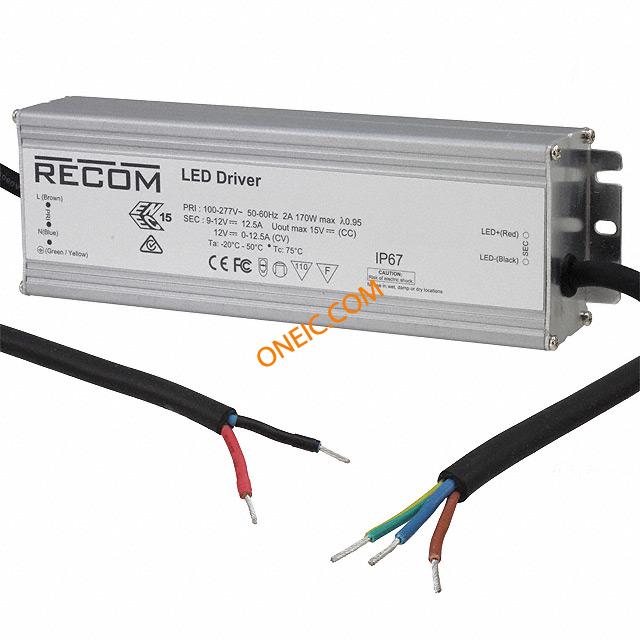

 LED SUPPLY CC/CV AC/DC 9-12V LED Drivers Power Supplies 150W 90-305Vin 12V ENEC CERTIFIED Recom Power | 11 | 1: ¥495.516 | LIGHTLINE | 12 | RoHS Compliant | CE, ENEC | 88% | 150 W | 150W | CV + CC | 90 VAC to 305 VAC, 127 VDC to 430 VDC | 11A | 1 | 3.75kV (3750V) | 9 ~ 12 V | 11 A | 2.4 lbs (1.1kg) | Chassis Mount | Screw | Enclosed | 8.74" L x 2.68" W x 1.54" H (222.0mm x 68.0mm x 39.0mm) | Wire Leads | Constant Current, Voltage | RACD150 | OCP, OTP, OVP, SCP | AC DC Converter | Commercial | IP67 | -30°C ~ 70°C |

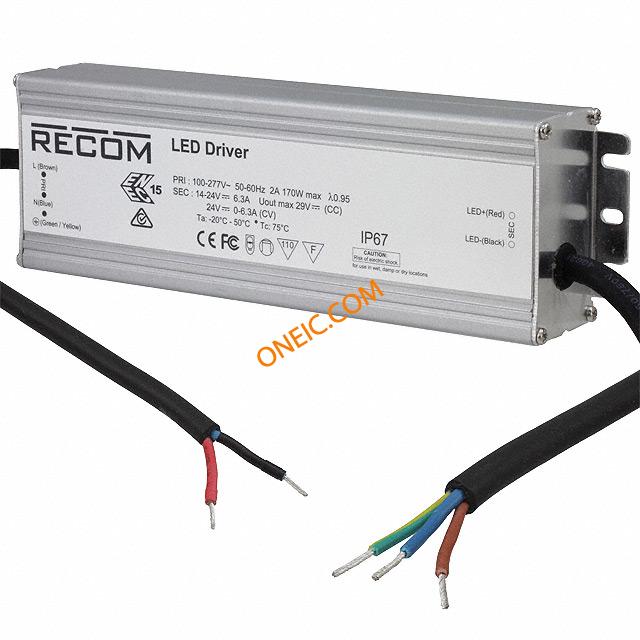

 LED SUPPLY CC/CV AC/DC 14-24V LED Power Supplies 150W 90-305Vin 24V ENEC CERTIFIED Recom Power | 12 | 1: ¥495.516 | LIGHTLINE | 12 | RoHS Compliant | CE, ENEC | 90% | 150 W | 150W | CV + CC | 90 VAC to 305 VAC, 127 VDC to 430 VDC | 6.3A | 1 | 3.75kV (3750V) | 14 ~ 24 V | 6.3 A | 2.4 lbs (1.1kg) | Chassis Mount | Screw | Enclosed | 8.74" L x 2.68" W x 1.54" H (222.0mm x 68.0mm x 39.0mm) | Wire Leads | Constant Current, Voltage | RACD150 | OCP, OTP, OVP, SCP | AC DC Converter | Commercial | IP67 | -30°C ~ 70°C |

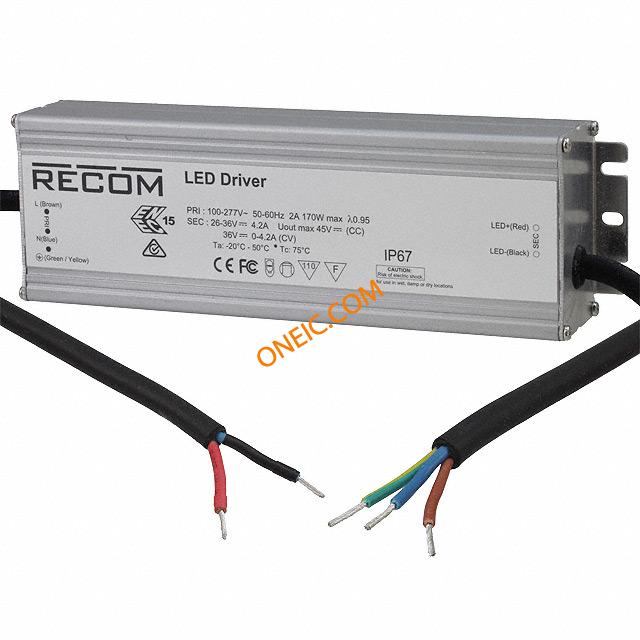

 LED SUPPLY CC/CV AC/DC 26-36V LED Power Supplies 150W 90-305Vin 36V ENEC CERTIFIED Recom Power | 12 | 1: ¥495.516 | LIGHTLINE | 12 | RoHS Compliant | CE, ENEC | 90% | 150 W | 150W | CV + CC | 90 VAC to 305 VAC, 127 VDC to 430 VDC | 4.2A | 1 | 3.75kV (3750V) | 26 ~ 36 V | 4.2 A | 2.4 lbs (1.1kg) | Chassis Mount | Screw | Enclosed | 8.74" L x 2.68" W x 1.54" H (222.0mm x 68.0mm x 39.0mm) | Wire Leads | Constant Current, Voltage | RACD150 | OCP, OTP, OVP, SCP | AC DC Converter | Commercial | IP67 | -30°C ~ 70°C |

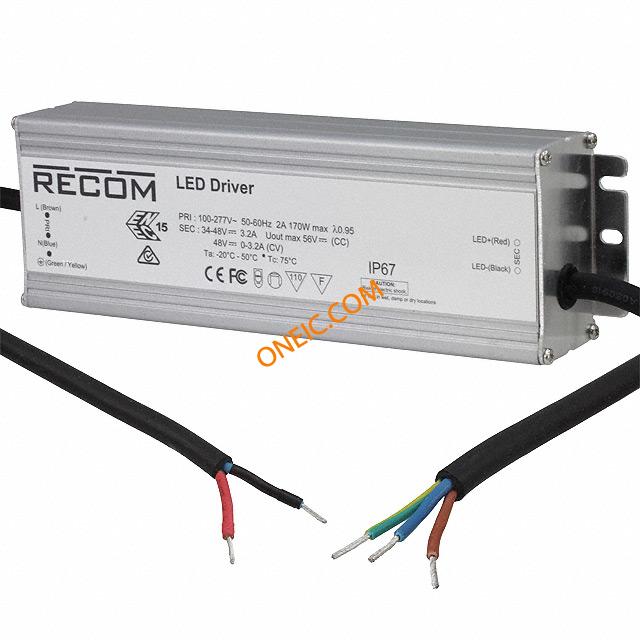

 LED SUPPLY CC/CV AC/DC 34-48V LED Drivers Power Supplies 150W 90-305Vin 48V ENEC CERTIFIED Recom Power | 12 | 1: ¥495.516 | LIGHTLINE | 12 | RoHS Compliant | CE, ENEC | 90% | 150 W | 150W | CV + CC | 90 VAC to 305 VAC, 127 VDC to 430 VDC | 3.2A | 1 | 3.75kV (3750V) | 34 ~ 48 V | 3.2 A | 2.4 lbs (1.1kg) | Chassis Mount | Screw | Enclosed | 8.74" L x 2.68" W x 1.54" H (222.0mm x 68.0mm x 39.0mm) | Wire Leads | Constant Current, Voltage | RACD150 | OCP, OTP, OVP, SCP | AC DC Converter | Commercial | IP67 | -30°C ~ 70°C |
第 1 / 1 页
