Phihong Technology Co., Ltd.- 电源管理IC

飞宏科技股份有限公司（简称飞宏科技或Phihong）是全球领先的开关电源产品及电动汽车充电解决方案供应商。公司成立于1972年，总部位于台湾台北，现已发展为在亚洲、欧洲及美洲设有制造工厂和销售办事处的跨国企业。飞宏科技的核心业务专注于外部电源适配器、桌面式电源、开放式电源及电动汽车充电系统的设计、研发与生产。其产品线包括广受欢迎的PSA系列消费电子交流适配器、用于工业和医疗领域的PSP系列开放式电源，以及针对IT设备的PSF系列桌面式适配器。此外，公司还积极扩展智能电动汽车充电站业务，推出飞宏品牌的交流和直流快速充电桩。凭借数十年在模拟电子领域的技术积累，飞宏以高效率、高可靠性及符合Energy Star、Level VI等全球安全与能效标准而闻名。公司服务的行业涵盖消费电子、电信、网络、医疗设备及汽车等多个领域。飞宏持续创新，致力于开发基于氮化镓（GaN）技术的功率方案及USB-C紧凑型快充产品。作为垂直整合制造商，飞宏从元件采购到最终组装均实施严格质量控制，确保产品一致性。飞宏在全球电源制造领域位居前列，在OEM和ODM市场均占有重要地位。

电源管理IC - 型号列表

共 106 个型号

制造商零件编号	库存	价格	RoHS	输出功率	工作模式	额定电压	最小输入电压	输出电流/通道	尺寸/外形	产品	产品类别	应用领域	安装样式	输出数量	面板安装类型	标准包装数量	认证机构	效率	功率（瓦）	输出电流	隔离电压	重量	端接样式	类型	产品特性	拓扑	额定等级	工作温度	机械寿命	零件号别名	安装类型	系列	调光方式
PDA010A-700C-H LED Drivers Power Supplies 9W 12VDC 700mA 211-264VAC LED Drivr Phihong	10	1930: ¥64.60	RoHS Compliant	10 W	Constant Current (CC)	211 VAC to 264 VAC	12 V	700 mA	106 mm L x 40 mm W x 21 mm H	Linear Supplies	LED Drivers Power Supplies	Commercial	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PDA015A-350C-H LED Drivers Power Supplies 16.8W 42VDC 350mA 211-264VAC LED Drivr Phihong	10	1544: ¥71.74	RoHS Compliant	15 W	Constant Current (CC)	211 VAC to 264 VAC	17.5 V to 42 V	350 mA	132 mm L x 40 mm W x 21 mm H	Linear Supplies	LED Drivers Power Supplies	Commercial	SMD/SMT	1	Enclosed	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	RACD60	-
PDA030A-700C-H LED Drivers Power Supplies 31.5W 42VDC 700mA 211-264VAC LED Drivr LED Power Supplies 31.5W 42VDC 700mA 211-264VAC LED Drivr Phihong	10	1544: ¥80.24	RoHS Compliant	30 W	Constant Current (CC)	211 VAC to 264 VAC	42 V	700 mA	132 mm L x 40 mm W x 21 mm H	Linear Supplies	LED Drivers Power Supplies	Commercial	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PDA006A-700C-H LED Drivers Power Supplies 5.6W 7.5VDC 700mA 211-264VAC LED Drivr Phihong	10	3087: ¥36.516	RoHS Compliant	6 W	Constant Current (CC)	211 VAC to 264 VAC	7.5 V	700 mA	68 mm L x 35.5 mm W x 20.5 mm H	Linear Supplies	LED Drivers Power Supplies	Commercial	Chassis	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	PDA006A-S	-	-	-
PDA006B-700C-H LED Drivers Power Supplies 5.6W 7.5VDC 700mA 90-132VAC LED Driver Phihong	41	1: ¥70.176	RoHS Compliant	6 W	Constant Current (CC)	90 VAC to 132 VAC	7.5 V	700 mA	68 mm L x 35.5 mm W x 20.5 mm H	Linear Supplies	LED Drivers Power Supplies	Commercial	Chassis	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PDA045W-387G-R LED Drivers Power Supplies 45W 26.5V 403mA LED Dimming 108-304VAC Phihong	-		RoHS Compliant	45 W	Constant Current (CC)	108 VAC to 304 VAC	24.5 V	387 mA	213.2 mm L x 43.5 mm W x 30.5 mm H	Linear Supplies	LED Drivers Power Supplies	Commercial	Chassis	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Obsolete	-	-	-	-
PDA049W-445G-R LED Drivers Power Supplies 49W 26.5V 471mA LED Dimming 108-304VAC Phihong	-		RoHS Compliant	49 W	Constant Current (CC)	108 VAC to 304 VAC	24.5 V	453 mA	213.2 mm L x 43.5 mm W x 30.5 mm H	Linear Supplies	LED Drivers Power Supplies	Commercial	Chassis	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Obsolete	-	-	-	-
PDA010N-336G-R LED Drivers Power Supplies 10W 30.02V 352.8mA Dimming 100-132VAC Phihong	-		RoHS Compliant	10 W	Constant Current (CC)	108 VAC to 132 VAC	28.92 V	336 mA	81.4 mm L x 73.5 mm W x 25.3 mm H	Linear Supplies	LED Drivers Power Supplies	Commercial	Chassis	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Obsolete	-	-	-	-
PDA010B-700C-R LED Drivers Power Supplies 9W 12VDC 700mA 90-132VAC LED Driver Phihong	44	1: ¥136.272	RoHS Compliant	10 W	Constant Current (CC)	90 VAC to 132 VAC	12 V	700 mA	106 mm L x 40 mm W x 21 mm H	Linear Supplies	LED Drivers Power Supplies	Commercial	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PDA030B-700C-R LED Drivers Power Supplies 31.5W 42VDC 700mA 90-132VAC LED Driver Phihong	10	1: ¥169.252	RoHS Compliant	30 W	Constant Current (CC)	90 VAC to 132 VAC	42 V	700 mA	132 mm L x 40 mm W x 21 mm H	Linear Supplies	LED Drivers Power Supplies	Commercial	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PDA031W-264G-R LED Drivers Power Supplies 31W 26.5V 275mA LED Dimming 108-304VAC Phihong	-		RoHS Compliant	31 W	Constant Current (CC)	108 VAC to 132 VAC	24.5 V	264 mA	213.2 mm L x 43.5 mm W x 30.5 mm H	Linear Supplies	LED Drivers Power Supplies	Commercial	Chassis	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Obsolete	-	-	-	-
PDA015B-350C-R LED Drivers Power Supplies 16.8W 42VDC 350mA 90-132VAC LED Driver Phihong	23	1: ¥154.972	RoHS Compliant	12 W	Constant Current (CC)	100 VAC to 136 VAC	43 V	370 mA	132 mm L x 40 mm W x 21 mm H	Linear Supplies	LED Drivers Power Supplies	-	Plug In	1	Enclosed	-	-	-	-	-	-	-	-	-	-	-	-	-	New At Mouser	-	-	-	-
PSM090-240P-R LED Power Supplies 90W 25.2VDC 3.75A 90-304VAC LED Driver LED Drivers Power Supplies 90W 25.2VDC 3.75A 90-304VAC LED Driver Phihong	22	1: ¥513.74	RoHS Compliant	90 W	Constant Voltage (CV)	90 VAC to 304 VAC	25.2 V	3.75 A	169 mm L x 60.7 mm W x 31 mm H	Linear Supplies	LED Drivers Power Supplies	Commercial	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PDA006A-1A0S-R LED SUPPLY CC AC/DC 4-6V 1A LED Drivers Power Supplies 6W 4-6V 1A Wall Plug CC LED PS PHIHONG USA	53	1: ¥70.244	RoHS Compliant	6 W	Constant Current (CC)	90 VAC to 132 VAC	4 ~ 6 V	1000 mA	2.62" L x 1.22" W x 1.50" H (66.5mm x 31.0mm x 38.0mm)	-	-	-	-	1	Enclosed	1	cULus	Level V	6W	1A	3kV (3000V)	0.088 lb (39.92g)	2.1mm I.D. x 5.5mm O.D. x 9.5mm Female	Constant Current	OCP, OVP, SCP	AC DC Converter	IP20	0°C ~ 40°C	-	PDA006A-S	-	-	-
PDA006A-700S-R LED SUPPLY CC AC/DC 5-8.6V 0.7A LED SUPPLY CC AC/DC 5-8.6V 700MA LED Drivers Power Supplies 6W 5-8.6V 700mA Wall Plug CC LED PS PHIHONG USA	81	1: ¥58.888	RoHS Compliant	6 W	Constant Current (CC)	90 VAC to 132 VAC	5 ~ 8.6 V	700 mA	2.62" L x 1.22" W x 1.50" H (66.5mm x 31.0mm x 38.0mm)	-	-	-	-	1	Enclosed	1	cULus	Level V	6W	700mA	3kV (3000V)	0.088 lb (39.92g)	2.1mm I.D. x 5.5mm O.D. x 9.5mm Female	Constant Current	OCP, OVP, SCP	AC DC Converter	IP20	0°C ~ 40°C	-	PDA006A-S	-	-	-

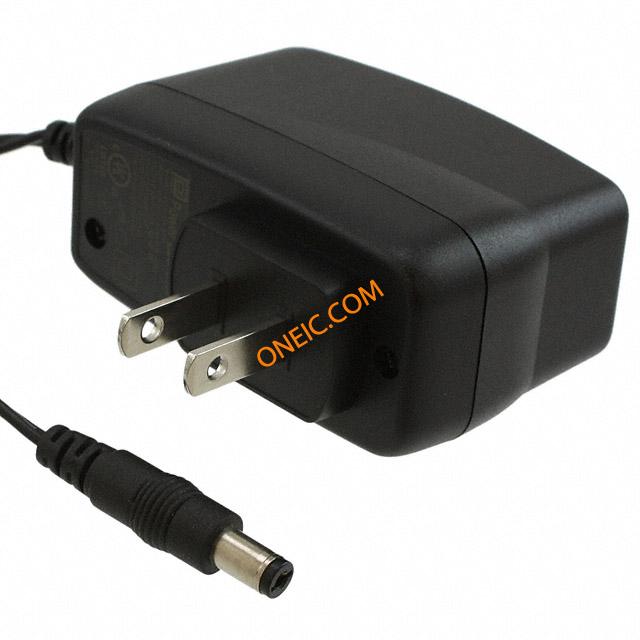

PDA012A-1A5S-R LED SUPPLY CC AC/DC 6-8V 1.5A LED Drivers Power Supplies 12W 6-8V 1.5A Wall Plug CC LED PS PHIHONG USA	69	1: ¥107.576	RoHS Compliant	12 W	Constant Current (CC)	90 VAC to 132 VAC	6 ~ 8 V	1500 mA	2.81" L x 1.33" W x 1.81" H (71.5mm x 33.8mm x 46.0mm)	-	-	-	-	1	Enclosed	1	cULus	Level V	12W	1.5A	3kV (3000V)	0.187 lb (84.82g)	2.1mm I.D. x 5.5mm O.D. x 9.5mm Female	Constant Current	OCP, OVP, SCP	AC DC Converter	IP20	0°C ~ 40°C	-	-	-	-	-
PDA012A-1A0S-R LED SUPPLY CC AC/DC 6-12V 1A LED Drivers Power Supplies 12W 6-12V 1A Wall Plug CC LED PS PHIHONG USA	68	1: ¥107.576	RoHS Compliant	12 W	Constant Current (CC)	90 VAC to 132 VAC	6 ~ 12 V	1000 mA	2.81" L x 1.33" W x 1.81" H (71.5mm x 33.8mm x 46.0mm)	-	-	-	-	1	Enclosed	1	cULus	Level V	12W	1A	3kV (3000V)	0.187 lb (84.82g)	2.1mm I.D. x 5.5mm O.D. x 9.5mm Female	Constant Current	OCP, OVP, SCP	AC DC Converter	IP20	0°C ~ 40°C	-	-	-	-	-
PDA012A-700S-R LED SUPPLY CC AC/DC 9-17V 0.7A LED SUPPLY CC AC/DC 9-17V 700MA LED Drivers Power Supplies 12W 9-17V 700mA Wall Plug CC LED PS PHIHONG USA	133	1: ¥94.588	RoHS Compliant	12 W	Constant Current (CC)	90 VAC to 132 VAC	9 ~ 17 V	700 mA	2.81" L x 1.33" W x 1.81" H (71.5mm x 33.8mm x 46.0mm)	-	-	-	-	1	Enclosed	1	cULus	Level V	12W	700mA	3kV (3000V)	0.187 lb (84.82g)	2.1mm I.D. x 5.5mm O.D. x 9.5mm Female	Constant Current	OCP, OVP, SCP	AC DC Converter	IP20	0°C ~ 40°C	-	-	-	-	-

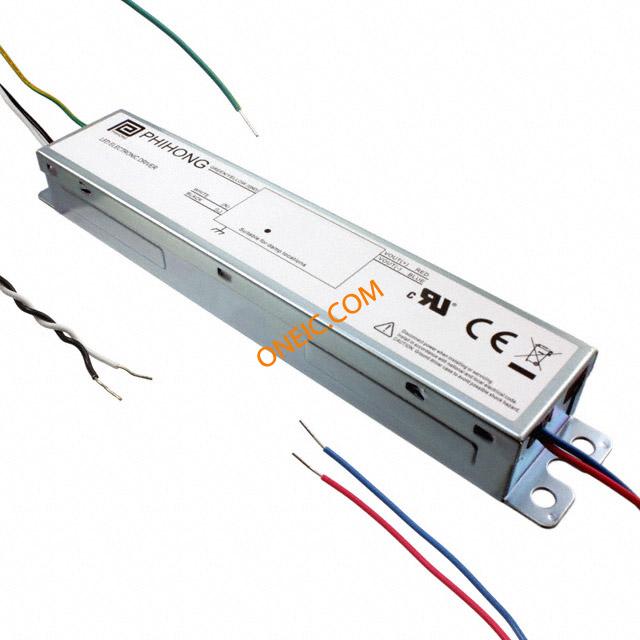

PDA080B-48VG-R LED SUPPLY CV AC/DC 48V 1.7A LED Drivers Power Supplies 80W 48V 1.67A Dimmable CV LED PS PHIHONG USA	11	1: ¥611.796	RoHS Compliant	80 W	Constant Voltage (CV)	100 VAC to 277 VAC	48V	1.7 A	9.50" L x 1.70" W x 1.20" H (241.0mm x 43.0mm x 30.5mm)	-	-	-	Chassis	1	Enclosed	1	CE, cULus	87%	80W	1.7A	4.242kV (4242V)	1.7 lbs (771.1g)	Wire Leads	Constant Voltage	OCP, OVP, SCP	AC DC Converter	IP67	-40°C ~ 60°C	-	-	Chassis Mount	-	-
PDA080W-1A6G-R LED SUPPLY CC AC/DC 34-48V 1.67A LED Drivers Power Supplies 80W 35-48V 1.67A Dimmable CC LED PS PHIHONG USA	12	1: ¥488.852	RoHS Compliant	80 W	Constant Current (CC)	100 VAC to 277 VAC	34 ~ 48 V	1.6 A	9.50" L x 1.70" W x 1.20" H (241.0mm x 43.0mm x 30.5mm)	-	-	-	Chassis	1	Enclosed	1	CE, cULus	85%	80W	1.67A	4.242kV (4242V)	1.7 lbs (771.1g)	Wire Leads	Constant Current	OCP, OVP, SCP	AC DC Converter	IP65	-40°C ~ 60°C	-	-	Chassis Mount	-	Analog
