松下集团（Panasonic Corporation）成立于1918年，总部位于日本大阪府门真市，是全球领先的电子和工业产品制造商。其电子元器件业务由松下电器产业株式会社负责，提供包括电容器、电阻器、电感器和电路保护器件在内的丰富产品线。松下以其MLCC（片式多层陶瓷电容器）技术闻名，产品广泛应用于汽车、工业和消费电子领域。在半导体方面，松下工业设备解决方案事业部提供功率MOSFET、IGBT和晶闸管等功率半导体，致力于高效能源利用。公司的传感器阵容包括Grid-EYE红外阵列传感器和NaPiOn系列PIR传感器，是楼宇自动化和物联网的重要组件。松下还生产多种继电器、连接器和开关，其品牌产品以高可靠性满足严苛环境下的连接需求。此外，松下开发了MN101和MN103系列等微控制器（MCU），常与自家的电源管理IC配合使用。作为主要的电子元器件供应商，松下在全球被动元件市场中位列前十，尤其在MLCC和电解电容器领域占有重要份额。针对汽车电气化趋势，松下的元器件在电池管理系统、逆变器控制和ADAS模块中发挥着关键作用。凭借强大的研发实力和悠久历史，松下持续在小型化和高温运行方向上推动下一代电子元器件的创新。

MODELS

扁平柔性连接器 - 型号列表共 15 个型号

制造商零件编号	价格/库存	Type	Pitch	Number of Contacts	Number of Rows	Body Orientation	Mounting	Packaging	Housing Material	Current Rating	Voltage Rating	Mounting Angle	Series	Termination Style	Number of Positions / Contacts	Product Type	Mounting Type	Contact Finish	Height Above Board	Standard Package	Number of Positions	rohs	Contact Material	Contact Plating	Connector Type	RoHS	Other Names	Contact Location	Locking Feature	FFC, FCB Thickness	Operating Temperature	Termination	Cable End Type	Termination Method	Contact Gender	Product Length	EU RoHS	Product Depth	Maximum Voltage Rating	Product Height	Pitch	Maximum Contact Resistance	Maximum Current Rating	Contact Finish Thickness	Gender	Features	Mated Stacking Heights	Factory Pack Quantity	Actuation Type	Pitch Spacing	No. of Contacts	No. of Rows	FFC / FPC Thickness	Contact Termination	Weight (kg)	Tariff No.	Flat Flex Type	Material Flammability Rating	Connector/Contact Type	Actuator Material	连接器类型	间距	排数	位置数	特性	触头镀层	板上高度	接合堆叠高度	Wire Type	Operating Temp Range	Contact Resistance Max	Current Rating (Max)	Mounting Style	Number of Contact Rows	Product Length (mm)	Product Depth (mm)	Product Height (mm)	Voltage Rating Max	Pitch (mm)	Product Category
AYF530435 Conn FPC Connector SKT 4 POS 0.5mm Solder RA SMD Embossed T/R panasonic electric works	询价	FPC Connector	0.5 mm	4	1	Right Angle	Surface Mount	Embossed Tape and Reel	Liquid Crystal Polymer	0.500A (per Contact)	50V	Horizontal	Y5B, Y5BW	SMD	4	Board Mount	Surface Mount, Right Angle	Gold	0.039" (1.00mm)	1,000	4	Lead free / RoHS Compliant	Copper Alloy	Gold Over Nickel	Top and Bottom Contacts	RoHS Compliant	255-3056-1	Dual Contact	Flip Lock, Backlock	0.30mm	-55°C ~ 85°C	Solder	Tapered	Solder	SKT	4	Compliant	3.7	50VDC\|50VAC	1	0.5	80	0.5/Contact	Flash	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AYF532435 Conn FPC Connector SKT 24 POS 0.5mm Solder RA SMD Embossed T/R panasonic electric works	询价	FPC Connector	0.5 mm	24	1	Right Angle	Surface Mount	Tape & Reel (TR)	Liquid Crystal Polymer (LCP)	0.500A (per Contact)	50V	Horizontal	Y5B, Y5BW	SMD	24	Board Mount	Surface Mount, Right Angle	Gold	0.039" (1.00mm)	1,000	24	Lead free / RoHS Compliant	-	-	Top and Bottom Contacts	RoHS Compliant	255-3062-1	Dual Contact	Flip Lock, Backlock	0.30mm	-55°C ~ 85°C	Solder	Tapered	-	-	-	-	-	-	-	-	-	-	Flash	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
5 AXT350124 Conn FPC Connector SKT 50 POS 0.4mm Solder ST SMD Embossed T/R panasonic electric works	询价	FPC Connector	0.4 mm	50	2	Straight	Surface Mount	Embossed Tape and Reel	Liquid Crystal Polymer	300 mA	60 V	Vertical	P4S	SMD	50	Sockets	Surface Mount	Gold	0.057" (1.45mm)	1,000	50	Lead free / RoHS Compliant	Copper Alloy	Gold Over Palladium Nickel	Socket, Outer Shroud Contacts	RoHS Compliant	255-2928-1	-	-	-	-	-	-	Solder	SKT	12.7	Compliant	3.6	60VDC\|60VAC	1.45	0.4	90	0.3/Contact	-	Female	Solder Retention	1.5mm	1000	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 AYF530635 Conn FPC Connector SKT 6 POS 0.5mm Solder RA SMD Embossed T/R panasonic electric works	询价	FPC Connector	0.5 mm	6	1	Right Angle	Surface Mount	Bulk	Liquid Crystal Polymer (LCP)	0.500A (per Contact)	50V	Horizontal	Y5B, Y5BW	SMD/SMT	6	Board Mount	Surface Mount, Right Angle	Gold	0.039" (1.00mm)	1,000	6	Lead free / RoHS Compliant	-	-	Top and Bottom Contacts	RoHS Compliant	255-3057-1	Dual Contact	Flip Lock, Backlock	0.30mm	-55°C ~ 85°C	Solder	Tapered	-	-	-	-	-	-	-	-	-	-	Flash	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	FPC/FFC	-	-	-	-	-	-	-	-	-	-	-
AYF531035 Conn FPC Connector SKT 10 POS 0.5mm Solder RA SMD Embossed T/R panasonic electric works	询价	FPC Connector	0.5 mm	10	1	Right Angle	Surface Mount	Tape & Reel (TR)	Liquid Crystal Polymer (LCP)	0.500A (per Contact)	50V	Horizontal	Y5B, Y5BW	SMD	10	Board Mount	Surface Mount, Right Angle	Gold	0.039" (1.00mm)	1,000	10	Lead free / RoHS Compliant	-	-	Top and Bottom Contacts	RoHS Compliant	-	Dual Contact	Flip Lock, Backlock	0.30mm	-55°C ~ 85°C	Solder	Tapered	-	-	-	-	-	-	-	-	-	-	Flash	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 AYF535035 Conn FPC Connector SKT 50 POS 0.5mm Solder RA SMD Embossed T/R panasonic electric works	询价	FPC Connector	0.5 mm	50	1	Right Angle	Surface Mount	Embossed Tape and Reel	Liquid Crystal Polymer	0.500A (per Contact)	50V	Horizontal	Y5B, Y5BW	SMD	50	Board Mount	Surface Mount, Right Angle	Gold	0.039" (1.00mm)	1,000	50	Lead free / RoHS Compliant	Copper Alloy	Gold Over Nickel	Top and Bottom Contacts	RoHS Compliant	-	Dual Contact	Flip Lock, Backlock	0.30mm	-55°C ~ 85°C	Solder	Tapered	Solder	SKT	27	Compliant	3.7	50VDC\|50VAC	1	0.5	80	0.5/Contact	Flash	:Receptacle	-	-	-	-	:0.5mm	:50	:1	:0.3mm	:Surface Mount Right Angle	0	85366930	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AYF333135 Conn FPC Connector SKT 31 POS 0.3mm IDT RA Cable Mount Carton panasonic electric works	询价	FPC Connector	0.3 mm	31	1	Right Angle	Cable Mount	Box	Liquid Crystal Polymer (LCP)	0.2A per Contact	50V	-	-	-	-	-	Surface Mount, Right Angle	Gold	0.036" (0.90mm)	1,000	31	Lead free / RoHS Compliant	Copper Alloy	Gold Over Nickel	-	-	Q7809803	-	Flip Lock, Backlock	0.20mm	-55°C ~ 85°C	Solder	Tapered	IDT	SKT	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	FPC	UL94 V-0	Contacts, Top and Bottom	Liquid Crystal Polymer (LCP)	-	-	-	-	-	-	-	-	-	-55C to 85C	100 mohm	0.2/Contact A	Cable	1	10.8 mm	3.15 mm	1.84 mm	50VDC/50VAC	0.3 mm	-
AYF325115 Conn FFC/FPC Connector SKT 51 POS 0.6mm Solder RA SMD Carton panasonic electric works	询价	FFC/FPC Connector	0.6 mm	51	2	Right Angle	Surface Mount	Reel	Liquid Crystal Polymer (LCP)	200 mA	50 V	Vertical	Y3F	SMD	51	Board Mount	-	-	-	-	-	-	Copper Alloy	Gold	-	-	-	Bottom Contact	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	ZIF	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AYF334535 Conn FPC Connector SKT 45 POS 0.3mm IDT RA Cable Mount Carton panasonic electric works	询价	FPC Connector	0.3 mm	45	1	Right Angle	Cable Mount	Tape & Reel (TR)	Liquid Crystal Polymer (LCP)	0.2A per Contact	50V	-	-	-	-	-	Surface Mount, Right Angle	Gold	0.036" (0.90mm)	5,000	45	Lead free / RoHS Compliant	Copper Alloy	-	-	-	-	-	Flip Lock, Backlock	0.20mm	-55°C ~ 85°C	Solder	Tapered	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	FPC	UL94 V-0	Contacts, Top and Bottom	Liquid Crystal Polymer (LCP)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AXT334124 Conn FPC Connector SKT 34 POS 0.4mm Solder ST SMD Embossed T/R panasonic electric works	询价	FPC Connector	0.4 mm	34	2	Straight	Surface Mount	Embossed Tape and Reel	Liquid Crystal Polymer	300 mA	60 V	Vertical	P4S	SMD	34	Sockets	Surface Mount	Gold	0.057" (1.45mm)	1,000	34	Lead free / RoHS Compliant	Copper Alloy	Gold Over Palladium Nickel	Socket, Outer Shroud Contacts	RoHS Compliant	255-3300-1	-	-	-	-	-	-	Solder	SKT	9.5	Compliant	3.6	60VDC\|60VAC	1.45	0.4	90	0.3/Contact	-	Female	Solder Retention	1.5mm, 2mm	3000	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

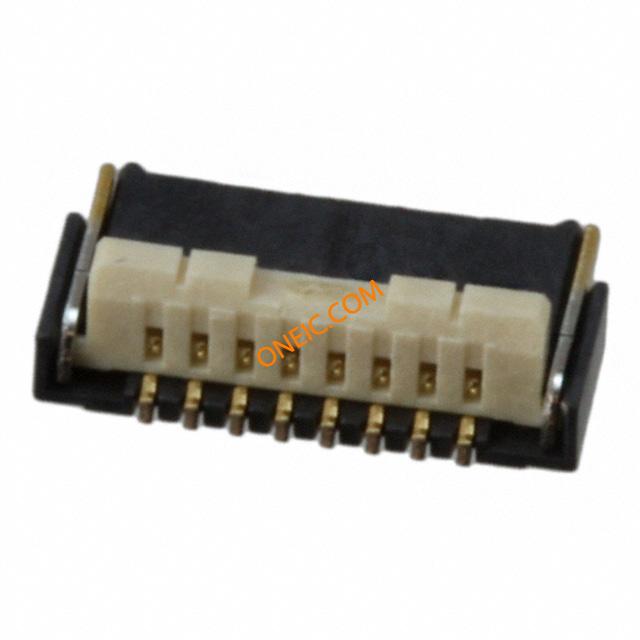

AYF530835 Conn FPC Connector SKT 8 POS 0.5mm Solder RA SMD Embossed T/R panasonic electric works	询价	FPC Connector	0.5 mm	8	1	Right Angle	Surface Mount	Tape & Reel (TR)	Liquid Crystal Polymer (LCP)	0.500A (per Contact)	50V	Horizontal	Y5B, Y5BW	SMD	8	Board Mount	Surface Mount, Right Angle	Gold	0.039" (1.00mm)	1,000	8	Lead free / RoHS Compliant	-	-	Top and Bottom Contacts	RoHS Compliant	255-3058-1	Dual Contact	Flip Lock, Backlock	0.30mm	-55°C ~ 85°C	Solder	Tapered	-	-	-	-	-	-	-	-	-	-	Flash	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
5 AXT310124 Conn FPC Connector SKT 10 POS 0.4mm Solder ST SMD Embossed T/R panasonic electric works	询价	FPC Connector	0.4 mm	10	2	Straight	Surface Mount	Embossed Tape and Reel	Liquid Crystal Polymer	300 mA	60 V	Vertical	P4S	SMD	10	Sockets	Surface Mount	Gold	0.057" (1.45mm)	1,000	10	Lead free / RoHS Compliant	Copper Alloy	Gold Over Palladium Nickel	Socket, Outer Shroud Contacts	RoHS Compliant	255-2521-2	-	-	-	-	-	-	Solder	SKT	4.7	Compliant	3.6	60VDC\|60VAC	1.45	0.4	90	0.3/Contact	-	Female	Solder Retention	1.5mm	-	-	-	-	-	-	-	-	-	-	-	-	-	Socket, Outer Shroud Contacts	0.016" (0.40mm)	2	10	Solder Retention	Gold	0.057" (1.45mm)	1.5mm	-	-	-	-	-	-	-	-	-	-	-	FFC & FPC Connectors
2 AYF323915 Conn FFC/FPC Connector SKT 39 POS 0.6mm Solder RA SMD Carton panasonic electric works	询价	FFC/FPC Connector	0.6 mm	39	2	Right Angle	Surface Mount	Reel	Liquid Crystal Polymer (LCP)	200 mA	50 V	Vertical	Y3F	SMD	39	Board Mount	-	-	-	-	-	-	Copper Alloy	Gold	-	-	-	Bottom Contact	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	:Receptacle	-	-	-	ZIF	:0.3mm	:39	:1	:0.2mm	:Surface Mount Right Angle	0	85366930	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AYF324515 Conn FFC/FPC Connector SKT 45 POS 0.6mm Solder RA SMD Carton panasonic electric works	询价	FFC/FPC Connector	0.6 mm	45	2	Right Angle	Surface Mount	Reel	Liquid Crystal Polymer (LCP)	200 mA	50 V	Vertical	Y3F	SMD	45	Board Mount	-	-	-	-	-	-	Copper Alloy	Gold	-	-	-	Bottom Contact	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	ZIF	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AXT340124 Conn FPC Connector SKT 40 POS 0.4mm Solder ST SMD Embossed T/R panasonic electric works	询价	FPC Connector	0.4 mm	40	2	Straight	Surface Mount	Embossed Tape and Reel	Liquid Crystal Polymer	300 mA	60 V	Vertical	P4S	SMD	40	Sockets	Surface Mount	Gold	0.057" (1.45mm)	1,000	40	Lead free / RoHS Compliant	Copper Alloy	Gold Over Palladium Nickel	Socket, Outer Shroud Contacts	RoHS Compliant	255-3301-1	-	-	-	-	-	-	Solder	SKT	10.7	Compliant	3.6	60VDC\|60VAC	1.45	0.4	90	0.3/Contact	-	Female	Solder Retention	1.5mm, 2mm	1000	-	-	-	-	-	-	-	-	-	-	-	-	Socket, Outer Shroud Contacts	0.016" (0.40mm)	2	40	Solder Retention	Gold	0.057" (1.45mm)	1.5mm, 2mm	-	-	-	-	-	-	-	-	-	-	-	-
