NEC Corporation- 显示器
03
显示器 - 型号列表
共 18 个型号| 制造商零件编号 | 库存 | 价格 | 供电电压 | 接口 | 工作温度 | 分辨率 | 光通量 | LED正向电流 | 屏幕对角线尺寸 | 显示类型 | 尺寸/外形 | 宽度 | 高度 | 总体尺寸 | 电流比 | 响应时间 | 供电类型 | 深度 | 图形颜色 | 总高度 | 列数 | 矩阵（列×行） | 其他规格 | 尺寸 | 照明类型及颜色 | 像素尺寸 | 监控字段数 | SVHC | 海关税号 | 重量 | 间距 | 显示模式 | 像素格式 | 可视区域 | 平均正向功率 | 背景色 | 显示样式 | RoHS | 输出电流 | 输出数量 | 最小输入电压 | 输出电流（典型） | 长度 | 附件类型 | 适用产品/相关产品 | 螺钉尺寸 | 产品特性 | 照明类型 | 显示位数 | 单元数量 | 灯/放大镜类型 | 包装方式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 15.0in TFT LCD XGA CCFL Backlit LVDS NEC 15in TFT 显示屏, 1024 x 768pixels 分辨率 XGA, CCFL背光 LVDS 接口 NEC | 10 | 1: ¥2,190.46 | 3.3 V | LVDS | +70°C | 1024 x 768pixels | 250cd/m² | CCFL | 15in | TFT | 326.5 x 12 x 253.5mm | 304.128mm | 253.5mm | 304.128 x 228.096mm | 500:1 | 18ms | Yes | 12mm | XGA | 228.096mm | 16.7 Million | TFT | 500:1 | 15in | CCFL | 304.128mm | 16.7 百万 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 6.5in TFT LCD XGA LED Backlit LVDS NEC 6.5in TFT 显示屏, 1024 x 768pixels 分辨率 XGA, LED背光 LVDS 接口 NEC | 10 | 1: ¥2,260.048 | 3.3 V | LVDS | +70°C | 1024 x 768pixels | 650cd/m² | LED | 6.5in | TFT | 153 x 9.5 x 118mm | 132.096mm | 118mm | 132.096 x 99.072mm | 500:1 | 25ms | Yes | 9.5mm | XGA | 99.072mm | 16.7 Million | TFT | 500:1 | 6.5in | LED | 132.096mm | 16.7 百万 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 8.4in TFT LCD VGA CCFL Backlit LVDS NEC 8.4in TFT 显示屏, 640 x 480pixels 分辨率 VGA, CCFL背光 LVDS 接口 NEC | 15 | 2: ¥2,355.00 | 3.3 V | LVDS | +70°C | 640 x 480pixels | 450cd/m² | CCFL | 8.4in | TFT | 200 x 11 x 152mm | 170.88mm | 152mm | 170.88 x 128.16mm | 600:1 | 25ms | Yes | 11mm | VGA | 128.16mm | 16.7 Million | TFT | 600:1 | 8.4in | CCFL | 170.88mm | 16.7 百万 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 17 | 1: ¥3,342.54 | 3.3 V | LVDS | +70°C | 1024 x 768pixels | 400cd/m² | LED | 15in | - | 326.5 x 12 x 253.5mm | 304.128mm | 253.5mm | 304.128 x 228.096mm | 600:1 | 18ms | Yes | 12mm | XGA | 228.096mm | 16.7 Million | TFT | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 7.0in TFT LCD WVGA LED Backlit LVDS NEC 7in TFT 显示屏, 800 x 480pixels 分辨率 WVGA, LED背光 LVDS 接口 NEC | 10 | 1: ¥1,400.12 | 3.3 V | LVDS | +70°C | 800 x 480pixels | 550cd/m² | LED | 7in | TFT | 170 x 9 x 111mm | 152.4mm | 111mm | 152.4 x 91.44mm | 800:1 | 18ms | Yes | 9mm | WVGA | 91.44mm | 16.7 Million | TFT | 800:1 | 7in | LED | 152.4mm | 16.7 百万 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 12.1in TFT LCD SVGA CCFL Backlit LVDS NEC 12.1in TFT 显示屏, 800 x 600pixels 分辨率 SVGA, CCFL背光 LVDS 接口 NEC | 17 | 1: ¥3,352.40 | 3.3 V | LVDS | +70°C | 800 x 600pixels | 550cd/m² | CCFL | 12.1in | TFT | 280 x 11.5 x 210mm | 246mm | 210mm | 246 x 184.5mm | 600:1 | 25ms | Yes | 11.5mm | SVGA | 184.5mm | 16.7 Million | TFT | 600:1 | 12.1in | CCFL | 246mm | 16.7 百万 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
15.3in TFT LCD WXGA CCFL Backlit LVDS NEC 15.3in TFT 显示屏, 1280 x 768pixels 分辨率 WXGA, CCFL背光 LVDS 接口 NEC | 13 | 1: ¥4,363.934 | 3.3 V | LVDS | +70°C | 1280 x 768pixels | 330cd/m² | CCFL | 15.3in | TFT | 358 x 16.8 x 226mm | 334.08mm | 226mm | 334.08 x 200.45mm | 1000:1 | 25ms | Yes | 16.8mm | WXGA | 200.45mm | 16.7 Million | TFT | 1000:1 | 15.3in | CCFL | 334.08mm | 16.7 百万 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 25 | 1: ¥2,297.38 | 3.3 V | LVDS | +80°C | 800 x 600pixels | 450cd/m² | LED | 12.1in | - | 280 x 9.6 x 210mm | 246mm | 210mm | 246 x 184.5mm | 900:1 | 18ms | Yes | 9.6mm | SVGA | 184.5mm | 16.7 Million | TFT | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

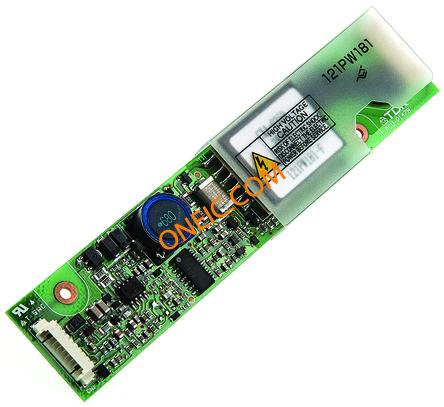

 | 10 | 1: ¥204.68 | :12V | - | :70°C | - | - | - | - | - | 120 x 26 x 10mm | 26mm | 10mm | - | - | - | - | - | - | - | - | - | - | - | - | - | - | :No SVHC (20-Jun-2013) | 85044084 | 0.025 | - | - | - | - | - | - | - | - | 5.5mArms | 1 | 1600V ac | 4.5mArms | 120mm | :Inverter | :NL10276BC24 & NL8060BC31 Series LCD Modules | - | - | - | - | - | - | - |

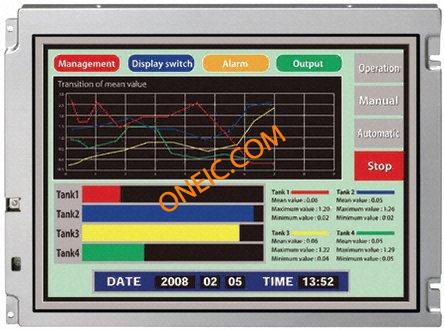

 10.4in TFT LCD SVGA CCFL Backlit LVDS LCD,NL8060BC26-30C NEC 10.4in TFT 显示屏, 800 x 600pixels 分辨率 SVGA, CCFL背光 LVDS 接口 NEC | 20 | 1: ¥2,877.3452 | 3.3 V | LVDS | +70°C | 800 x 600pixels | 550cd/m² | CCFL | 10.4in | TFT | 243 x 11 x 185.1mm | 211.2mm | 185.1mm | 211.2 x 158.4mm | 900:1 | 18ms | Yes | 11mm | SVGA | 158.4mm | 16.7 Million | TFT | 900:1 | 10.4in | CCFL | 211.2mm | 16.7 百万 | - | - | - | - | - | - | - | - | - | - | RoHS Compliant Part | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

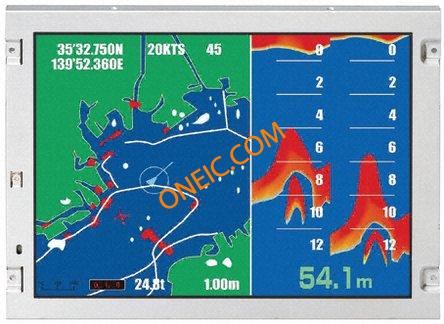

 8.4in TFT LCD SVGA CCFL Backlit LVDS LCD,NL8060BC21-06 NEC 8.4in TFT 显示屏, 800 x 600pixels 分辨率 SVGA, CCFL背光 LVDS 接口 NEC | 20 | 1: ¥2,877.3452 | 3.3 V | LVDS | +70°C | 800 x 600pixels | 650cd/m² | CCFL | 8.4in | TFT | 200 x 11 x 152mm | 170.4mm | 152mm | 170.4 x 127.8mm | 600:1 | 25ms | Yes | 11mm | SVGA | 127.8mm | 16.7 Million | TFT | 600:1 | 8.4in | CCFL | 170.4mm | 16.7 百万 | - | - | - | - | - | - | - | - | - | - | RoHS Compliant Part | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | - | :3V | :Serial | :70°C | :240 x 320 | :200cd/m² | :LED | :3.5" | :QVGA | 85 x 63.5 x 4.2mm | - | - | 76.5 x 57.6mm | - | - | - | - | - | - | - | - | 600:1 | - | - | - | - | :No SVHC (20-Jun-2013) | 85414010 | :43g | :0.2235mm x 0.2235mm | :Transflective | :- | :53.64mm x 71.52mm | :50mW | :- | :LCD | - | - | - | - | - | - | - | - | 3.5" | touch panel | LED | 320x240 | 1 | 262000 | - | |
| - | :3.3V | :LVDS | :70°C | :1024 x 768 | :500cd/m² | :CCFL | :15" | :XGA | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | :No SVHC (20-Jun-2013) | 85414010 | :1300g | :0.297mm x 0.297mm | :Active | :- | :228.096mm x 304.128mm | :15.7W | :- | :LCD | - | - | - | - | - | - | - | - | - | - | - | - | - | - | :Each | |
| 120 | 1: ¥371.756 | :3V | :Serial | :70°C | :240 x 320 | :220cd/m² | :LED | :3.5" | :QVGA | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | :No SVHC (20-Jun-2013) | 85414010 | :25g | :0.2235mm x 0.2235mm | :Transflective | :- | :53.64mm x 71.52mm | :50mW | :- | :LCD | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 10 | 1: ¥1,535.10 | :5V | :CMOS | :70°C | :320 x 240 | :400cd/m² | :CCFL | :5.5" | :TFT | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | :No SVHC (20-Jun-2013) | 85414010 | :210g | :0.348mm x 0.348mm | :Active | :- | :83.52mm x 111.36mm | :3.8W | :- | :LCD | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 10 | 1: ¥1,668.788 | :5V | :CMOS | :70°C | - | - | - | - | :TFT | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | :No SVHC (20-Jun-2013) | 85414010 | 0.205 | :0.207mm x 0.207mm | :Active | :- | :99.4mm x 132.5mm | - | :- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| - | :5V | :CMOS | - | :640 x 480 | :250cd/m² | :CCFL | :10.4" | :VGA | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | :No SVHC (20-Jun-2013) | 85414010 | :560g | :0.33mm x 0.33mm | :Transflective | :- | :158.4mm x 211.2mm | :6.2W | - | :LCD | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| 10 | 1: ¥4,189.548 | :5V | :CMOS | :70°C | :800 x 600 | :400cd/m² | :CCFL | :10.4" | :SVGA | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | :No SVHC (20-Jun-2013) | 85414010 | :475g | :0.264mm x 0.264mm | :Active | :- | :158.4mm x 211.2mm | :6.6W | :- | :LCD | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
