Lumex, Inc.- 光耦
光耦 - 型号列表
共 14 个型号| 制造商零件编号 | 库存 | 价格 | 标准包装数量 | RoHS | 输入类型 | 输出类型 | 通道数量 | 隔离电压 | 输出电流/通道 | 平均整流电流（每二极管） | 包装方式 | 安装类型 | 封装形式 | 供应商器件封装 | 其他名称 | 供电电压 | Vce饱和电压（最大） | 最小输入电压 | 上升/下降时间（典型） | 输出电压（最大） | 电流传输比（最大） | 电流传输比（最小） | 直流正向电流（If）（最大） | 工作温度 | 产品类别 | 机械寿命 | 输出端 | 制造商全称 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

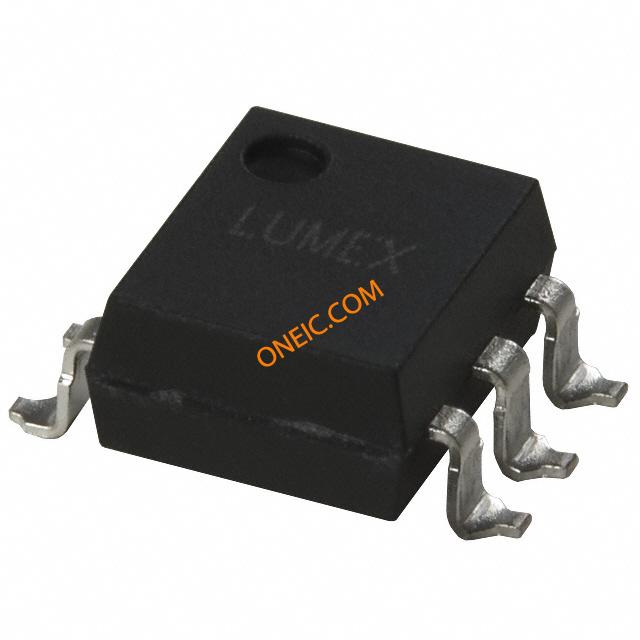

 Logic Output Optocouplers Digital DC Open SMD-6 5000Vrms OPTOCOUPLER DIGITAL OUTPUT SMD Lumex | 10 | 50000: ¥4.4472 | 1,000 | RoHS Compliant | DC | Open Collector | 1, Unidirectional | 5000Vrms | 50mA | 50mA | Tape & Reel (TR) | Surface Mount | 6-SMD, Gull Wing | 6-SMD | 67-1617-2 | - | - | - | - | - | - | - | - | - | Logic Output Optocouplers | Obsolete | - | - |
 Transistor Output Optocouplers Photocoupler 1.2Vf 200mW, 200-400 CTR OPTOCOUPLER TRANS 5KVRMS 4DIP OPTOISOLATR 5KV TRANSISTOR 4-DIP Lumex | 10 | 50000: ¥0.7684 | 100 | RoHS Compliant | DC | Transistor | 1 Channel | 5000 Vrms | 50mA | 50mA | Bulk | Through Hole | 4-DIP (0.300", 7.62mm) | 4-DIP | - | 1.2V | 300mV | 60V | 5µs, 4µs | 60V | 600% @ 2mA | 60% @ 2mA | 50mA | -30°C ~ 100°C | Transistor Output Optocouplers | Obsolete | NPN Phototransistor | - |

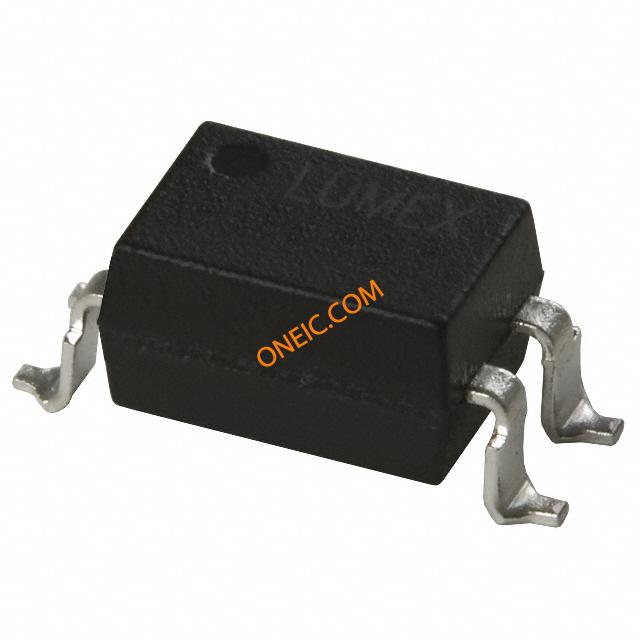

 Transistor Output Optocouplers DC 60/600 CTR 1 Circuit 1.2Vf SMT OPTOCOUPLER TRANS 5KVRMS 4SMD OPTOISOLATR 5KV TRANSISTOR 4-SMD Lumex | 10 | 46500: ¥0.816 | 2,000 | RoHS Compliant | DC | Transistor | 1 Channel | 5000 Vrms | 50mA | 50mA | Tape & Reel (TR) | Surface Mount | 4-SMD, Gull Wing | 4-SMD | 67-1613-2 | 1.2V | 300mV | 60V | 5µs, 4µs | 60V | 600% @ 2mA | 60% @ 2mA | 50mA | -30°C ~ 100°C | Transistor Output Optocouplers | - | NPN Phototransistor | Lumex |
Transistor Output Optocouplers DC 60/600 CTR 1 Circuit 1.2Vf SMT OPTOCOUPLER TRANS 5KVRMS 6SMD OPTOISO 5KV TRANS W/BASE 6SMD Lumex | 10 | 50000: ¥1.1288 | 1,000 | RoHS Compliant | DC | Transistor with Base | 1 Channel | 5000 Vrms | 50mA | 50mA | Tape & Reel (TR) | Surface Mount | 6-SMD, Gull Wing | 6-SMD | 67-1615-2 | 1.2V | 300mV | 60V | 5µs, 4µs | 60V | 600% @ 2mA | 60% @ 2mA | 50mA | -30°C ~ 100°C | Transistor Output Optocouplers | Obsolete | NPN Phototransistor | - |

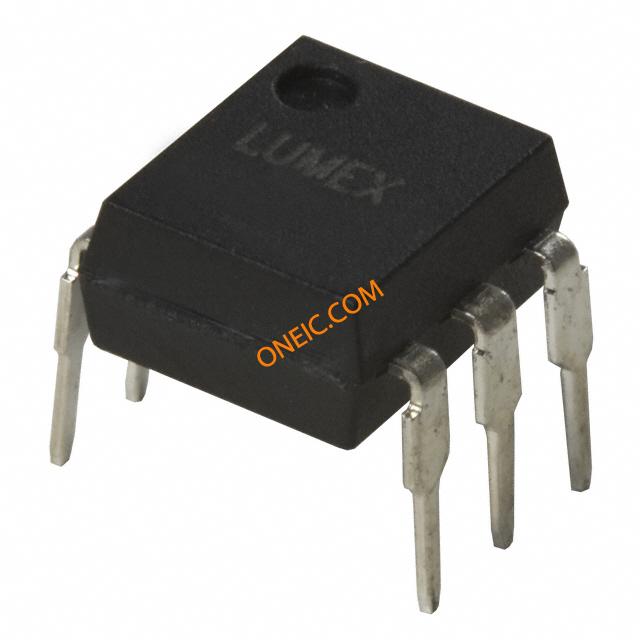

 OPTOCOUPLER 1-CH W/BASE 6-DIP OPTOCOUPLER TRANS 5KVRMS 6DIP OPTOISO 5KV TRANS W/BASE 6DIP Lumex Opto/Components Inc | 10 | 50050: ¥0.884 | 65 | Lead free / RoHS Compliant | DC | Transistor with Base | 1 | 5000Vrms | 50mA | 50mA | Tube | Through Hole | 6-DIP (0.300", 7.62mm) | 6-DIP | 67-1563-5 | 1.2V | 300mV | 60V | 5µs, 4µs | 60V | 600% @ 2mA | 60% @ 2mA | 50mA | -30°C ~ 100°C | - | - | - | - |
 OPTOCOUPLER 1-CH TRANS OUT 4-DIP OPTOCOUPLER TRANS 5KVRMS 4DIP OPTOISOLATR 5KV TRANSISTOR 4-DIP Lumex Opto/Components Inc | 10 | 50000: ¥0.7684 | 100 | Lead free / RoHS Compliant | DC | Transistor | 1 | 5000Vrms | 50mA | 50mA | Tube | Through Hole | 4-DIP (0.300", 7.62mm) | 4-DIP | 67-1560-5 | 1.2V | 300mV | 60V | 5µs, 4µs | 60V | 600% @ 2mA | 60% @ 2mA | 50mA | -30°C ~ 100°C | - | - | - | - |
OPTOCOUPLER 1-CH AC-IN 4-DIP OPTOCOUPLER TRANS 5KVRMS 4DIP OPTOISOLATR 5KV TRANSISTOR 4-DIP Lumex Opto/Components Inc | 10 | 50000: ¥1.156 | 100 | Lead free / RoHS Compliant | AC, DC | Transistor | 1 | 5000Vrms | 50mA | ±50mA | Tube | Through Hole | 4-DIP (0.300", 7.62mm) | 4-DIP | 67-1564-5 | 1.2V | 300mV | 60V | 5µs, 4µs | 60V | 600% @ 1mA | 60% @ 1mA | 50mA | -30°C ~ 100°C | - | - | - | - |
 OPTOCOUPLER 1-CH AC-IN SMD OPTOCOUPLER TRANS 5KVRMS 4SMD OPTOISOLATR 5KV TRANSISTOR 4-SMD Lumex Opto/Components Inc | 10 | 50000: ¥1.7884 | 2,000 | Lead free / RoHS Compliant | AC, DC | Transistor | 1 | 5000Vrms | 50mA | ±50mA | Tape & Reel (TR) | Surface Mount | 4-SMD, Gull Wing | 4-SMD | 67-1616-2 | 1.2V | 300mV | 60V | 5µs, 4µs | 60V | 600% @ 1mA | 60% @ 1mA | 50mA | -30°C ~ 100°C | - | - | - | - |
 OPTOCOUPLER 2-CH TRANS OUT 8DIP OPTOCOUPLER TRANS 5KVRMS 8DIP OPTOISOLATOR 5KV 2CH TRANS 8-DIP Lumex Opto/Components Inc | 10 | 60000: ¥2.0196 | 48 | Lead free / RoHS Compliant | DC | Transistor | 2 | 5000Vrms | 50mA | 50mA | Tube | Through Hole | 8-DIP (0.300", 7.62mm) | 8-DIP | 67-1561-5 | 1.2V | 300mV | 60V | 5µs, 4µs | 60V | 600% @ 2mA | 60% @ 2mA | 50mA | -30°C ~ 100°C | - | - | - | - |
 OPTOCOUPLER 2-CH TRANS OUT SMD OPTOCOUPLER TRANS 5KVRMS 8SMD OPTOISOLATOR 5KV 2CH TRANS 8-DIP Lumex Opto/Components Inc | 10 | 50000: ¥2.856 | 1,000 | Lead free / RoHS Compliant | DC | Transistor | 2 | 5000Vrms | 50mA | 50mA | Tape & Reel (TR) | Surface Mount | 8-SMD, Gull Wing | 8-DIP | 67-1614-2 | 1.2V | 300mV | 60V | 5µs, 4µs | 60V | 600% @ 2mA | 60% @ 2mA | 50mA | -30°C ~ 100°C | - | - | - | - |

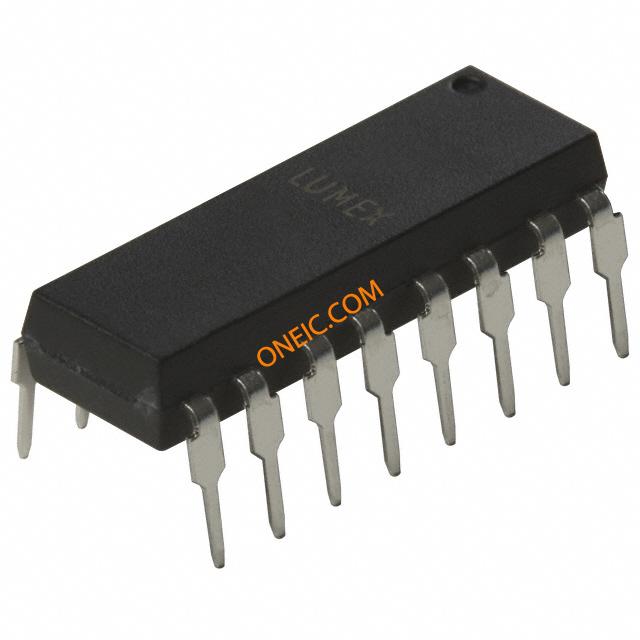

 OPTOCOUPLER 4-CH TRANS OUT 16DIP OPTOCOUPLER TRANS 5KVRMS 16DIP OPTOISOLTR 5KV 4CH TRANS 16-DIP Lumex Opto/Components Inc | 10 | 60000: ¥4.7192 | 24 | Lead free / RoHS Compliant | DC | Transistor | 4 | 5000Vrms | 50mA | 50mA | Tube | Through Hole | 16-DIP (0.300", 7.62mm) | 16-DIP | 67-1562-5 | 1.2V | 300mV | 60V | 5µs, 4µs | 60V | 600% @ 2mA | 60% @ 2mA | 50mA | -30°C ~ 100°C | - | - | - | - |
 OPTOCOUPLER 4-CH TRANS OUT SMD OPTOCOUPLER TRANS 5KVRMS 16SMD OPTOISOLTR 5KV 4CH TRANS 16-SMD Lumex Opto/Components Inc | 10 | 50016: ¥4.7192 | 24 | Lead free / RoHS Compliant | DC | Transistor | 4 | 5000Vrms | 50mA | 50mA | Tube | Surface Mount | 16-SMD, Gull Wing | 16-SMD | 67-1618-5 | 1.2V | 300mV | 60V | 5µs, 4µs | 60V | 600% @ 2mA | 60% @ 2mA | 50mA | -30°C ~ 100°C | - | - | - | - |
OPTOCOUPLER 4-CH AC-IN 16 DIP OPTOCOUPLER TRANS 5KVRMS 16DIP OPTOISOLTR 5KV 4CH TRANS 16-DIP Lumex Opto/Components Inc | 10 | 50016: ¥6.6572 | 24 | Lead free / RoHS Compliant | AC, DC | Transistor | 4 | 5000Vrms | 50mA | ±50mA | Tube | Through Hole | 16-DIP (0.300", 7.62mm) | 16-DIP | 67-1565-5 | 1.2V | 300mV | 60V | 5µs, 4µs | 60V | 600% @ 1mA | 60% @ 1mA | 50mA | -30°C ~ 100°C | - | - | - | - |
OPTOCOUPLER 4-CH AC-IN SMD OPTOCOUPLER TRANS 5KVRMS 16SMD OPTOISOLTR 5KV 4CH TRANS 16-SMD Lumex Opto/Components Inc | 10 | 50016: ¥6.6572 | 24 | Lead free / RoHS Compliant | AC, DC | Transistor | 4 | 5000Vrms | 50mA | ±50mA | Tube | Surface Mount | 16-SMD, Gull Wing | 16-SMD | 67-1619-5 | 1.2V | 300mV | 60V | 5µs, 4µs | 60V | 600% @ 1mA | 60% @ 1mA | 50mA | -30°C ~ 100°C | - | - | - | - |
