Lineage Power Corporation- 非隔离DC-DC转换器

LINEAGE-POWER原属GE能源旗下，专注于为数据中心和电信基础设施提供电力转换解决方案。该公司已被收购，不再独立运营。

非隔离DC-DC转换器 - 型号列表

共 162 个型号

制造商零件编号	库存	价格	抗辐射加固	隔离	额定电压	输出电流	输出数量	共模瞬态抗扰度（最小）	深度	高度	安装样式	总长度	位数	结工作温度	封装形式	类型	已删除	供电电压	最大额定电流	宽度	长度	工作温度	最高温度限值	包装方式	安装类型	输出功率

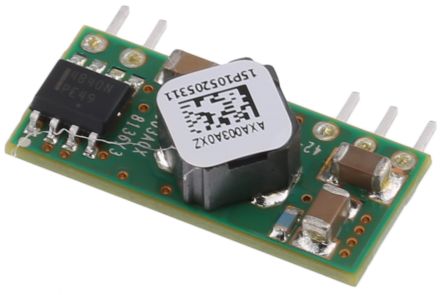

AXA003A0XZ Module DC-DC 1-OUT 0.75V to 5.5V 3A 10-Pin SIP GE Critical Power 非隔离直流-直流转换器 , 0.75 → 5.5V dc输出, 3A输出 Lineage Power	14	1: ¥45.424	No	Non-Isolated	12 V	3 A	1	Industrial	8.1 mm	12.7 mm	Through Hole	50.8 mm	10	85C	SIP	Step Down	Compliant	8.3 → 14 V 直流	3A	8.1mm	50.8mm	-40°C	+85°C	-	-	-

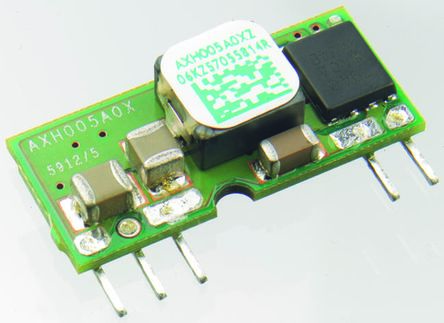

AXH005A0XZ Module DC-DC 1-OUT 0.75V to 3.63V 5A 5-Pin SIP GE Critical Power 非隔离直流-直流转换器 , 0.75 → 3.63V dc输出, 5A输出 Lineage Power	22	1: ¥69.79	No	Non-Isolated	3 to 5.5 V	5 A	1	Industrial	8.85 mm	10.2 mm	Through Hole	22.9 mm	5	85C	SIP	-	-	3 → 5.5 V 直流	5A	8.85mm	22.9mm	-40°C	+85°C	-	通孔	-
KW015A0F41-SRZ Module DC-DC 1-OUT 3.3V 15A 8-Pin 1/16-Brick T/R Lineage Power	-		No	Isolated	48 V	15 A	1	Industrial	22.9 mm	8.5 mm	Surface Mount	33 mm	8	85C	1/16-Brick	Step Down	-	-	-	-	-	-	-	Tape and Reel	-	-
LW015A9 DC/DC Power Supply Single-OUT 5V 3A 15W 6-Pin Lineage Power	543	1: ¥310.42	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ATH006A0XZ Module DC-DC 1-OUT 0.75V to 3.63V 6A 6-Pin SIP Lineage Power	-		No	Non-Isolated	2.4 to 5.5 V	6 A	1	Industrial	6.68 mm	12.7 mm	Through Hole	25.4 mm	6	85C	SIP	-	-	-	-	-	-	-	-	-	-	-
AXA010A0A93-SRZ Module DC-DC 1-OUT 5V 10A 6-Pin SMT T/R Lineage Power	-		No	Non-Isolated	10 to 14 V	10 A	1	Industrial	13.5 mm	6.71 mm	Surface Mount	33 mm	6	85C	SMT	Step Down	-	-	-	-	-	-	-	Tape and Reel	-	-
AXA010A0X3Z Module DC-DC 1-OUT 0.75V to 5.5V 10A 10-Pin SIP Lineage Power	10	1: ¥230.3228	No	Non-Isolated	12 V	10 A	1	Industrial	8.1 mm	12.7 mm	Through Hole	50.8 mm	10	85C	SIP	Step Down	-	-	-	-	-	-	-	-	-	-
SW003A0A94Z Module DC-DC 1-OUT 5V 3A 6-Pin Lineage Power	46	1: ¥114.716	No	Isolated	48 V	3 A	1	Industrial	27.9 mm	8.5 mm	Through Hole	24.4 mm	6	85C	-	Step Down	Compliant	-	-	-	-	-	-	-	-	-
QW030BK1 Module DC-DC 2-OUT 12V/-12V 2.5A 36W 8-Pin Lineage Power	-		No	Isolated	48 V	2.5 A	2	Industrial	57.9 mm	12.7 mm	Through Hole	36.8 mm	8	105C	-	Step Down	Not Compliant	-	-	-	-	-	-	-	-	36 W
QRW025A0A1Z Module DC-DC 1-OUT 5V 25A 10-Pin Quarter-Brick Lineage Power	-		No	Isolated	48 V	25 A	1	Industrial	58.17 mm	8.6 mm	Through Hole	37.08 mm	10	85C	Quarter-Brick	Step Down	-	-	-	-	-	-	-	-	-	-
AXH003A0X-SRZ Module DC-DC 1-OUT 0.75V to 3.63V 3A 5-Pin SMT T/R Lineage Power	-		No	Non-Isolated	2.4 to 5.5 V	3 A	1	Industrial	11.4 mm	5.7 mm	Surface Mount	20.3 mm	5	85C	SMT	-	-	-	-	-	-	-	-	Tape and Reel	-	-
AXA010A0X3 Module DC-DC 1-OUT 0.75V to 5.5V 10A 10-Pin SIP Lineage Power	-		No	Non-Isolated	12 V	10 A	1	Industrial	8.1 mm	12.7 mm	Through Hole	50.8 mm	10	85C	SIP	Step Down	-	-	-	-	-	-	-	-	-	-
AXA005A0X Module DC-DC 1-OUT 0.75V to 5.5V 5A 5-Pin SIP Lineage Power	-		No	Non-Isolated	12 V	5 A	1	Industrial	8.85 mm	10.2 mm	Through Hole	22.9 mm	5	85C	SIP	Step Down	-	-	-	-	-	-	-	-	-	-

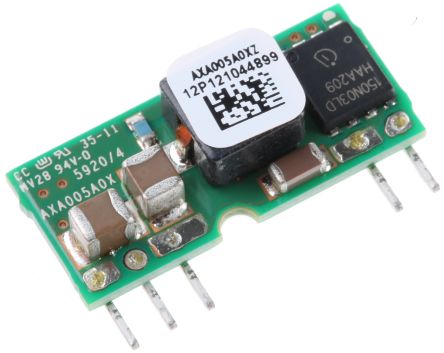

AXA005A0XZ Module DC-DC 1-OUT 0.75V to 5.5V 5A 5-Pin SIP GE Critical Power 非隔离直流-直流转换器 , 0.75 → 5.5V dc输出, 5A输出 Lineage Power	10	1: ¥69.94	No	Non-Isolated	12 V	5 A	1	Industrial	8.85 mm	10.2 mm	Through Hole	22.9 mm	5	85C	SIP	Step Down	-	10 → 14 V 直流	5A	8.85mm	22.9mm	-40°C	+85°C	-	通孔	-
AXH010A0P Module DC-DC 1-OUT 1.2V 10A 11-Pin SIP Lineage Power	-		No	Non-Isolated	3 to 5.5 V	10 A	1	Industrial	8.1 mm	12.7 mm	Through Hole	50.8 mm	11	85C	SIP	Step Down	-	-	-	-	-	-	-	-	-	-
ATH010A0X3Z Module DC-DC 1-OUT 0.75V to 3.63V 10A 11-Pin SIP Lineage Power	-		No	Non-Isolated	2.4 to 5.5 V	10 A	1	Industrial	8.1 mm	12.7 mm	Through Hole	50.8 mm	11	85C	SIP	-	Compliant	-	-	-	-	-	-	-	-	-
CC030A-M Module DC-DC 1-OUT 5V 6A 30W 9-Pin Lineage Power	-		No	Isolated	24 V	6 A	1	Industrial	71.1 mm	12.7 mm	Through Hole	61 mm	9	100C	-	Step Down	-	-	-	-	-	-	-	-	-	30 W
QRW010A0B1Z Module DC-DC 1-OUT 12V 10A 10-Pin Quarter-Brick Lineage Power	-		No	Isolated	48 V	10 A	1	Industrial	58.17 mm	8.6 mm	Through Hole	37.08 mm	10	85C	Quarter-Brick	Step Down	-	-	-	-	-	-	-	-	-	-
NXA025A0X Module DC-DC 1-OUT 0.8V to 5.5V 25A 14-Pin SIP Lineage Power	-		No	Non-Isolated	12 V	25 A	1	Industrial	8.51 mm	31.8 mm	Through Hole	50.8 mm	14	85C	SIP	Step Down	-	-	-	-	-	-	-	-	-	-
HW005A0F1Z Module DC-DC 1-OUT 3.3V 5A 6-Pin Lineage Power	-		No	Isolated	48 V	5 A	1	Industrial	29.5 mm	8.5 mm	Through Hole	47.2 mm	6	85C	-	Step Down	-	-	-	-	-	-	-	-	-	-
