LEM Holding SA- 电流传感器

LEM Holding SA（莱姆集团）总部位于瑞士日内瓦，是全球电量传感器（电流/电压）领域的领导者。公司成立于1972年，率先将基于霍尔效应的电流传感器应用于瑞士有轨电车，并逐步发展出闭环、开环及电压传感器等完整产品线。LEM的主要产品系列包括闭环霍尔电流传感器（如LA、LT系列）、开环电流传感器（如HAX、HAZ系列）、电压传感器（如LV系列）以及基于ASIC的集成式电流传感器（如LTS、LTSR系列），广泛应用于工业变频器、可再生能源逆变器、UPS、电池管理和新能源汽车牵引系统等领域。凭借高精度、电气隔离和宽频带等优势，LEM在工业电流检测市场占据首要份额，也是全球电动汽车和新能源设备制造商的关键供应商。集团在瑞士和日本设有研发中心，持续推动磁通门技术与高隔离设计创新。LEM在瑞士证券交易所上市，全球拥有约1,100名员工，年销售额超过2亿瑞士法郎，生产与销售网络覆盖瑞士、中国、日本、保加利亚及世界各地。

MODELS

电流传感器 - 型号列表共 237 个型号

制造商零件编号	价格/库存	Accuracy	Packaging	Sensor Type	Mounting Type	Polarization	Operating Temperature	Voltage - Supply	Standard Package	Current - Sensing	Response Time	Frequency	Package/Case	rohs	Output	Number of Channels	Package / Case	For Measuring	Linearity	Current - Supply (Max)	Sensitivity	Supply Voltage DC Min	Supply Voltage DC Max	Sensor Output1	Accuracy %	SVHC	Weight (kg)	Tariff No.	Current - Supply	传感器类型	系列	操作温度	电压 - 电源	电流 - 检测	频率	极化	精度	封装/外壳	Operating temperature	Bandwidth	Supply Voltage Range DC	装配类型	Current Measuring Range AC	Current Measuring Range DC	输出	Dimensions L x W x H	Test voltage, primary/secondary	Measuring range	Mounting	Length	Height	Response time	Operating voltage	Output voltage	Primary rated current	Other Names	Current Rating	External Depth	External Length / Height	External Width	Current Consumption	Current Range AC	Current Range DC	Frequency Max	Frequency Min	Operating Temperature Max	Operating Temperature Min	Series	Standard	Supply Voltage	Transducer Function	Weight	电流 - 电源	响应时间	Package	Power supply	Current sensitivity	Sensitivity, magnetic	灵敏度	Dimensions, bushing	Description	MSL	Operating Frequency Range	Output Voltage
2 FHS 40-P/SP600 SENSOR CURRENT 100A 5V 8SOIC LEM USA Inc	询价	±1%	Tape & Reel (TR)	Field Sensor	Surface Mount	Bidirectional	-40°C ~ 125°C	4.75 V ~ 5.5 V	3,000	100A	3µs	105kHz	8-SOIC (0.154", 3.90mm Width)	Lead free / RoHS Compliant	Ratiometric, Voltage	1	8-SOIC (0.154", 3.90mm Width)	AC/DC	±0.4%	19mA	200mv/A	-	-	-	-	-	-	-	15mA	Field Sensor	FHS	-40°C ~ 125°C	4.75 V ~ 5.5 V	100A	105kHz	Bidirectional	±1%	8-SOIC (0.154", 3.90mm Width)	-40...+125 °C	DC...100 kHz	-	Surface Mount	-	-	-	-	-	-	-	-	-	-	-	-	-	398-1057-1	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	15mA	3µs	SOIC-8	± 5	67	600	-	-	-	-	-	-

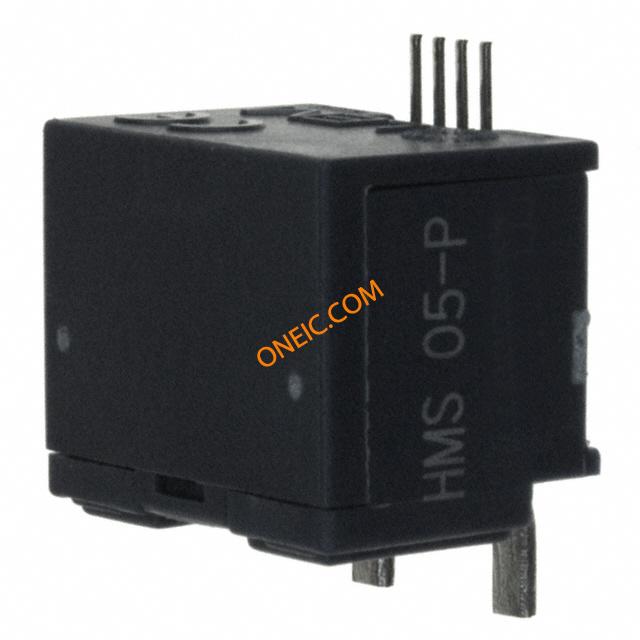

3 HMS 05-P SENSOR CURRENT 5A 5V SMD LEM USA Inc	询价	±1%	Tape & Reel (TR)	Open Loop Hall Effect	Surface Mount	Bidirectional	-40°C ~ 85°C	5V	150	5A	5µs	50kHz	Module	Lead free / RoHS Compliant	Ratiometric, Voltage	1	Module	AC/DC	±0.5%	19mA	-	-	-	-	-	-	-	-	19mA	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	398-1058-1	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

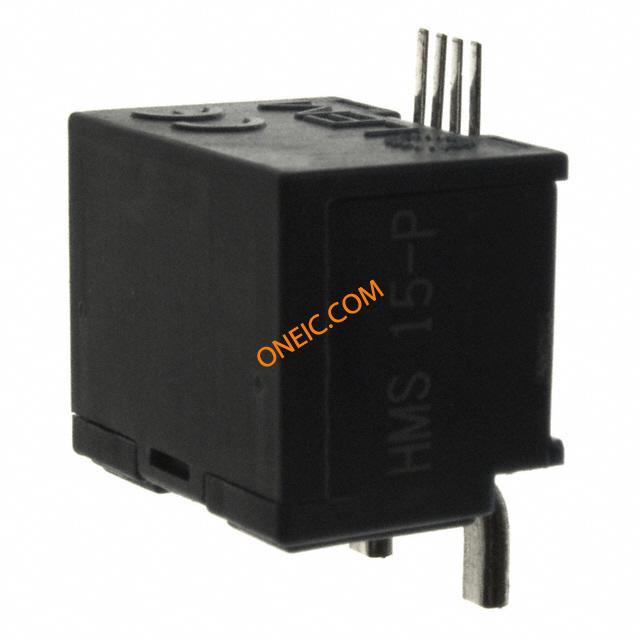

3 HMS 15-P SENSOR CURRENT 15A 5V SMD LEM USA Inc	询价	±1%	Tape & Reel (TR)	Open Loop Hall Effect	Surface Mount	Bidirectional	-40°C ~ 85°C	5V	150	15A	5µs	50kHz	Module	Lead free / RoHS Compliant	Ratiometric, Voltage	1	Module	AC/DC	±0.5%	19mA	-	-	-	-	-	-	-	-	19mA	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	398-1060-1	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 HMS 20-P SENSOR CURRENT 20A 5V SMD LEM USA Inc	询价	±1%	Tape & Reel (TR)	Open Loop Hall Effect	Surface Mount	Bidirectional	-40°C ~ 85°C	5V	150	20A	5µs	50kHz	Module	Lead free / RoHS Compliant	Ratiometric, Voltage	1	Module	AC/DC	±0.5%	19mA	-	-	-	-	-	-	-	-	19mA	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	398-1061-1	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

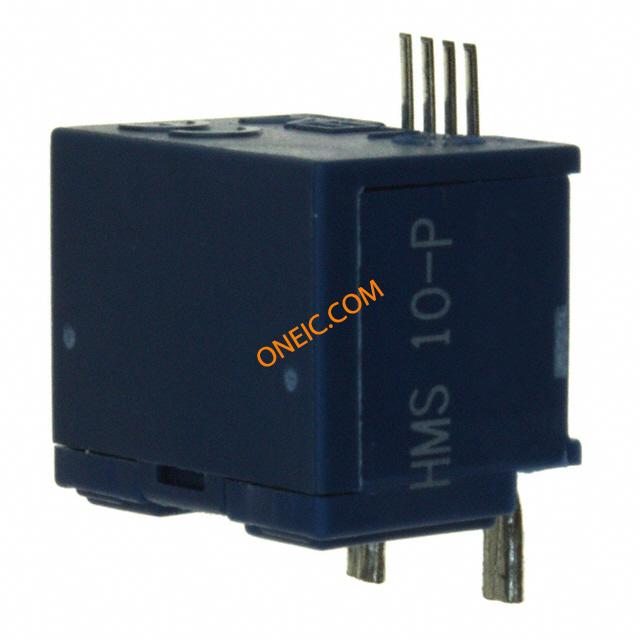

3 HMS 10-P SENSOR CURRENT 10A 5V SMD LEM USA Inc	询价	±1%	Tape & Reel (TR)	Open Loop Hall Effect	Surface Mount	Bidirectional	-40°C ~ 85°C	5V	150	10A	5µs	50kHz	Module	Lead free / RoHS Compliant	Ratiometric, Voltage	1	Module	AC/DC	±0.5%	19mA	-	-	-	-	-	-	-	-	19mA	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	398-1059-2	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

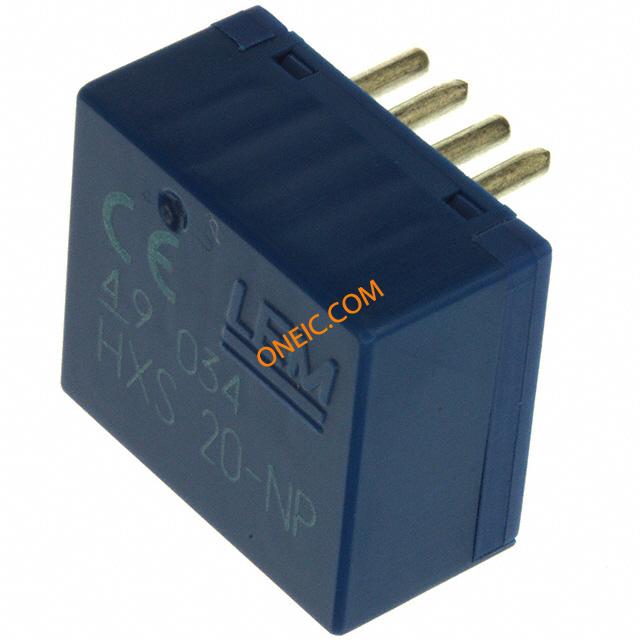

6 HXS 20-NP SENSOR CURRENT 20A 5V MOD LEM USA Inc	询价	:1%	Tube	Open Loop Hall Effect	Through Hole	Bidirectional	-40°C ~ 85°C	5V	20	±20A	:5µs	50kHz	Module	Lead free / RoHS Compliant	Ratiometric, Voltage	1	Module	AC/DC	:± 0.5%	19mA	-	:4.75V	:5.25V	:Voltage	:1%	:No SVHC (20-Jun-2013)	0.01	90328900	22mA	-	-	-	-	-	-	-	-	-	-	-	:4.75V to 5.25V	-	:-60A to 60A	:-60A to 60A	-	-	-	-	-	-	-	-	-	-	-	-	:20A	:18.5mm	:10mm	:16.5mm	:22mA	:DC, AC, Pulsed, Mixed	:DC, AC, Pulsed, Mixed	:50kHz	:0Hz	:85°C	:-40°C	:HSX 20	:EN 50178(97-10-01)	:+5V	:Electronic Measurement of Currents	:10g	-	-	-	-	-	-	-	-	-	-	-	-

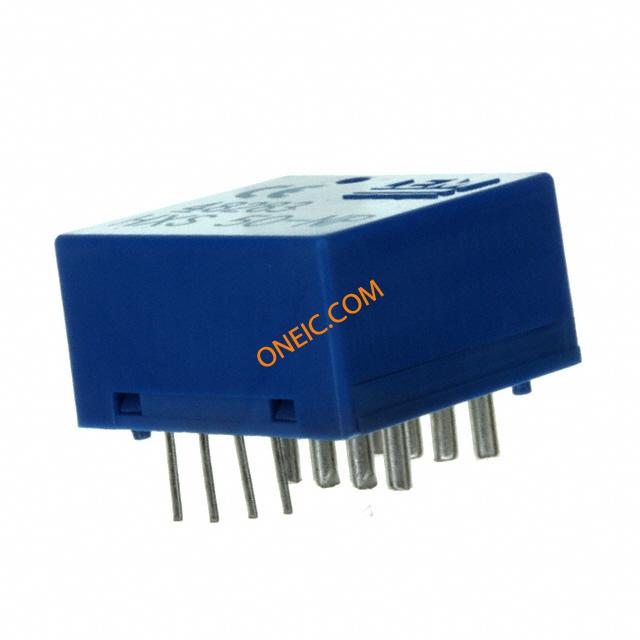

6 HXS 50-NP SENSOR CURRENT 50A 5V MOD LEM USA Inc	询价	:1%	Tube	Open Loop Hall Effect	Through Hole	Bidirectional	-40°C ~ 85°C	5V	20	±50A	:5µs	50kHz	Module	Lead free / RoHS Compliant	Ratiometric, Voltage	1	Module	AC/DC	:± 0.5%	19mA	-	:4.75V	:5.25V	:Voltage	:1%	:No SVHC (20-Jun-2013)	0.01	90328900	22mA	-	-	-	-	-	-	-	-	-	-	-	:4.75V to 5.25V	-	:-150A to 150A	:-150A to 150A	-	-	-	-	-	-	-	-	-	-	-	-	:50A	:18.5mm	:10mm	:16.5mm	:22mA	:DC, AC, Pulsed, Mixed	:DC, AC, Pulsed, Mixed	:50kHz	:0Hz	:85°C	:-40°C	:HSX 50	:EN 50178(97-10-01)	:+5V	:Electronic Measurement of Currents	:10g	-	-	-	-	-	-	-	-	-	-	-	-

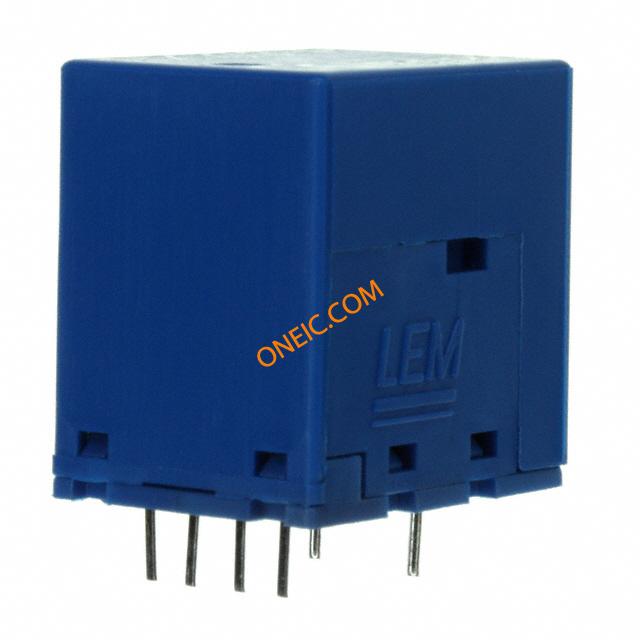

3 HX 03-P SENSOR CURRENT 3A -/+15V MOD LEM USA Inc	询价	±1%	Tray	Open Loop Hall Effect	Through Hole	Bidirectional	-25°C ~ 85°C	-15 V ~ 15 V	50	3A	3µs	50kHz	Module	Lead free / RoHS Compliant	±4V	1	Module	AC/DC	±1%	15mA	-	-	-	-	-	-	-	-	-	Open Loop Hall Effect	HX	-25°C ~ 85°C	-15 V ~ 15 V	3A	50kHz	Bidirectional	±1%	Module	-25...+85 °C	DC...50 kHz	-	Through Hole	-	-	±4V	19 x 15.4 x 20 mm	3 kV	±9 A	PCB	19	20	3 µs	±15 V (±5 %)	±4 V or ±0.625 V @ nominal primary current, RL = 10 kOhm TA = 25 °C	3 A	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

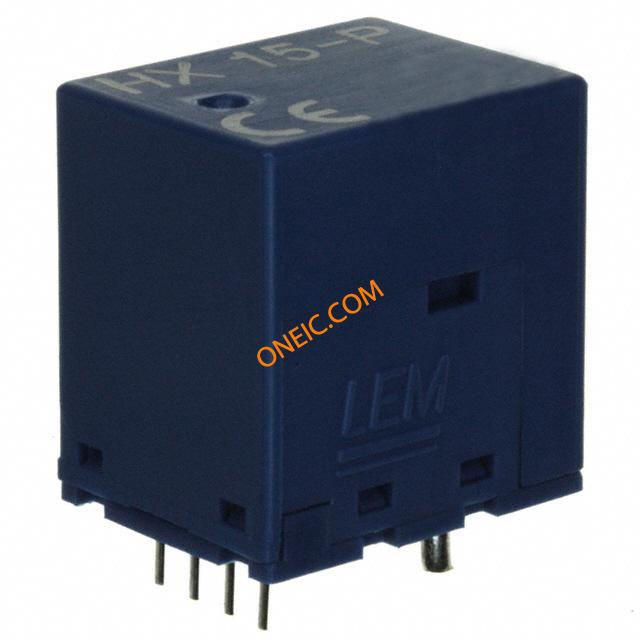

3 HX 15-P SENSOR CURRENT 15A -/+15V MOD LEM USA Inc	询价	±1%	Tray	Open Loop Hall Effect	Through Hole	Bidirectional	-25°C ~ 85°C	-15 V ~ 15 V	50	15A	3µs	50kHz	Module	Lead free / RoHS Compliant	±4V	1	Module	AC/DC	±1%	15mA	-	-	-	-	-	-	-	-	-	Open Loop Hall Effect	HX	-25°C ~ 85°C	-15 V ~ 15 V	15A	50kHz	Bidirectional	±1%	Module	-25...+85 °C	DC...50 kHz	-	Through Hole	-	-	±4V	19 x 15.4 x 20 mm	3 kV	±45 A	PCB	19	20	3 µs	±15 V (±5 %)	±4 V or ±0.625 V @ nominal primary current, RL = 10 kOhm TA = 25 °C	15 A	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

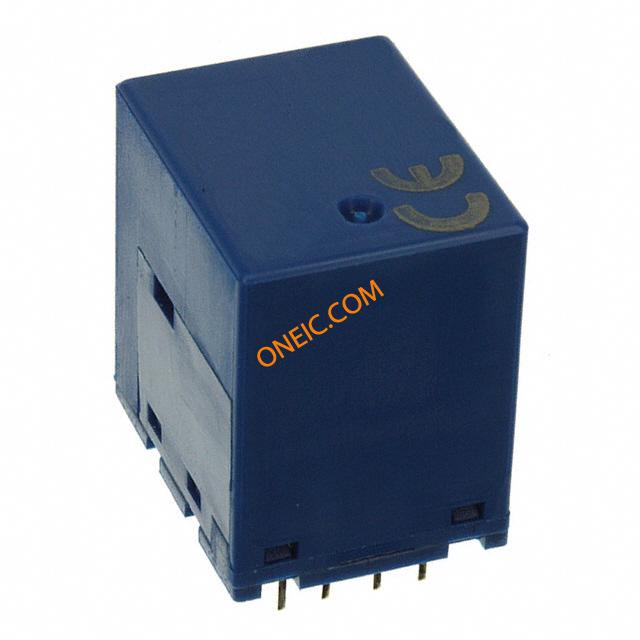

3 HX 10-P SENSOR CURRENT 10A -/+15V MOD LEM USA Inc	询价	±1%	Tray	Open Loop Hall Effect	Through Hole	Bidirectional	-25°C ~ 85°C	-15 V ~ 15 V	50	10A	3µs	50kHz	Module	Lead free / RoHS Compliant	±4V	1	Module	AC/DC	±1%	15mA	-	-	-	-	-	-	-	-	-	Open Loop Hall Effect	HX	-25°C ~ 85°C	-15 V ~ 15 V	10A	50kHz	Bidirectional	±1%	Module	-25...+85 °C	DC...50 kHz	-	Through Hole	-	-	±4V	19 x 15.4 x 20 mm	3 kV	±30 A	PCB	19	20	3 µs	±15 V (±5 %)	±4 V or ±0.625 V @ nominal primary current, RL = 10 kOhm TA = 25 °C	10 A	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

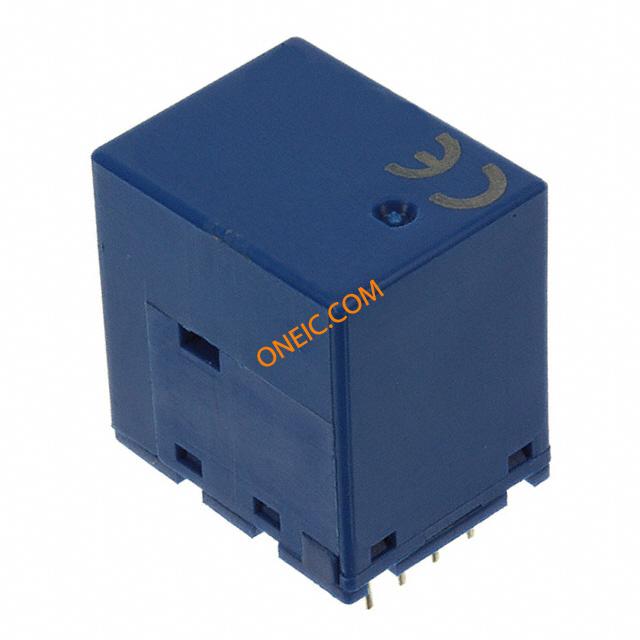

3 HX 20-P SENSOR CURRENT 20A -/+15V MOD LEM USA Inc	询价	±1%	Tray	Open Loop Hall Effect	Through Hole	Bidirectional	-25°C ~ 85°C	-15 V ~ 15 V	50	20A	3µs	50kHz	Module	Lead free / RoHS Compliant	±4V	1	Module	AC/DC	±1%	15mA	-	-	-	-	-	-	-	-	-	Open Loop Hall Effect	HX	-25°C ~ 85°C	-15 V ~ 15 V	20A	50kHz	Bidirectional	±1%	Module	-25...+85 °C	DC...50 kHz	-	Through Hole	-	-	±4V	19 x 15.4 x 20 mm	3 kV	±60 A	PCB	19	20	3 µs	±15 V (±5 %)	±4 V or ±0.625 V @ nominal primary current, RL = 10 kOhm TA = 25 °C	20 A	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

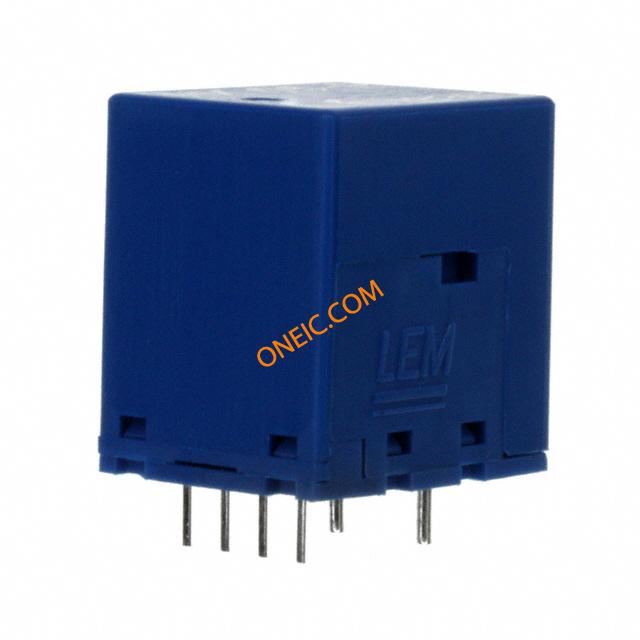

3 HX 05-P SENSOR CURRENT 5A -/+15V MOD LEM USA Inc	询价	±1%	Tray	Open Loop Hall Effect	Through Hole	Bidirectional	-25°C ~ 85°C	-15 V ~ 15 V	50	5A	3µs	50kHz	Module	Lead free / RoHS Compliant	±4V	1	Module	AC/DC	±1%	15mA	-	-	-	-	-	-	-	-	-	Open Loop Hall Effect	HX	-25°C ~ 85°C	-15 V ~ 15 V	5A	50kHz	Bidirectional	±1%	Module	-25...+85 °C	DC...50 kHz	-	Through Hole	-	-	±4V	19 x 15.4 x 20 mm	3 kV	±15 A	PCB	19	20	3 µs	±15 V (±5 %)	±4 V or ±0.625 V @ nominal primary current, RL = 10 kOhm TA = 25 °C	5 A	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

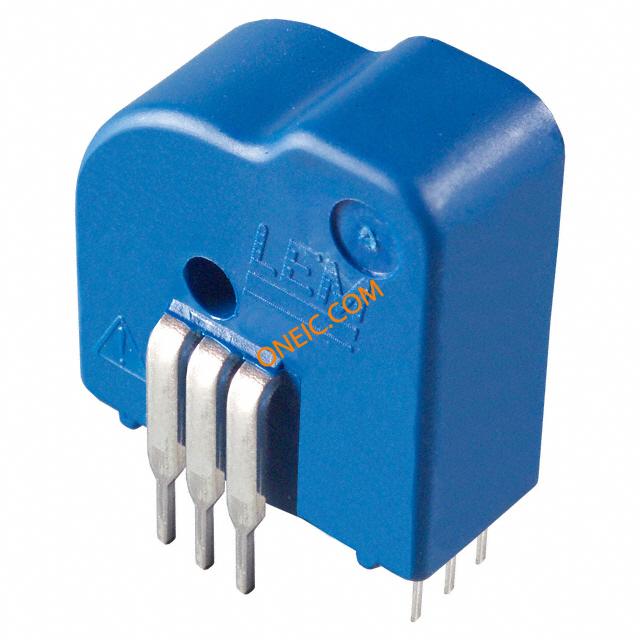

5 LTS 25-NP SENSOR CURRENT 25A 5V TH LEM USA Inc	询价	±0.2%	Bulk	Closed Loop Hall Effect	Through Hole	Bidirectional	-40°C ~ 85°C	5V	1	25A	0.4µs	200kHz	Ring Opening 0.126" Dia, 6 Leads	Lead free / RoHS Compliant	2.5V	1	Ring Opening 0.126" Dia, 6 Leads	AC/DC	±0.1%	-	25mV/A	-	-	-	-	-	-	-	-	Closed Loop Hall Effect	LTS	-40°C ~ 85°C	5V	25A	200kHz	Bidirectional	±0.2%	Ring Opening 0.126" Dia, 6 Leads	-40...+85 °C	DC...200 kHz	-	-	-	-	2.5V	22.2 x 13 x 24 mm	3 kV	±80 A	PCB	22.2	24	100 ns	5 V (±5%)	2.5 V ±(0.625 x primary current measuring range / nominal primary current)	12 A	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	25mV/A	ø3.2 mm	Internal reference voltage	-	-	-

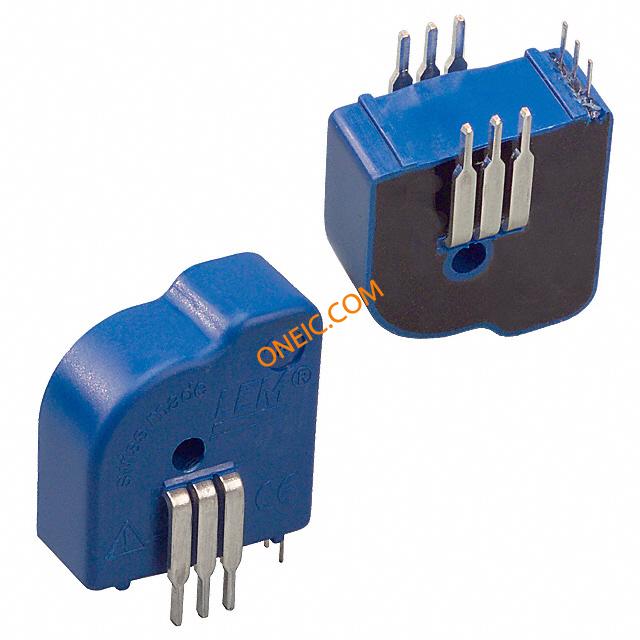

5 LTS 6-NP SENSOR CURRENT 6A 5V TH LEM USA Inc	询价	±0.2%	Bulk	Closed Loop Hall Effect	Through Hole	Bidirectional	-40°C ~ 85°C	5V	200	6A	:400ns	200kHz	Ring Opening 0.126" Dia, 6 Leads	Lead free / RoHS Compliant	2.5V	1	Ring Opening 0.126" Dia, 6 Leads	AC/DC	±0.1%	-	104.16mV/A	:4.75V	:5.25V	:Closed Loop	:0.2%	:No SVHC (20-Jun-2013)	0.01	85043121	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	:-	-	-
6 LTS 15-NP SENSOR CURRENT 15A 5V TH LEM USA Inc	询价	±0.2%	Bulk	Closed Loop Hall Effect	Through Hole	Bidirectional	-40°C ~ 85°C	5V	1	15A	:400ns	200kHz	Ring Opening 0.126" Dia, 6 Leads	Lead free / RoHS Compliant	2.5V	1	Ring Opening 0.126" Dia, 6 Leads	AC/DC	±0.1%	-	41.6mV/A	:4.75V	:5.25V	:Voltage	:0.2%	:No SVHC (20-Jun-2013)	0.1	85043121	-	-	-	-	-	-	-	-	-	-	-	-	:4.75V to 5.25V	-	:-48A to 48A	:-48A to 48A	-	-	-	-	-	-	-	-	-	-	-	-	:15A	:10mm	:24mm	:22.2mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	:0kHz to 200kHz	:2.5V
6 LTSR 15-NP SENSOR CURRENT 15A 5V TH LEM USA Inc	询价	±0.2%	Tray	Closed Loop Hall Effect	Through Hole	Bidirectional	-40°C ~ 85°C	5V	50	15A	0.4µs	200kHz	Ring Opening 0.126" Dia, 6 Leads	Lead free / RoHS Compliant	2.5V	1	Ring Opening 0.126" Dia, 6 Leads	AC/DC	±0.1%	-	41.6mV/A	:4.75V	:5.25V	:Closed Loop	:0.2%	:No SVHC (20-Jun-2013)	0.01	85043121	-	-	-	-	-	-	-	-	-	-	-	-	:4.75V to 5.25V	-	:-48A to 48A	:-48A to 48A	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

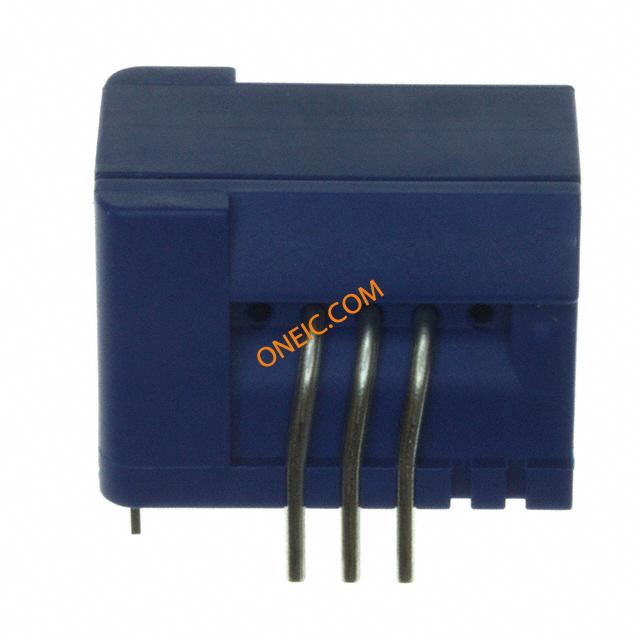

4 CAS 25-NP SENSOR CURRENT 25A 5V MOD LEM USA Inc	询价	±0.8%	Tube	Flux Gate	Through Hole	Bidirectional	-40°C ~ 85°C	4.75 V ~ 5.25 V	50	25A	300ns	300kHz	Module	Lead free / RoHS Compliant	0 V ~ 5 VDC	1	Module	AC/DC	±1%	20mA	25mV/A	:4.75V	:5.25V	:Voltage	:0.8%	:No SVHC (16-Dec-2013)	0.1	90303100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	:-85A to 85A	:-85A to 85A	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

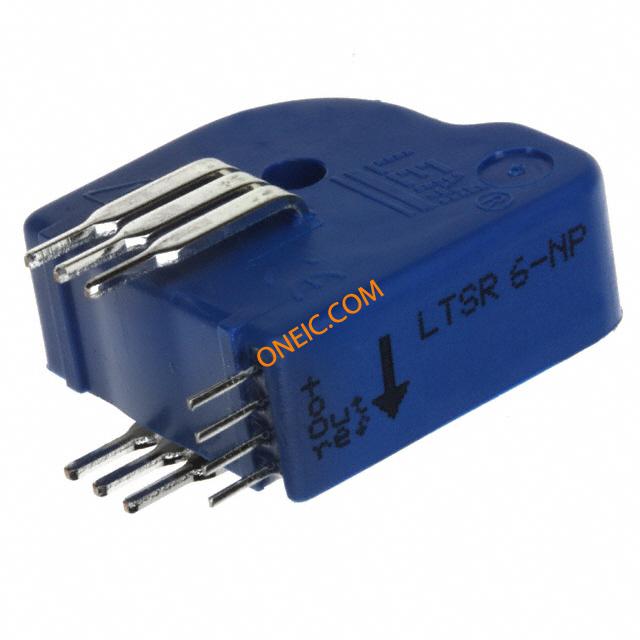

6 LTSR 6-NP SENSOR CURRENT 6A 5V TH LEM USA Inc	询价	±0.2%	Tube	Closed Loop Hall Effect	Through Hole	Bidirectional	-40°C ~ 85°C	5V	30	6A	0.4µs	200kHz	Ring Opening 0.126" Dia, 6 Leads	Lead free / RoHS Compliant	2.5V	1	Ring Opening 0.126" Dia, 6 Leads	AC/DC	±0.1%	-	104.16mV/A	:4.75V	:5.25V	:Closed Loop	:0.2%	:No SVHC (20-Jun-2013)	0.01	85043121	-	-	-	-	-	-	-	-	-	-	-	-	:4.75V to 5.25V	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

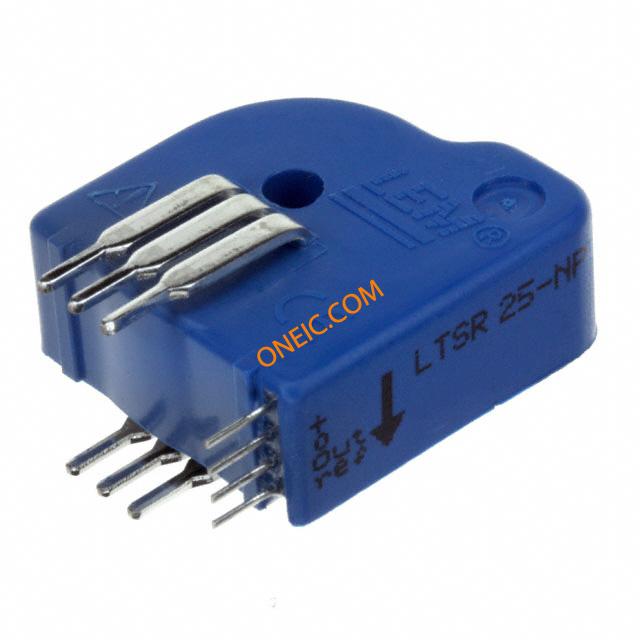

6 LTSR 25-NP SENSOR CURRENT 25A 5V TH LEM USA Inc	询价	±0.2%	Tube	Closed Loop Hall Effect	Through Hole	Bidirectional	-40°C ~ 85°C	5V	200	25A	0.4µs	200kHz	Ring Opening 0.126" Dia, 6 Leads	Lead free / RoHS Compliant	2.5V	1	Ring Opening 0.126" Dia, 6 Leads	AC/DC	±0.1%	-	25mV/A	:4.75V	:5.25V	:Closed Loop	:0.2%	:No SVHC (20-Jun-2013)	0.01	85043121	-	-	-	-	-	-	-	-	-	-	-	-	:4.75V to 5.25V	-	:-80A to 80A	:-80A to 80A	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

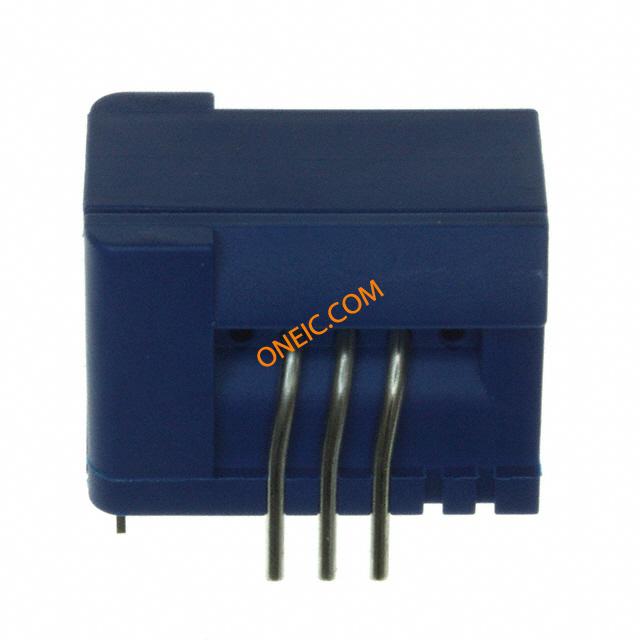

4 CAS 6-NP SENSOR CURRENT 6A 5V MOD LEM USA Inc	询价	±0.8%	Tube	Flux Gate	Through Hole	Bidirectional	-40°C ~ 85°C	4.75 V ~ 5.25 V	50	6A	300ns	300kHz	Module	Lead free / RoHS Compliant	0 V ~ 5 VDC	1	Module	AC/DC	±1%	20mA	104.2mV/A	:4.75V	:5.25V	:Voltage	:0.8%	:No SVHC (20-Jun-2013)	0.009	85043121	-	-	-	-	-	-	-	-	-	-	-	-	:4.75V to 5.25V	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
