JUMO GmbH & Co. KG
专用传感器与换能器

JUMO GmbH & Co. KG- 专用传感器与换能器

JUMO GmbH & Co. KG 是一家全球运营的德国企业，专注于测量、控制与自动化技术。公司由莫里茨·库尔特·尤赫海姆于1948年在德国富尔达创立，总部至今仍设于此，为私有股份制公司。JUMO 核心业务涵盖工业传感器、控制器及系统解决方案，应用领域涉及温度、压力、液体分析和物位测量。其产品线包括热电偶和热电阻（RTD）温度传感器、JUMO Dtrans 系列压力变送器，以及 JUMO MAERA 系列液位探头。在控制技术方面，JUMO 提供 JUMO DICON touch 模块化多通道触摸屏控制器、JUMO LOGOSCREEN 系列无纸记录仪等高端设备。公司还生产可控硅功率调节器、过程自动化面板及面向数据监控的无线物联网解决方案。服务于食品饮料、制药、暖通空调及能源等行业，JUMO 拥有超过25家子公司和2600多名员工，覆盖全球市场。以精密与可靠著称，JUMO 是欧洲工业测量市场的领先力量，并通过持续的技术创新拓展其全球影响力。

MODELS

专用传感器与换能器 - 型号列表共 321 个型号

制造商零件编号	价格/库存	Maximum Temperature	Minimum Temperature	Terminal Type	Contact Rating	Contact Voltage Rating	Switch Configuration	Response Time	Maximum Temperature Sensed	Minimum Temperature Sensed	Probe Diameter	Probe Length	Sensor Type	Supply Voltage	Accessory Type	For Use With	Maximum Operating Temperature	Minimum Operating Temperature	Output Type	Analogue Output	Housing Material	IP Rating	Maximum Pressure Reading	Media Measured	Minimum Pressure Reading	Pressure Reading Type	Accuracy	Input Type	Mounting Type	Output Range	Sensor Compatibility	Signal Conditioner Type	Maximum Current
60/60001133 Jumo NO/NC 10A Thermostat, Solder Tag Termination, +50 to +300°C Jumo	询价	+300°C	+50°C	Solder Tag	10 A	230 V ac/dc	NO/NC	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
60/60000211 Jumo 20mA Thermostat, Solder Tag Termination, +50 to +300°C Jumo	询价	+300°C	+50°C	Solder Tag	20 mA	24 V ac/dc	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
902002/20-402-1001-1-9-500-104 Jumo PT100 +400°C max Platinum Resistance Temperature Sensor, 9mm Probe Diameter Jumo	询价	-	-	-	-	-	-	50 s	+400°C	-50°C	9mm	500mm	PT100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
60/60002085 Jumo SPST 16A Thermostat, +20 to +500°C Jumo	询价	+500°C	+20°C	-	16 A	230 V	SPST	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
60/00558730 Jumo Bracket For Use With 604100 Series Jumo	询价	-	-	-	-	-	-	-	-	-	-	-	-	-	Mounting Bracket	604100 Series	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
90.00055690 Jumo PT100 +400°C max Platinum Resistance Temperature Sensor, 7mm Probe Diameter Jumo	询价	-	-	-	-	-	-	14 s	+400°C	-50°C	7mm	100mm	PT100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
902002/20-402-1001-1-9-350-104 Jumo PT100 +400°C max Platinum Resistance Temperature Sensor, 9mm Probe Diameter Jumo	询价	-	-	-	-	-	-	50 s	+400°C	-50°C	9mm	350mm	PT100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
60/60001004 Jumo NO/NC 10A Thermostat, Solder Tag Termination, 0 to +100°C Jumo	询价	+100°C	0°C	Solder Tag	10 A	230 V ac/dc	NO/NC	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
60/00558731 Jumo Bracket For Use With 604100 Series Jumo	询价	-	-	-	-	-	-	-	-	-	-	-	-	-	Mounting Bracket	604100 Series	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
60/60003347 Jumo SP 16A Thermostat, Cable Gland Termination, -10 to +15°C Jumo	询价	+15°C	-10°C	Cable Gland	16 A	-	SP	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
202731/01-015/024 Transducer ecoTrans Lf01 Jumo	询价	-	-	-	-	-	-	-	-	-	-	-	-	24 Vdc	-	-	+250°C	-25°C	Conductivity, Current, Voltage	-	-	-	-	-	-	-	-	Conductivity, Temperature	DIN Track	0 to 10 V, 0 to 24 mA	Conductivity Cell, PT100 Sensor, PT1000	Temperature Compensate Conductivity, Temperature to Current, Temperature to Voltage	-
60/60003164 Jumo Thermostat, 0 to +120°C Jumo	询价	+120°C	0°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
40.43008014 Gauge Pressure Sensor For Fluid, Gas, 60bar Max Pressure, 10 to 30V dc, IP65 Jumo	询价	-	-	DIN 43650 Connector	-	-	-	-	-	-	-	-	-	10 → 30 V dc	-	-	-	-	Analogue	4 → 20 mA	Stainless Steel	IP65	60bar	Fluid, Gas	0bar	Gauge	0.5 %	-	-	-	-	-	-
90.00057491 Jumo Adapter For Use With Temperature Sensor PT100 Jumo	询价	-	-	-	-	-	-	-	-	-	-	-	-	-	Adapter	Temperature Sensor PT100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
902002/20-402-1001-1-9-250-104 Jumo PT100 +400°C max Platinum Resistance Temperature Sensor, 9mm Probe Diameter Jumo	询价	-	-	-	-	-	-	50 s	+400°C	-50°C	9mm	250mm	PT100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
405052/000-459-475-504-20-36-01/000 Gauge Pressure Sensor For Non-Corrosive Gas, 10bar Max Pressure, 12 to 30V dc, IP67 Jumo	询价	-	-	M12 Connector	-	-	-	100 ms, 20 ms	-	-	-	-	-	12 → 30 V dc	-	-	+75°C	-25°C	Relay	4 → 20 mA	Stainless Steel	IP67	10bar	Non-Corrosive Gas	0bar	Gauge	0.5 %	-	-	-	-	-	250 mA
60/60000955 Jumo NO/NC 10A Thermostat, Solder Tag Termination, +20 to +150°C Jumo	询价	+150°C	+20°C	Solder Tag	10 A	230 V ac/dc	NO/NC	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

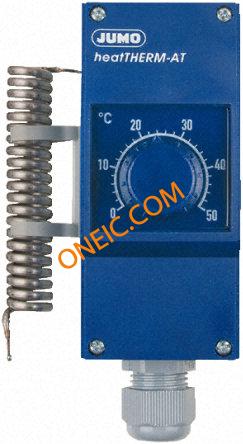

60/60003159 Jumo Thermostat, -10 to +40°C Jumo	询价	+40°C	-10°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
40/43011330 Differential Pressure Sensor For Fluid, Gas, 10bar Max Pressure, 10 to 30V dc, IP67 Jumo	询价	-	-	M12 Connector	-	-	-	-	-	-	-	-	-	10 → 30 V dc	-	-	+80°C	-20°C	-	4 → 20 mA	Stainless Steel	IP67	10bar	Fluid, Gas	0bar	Differential	-	-	-	-	-	-	-
60/60003307 Jumo SP 16A Thermostat, Cable Gland Termination, +40 to +230°C Jumo	询价	+230°C	+40°C	Cable Gland	16 A	230 V ac	SP	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
