RFI和EMI屏蔽材料
Johanson Technology, Inc.- RFI和EMI屏蔽材料
RFI和EMI屏蔽材料 - 型号列表
共 174 个型号| 制造商零件编号 | 库存 | 价格 | 产品 | 标准包装数量 | RoHS | 频率 | 阻抗 | 插入损耗 | 频率范围 | 包装方式 | 封装形式 | 端接样式 | 类型 | 工作温度 | 安装类型 | 其他名称 | 带宽 | 滤波器类型 | 高度（最大） | 尺寸/外形 | 欧盟RoHS | 插入损耗（最大） | 频率响应 | 系列 | 尺寸 | 回波损耗（最小） | 回波损耗 | 低频段衰减（最小/最大 dB） | 相位差 | 阻抗 - 不平衡/平衡 | 纹波 | SVHC | 海关税号 | 频率（中心/带宽） | 重量 | 连接器类型 | 引脚数 | 外壳尺寸-插件 | 应用 | 类型（缩写） | 隔离 | 耦合系数 | 耦合器类型 | 供应商器件封装 | 频率 - 截止或中心 | 功率（dBm） | 频段（低/高） | 回波损耗（低频段/高频段） | 高频段衰减（最小/最大 dB） | 输出配置 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BANDPASS FILTER 0805 3.3-3.9GHZ SMD4 FILTER BANDPASS WIMAX 3.6GHZ Signal Conditioning 3.6GHz/WIDE BPF johanson technology | 41650 | 1: ¥5.848 | Band Pass Filters | 4,000 | Lead free by exemption / RoHS Compliant | 3.6GHz Center | 50 Ohms | 1.8dB | 3.3 GHz to 3.9 GHz | Tape & Reel (TR) | 0805 (2012 Metric), 4 PC Pad | SMD/SMT | Band Pass Filter | - 40 C to + 85 C | Surface Mount | 712-1099-1 | 600MHz | Band Pass | 0.041" (1.05mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 BANDPASS FILTER 2.6GHZ 0603 FILTR BAND PASS WDE BND 2.6GHZ Signal Conditioning 2.6GHz WiMAX BPF johanson technology | 3830 | 1: ¥5.848 | Band Pass Filters | 4,000 | RoHS Compliant | 2.5 GHz to 2.7 GHz | 50 Ohms | 2.5 dB | 2.5 GHz to 2.7 GHz | Reel | 0603 (1608 metric) | SMD/SMT | Band Pass Filter | - 40 C to + 85 C | - | - | 2500 MHz to 2700 MHz | - | - | - | - | - | - | * | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 2450 BPF 1.2DB 2450MHZ 50OHM 2450BP39D100CE FILTER BANDPASS 2.4GHZ Signal Conditioning 2.4GHz BPF johanson technology | 10006 | 1: ¥4.012 | Band Pass Filters | 3,000 | Lead free by exemption / RoHS Compliant | 2.45GHz Center | 50 Ohms | 1.2dB | 2.4 GHz to 2.5 GHz | Tape & Reel (TR) | 1008 (2520 Metric), 4 PC Pad | SMD/SMT | Band Pass Filter | - 40 C to + 85 C | Surface Mount | 712-1092-1 | 100MHz | Band Pass | 0.041" (1.05mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | 1.2dB | - | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Electromechanical Filter 50Ohm FILTER BANDPASS WIMAX 2.5GHZ Signal Conditioning 2.5GHz BPF johanson technology | 3030 | 1: ¥9.724 | Band Pass Filters | 4,000 | Lead free by exemption / RoHS Compliant | 2.5GHz Center | 50 Ohm | 2dB | 2.3 GHz to 2.7 GHz | Tape and Reel | 0805 (2012 Metric), 4 PC Pad | SMD/SMT | Band Pass Filter | -40 to 85 °C | Surface Mount | 712-1097-1 | 400MHz | Band Pass | 0.041" (1.05mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | Compliant | 2 dB | BPF | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
8.jpg){kind=small} Electromechanical Filter 50Ohm FILTER LOWPASS GSM/CDMA 915MHZ Signal Conditioning LOW PASS FILTER 915MHz LOW PASS FILTER, 915MHZ johanson technology | 4806 | 1: ¥3.4307 | Low Pass Filters | 4,000 | Lead free by exemption / RoHS Compliant | 915MHz Center | 50 Ohm | 0.5dB | 902 MHz to 928 MHz | Tape and Reel | 0805 (2012 Metric), 8 PC Pad | SMD/SMT | Low Pass Filter | -40 to 85 °C | Surface Mount | 712-1122-1 | 26MHz | Low Pass | 0.037" (0.95mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | Compliant | 0.5 dB | LPF | - | - | - | :14dB | :30dB | - | - | - | :No SVHC (20-Jun-2013) | 85362010 | :902MHz to 928MHz | 0.0001 | :- | :8 | :0805 [2012 Metric] | :- | - | - | - | - | - | - | - | - | - | - | - |

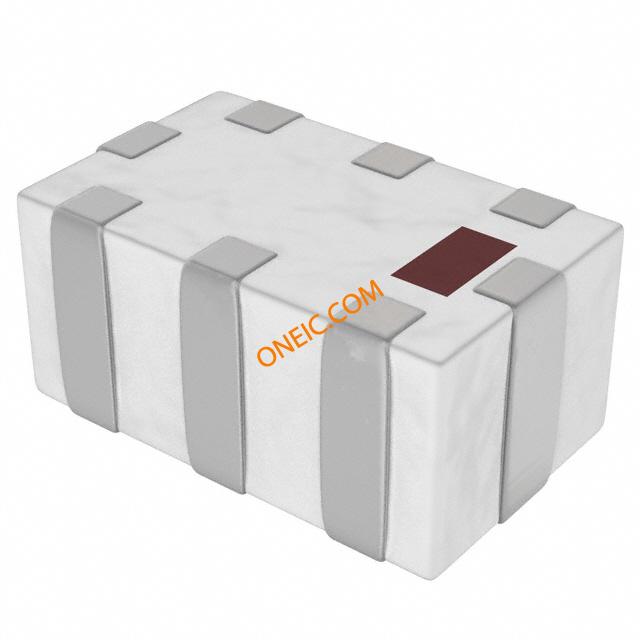

 Electromechanical Filter 50Ohm FILTER LOWPASS UWB 500MHZ Signal Conditioning 0-500 MHz Low Pass Filter Johanson Group | 31532 | 1: ¥6.188 | Low Pass Filters | 1 | Lead free by exemption / RoHS Compliant | 500MHz Center | 50Ohm | 0.7dB | 0 MHz to 500 MHz | Tape and Reel | 0805 (2012 Metric), 8 PC Pad | SMD/SMT | High Frequency Ceramic Solutions ... | - 40 C to + 85 C | Surface Mount | 712-1117-1 | 500MHz | Low Pass | 0.041" (1.05mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | Compliant | - | LPF | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Electromechanical Filter 50Ohm FILTER BANDPASS 2.4GHZ Signal Conditioning 2400-2500 MHz Band Pass Filter Johanson Group | 10 | 2200: ¥1.496 | Band Pass Filters | 4,000 | Lead free by exemption / RoHS Compliant | BPF | 50Ohm | 2.8dB | 2.4 GHz to 2.5 GHz | Tape and Reel | 0805 (2012 Metric), 4 PC Pad | SMD/SMT | High Frequency Ceramic | - 40 C to + 85 C | Surface Mount | 712-1079-1 | 100MHz | Band Pass | 0.026" (0.65mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | Compliant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | High Frequency Ceramic Solutions ... | - | - | - | - | - | - | - | - | - | - |
 BALUN CER CHIP WIFI 5250MHZ BALUN CERAMIC CHIP WIFI 5250MHZ Signal Conditioning 5.25 MHZ WIFI Balun Ceramic Chip Johanson Group | 10 | 2250: ¥1.836 | Baluns | 4,000 | Lead free by exemption / RoHS Compliant | 5.2 GHz | 50 Ohms, 100 Ohms | 1.2 dB | 5.15GHz ~ 5.35GHz | Tape & Reel (TR) | 0805 (2012 Metric) | SMD/SMT | High Frequency Ceramic | - 40 C to + 85 C | Surface Mount | 712-1055-1 | - | - | - | - | - | 1.2dB | - | - | - | 9.5dB | - | - | 180° ±10 | 50 / 100 Ohm | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 FILTER BANDPASS 2.4GHZ FILTER BANDPASS 2.4GHZ WIFI Signal Conditioning 2.4GHz BPF Johanson Group | 76388 | 1: ¥3.468 | Band Pass Filters | 10,000 | Lead free by exemption / RoHS Compliant | 2.45GHz Center | 50 Ohms | 2.5dB | 2.4 GHz to 2.5 GHz | Tape & Reel (TR) | 0402 (1005 Metric), 4 PC Pad | SMD/SMT | Band Pass Filter | - 40 C to + 85 C | Surface Mount | 712-1076-1 | 100MHz | Band Pass | 0.017" (0.43mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 2.5dB | - | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
FILTER BANDPASS 2.4GHZ Signal Conditioning 2400-2500 MHz Band Pass Filter Johanson Group | 10 | 1590: ¥4.624 | Band Pass Filters | 4,000 | RoHS Compliant By Exemption | 2.45 GHz | 50 Ohms | 2.5 dB | 2.4 GHz to 2.5 GHz | Reel | 0805 (2012 metric) | SMD/SMT | High Frequency Ceramic | - 40 C to + 85 C | - | - | - | - | - | - | - | - | - | * | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 10 | 1: ¥3.944 | Band Pass Filters | 3,000 | Lead free by exemption / RoHS Compliant | 2.45GHz Center | 50 Ohms | 1.8dB | 2.45 GHz | Tape & Reel (TR) | 1008 (2520 Metric), 4 PC Pad | SMD/SMT | Band Pass Filter | - 40 C to + 85 C | Surface Mount | 712-1088-1 | 2450 MHz | Band Pass | 0.039" (1.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | - | - | - | - | - | - | - | - | - | 0.7dB | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
FILTER BAND-PASS 5.5GHZ WIFI FILTER BANDPASS 5.5GHZ WIFI Signal Conditioning 5.5GHz BPF Johanson Group | 1739 | 1: ¥3.672 | Band Pass Filters | 4,000 | Lead free by exemption / RoHS Compliant | 5.5GHz Center | 50 Ohms | 2.8dB | 5.15 GHz to 5.875 GHz | Tape & Reel (TR) | 0805 (2012 Metric), 6 PC Pad | SMD/SMT | Band Pass Filter | - 40 C to + 85 C | Surface Mount | 712-1106-1 | 725MHz | Band Pass | 0.037" (0.95mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 2.8dB | - | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | - | - | - | - | 0.7dB | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Electromechanical Filter 50Ohm FILTER BALUN MATCH 2.5-2.69GHZ Signal Conditioning 2.6GHz BALUN/FILER 50:50ohms Johanson Group | 5029 | 1: ¥10.132 | Balanced Filters | 3,000 | Lead free by exemption / RoHS Compliant | 2.6 GHz | 50Ohm | 3.2 dB, 3.3 dB | 2.5GHz ~ 2.69GHz, 2.469GHz ~ 2.69GHz | Tape and Reel | 1008 (2520 Metric), 6 PC Pad | SMD/SMT | High Frequency Ceramic Solutions ... | - 40 C to + 85 C | Surface Mount | 712-1405-2 | - | - | - | - | Compliant | 3.2dB, 3.3dB | BPF | - | - | 11.7dB, 9.5dB | - | - | 180° ±10 | 50 / 50 Ohm | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Electromechanical Filter 50Ohm Signal Conditioning 2400-2500 MHz Band Pass Filter FILTER BAND PASS 2.45GHZ Johanson Group | 4000 | 4000: ¥2.448 | Band Pass Filters | 4,000 | RoHS Compliant By Exemption | 2.4 GHz | 50Ohm | 1.5 dB | 2.4 GHz to 2.5 GHz | Tape and Reel | 0603 (1608 metric) | SMD/SMT | High Frequency Ceramic Solutions ... | - 40 C to + 85 C | Surface Mount | - | - | - | - | - | Compliant | - | BPF | * | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 8624 | 1: ¥3.468 | Band Pass Filters | 4,000 | Lead free / RoHS Compliant | 3.5GHz Center | 50 Ohms | 2dB | 3.3 GHz to 3.7 GHz | Tape & Reel (TR) | 0603 (1608 Metric), 4 PC Pad | SMD/SMT | Band Pass Filter | - 40 C to + 85 C | Surface Mount | 712-1533-2 | 400MHz | Band Pass | 0.026" (0.65mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
6.jpg){kind=small} 898 MHZ DIRECTIONAL COUPLER/ LOW PASS FILTER COMBINATION DIR COUPLER W/LP FILTER 898MHZ Signal Conditioning 880-915 MHz Directional Cpler Johanson Group | 2496 | 1: ¥4.488 | Directional Couplers | 4,000 | Lead free by exemption / RoHS Compliant | 880MHz ~ 915MHz | 50 Ohms | 0.7dB | 880 MHz to 915 MHz | Tape & Reel (TR) | 0805 (2012 Metric) | SMD/SMT | Directional Coupler with Low Pass Filter | - 40 C to + 85 C | - | 712-1141-1 | - | - | - | - | Compliant | - | - | - | - | - | 14dB | - | - | - | - | - | - | - | - | - | - | - | - | - | 0.7dB | 20 ± 1dB | Standard | 0805 | - | - | - | - | - | - |
Electromechanical Filter 50Ohm FILTER BANDPASS 2.4GHZ Signal Conditioning 2400-2500 MHz Band Pass Filter Johanson Group | 20362 | 1: ¥3.536 | Band Pass Filters | 4,000 | Lead free by exemption / RoHS Compliant | 2.45GHz Center | 50Ohm | 2.2dB | 2.4 GHz to 2.5 GHz | Tape and Reel | 0805 (2012 Metric), 4 PC Pad | SMD/SMT | Band Pass Filter | - 40 C to + 85 C | Surface Mount | 712-1078-1 | 100MHz | Band Pass | 0.026" (0.65mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | Compliant | 2.2dB | BPF | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Electromechanical Filter 1710MHz to 1785MHz Freq. 1000MHz to 2000MHz 50Ohm FILTER LOWPASS GSM/CDMA 1748MHZ Signal Conditioning 1710-1785 MHz Low Pass Filter Johanson Group | 10 | 2000: ¥2.924 | Low Pass Filters | 3,000 | Lead free by exemption / RoHS Compliant | 1.748GHz Center | 50Ohm | 0.6dB | 1.71 GHz to 1.785 GHz | Tape and Reel | 1206 (3216 Metric), 4 PC Pad | SMD/SMT | High Frequency Ceramic Solutions ... | - 40 C to + 85 C | Surface Mount | 712-1123-1 | 75MHz | Low Pass | 0.047" (1.20mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | Compliant | - | LPF | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1710M to 1785M | - | - | - | - | - |
FILTER LOW PASS WDE BAND 1.2GH Signal Conditioning 950-1450 MHz Low Pass Filter FILTER LOW PASS WDE BAND 1.2GHZ Johanson Group | 10 | 890: ¥5.508 | Low Pass Filters | 2,000 | RoHS Compliant By Exemption | 1.2 GHz | 50 Ohms | 2 dB | 950 MHz to 1.45 GHz | Reel | 1210 (3225 metric) | SMD/SMT | High Frequency Ceramic | - 40 C to + 85 C | - | - | - | - | - | - | - | - | - | * | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
RF CERAMIC CHIP COMPONENTS DIPLEXER LPF/HPF 2.45/5.5GHZ Signal Conditioning 2.45/5.512GHz DIPLEXER Johanson Group | 3090 | 1: ¥7.888 | Diplexers | 4,000 | RoHS Compliant | 2.45 GHz, 5.512 GHz | 50 Ohms | 0.7 dB | 2.4 GHz to 2.5 GHz, 5.15 GHz to 5.875 GHz | Tape & Reel (TR) | 0805 (2012 Metric) | SMD/SMT | Diplexer | - 40 C to + 85 C | Surface Mount | - | - | - | - | - | - | - | - | - | - | 9.5dB / 9.5dB | - | 20.00dB / 0.70dB | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 20.00dB / 0.70dB | 2.4GHz ~ 2.5GHz / 5.15GHz ~ 5.87GHz | 9.5dB / 9.5dB | 15.00dB / 0.90dB | Surface Mount |
