电路板间隔柱和堆叠器
Amphenol FCI- 电路板间隔柱和堆叠器
02
MODELS电路板间隔柱和堆叠器 - 型号列表共 292 个型号
| 制造商零件编号 | 价格/库存 | Type | Pitch | Number of Rows | Number of Contacts | Termination Method | Contact Plating | Standard Package | Packaging | Housing Material | Gender | Contact Material | Mounting Type | Connector Type | Contact Finish | Number of Positions | rohs | Series | Pitch Spacing | No. of Contacts | No. of Rows | Contact Termination | Weight (kg) | Tariff No. | Contact Finish Thickness | Factory Pack Quantity | Product Category | RoHS | Unit Pack | MOQ | Number of Positions / Contacts | Mounting | Product Length | EU RoHS | Product Depth | Body Orientation | Maximum Voltage Rating | Product Height | Pitch | Maximum Current Rating | Current Rating | Product Type | Termination Style | Insulation Resistance | Maximum Contact Resistance | Height Above Board | Voltage Rating | SVHC | Lead Spacing | Operating Temperature Max | Operating Temperature Min | Color | Termination | Number of Positions Loaded | Housing Color | Mated Stacking Heights | Row Pitch | Mounting Angle | External Length / Height | Insulator Material | No. of Mating Cycles | Voltage Rating V AC | Row Spacing | Contact Type | Withstand Voltage | Other Names | External Width | Contact Gender | Stack Height | Contact Resistance | Approval Bodies | Housing Type | No. of Poles | Features | Flammability Rating | Contact Mating Length | Mating Post Length | Latching Type | Colour | Material | Height | Termination Post Length | Leaded Process Compatible |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

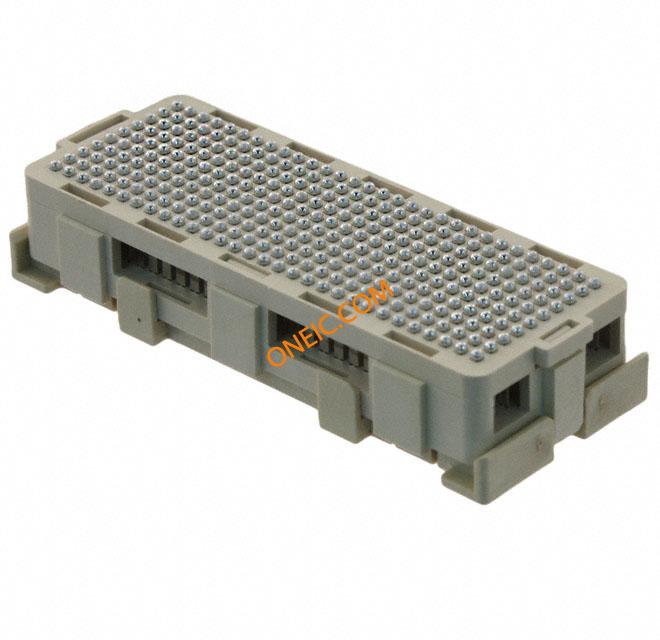

 | 询价 | High Density | 1.27 mm | 10 | 400 | Solder | Gold Over Nickel | Tape & Reel | Tape and Reel | Liquid Crystal Polymer | RCP | Copper Alloy | Surface Mount | Array, Female Sockets | Gold | 400 | Lead free / RoHS Compliant | MEG-Array | :1.27mm | :400 | :10 | :Surface Mount Vertical | 0.006 | 85369010 | 30µin (0.76µm) | 200 | Board to Board & Mezzanine Connectors | RoHS Compliant | 200 | 200 | 400 | Through Hole | 55 | Compliant | 16.44 | Straight | 200VAC | 8.5 | 1.27 | 0.45/Contact | 450 mA | Receptacles | SMD | :1000Mohm | 25 | 0.289" (7.35mm) | 200 V | :No SVHC (20-Jun-2013) | :1.27mm | :85°C | :-40°C | - | - | - | - | 8mm, 14mm | :1.27mm | - | :56.8mm | :Polyester | :50 | :200V | - | - | - | 609-1104-1 | :17.43mm | - | 8 mm | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 询价 | Board to Board | 1.27 mm | 10 | 100 | Solder | Gold Over Nickel | Tape & Reel | Tape and Reel | Liquid Crystal Polymer | RCP | Copper Alloy | Surface Mount | Array, Female Sockets | Gold | 100 | Lead free / RoHS Compliant | MEG-Array | :1.27mm | :100 | :10 | :Surface Mount Vertical | 0.0009 | 85369010 | 30µin (0.76µm) | 250 | Board to Board & Mezzanine Connectors | RoHS Compliant | 250 | 250 | 100 | Surface Mount | 16.9 | Compliant | 16.44 | Straight | 200VAC | 3.89 | 1.27 | 0.45/Contact | 450 mA | Receptacles | - | :1000Mohm | - | 0.106" (2.70mm) | 200 V | :No SVHC (20-Jun-2013) | :1.27mm | :85°C | :-40°C | - | - | - | - | 4mm | :1.27mm | - | :18.7mm | :Polyester | :50 | :200V | - | - | - | - | :17.34mm | - | 4 mm | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

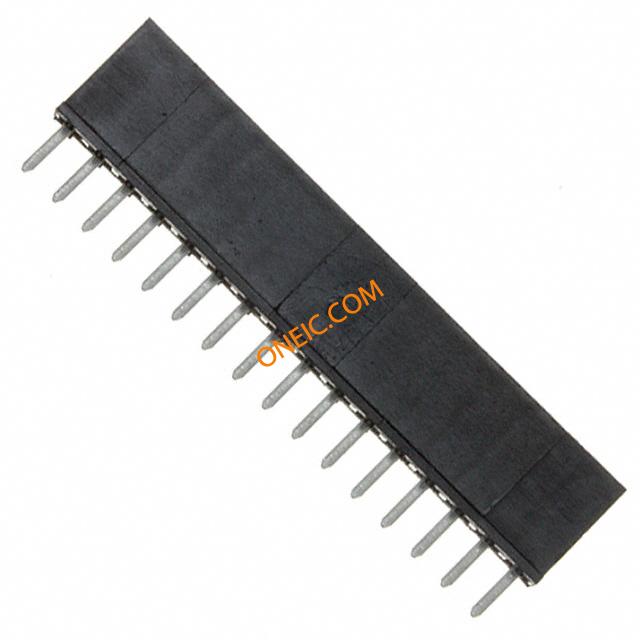

 | 询价 | Socket Strip | 2.54 mm | 1 | 16 | Solder | Gold Over Nickel | Rail / Tube | Tube | Thermoplastic | SKT | Beryllium Copper | Through Hole | Receptacle | Gold | 16 | Lead free / RoHS Compliant | 66951 | :2.54mm | :16 | :1 | :Through Hole Vertical | 0.002 | 85369010 | 30µin (0.76µm) | 350 | Headers & Wire Housings | RoHS Compliant | 350 | 350 | 16 | - | - | - | - | - | - | - | - | - | 3 A | Receptacles / Sockets - PCB | Through Hole | - | - | - | 1.25 kV | - | - | - | - | Black | Solder | All | - | - | - | Vertical | - | - | - | - | - | Female Socket | - | - | - | Socket (Female) | - | - | - | - | - | - | - | - | - | Unlatched | - | - | - | - | - |

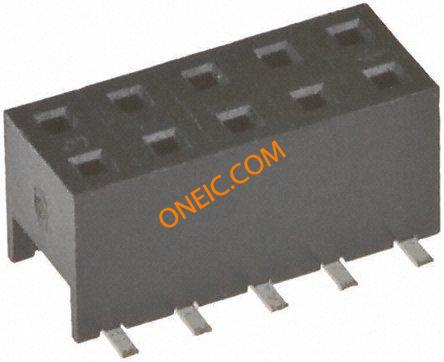

 | 询价 | Socket Strip | 2 mm | 2 | 20 | Solder | Gold Over Nickel | Tape & Reel | Tape and Reel | Plastic | SKT | Phosphor Bronze | Surface Mount | Receptacle | Gold | 20 | Lead free / RoHS Compliant | MINITEK | :2mm | :20 | :2 | :Surface Mount Vertical | 0.000428 | 85369010 | 30µin (0.76µm) | 750 | Headers & Wire Housings | RoHS Compliant | 2250 | 2250 | 20 | Surface Mount | 19.92 | Compliant | 4 | Straight | 200VDC|200VAC | 4.5 | 2 | 1/Contact | :1A | - | SMD | :1000Mohm | 20 | - | 200 V ac/dc | :No SVHC (20-Jun-2013) | :2mm | :125°C | :-55°C | Black | Solder | All | Black | - | - | Vertical | - | - | - | :200V | 0.079" (2.00mm) | Female Socket | :500V | - | - | - | - | :20mohm | - | - | - | - | :UL94V-0 | - | - | - | :Black | :High Temperature Thermoplastic | - | - | - |
 | 询价 | Socket Strip | 2.54 mm | 2 | 16 | Solder | Gold Over Nickel | Rail / Tube | Tube | Thermoplastic | RCP | Phosphor Bronze | Through Hole | Receptacle, Bottom or Top Entry | Gold | 16 | Lead free / RoHS Compliant | DUBOX | :2.54mm | :16 | :2 | :Through Hole Vertical | 0.003 | 85369010 | 30µin (0.76µm) | 406 | Board to Board & Mezzanine Connectors | RoHS Compliant | - | - | 16 | Through Hole | 20.24 | Compliant | 7.62 | Straight | 1000VAC | 7 | 2.54 | 3/Contact | 3 A | Receptacles | Through Hole | :100000Mohm | 20 | 0.275" (7.00mm) | 1 kV | :No SVHC (20-Jun-2013) | :2.54mm | :125°C | :-65°C | Blue | Solder | All | Blue | - | - | Vertical | - | - | - | - | 0.100" (2.54mm) | - | :1000V | - | - | - | - | - | :IEC | :Glass Filled Polyester UL94V-0 | :16 | - | - | - | - | - | - | - | - | - | - |
 | 询价 | Socket Strip | 0.100" (2.54mm) | 1 | 8 | Solder | Gold Over Nickel | Rail / Tube | Tube | Thermoplastic | RCP | Phosphor Bronze | Through Hole | Receptacle | Gold | 8 | Lead free / RoHS Compliant | :Dubox | :2.54mm | :8 | :1 | :Through Hole Vertical | 0.0015 | 85366930 | 30µin (0.76µm) | 696 | Board to Board & Mezzanine Connectors | RoHS Compliant | 696 | 696 | 8 | Through Hole | 20.24 | Compliant | 2.54 | Straight | 1000VAC | 7 | 2.54 | 3/Contact | :3A | Receptacles | SMD | :100000Mohm | 20 | 0.275" (7.00mm) | - | :No SVHC (20-Jun-2013) | :2.54mm | :125°C | :-65°C | Blue | Solder | All | Blue | - | - | - | - | - | - | - | - | - | :1000V | - | - | - | - | - | :IEC | :Glass Filled Polyester UL94V-0 | :8 | - | - | - | - | - | - | - | - | - | - |
 | 询价 | Unshrouded Header | 2.54 mm | 2 | 40 | Solder | Gold Over Nickel | Bulk | Bag | Thermoplastic | HDR | Phosphor Bronze | Surface Mount | Header, Unshrouded | Gold or Gold, GXT™ | 40 | Contains lead / RoHS non-compliant | BergStik | :2.54mm | :20 | :2 | :Surface Mount Vertical | 0.002 | 85369010 | 15µin (0.38µm) | 600 | Headers & Wire Housings | No | - | - | - | Surface Mount | 50.8 | Compliant | 4.83 | Straight | 1500VAC | 9.65 | 2.54 | 3/Contact | 3 A | Headers | SMD | 5000 MOhms | - | - | 1.5 kV | - | - | - | - | Black | Solder | All | Black | - | - | - | - | - | - | - | 0.100" (2.54mm) | Male Pin | - | - | - | Pin (Male) | - | - | - | - | - | - | - | 0.230" (5.84mm) | 5.84 mm | - | - | - | - | - | - |
| 询价 | Socket Strip | 0.100" (2.54mm) | 1 | 12 | Solder | Gold Over Nickel | Rail / Tube | Tube | Thermoplastic | RCP | Phosphor Bronze | Through Hole | Receptacle | Gold | 12 | Lead free / RoHS Compliant | :Dubox | :2.54mm | :12 | :1 | :Through Hole Vertical | 0.0022 | 85369010 | 30µin (0.76µm) | 456 | Board to Board & Mezzanine Connectors | RoHS Compliant | 456 | 456 | 12 | Through Hole | 30.4 | Compliant | 2.54 | Straight | 1000VAC | 7 | 2.54 | 3/Contact | :3A | Receptacles | - | :100000Mohm | 20 | 0.275" (7.00mm) | - | :No SVHC (20-Jun-2013) | :2.54mm | :125°C | :-65°C | Blue | Solder | All | Blue | - | - | - | - | - | - | - | - | - | :1000V | - | - | - | - | - | :IEC | :Glass Filled Polyester UL94V-0 | :12 | - | - | - | - | - | - | - | - | - | - |
 | 询价 | High Density | 1.27 mm | 10 | 300 | Solder | Gold Over Nickel | Tape & Reel | Tape and Reel | Liquid Crystal Polymer | PL | Copper Alloy | Surface Mount | Array, Male Pins | Gold | 300 | Lead free / RoHS Compliant | MEG-Array | :1.27mm | :300 | :10 | :Surface Mount Vertical | 0.0024 | 85369010 | 30µin (0.76µm) | 250 | Board to Board & Mezzanine Connectors | RoHS Compliant | 250 | 250 | 300 | Through Hole | 44.1 | Compliant | 17.34 | Straight | 200VAC | 3.35 | 1.27 | 0.45/Contact | 450 mA | Plugs | SMD | :1000Mohm | 35 | 0.132" (3.35mm) | 200 V | :No SVHC (20-Jun-2013) | :1.27mm | :85°C | :-40°C | - | - | - | - | 4mm, 5.5mm, 8mm | :1.27mm | - | :44.1mm | :Polyester | :50 | :200V | - | - | - | 609-1095-1 | :17.34mm | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 询价 | High Density | 1.27 mm | 10 | 300 | Solder | Gold Over Nickel | Tape & Reel | Tape and Reel | Liquid Crystal Polymer | PL | Copper Alloy | Surface Mount | Array, Male Pins | Gold | 300 | Lead free / RoHS Compliant | MEG-Array | :1.27mm | :300 | :10 | :Surface Mount Vertical | 0 | 85366910 | - | 250 | Board to Board & Mezzanine Connectors | RoHS Compliant | 250 | 250 | 300 | Through Hole | 44.1 | Compliant | 17.34 | Straight | 200VAC | 3.35 | 1.27 | 0.45/Contact | 450 mA | Plugs | SMD | - | 35 | 0.132" (3.35mm) | 200 V | - | - | - | - | - | - | - | - | 4mm, 5.5mm, 8mm | :1.27mm | - | - | - | - | - | - | - | - | 609-3599-1 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 询价 | Board to Board | 1.27 mm | 10 | 300 | Solder | Gold Over Nickel | Tape & Reel | Tape and Reel | Liquid Crystal Polymer | RCP | Copper Alloy | Surface Mount | Array, Female Sockets | Gold | 300 | Lead free / RoHS Compliant | MEG-Array | :1.27mm | :300 | :10 | :Surface Mount Vertical | 0.0045 | 85369010 | 30µin (0.76µm) | 150 | Board to Board & Mezzanine Connectors | RoHS Compliant | 150 | 150 | 300 | Surface Mount | 42.3 | Compliant | 16.44 | Straight | 200VAC | 7.89 | 1.27 | 0.45/Contact | 450 mA | Receptacles | SMD | :1000Mohm | 35 | 0.289" (7.35mm) | 200 V | :No SVHC (20-Jun-2013) | :1.27mm | :85°C | :-40°C | - | - | - | - | 8mm, 14mm | :1.27mm | - | :44.1mm | :Polyester | :50 | :200V | - | - | - | 609-1099-1 | :17.34mm | - | 8 mm | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 询价 | Board to Board | 1 mm | 2 | 25 | Solder | GXT Over Nickel | Rail / Tube | Tube | Liquid Crystal Polymer | RCP | Copper Alloy | Surface Mount | Receptacle, Outer Shroud Contacts | Gold or Gold, GXT™ | 25 | Lead free / RoHS Compliant | Conan | :1mm | :25 | :2 | :Surface Mount Vertical | 0.000241 | 85369010 | 15µin (0.38µm) | 35 | Board to Board & Mezzanine Connectors | RoHS Compliant | 35 | 770 | 25 | Surface Mount | 17.3 | Compliant | 5.59 | Straight | 500V | 3.28 | 1 | 1/Contact | 1 A | Receptacles | SMD | :1000Mohm | 30 | 0.129" (3.29mm) | 500 V | :No SVHC (20-Jun-2013) | :1mm | :130°C | :-55°C | - | - | - | Natural | 4.15mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, 7.52mm | :2.59mm | Vertical | :3.28mm | :Polyester | :30 | - | - | - | :500V | - | - | - | - | :30mohm | - | - | - | Board Guide, Solder Retention | :UL94V-0 | - | - | - | - | - | :3.28mm | - | - |
 | 询价 | Board to Board | 0.8 mm | 2 | 140 | Solder | Gold Over Nickel | Rail / Tube | Tube | Liquid Crystal Polymer | RCP | Beryllium Copper | Surface Mount | Receptacle, Outer Shroud Contacts | Gold | 140 | Lead free / RoHS Compliant | BergStak | :0.8mm | :140 | :2 | :Surface Mount Vertical | 0.00106 | 85369010 | 8µin (0.20µm) | 175 | Board to Board & Mezzanine Connectors | RoHS Compliant | 175 | 175 | 140 | Surface Mount | 61.8 | Compliant | 6 | Straight | 100VAC | 3.7 | 0.8 | 0.8/Contact | 500 mA | Receptacles | SMD | :1000Mohm | 50 | 0.146" (3.70mm) | - | :No SVHC (20-Jun-2013) | :0.8mm | :85°C | :-40°C | - | - | - | - | 5mm, 6mm, 7mm, 8mm | :2mm | Vertical | :3.7mm | :Polyester | :100 | :100V | - | - | - | - | - | - | - | :30mohm | - | - | - | Board Guide | - | - | - | - | - | - | - | - | - |
| 询价 | Board to Board | 0.8 mm | 2 | 160 | Solder | Gold Over Nickel | Rail / Tube | Tube | Liquid Crystal Polymer | RCP | Beryllium Copper | Surface Mount | Receptacle, Outer Shroud Contacts | Gold | 160 | Lead free / RoHS Compliant | :Bergstak | :0.8mm | :160 | :2 | :Surface Mount Vertical | 0.00371 | 85369010 | 8µin (0.20µm) | 150 | Board to Board & Mezzanine Connectors | RoHS Compliant | 150 | 150 | 160 | Surface Mount | 69.8 | Compliant | 6.8 | Straight | 100VAC | 11.7 | 0.8 | 0.8/Contact | :0.5A | - | - | :1000Mohm | 50 | 0.449" (11.40mm) | - | :No SVHC (20-Jun-2013) | :0.8mm | :85°C | :-40°C | - | - | - | - | 13mm, 14mm, 15mm, 16mm | :2mm | - | :11.7mm | :Polyester | :100 | :100V | - | - | - | - | - | - | - | :30mohm | - | - | - | Board Guide | - | - | - | - | - | - | - | - | - |
 | 询价 | Board to Board | 1.27 mm | 10 | 400 | Solder | Gold Over Nickel | Tape & Reel | Tape & Reel (TR) | Liquid Crystal Polymer (LCP) | PL | Copper Alloy | Surface Mount | Array, Male Pins | Gold | 400 | Lead free / RoHS Compliant | MEG-Array | :1.27mm | :400 | :10 | :Surface Mount Vertical | 0.0069 | 85369010 | 30µin (0.76µm) | 150 | Board to Board & Mezzanine Connectors | RoHS Compliant | 150 | 150 | 400 | - | - | - | - | - | - | - | - | - | 450 mA | Plugs | SMD | :1000Mohm | - | 0.368" (9.35mm) | 200 V | :No SVHC (20-Jun-2013) | :1.27mm | :85°C | :-40°C | - | - | - | - | 10mm, 12mm, 14mm | :1.27mm | - | :56.8mm | :Polyester | :50 | :200V | - | - | - | 609-1101-1 | :17.43mm | - | 6 mm | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 询价 | Socket Strip | 2.54 mm | 2 | 12 | Solder | Gold Over Nickel | Rail / Tube | Tube | Thermoplastic | RCP | Phosphor Bronze | Through Hole | Receptacle, Bottom or Top Entry | Gold | 12 | Lead free / RoHS Compliant | DUBOX | :2.54mm | :12 | :2 | :Through Hole Vertical | 0.0022 | 85369010 | 30µin (0.76µm) | 532 | Board to Board & Mezzanine Connectors | RoHS Compliant | 532 | 532 | 12 | Through Hole | 15.16 | Compliant | 7.62 | Straight | 1000VAC | 7 | 2.54 | 3/Contact | 3 A | Receptacles | Through Hole | :100000Mohm | 20 | 0.275" (7.00mm) | 1 kV | :No SVHC (20-Jun-2013) | :2.54mm | :125°C | :-65°C | Blue | Solder | All | Blue | - | - | Vertical | - | - | - | - | 0.100" (2.54mm) | - | :1000V | - | - | - | - | - | :IEC | :Glass Filled Polyester UL94V-0 | :12 | - | - | - | - | - | - | - | - | - | - |
 | 询价 | Unshrouded Header | 2.54 mm | 2 | 72 | Solder | Gold Over Nickel|GXT Over Nickel | Bulk | Bulk | Thermoplastic | HDR | Phosphor Bronze | Through Hole | Header, Unshrouded | Gold or Gold, GXT™ | 72 | Lead free / RoHS Compliant | BergStik | :2.54mm | :72 | :2 | :Through Hole Vertical | 0 | 85366930 | 30µin (0.76µm) | 100 | Headers & Wire Housings | RoHS Compliant | 100 | 100 | 72 | - | - | - | - | - | - | - | - | - | 3 A | Headers | Through Hole | 5000 MOhms | - | - | 1.5 kV | - | - | - | - | Black | Solder | All | - | - | - | Vertical | - | - | - | - | 0.100" (2.54mm) | Male Pin | - | - | - | Pin (Male) | - | - | - | - | - | - | - | 0.230" (5.84mm) | 5.84 mm | - | - | - | - | 2.41 mm | - |
 | 询价 | Socket Strip | 2 mm | 2 | 34 | Solder | Gold Over Nickel | Rail / Tube | Tube | Polychlorinated Terphenyl | SKT | Phosphor Bronze | Through Hole | Receptacle | Gold | 34 | Lead free / RoHS Compliant | :Minitek | :2mm | :34 | :2 | :Through Hole Vertical | 0.00113 | 85369010 | 30µin (0.76µm) | - | - | - | 1000 | 1000 | - | Through Hole | 34.8 | Compliant | 4.2 | Straight | 200VDC|200VAC | 4.5 | 2 | 1/Contact | - | - | - | - | - | - | - | - | - | - | - | Black | Solder | All | Black | - | - | - | - | - | - | - | 0.079" (2.00mm) | Female Socket | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 询价 | Socket Strip | 2.54 mm | 2 | 10 | Solder | Gold Over Nickel | Rail / Tube | Tube | Polyester | SKT | Brass | Through Hole | Receptacle | Gold | 10 | Lead free / RoHS Compliant | BergCon | :2.54mm | :10 | :2 | :Through Hole Vertical | 0.00136 | 85369010 | 30µin (0.76µm) | 1150 | Headers & Wire Housings | RoHS Compliant | 1150 | 1150 | 10 | Through Hole | 12.7 | Compliant | 6.1 | Straight | 1250VAC | 8.25 | 2.54 | 3/Contact | - | Receptacles / Sockets - PCB | Through Hole | - | 15 | - | - | - | - | - | - | Black | Solder | All | Black | - | - | Vertical | - | - | - | - | 0.100" (2.54mm) | Female Socket | - | - | - | Socket (Female) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 询价 | Socket Strip | 2.54 mm | 2 | 14 | Solder | Gold Over Nickel | Rail / Tube | Tube | Polyester | SKT | Brass | Through Hole | Receptacle | Gold | 14 | Lead free / RoHS Compliant | BergCon | :2.54mm | :14 | :2 | :Through Hole Vertical | 0.00181 | 85366910 | 30µin (0.76µm) | 825 | Headers & Wire Housings | RoHS Compliant | 825 | 825 | 14 | Through Hole | 17.78 | Compliant | 6.1 | Straight | 1250VAC | 8.25 | 2.54 | 3/Contact | - | Receptacles / Sockets - PCB | Through Hole | - | 15 | - | - | - | - | - | - | Black | Solder | All | Black | - | - | Vertical | - | - | - | - | 0.100" (2.54mm) | Female Socket | - | - | - | Socket (Female) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | :Yes |
第 1 / 15 页
