Everlight Electronics Co., Ltd.- 光纤收发器

亿光电子工业股份有限公司(Everlight Electronics Co., Ltd.)于1983年成立于台湾台北，总部设在新北市树林区。公司是全球LED产业的领导厂商之一，拥有超过5,600名员工，专注于认证、研发、制造、质量管理、营销及全球客户服务。亿光的产品线包括表面贴装(SMD)LED（如0603、0805、1206等封装）、插件式LED、高功率LED、红外线发射与接收元件、光耦合器、环境光感测器以及LED照明模块。在汽车领域，公司提供符合AEC-Q102标准的车规级LED，适用于车内照明和外部灯光。此外，还开发了接近感测器和手势识别模组等先进光电传感器。亿光在台湾（土城、苑里）和中国大陆（苏州、广州）设有制造工厂，并于日本、韩国、新加坡、印度、德国、美国等地设立销售据点，实现快速全球供货。其产品广泛应用于消费电子、汽车电子、工业控制及通用照明等市场。凭借出色的品质管控和即时服务，亿光在光电器件领域赢得了高度信赖。持续的研发投入和多项封装专利使公司始终保持技术领先地位。

光纤收发器 - 型号列表

共 35 个型号

制造商零件编号	库存	价格	产品类别	RoHS	波长	供电电压	安装样式	产品	峰值波长	包装方式	连接器类型	光纤类型	工作温度	数据速率	安装类型	标准包装数量	欧盟RoHS	抖动	额定电压	数据速率（最大）	最小供电电压	位数	类型	印刷电路板数量	宽度	总长度	外壳尺寸-插件	系列	调制电流	上升时间（典型）	最大传播延迟 @ V, 最大CL	其他规格	工厂包装数量	机械寿命
PLR135/T5P RX Optical Fiber 16Mbps 3-Pin Fiber Optic Transmitters, Receivers, Transceivers Photo Link RECEIVER FIBER OPT IR PHOTOLINK everlight electronics	67	1: ¥13.26	Fiber Optic Transmitters, Receivers, Transceivers	RoHS Compliant	650 nm	2.4 to 5.5 V	Through Hole	Receiver Modules	650 nm	Bulk	No Connector	Plastic Fiber	+ 70 C	16 MBd	Snap in	Bulk	Compliant	5 ns	2.4	16Mbps	5.5	3	RX	3	13.9	12	19	*	4 mA	20 ns	20	-	-	-
PLR155 RX Optical Fiber 16Mbps 3-Pin Fiber Optic Transmitters, Receivers, Transceivers Photo Link RECEIVER FIBER OPT IR PHOTOLINK everlight electronics	10	1430: ¥3.468	Fiber Optic Transmitters, Receivers, Transceivers	RoHS Compliant	650 nm	2.4 to 5.5 V	Through Hole	Receivers	650 nm	Bulk	No Connector	Plastic Fiber	+ 70 C	16 MBd	Through Hole	Bulk	Compliant	5 ns	2.4	16Mbps	5.5	3	RX	3	2.2	5.7	4.95	*	4 mA	20 ns	20	-	-	-
PLT133/T5H PHOTOLINK- FIBER OPTIC TRANSMITTER Fiber Optic Transmitters, Receivers, Transceivers Photo Link TX Optical Fiber 16Mbps 3-Pin Tube TRANSMITTER FBR OPT IR PHOTOLINK everlight electronics	10	1450: ¥3.1348	Fiber Optic Transmitters, Receivers, Transceivers	RoHS Compliant	660 nm	3 V to 5 V	Through Hole	Transmitter Modules	660 nm	Bulk	No Connector	Plastic Fiber	+ 70 C	16 MBd	Snap in	Bulk	Compliant	20(Max)	2.75\|4.75	16Mbps	3.25\|5.25	3	TX	3	13.5	12.3	19.5	*	-	-	-	LED	-	-
PLR135/T1 RX Optical Fiber 16Mbps 3-Pin Fiber Optic Transmitters, Receivers, Transceivers Photo Link RECEIVER FIBER OPT IR PHOTOLINK everlight electronics	10	1460: ¥4.9776	Fiber Optic Transmitters, Receivers, Transceivers	RoHS Compliant	650 nm	2.4 to 5.5 V	Through Hole	Receiver Modules	650 nm	Bulk	No Connector	Plastic Fiber	+ 70 C	16 MBd	Snap in	Bulk	Compliant	5 ns	2.4	16Mbps	5.5	3	RX	3	13.6	11.5	11.5	*	4 mA	20 ns	20	-	-	-
PLT133/T6 TX Optical Fiber 16Mbps 5-Pin Fiber Optic Transmitters, Receivers, Transceivers Photo Link TRANSMITTER FBR OPT IR PHOTOLINK everlight electronics	10	1450: ¥2.618	Fiber Optic Transmitters, Receivers, Transceivers	RoHS Compliant	660 nm	2.75 to 3.25\|4.75 to 5.25 V	Through Hole	Transmitter Modules	660 nm	Bulk	No Connector	Plastic Fiber	+ 70 C	16 MBd	Through Hole	Bulk	Compliant	20(Max) ns	2.75\|4.75	16Mbps	3.25\|5.25	5	TX	5	13.5	9.7	12	*	5.5 mA	-	-	LED	-	-
PLT133/T8 TX Optical Fiber 16Mbps 5-Pin Fiber Optic Transmitters, Receivers, Transceivers Photo Link TRANSMITTER FBR OPT IR PHOTOLINK everlight electronics	913	1: ¥9.588	Fiber Optic Transmitters, Receivers, Transceivers	RoHS Compliant	660 nm	2.75 to 3.25\|4.75 to 5.25 V	Through Hole	Transmitter Modules	660 nm	Bulk	No Connector	Plastic Fiber	+ 70 C	16 MBd	Snap in	Bulk	Compliant	20(Max) ns	2.75\|4.75	16Mbps	3.25\|5.25	5	TX	5	13.5	-	10	*	5.5 mA	-	-	LED	-	-
PLT153/K5H PHOTOLINK- FIBER OPTIC TRANSMITTER Fiber Optic Transmitters, Receivers, Transceivers Photo Link RECEIVER FIBER OPT IR PHOTOLINK everlight electronics	10	1450: ¥3.3932	Fiber Optic Transmitters, Receivers, Transceivers	RoHS Compliant	660 nm	3 V to 5 V	Through Hole	Transmitters	660 nm	-	No Connector	Plastic Fiber	+ 70 C	-	Through Hole	Bulk	-	-	-	-	-	-	-	-	-	-	-	*	-	-	-	-	-	-
EL-PLR131 Fiber Optic Transmitters, Receivers, Transceivers Photolink Rec Unit Everlight	-		Fiber Optic Transmitters, Receivers, Transceivers	RoHS Compliant	650 nm	5 V	Through Hole	-	-	Bulk	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	250	Obsolete
EL-PLT131/6 Fiber Optic Transmitters, Receivers, Transceivers Photolink Light Tran Everlight	82	960: ¥3.536	Fiber Optic Transmitters, Receivers, Transceivers	RoHS Compliant	660 nm	3 V to 5 V	Through Hole	Transmitters	660 nm	Bulk	No Connector	Plastic Fiber	+ 70 C	12 MBd	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	250	-
EL-PLT131/12 Fiber Optic Transmitters, Receivers, Transceivers Photolink Light Tran Everlight	121	1450: ¥2.9172	Fiber Optic Transmitters, Receivers, Transceivers	RoHS Compliant	660 nm	3 V to 5 V	Through Hole	Transmitters	660 nm	Bulk	No Connector	Plastic Fiber	+ 70 C	12 MBd	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	250	-
EL-PLT131/8 Fiber Optic Transmitters, Receivers, Transceivers Photolink Light Tran Everlight	175	1450: ¥2.516	Fiber Optic Transmitters, Receivers, Transceivers	RoHS Compliant	660 nm	3 V to 5 V	Through Hole	Transmitters	660 nm	Bulk	No Connector	Plastic Fiber	+ 70 C	12 MBd	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	250	-
PLT133 Fiber Optic Transmitters, Receivers, Transceivers Photo Link TX Optical Fiber 16Mbps 3-Pin TRANSMITTER FBR OPT IR PHOTOLINK Everlight	10	1: ¥3.944	Fiber Optic Transmitters, Receivers, Transceivers	RoHS Compliant	660 nm	3 V to 5 V	Through Hole	Transmitters	660 nm	Bulk	No Connector	Plastic Fiber	+ 70 C	16 MBd	Through Hole	500	Compliant	20(Max)	2.75\|4.75	16Mbps	3.25\|5.25	3	TX	3	2.2	7.5	3	*	-	-	-	LED	-	-
PLT252 Fiber Optic Transmitters, Receivers, Transceivers Photo Link TX Optical Fiber 25Mbps 3-Pin Everlight	10	3500: ¥0.5508	Fiber Optic Transmitters, Receivers, Transceivers	RoHS Compliant	660 nm	3 V to 5 V	Through Hole	Transmitters	660 nm	Bulk	No Connector	Plastic Fiber	+ 70 C	-	Through Hole	-	Compliant	15(Max)	2.75\|4.75	25Mbps	3.25\|5.25	3	TX	3	2.2	5.7	4.95	-	-	-	-	-	-	-
PLR135 Fiber Optic Transmitters, Receivers, Transceivers Photo Link RX Optical Fiber 16Mbps 3-Pin RECEIVER FIBER OPT IR PHOTOLINK Everlight	958	1: ¥10.20	Fiber Optic Transmitters, Receivers, Transceivers	RoHS Compliant	650 nm	2.4 V to 5.5 V	Through Hole	Receivers	650 nm	Bulk	No Connector	Plastic Fiber	+ 70 C	16 MBd	Through Hole	500	Compliant	5	2.4	16Mbps	5.5	3	RX	3	2.2	7.5	3	*	-	20	20	-	-	-
PLT132 Fiber Optic Transmitters, Receivers, Transceivers Photo Link TX Optical Fiber 16Mbps 3-Pin RECEIVER FIBER OPT IR PHOTOLINK Everlight	10	1000: ¥2.21	Fiber Optic Transmitters, Receivers, Transceivers	RoHS Compliant	660 nm	3 V to 5 V	Through Hole	Transmitters	660 nm	Bulk	No Connector	Plastic Fiber	+ 70 C	16 MBd	Through Hole	500	Compliant	20(Max)	2.75\|4.75	16Mbps	3.25\|5.25	3	TX	3	2.2	7.5	3	*	-	20	20	LED	-	-
PLR135/T8 RX Optical Fiber 16Mbps 5-Pin Fiber Optic Transmitters, Receivers, Transceivers Photo Link RECEIVER FIBER OPT IR PHOTOLINK everlight electronics	40	1: ¥13.804	Fiber Optic Transmitters, Receivers, Transceivers	RoHS Compliant	650 nm	2.4 to 5.5 V	Through Hole	Receiver Modules	650 nm	Bulk	No Connector	Plastic Fiber	+ 70 C	16 MBd	Snap in	Bulk	Compliant	5 ns	2.4	16Mbps	5.5	5	RX	5	13.5	9.7	10	*	4 mA	20 ns	20	-	-	-
PLT232 TX Optical Fiber 25Mbps 3-Pin Fiber Optic Transmitters, Receivers, Transceivers Photo Link everlight electronics	10	3080: ¥4.42	Fiber Optic Transmitters, Receivers, Transceivers	RoHS Compliant	660 nm	2.75 to 3.25\|4.75 to 5.25 V	Through Hole	Transmitters	660 nm	Bulk	No Connector	Plastic Fiber	+ 70 C	25 MBd	Through Hole	Bulk	Compliant	15(Max) ns	2.75\|4.75	25Mbps	3.25\|5.25	3	TX	3	2.2	7.5	3	-	5.5 mA	-	-	-	-	-
PLT133/T5A TX Optical Fiber 16Mbps 3-Pin Fiber Optic Transmitters, Receivers, Transceivers Photo Link TRANSMITTER FBR OPT IR PHOTOLINK everlight electronics	10	1450: ¥3.0872	Fiber Optic Transmitters, Receivers, Transceivers	RoHS Compliant	660 nm	2.75 to 3.25\|4.75 to 5.25 V	Through Hole	Transmitter Modules	660 nm	Bulk	No Connector	Plastic Fiber	+ 70 C	16 MBd	Snap in	Bulk	Compliant	20(Max) ns	2.75\|4.75	16Mbps	3.25\|5.25	3	TX	3	13.5	11.5	19	*	5.5 mA	-	-	LED	-	-

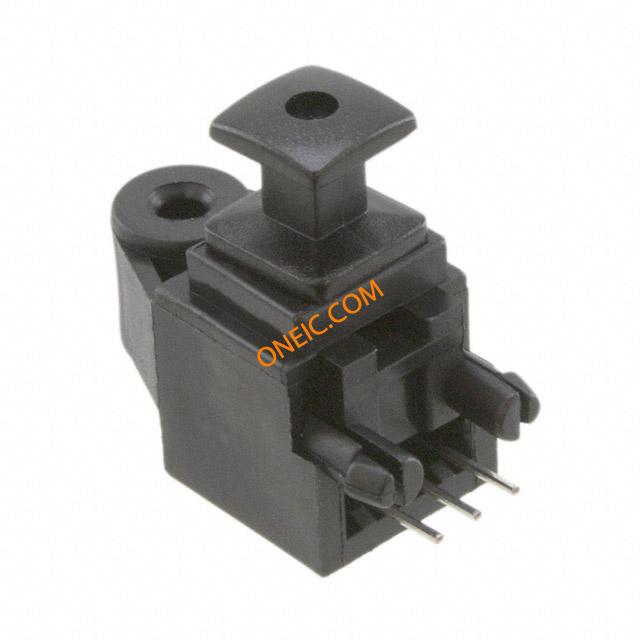

PLR135/T RX Optical Fiber 16Mbps 3-Pin Fiber Optic Transmitters, Receivers, Transceivers Photo Link RECEIVER FIBER OPT IR PHOTOLINK everlight electronics	1239	1: ¥12.24	Fiber Optic Transmitters, Receivers, Transceivers	RoHS Compliant	650 nm	2.4 to 5.5 V	Through Hole	Receiver Modules	650 nm	Bulk	No Connector	Plastic Fiber	+ 70 C	16 MBd	Snap in	Bulk	Compliant	5 ns	2.4	16Mbps	5.5	3	RX	3	11.5	8	19.5	*	4 mA	20 ns	20	-	-	-

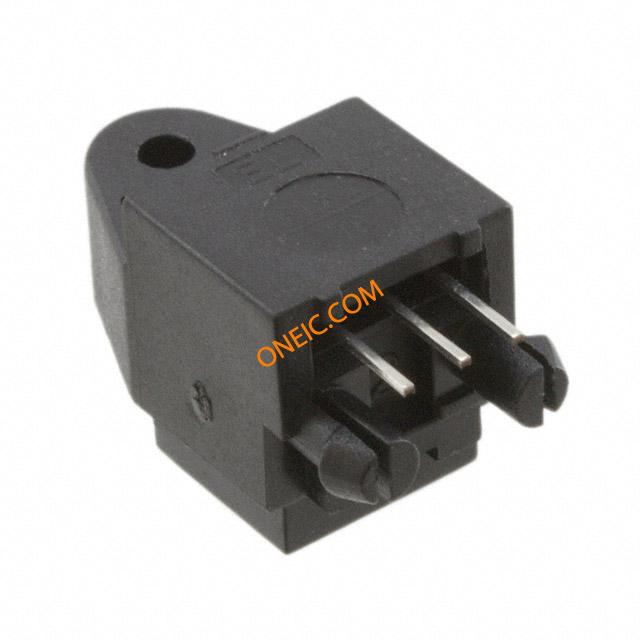

PLR135/T9 RX Optical Fiber 16Mbps 3-Pin Fiber Optic Transmitters, Receivers, Transceivers Photo Link RECEIVER FIBER OPT IR PHOTOLINK everlight electronics	1344	1: ¥13.60	Fiber Optic Transmitters, Receivers, Transceivers	RoHS Compliant	650 nm	2.4 to 5.5 V	Through Hole	Receiver Modules	650 nm	Bulk	No Connector	Plastic Fiber	+ 70 C	16 MBd	Snap in	Bulk	Compliant	5 ns	2.4	16Mbps	5.5	3	RX	3	-	11.5	-	*	4 mA	20 ns	20	-	-	-

第 1 / 2 页
