TDK Electronics AG，前身为爱普科斯（EPCOS AG），是全球领先的电子元件、模块和系统制造商，总部位于德国慕尼黑。公司最初于1989年由西门子和松下合资成立，后独立为EPCOS AG，并于2008年被日本TDK株式会社收购。如今，EPCOS作为TDK Electronics AG的产品品牌，专注于电容器、电感器和声表面波（SAW）滤波器等无源电子元件。公司提供超过40,000种产品，包括铝电解电容器、薄膜电容器、多层陶瓷电容器（MLCC）、铁氧体与电感器，以及用于频率控制和滤波的SAW组件。这些元件广泛应用于汽车电子、工业电子、信息与通信技术以及消费电子等关键领域。TDK Electronics AG以先进的陶瓷技术闻名，在小型化、可靠性和环境耐受性方面提供了高性能解决方案。公司拥有全球制造和销售网络，生产基地遍布欧洲、亚洲和美洲。作为世界最大电子元件制造商之一的TDK集团成员，EPCOS品牌受益于强大的研发资源和广泛的应用覆盖。其元件被广泛用于动力总成系统、高级驾驶辅助系统（ADAS）、可再生能源逆变器和5G基站，成为一级汽车与工业原始设备制造商的首选供应商。凭借在创新和品质方面的深厚积淀，TDK Electronics AG通过材料科学和制造精度的进步，持续塑造无源元件的未来。

可变电感器 - 型号列表

共 39 个型号

制造商零件编号	库存	价格	电感量	测试频率	电感量范围	自谐振频率	包装方式	容差	深度	高度	类型	直流电阻（DCR）	最大额定电流	封装形式	SVHC	海关税号	量程（°/s）	额定直流电流	直流电阻（DCR）（最大）	重量	总体尺寸	品质因数 @ 频率	抗辐射加固	军用标准	阻抗	直流正向电流（If）（最大）	直径	引脚样式	引脚间距	磁芯材料	总长度	技术	失效率	卷盘容量	引脚数	核心类型	系列	标准包装数量	25°C时电阻（典型）	串联饱和电流	长度	模制	屏蔽	安装类型	磁芯材质	尺寸/外形	安装高度（最大）	功能	工作温度
B82464P4102M SMT-INDUCTOR 10X10 1UH POWERSMT-INDUCTOR10X10 EPCOS B82464P4 系列屏蔽铁氧体芯材绕线贴片电感器, 1 μH ±20%, 7.5A Idc EPCOS Inc	94	3: ¥8.02	1µH	100kHz	1 μH	0.1MHz	Tape & Reel (TR)	±20%	10.4mm	4.8mm	Wirewound	7 mOhm Max	7.5A	Non Standard	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	线绕	B82464P4	750	7mΩ	10A	10.4mm	是	Shielded	Surface Mount	Ferrite	0.409" L x 0.409" W (10.40mm x 10.40mm)	0.189" (4.80mm)	Y	+150°C
B82464P4154M SMT-INDUCTOR 10*10 150UH POWERSMT-INDUCTOR10X10 EPCOS B82464P4 系列屏蔽铁氧体芯材绕线贴片电感器, 150 μH ±20%, 850mA Idc EPCOS Inc	600	5: ¥14.28	150µH	100kHz	150 μH	0.1MHz	Tape & Reel (TR)	±20%	10.4mm	4.8mm	Wirewound	320 mOhm Max	850mA	Non Standard	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	线绕	B82464P4	750	320mΩ	900mA	10.4mm	是	Shielded	Surface Mount	Ferrite	0.409" L x 0.409" W (10.40mm x 10.40mm)	0.189" (4.80mm)	Y	+150°C

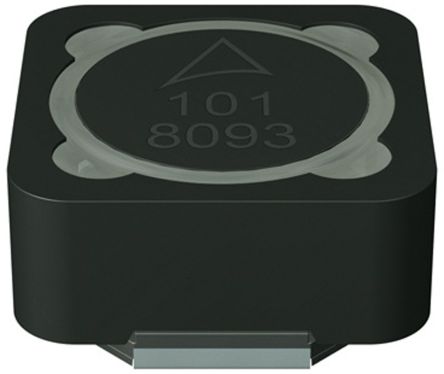

B82464P4684M SMT-INDUCTOR 10*10 680UH POWERSMT-INDUCTOR10X10 EPCOS B82464P4 系列屏蔽铁氧体芯材绕线贴片电感器, 680 μH ±20%, 420mA Idc EPCOS Inc	600	16: ¥10.7304	680µH	100kHz	680 μH	0.1MHz	Tape & Reel (TR)	±20%	10.4mm	4.8mm	Wirewound	1.3 Ohm Max	420mA	Non Standard	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	线绕	B82464P4	750	1.3Ω	460mA	10.4mm	是	Shielded	Surface Mount	Ferrite	0.409" L x 0.409" W (10.40mm x 10.40mm)	0.189" (4.80mm)	Y	+150°C
B82111B0000C019 VHF Choke Wirewound 13uH 20% 100KHz Ferrite 3A 24mOhm DCR AXL Bulk INDUCTOR, AXIAL, 13UH, 3A EPCOS	1416	1: ¥11.968	13 uH	0.1 MHz	:± 20%	170 MHz	Bulk	20%	Not Required mm	Not Required mm	Choke	-	-	-	:No SVHC (20-Jun-2013)	85045095	:EPCOS - B82111B Series	:3A	:0.024ohm	0.003	:6.5mm x 29mm	-	No	Not Required	Not Required ohm	3000 mA	6.5 mm	Axial	Not Required mm	Ferrite	29 mm	Wirewound	Not Required	-	-	:VHF Choke	-	-	-	-	-	-	-	-	-	-	-	-	-
2 B82145A1105J000 RF Choke Bobbin Core 1mH 5% 100KHz 60Q-Factor Ferrite 370mA 3.6Ohm DCR AXL T/R INDUCTOR, AXIAL, 1000UH, 0.37A EPCOS HLBC 系列 1 mH ±5% 铁氧体引线型电感器, 1.3MHz最大自谐振频率, 60最小质量系数, 370mA Idc, 3.6Ω Rdc EPCOS	3750	1250: ¥2.1643	1000 uH	0.1 MHz	:± 5%	1.3 MHz	Tape and Reel	5%	Not Required mm	Not Required mm	RF Choke	3.6 ohm	-	-	:No SVHC (20-Jun-2013)	85045095	:EPCOS - B82145A HLBC Series	:370mA	:3.6ohm	0.002	:6.5mm x 12mm	60	No	Not Required	Not Required ohm	370 mA	6.5 mm	Axial	Not Required mm	Ferrite	14.8 mm	Bobbin Core	Not Required	-	-	:RF Choke	:HLBC	-	-	-	-	-	-	-	-	-	-	-	-
2 B82145A1155J000 RF Choke Bobbin Core 1.5mH 5% 100KHz 60Q-Factor Ferrite 300mA 5.4Ohm DCR AXL T/R INDUCTOR, AXIAL, 1500UH, 0.3A EPCOS HLBC 系列 1.5 mH ±5% 铁氧体引线型电感器, 1MHz最大自谐振频率, 60最小质量系数, 300mA Idc, 5.4Ω Rdc EPCOS	12500	2500: ¥1.787	1500 uH	0.1 MHz	:± 5%	1 MHz	Tape and Reel	5%	Not Required mm	Not Required mm	RF Choke	5.4 ohm	-	-	:No SVHC (20-Jun-2013)	85045095	:EPCOS - B82145A HLBC Series	:300mA	:5.4ohm	0.002	:6.5mm x 12mm	60	No	Not Required	Not Required ohm	300 mA	6.5 mm	Axial	Not Required mm	Ferrite	14.8 mm	Bobbin Core	Not Required	-	-	:RF Choke	:HLBC	-	-	-	-	-	-	-	-	-	-	-	-
2 B78108S1102K000 RF Choke Bobbin Core 1uH 10% 1MHz 55Q-Factor Ferrite 1.2A 160mOhm DCR AXL T/R INDUCTOR, 1UH, 1200MA, 10%, FULL REEL EPCOS BC 系列 1 μH ±10% 铁氧体引线型电感器, 205MHz最大自谐振频率, 55最小质量系数, 1.2A Idc, 160mΩ Rdc EPCOS	4796	10: ¥1.547	1 uH	1 MHz	:± 10%	205 MHz	Tape and Reel	10%	Not Required mm	Not Required mm	RF Choke	0.16 ohm	:1.2A	:Axial Leaded	:No SVHC (20-Jun-2013)	85045095	:EPCOS - B78108S BC Series	:1.2A	:0.16ohm	0.00038	:4mm x 9.2mm	55	No	Not Required	Not Required ohm	1200 mA	4 mm	Axial	Not Required mm	Ferrite	11.5 mm	Bobbin Core	Not Required	:5000	:2	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 B78108S1103K000 RF Choke Bobbin Core 10uH 10% 1MHz 70Q-Factor Ferrite 680mA 490mOhm DCR AXL T/R INDUCTOR, 10UH, 680MA, 10%, FULL REEL EPCOS BC 系列 10 μH ±10% 铁氧体引线型电感器, 35MHz最大自谐振频率, 70最小质量系数, 680mA Idc, 490mΩ Rdc EPCOS	5000	5000: ¥0.8882	10 uH	1 MHz	:± 10%	35 MHz	Tape and Reel	10%	Not Required mm	Not Required mm	RF Choke	0.49 ohm	:680mA	:Axial Leaded	:No SVHC (20-Jun-2013)	85045095	:EPCOS - B78108S BC Series	:680mA	:0.49ohm	0.0004	:4mm x 9.2mm	70	No	Not Required	Not Required ohm	680 mA	4 mm	Axial	Not Required mm	Ferrite	11.5 mm	Bobbin Core	Not Required	:5000	:2	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 B78108S1104J000 RF Choke Bobbin Core 100uH 5% 100KHz 70Q-Factor Ferrite 370mA 1.7Ohm DCR AXL T/R INDUCTOR, 100UH, 370MA, 5%, FULL REEL EPCOS BC 系列 100 μH ±5% 铁氧体引线型电感器, 5MHz最大自谐振频率, 70最小质量系数, 370mA Idc, 1.7Ω Rdc EPCOS	520	143: ¥0.476	100 uH	0.1 MHz	:± 5%	5 MHz	Tape and Reel	5%	Not Required mm	Not Required mm	RF Choke	1.7 ohm	:370mA	:Axial Leaded	:No SVHC (20-Jun-2013)	85045095	:EPCOS - B78108S BC Series	:370mA	:1.7ohm	0.00039	:4mm x 9.2mm	70	No	Not Required	Not Required ohm	370 mA	4 mm	Axial	Not Required mm	Ferrite	11.5 mm	Bobbin Core	Not Required	:5000	:2	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 B78108S1105J000 Ind RF Choke Bobbin Core 1mH 5% 100KHz 50Q-Factor Ferrite 130mA AXL Ammo Pack/T/R INDUCTOR, 1MH, 130MA, 5%, FULL REEL EPCOS BC 系列 1 mH ±5% 铁氧体引线型电感器, 1.6MHz最大自谐振频率, 50最小质量系数, 130mA Idc, 14Ω Rdc EPCOS	55000	5000: ¥0.7439	:1mH	:252kHz	:± 5%	:1.6MHz	:Tape & Reel	-	-	-	-	-	:130mA	:Axial Leaded	:No SVHC (20-Jun-2013)	85045095	:EPCOS - B78108S BC Series	:130mA	:14ohm	0.00039	:4mm x 9.2mm	:50	-	-	-	-	-	-	-	-	-	-	-	:5000	:2	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 B78108S1153K000 RF Choke Bobbin Core 15uH 10% 100KHz 60Q-Factor Ferrite 610mA 600mOhm DCR AXL T/R INDUCTOR, 15UH, 610MA, 10%, FULL REEL Inductor, axial 15 uH 610 mA, B78108S1153K000, EPCOS EPCOS BC 系列 15 μH ±10% 铁氧体引线型电感器, 20MHz最大自谐振频率, 60最小质量系数, 610mA Idc, 600mΩ Rdc EPCOS	30000	5000: ¥0.7553	15 uH	0.1 MHz	:± 10%	20 MHz	Tape and Reel	10%	Not Required mm	Not Required mm	RF Choke	0.6 ohm	:610mA	:Axial Leaded	:No SVHC (20-Jun-2013)	85045095	:EPCOS - B78108S BC Series	:610mA	:0.6ohm	0.00038	:4mm x 9.2mm	60	No	Not Required	Not Required ohm	610 mA	4 mm	Axial	Not Required mm	Ferrite	11.5 mm	Bobbin Core	Not Required	:5000	:2	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 B78108S1154J000 RF Choke Bobbin Core 150uH 5% 100KHz 70Q-Factor Ferrite 280mA 2.8Ohm DCR AXL T/R INDUCTOR, 150UH, 280MA, 5%, FULL REEL Inductor, axial 150 uH 280 mA, B78108S1154J000, EPCOS EPCOS	4568	10: ¥1.7017	150 uH	0.1 MHz	:± 5%	4.2 MHz	Tape and Reel	5%	Not Required mm	Not Required mm	RF Choke	2.8 ohm	:280mA	:Axial Leaded	:No SVHC (20-Jun-2013)	85045095	:EPCOS - B78108S BC Series	:280mA	:2.8ohm	0.00039	:4mm x 9.2mm	70	No	Not Required	Not Required ohm	280 mA	4 mm	Axial	Not Required mm	Ferrite	11.5 mm	Bobbin Core	Not Required	:5000	:2	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 B78108S1222K000 Ind RF Choke Bobbin Core 2.2uH 10% 1MHz 55Q-Factor Ferrite 1A AXL Ammo Pack/T/R INDUCTOR, 2.2UH, 1000MA, 10%, FULL REEL Inductor, axial 2.2 uH 1000 mA, B78108S1222K000, EPCOS EPCOS BC 系列 2.2 μH ±10% 铁氧体引线型电感器, 140MHz最大自谐振频率, 55最小质量系数, 1A Idc, 250mΩ Rdc EPCOS	2511	10: ¥1.6198	:2.2µH	:7.96MHz	:± 10%	:140MHz	:Tape & Reel	-	-	-	-	-	:1A	:Axial Leaded	:No SVHC (20-Jun-2013)	85045095	:EPCOS - B78108S BC Series	:1A	:0.25ohm	0.0003	:4mm x 9.2mm	:55	-	-	-	-	-	-	-	-	-	-	-	:5000	:2	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 B78108S1223K000 RF Choke Bobbin Core 22uH 10% 100KHz 55Q-Factor Ferrite 560mA 740mOhm DCR AXL T/R INDUCTOR, 22UH, 560MA, 10%, FULL REEL EPCOS BC 系列 22 μH ±10% 铁氧体引线型电感器, 13MHz最大自谐振频率, 55最小质量系数, 560mA Idc, 740mΩ Rdc EPCOS	51	25: ¥1.3974	22 uH	0.1 MHz	:± 10%	13 MHz	Tape and Reel	10%	Not Required mm	Not Required mm	RF Choke	0.74 ohm	:560mA	:Axial Leaded	:No SVHC (20-Jun-2013)	85045095	:EPCOS - B78108S BC Series	:560mA	:0.74ohm	0.007	:4mm x 9.2mm	55	No	Not Required	Not Required ohm	560 mA	4 mm	Axial	Not Required mm	Ferrite	11.5 mm	Bobbin Core	Not Required	:5000	:2	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 B78108S1224J000 RF Choke Bobbin Core 220uH 5% 100KHz 70Q-Factor Ferrite 250mA 3.3Ohm DCR AXL T/R INDUCTOR, 220UH, 250MA, 5%, FULL REEL EPCOS BC 系列 220 μH ±5% 铁氧体引线型电感器, 3.7MHz最大自谐振频率, 70最小质量系数, 250mA Idc, 3.3Ω Rdc EPCOS	5000	5000: ¥1.2831	220 uH	0.1 MHz	:± 5%	3.7 MHz	Tape and Reel	5%	Not Required mm	Not Required mm	RF Choke	3.3 ohm	:250mA	:Axial Leaded	:No SVHC (20-Jun-2013)	85045095	:EPCOS - B78108S BC Series	:250mA	:3.3ohm	0.007	:4mm x 9.2mm	70	No	Not Required	Not Required ohm	250 mA	4 mm	Axial	Not Required mm	Ferrite	11.5 mm	Bobbin Core	Not Required	:5000	:2	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 B78108S1332K000 RF Choke Bobbin Core 3.3uH 10% 1MHz 60Q-Factor Ferrite 900mA 290mOhm DCR AXL T/R INDUCTOR, 3.3UH, 900MA, 10%, FULL REEL Inductor, axial 3.3 uH 900 mA, B78108S1332K000, EPCOS EPCOS BC 系列 3.3 μH ±10% 铁氧体引线型电感器, 115MHz最大自谐振频率, 60最小质量系数, 900mA Idc, 290mΩ Rdc EPCOS	5000	5000: ¥0.7553	3.3 uH	1 MHz	:± 10%	115 MHz	Tape and Reel	10%	Not Required mm	Not Required mm	RF Choke	0.29 ohm	:900mA	:Axial Leaded	:No SVHC (20-Jun-2013)	85045095	:EPCOS - B78108S BC Series	:900mA	:0.29ohm	0.0004	:4mm x 9.2mm	60	No	Not Required	Not Required ohm	900 mA	4 mm	Axial	Not Required mm	Ferrite	11.5 mm	Bobbin Core	Not Required	:5000	:2	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 B78108S1333K000 RF Choke Bobbin Core 33uH 10% 100KHz 55Q-Factor Ferrite 500mA 920mOhm DCR AXL T/R INDUCTOR, 33UH, 500MA, 10%, FULL REEL EPCOS BC 系列 33 μH ±10% 铁氧体引线型电感器, 9MHz最大自谐振频率, 55最小质量系数, 500mA Idc, 920mΩ Rdc EPCOS	3050	10: ¥1.547	33 uH	0.1 MHz	:± 10%	9 MHz	Tape and Reel	10%	Not Required mm	Not Required mm	RF Choke	0.92 ohm	:500mA	:Axial Leaded	:No SVHC (20-Jun-2013)	85045095	:EPCOS - B78108S BC Series	:500mA	:0.92ohm	0.00038	:4mm x 9.2mm	55	No	Not Required	Not Required ohm	500 mA	4 mm	Axial	Not Required mm	Ferrite	11.5 mm	Bobbin Core	Not Required	:5000	:2	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 B78108S1472K000 RF Choke Bobbin Core 4.7uH 10% 1MHz 60Q-Factor Ferrite 820mA 340mOhm DCR AXL T/R INDUCTOR, 4.7UH, 10%, 95MHZ, FULL REEL Inductor, axial 4.7 uH 820 mA, B78108S1472K000, EPCOS EPCOS BC 系列 4.7 μH ±10% 铁氧体引线型电感器, 95MHz最大自谐振频率, 60最小质量系数, 820mA Idc, 340mΩ Rdc EPCOS	3741	10: ¥1.6107	4.7 uH	1 MHz	:± 10%	95 MHz	Tape and Reel	10%	Not Required mm	Not Required mm	RF Choke	0.34 ohm	:820mA	:Axial Leaded	:No SVHC (20-Jun-2013)	85045095	:EPCOS - B78108S BC Series	:820mA	:0.34ohm	0.00038	:4mm x 9.2mm	60	No	Not Required	Not Required ohm	820 mA	4 mm	Axial	Not Required mm	Ferrite	11.5 mm	Bobbin Core	Not Required	:5000	:2	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 B78108S1473J000 RF Choke Bobbin Core 47uH 5% 100KHz 45Q-Factor Ferrite 450mA 1.1Ohm DCR AXL T/R INDUCTOR, 47UH, 450MA, 5%, FULL REEL EPCOS BC 系列 47 μH ±5% 铁氧体引线型电感器, 7.5MHz最大自谐振频率, 45最小质量系数, 450mA Idc, 1.1Ω Rdc EPCOS	7458	10: ¥1.836	47 uH	0.1 MHz	:± 5%	7.5 MHz	Tape and Reel	5%	Not Required mm	Not Required mm	RF Choke	1.1 ohm	:450mA	:Axial Leaded	:No SVHC (20-Jun-2013)	85045095	:EPCOS - B78108S BC Series	:450mA	:1.1ohm	0.00039	:4mm x 9.2mm	45	No	Not Required	Not Required ohm	450 mA	4 mm	Axial	Not Required mm	Ferrite	11.5 mm	Bobbin Core	Not Required	:5000	:2	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 B78108S1474J000 RF Choke Bobbin Core 470uH 5% 100KHz 70Q-Factor Ferrite 170mA 7.9Ohm DCR AXL T/R INDUCTOR, 470UH, 170MA, 5%, FULL REEL EPCOS BC 系列 470 μH ±5% 铁氧体引线型电感器, 2.2MHz最大自谐振频率, 70最小质量系数, 170mA Idc, 7.9Ω Rdc EPCOS	1977	659: ¥1.0309	470 uH	0.1 MHz	:± 5%	2.2 MHz	Tape and Reel	5%	Not Required mm	Not Required mm	RF Choke	7.9 ohm	:170mA	:Axial Leaded	:No SVHC (20-Jun-2013)	85045095	:EPCOS - B78108S BC Series	:170mA	:7.9ohm	0.00039	:4mm x 9.2mm	70	No	Not Required	Not Required ohm	170 mA	4 mm	Axial	Not Required mm	Ferrite	11.5 mm	Bobbin Core	Not Required	:5000	:2	-	-	-	-	-	-	-	-	-	-	-	-	-	-
