Delta Electronics, Inc.- 电源模块
03
电源模块 - 型号列表
共 31 个型号| 制造商零件编号 | 库存 | 价格 | 标准包装数量 | 效率 | 功率（瓦） | 输出电流 | 最小输入电压 | 应用 | 工作温度 | 电源调整率 | 负载调整率 | 供电类型 | 产品特性 | 其他名称 | 认证机构 | 输出数量 | 最大功率（瓦特） | 安装类型 | 尺寸/外形 | 类型 | 重量 | 线缆长度 | 输出连接器 | 连接器 - AC输入 | 外形 | 适用地区 | 输出电流1 | 隔离电压 | 汽车级 | 无铅定义 | 最大电源电流 | 额定输出功率 | 输出电压（最大） | 典型相位噪声 (dBc/Hz) | 输出电压（最小/固定） | 宽度 | 高度 | 长度 | 包装方式 | 封装形式 | 动作时间 | 额定功率 | 交流输入电压 | 输出电流2 | 击穿电压 | 最小负载要求 | 电池供电电压 | 尺寸 | 装配配置 | 纹波 | 开关能量 | 最大额定电流 | RoHS | 输出电流 3 | 输出电压3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 48 | 1: ¥166.192 | 1 | 84.5% | 30W | 12 VDC @ 2.5A | 12V | Commercial | -20°C ~ 75°C | 0.5% | 1% | Switching (Closed Frame) | - | 603-1235 | CB, CE, CSA, EN, IEC, TUV, UL | 1 | 30W | DIN Rail | 3.94" L x 1.26" W x 3.94" H (100.0mm x 32.0mm x 100.0mm) | Standard Product | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 192 | 96: ¥127.50 | 1 | 86% | 60W | 12 VDC @ 5A | 12V | Commercial | -20°C ~ 75°C | 0.5% | 1% | Switching (Closed Frame) | - | 603-1236 | CB, CE, cULus | 1 | 60W | DIN Rail | 4.76" L x 1.26" W x 4.72" H (121.0mm x 32.0mm x 120.0mm) | Standard Product | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 14 | 1: ¥391.204 | 1 | 87.5% | 100W | 12 VDC @ 8.33A | 12V | Commercial | -20°C ~ 75°C | 0.5% | 1% | Switching (Closed Frame) | - | 603-1237 | CB, CE, cULus | 1 | 100W | DIN Rail | 4.76" L x 1.97" W x 4.65" H (121.0mm x 50.0mm x 118.2mm) | Standard Product | - | - | - | - | - | - | 8.33 A | - | NO | RoHS-conform | 63 Hz | 100 W | 14 V | 1 | 11 V | 50 mm | 180.2 mm | 121 mm | BOX | INDIVIDUAL | 300000 hrs | - | - | - | - | - | - | - | - | - | - | 0.42 A | - | - | - |

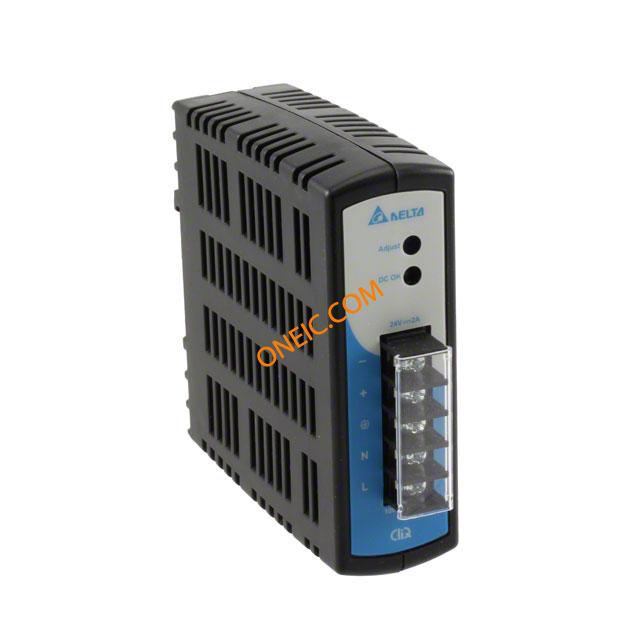

 | 10 | 40: ¥211.0057 | 1 | 87% | 48W | 24 VDC @ 2A | 24V | Commercial | -20°C ~ 70°C | 1% | 1% | Switching (Closed Frame) | Adjustable Output, DC Input Capable, Load Sharing, Universal Input | 1145-1044 | CB, CE, CSA, cULus | 1 | 48W | DIN Rail | 3.96" L x 1.26" W x 3.94" H (100.6mm x 32.0mm x 100.0mm) | Standard Product | - | - | - | - | - | - | - | 4kV (4000V) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Lead free / RoHS Compliant | - | - |
 | 10 | 1: ¥1,082.628 | 1 | 87% | 480W | 24 VDC @ 20A | 24V | Commercial | -20°C ~ 75°C | 0.5% | 1% | Switching (Closed Frame) | - | 603-1233 | CB, CE, cULus | 1 | 480W | DIN Rail | 4.76" L x 6.30" W x 4.67" H (121.0mm x 160.0mm x 118.5mm) | Standard Product | - | - | - | - | - | - | 20 A | - | NO | RoHS-conform | 63 Hz | 480 W | 28 V | 3 | 22 V | 118.5 mm | 160 mm | 121 mm | BOX | INDIVIDUAL | 300000 hrs | - | - | - | - | - | - | - | - | 50 mV | 240 mVpp | - | - | - | - |
| 21 | 1: ¥119.8201 | 1 | 83% | 15W | 12 VDC @ 1.25A | 12V | Commercial | -20°C ~ 75°C | 0.5% | 1% | Switching (Closed Frame) | - | 603-1234 | CB, CE, cULus | 1 | 15W | DIN Rail | 3.94" L x 1.26" W x 3.94" H (100.0mm x 32.0mm x 100.0mm) | Standard Product | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | - | 1 | 86% | 60W | 24 VDC @ 2.5A | 24V | Commercial | -20°C ~ 75°C | 0.5% | 1% | Switching (Closed Frame) | - | 603-1230 | CB, CE, cULus | 1 | 60W | DIN Rail | 4.76" L x 2.76" W x 4.67" H (121.0mm x 70.0mm x 118.5mm) | Standard Product | - | - | - | - | - | - | 2.5 A | - | NO | RoHS-conform | 63 Hz | 60 W | 28 V | 3 | 22 V | 118.5 mm | 70 mm | 121 mm | BOX | INDIVIDUAL | 500000 hrs | - | - | - | - | - | - | - | - | 50 mV | 240 mVpp | - | - | - | - | |
 | - | 14 | Level V | 150W | 6.3A | 24V | Medical | 0°C ~ 40°C | ±0.5% | ±5% | Switching | OCP, OVP | - | - | - | - | - | - | - | 1.6 lbs (725.7g) | 35.4" (0.9m) | 4 Pin DIN | IEC 320-C14 | Desktop (3 Prong without Cord) | International | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| - | 14 | Level V | 150W | 10A | 12V | Medical | 0°C ~ 40°C | ±0.5% | ±5% | Switching | OCP, OVP | - | - | - | - | - | - | - | 1.6 lbs (725.7g) | 35.4" (0.9m) | 4 Pin DIN | IEC 320-C14 | Desktop (3 Prong without Cord) | International | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
 | 19 | 2: ¥291.7091 | 28 | Level V | 60W | 4A | 15V | Medical | 0°C ~ 40°C | ±0.5% | ±5% | Switching | OCP, OVP | - | - | - | - | - | - | - | 0.551 lb (249.93g) | 47" (1.2m) | 4 Pin DIN | IEC 320-C14 | Desktop (3 Prong without Cord) | International | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| - | 28 | Level V | 60W | 2.5A | 24V | Medical | 0°C ~ 40°C | ±0.5% | ±5% | Switching | OCP, OVP | - | - | - | - | - | - | - | 0.551 lb (249.93g) | 47" (1.2m) | 4 Pin DIN | IEC 320-C14 | Desktop (3 Prong without Cord) | International | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
 | - | 20 | Level V | 90W | 3.8A | 24V | Medical | 0°C ~ 40°C | ±0.5% | ±5% | Switching | OCP, OVP | - | - | - | - | - | - | - | 0.728 lb (330.22g) | 47" (1.2m) | 4 Pin DIN | IEC 320-C14 | Desktop (3 Prong without Cord) | International | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| 13 | 3: ¥247.112 | 28 | Level V | 60W | 3.2A | 19V | Medical | 0°C ~ 40°C | ±0.5% | ±5% | Switching | OCP, OVP | - | - | - | - | - | - | - | 0.551 lb (249.93g) | 47" (1.2m) | 4 Pin DIN | IEC 320-C14 | Desktop (3 Prong without Cord) | International | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| - | 28 | Level V | 60W | 5A | 12V | Medical | 0°C ~ 40°C | ±0.5% | ±5% | Switching | OCP, OVP | - | - | - | - | - | - | - | 0.551 lb (249.93g) | 47" (1.2m) | 4 Pin DIN | IEC 320-C14 | Desktop (3 Prong without Cord) | International | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| - | 20 | Level V | 90W | 6A | 15V | Medical | 0°C ~ 40°C | ±0.5% | ±5% | Switching | OCP, OVP | - | - | - | - | - | - | - | 0.728 lb (330.22g) | 47" (1.2m) | 4 Pin DIN | IEC 320-C14 | Desktop (3 Prong without Cord) | International | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| - | 20 | Level V | 90W | 4.7A | 19V | Medical | 0°C ~ 40°C | ±0.5% | ±5% | Switching | OCP, OVP | - | - | - | - | - | - | - | 0.728 lb (330.22g) | 47" (1.2m) | 4 Pin DIN | IEC 320-C14 | Desktop (3 Prong without Cord) | International | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| - | 14 | Level V | 150W | 7.9A | 19V | Medical | 0°C ~ 40°C | ±0.5% | ±5% | Switching | OCP, OVP | - | - | - | - | - | - | - | 1.6 lbs (725.7g) | 35.4" (0.9m) | 4 Pin DIN | IEC 320-C14 | Desktop (3 Prong without Cord) | International | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
 POWER MODULE +12V, -12V, Switching power supply 15 W, AA15D1212C, Delta-Electronics Delta Electronics | 44 | 1: ¥299.88 | 60 | 79% | 15W | 650mA, 650mA | 12V | ITE (Commercial) | -25°C ~ 70°C | - | - | - | Universal Input | 941-1695 | CE | 2 | 15W | Chassis Mount | 2.91" L x 2.13" W x 0.77" H (74.0mm x 54.0mm x 19.5mm) | Enclosed | - | - | - | - | - | - | 0.65 A | 3kV (3000V) | - | - | - | - | - | - | - | - | - | - | - | - | - | 15 | 85...264 VAC | -0.65 A | 3000 VAC | No | 120...370 VDC | 96 x 54 x 23.3 mm | Chassis assembly | - | - | - | - | - | - |
POWER MODULE +15V, -15V, Switching power supply 15 W, AA15D1515C, Delta-Electronics Delta Electronics | 132 | 1: ¥299.88 | 60 | 79% | 15W | 500mA, 500mA | 15V | ITE (Commercial) | -25°C ~ 70°C | - | - | - | Universal Input | 941-1696 | CE | 2 | 15W | Chassis Mount | 2.91" L x 2.13" W x 0.77" H (74.0mm x 54.0mm x 19.5mm) | Enclosed | - | - | - | - | - | - | 0.5 A | 3kV (3000V) | - | - | - | - | - | - | - | - | - | - | - | - | - | 15 | 85...264 VAC | -0.5 A | 3000 VAC | No | 120...370 VDC | 96 x 54 x 23.3 mm | Chassis assembly | - | - | - | - | - | - |
 POWER MODULE 5V, 12V, -12V, Switching power supply 15 W, AA15T051212C, Delta-Electronics Delta Electronics | 60 | 1: ¥387.668 | 60 | 79% | 15W | 2A, 200mA, 200mA | 5V | ITE (Commercial) | -25°C ~ 70°C | - | - | - | Universal Input | 941-1698 | CE | 3 | 15W | Chassis Mount | 2.91" L x 2.13" W x 0.77" H (74.0mm x 54.0mm x 19.5mm) | Enclosed | - | - | - | - | - | - | 2 A | 3kV (3000V) | - | - | - | - | - | - | - | - | - | - | - | - | - | 15 | 85...264 VAC | 0.2 A | 3000 VAC | No | 120...370 VDC | 96 x 54 x 23.3 mm | Chassis assembly | - | - | - | - | -0.2 A | -12V |
第 1 / 2 页
