台达电子（Delta Electronics）成立于1971年，总部位于台湾台北，是全球电源与热管理解决方案的领导厂商。公司核心业务涵盖电源供应器、DC-DC转换器、散热风扇以及电感器、变压器等电子元件。台达还提供工业自动化产品，包括可编程逻辑控制器、人机界面及各类传感器。其电源产品线包括用于导轨安装的CliQ和Sync系列、封闭式应用的PMT和PMR系列以及医疗设备专用的MPD系列。在元件领域，台达生产芯片电感、绕线电感和网络变压器，广泛应用于通信设备。台达是全球开关电源营收最大的供应商，在服务器电源和通信电源市场占据主导地位。公司以高效率电力转换技术和庞大制造规模著称，产品服务于信息技术、汽车、医疗和可再生能源等多个行业。凭借对研发和可持续发展的持续投入，台达在电力电子和能源管理领域不断创新。

贴片电阻 - 型号列表

共 45 个型号

制造商零件编号	库存	价格	标准包装数量	噪声	功率（瓦）	电压范围	额定电压	最大额定电流	RPM	重量	风量	风扇类型	端接方式	轴承类型	静压	刀片材料	框架材料	尺寸/外形	产品特性	工作温度	额定寿命	其他名称	RoHS	欧盟RoHS	转速	输入范围	额定功率	输出电流	深度	高度	安装类型	壳体材料	总长度	最大压力	零件状态	包装方式	制造商	系列	基础产品编号
GFB0412VHF-F00 DC Fan Ball Bearing 12V 0.36A 4.32W 9500RPM/9100RPM 19.67CFM 51.5dB Flange Mount 12V DC FAN 40X50X32 MM Delta Electronics	61	1: ¥151.30	192	51.5 dB(A)	4.32W	7 ~ 13.2VDC	12VDC	0.360A	9500 Front, 9100 Rear	0.099 lb (44.91g)	19.7 CFM (0.557m³/min)	Tubeaxial (Dual)	Lead Wire	Ball	0.554 in H2O (138.0 Pa)	Plastic	Plastic	Rectangular - 40mm L x 50mm H x 32mm W	Speed Sensor (Tach)	14 ~ 140°F (-10 ~ 60°C)	70000 hrs @ 40°C	-	Lead free / RoHS Compliant	Compliant	Clockwise	7 to 13.2	4.32	0.36	40	32	Flange Mount	Plastic	50	0.554inH2O	-	-	-	-	-
GFB0412EHS-F00 DC Fan Ball Bearing 12V 1.25A 15W 15000RPM/11200RPM 27.3CFM 59.5dB Flange Mount FAN DC DUAL 12V 40X40X56 TAC OUT Delta Electronics	10	1: ¥171.768	128	59.5 dB(A)	15.0W	7 ~ 13.2VDC	12VDC	1.25A	15000 Front, 11200 Rear	0.176 lb (79.83g)	27.3 CFM (0.773m³/min)	Tubeaxial (Dual)	Lead Wire	Ball	1.630 in H2O (406.0 Pa)	Plastic	Plastic	Square - 40mm L x 40mm H x 56mm W	Speed Sensor (Tach)	60	-	-	Lead free / RoHS Compliant	Supplier Unconfirmed	Counter Clockwise	7 to 13.6	15	1.25	40	56	Flange Mount	Plastic	40	1.63inH2O	-	-	-	-	-
GFB1224SHG DC FAN 120 X 120 X 51, VOLTAGE: 24 FAN DC AXIAL 24V 120X50.8 3700RP Delta Electronics	23	1: ¥324.7102	24	67.6 dB(A)	43.2W	14 ~ 26.4VDC	24VDC	1.8A	3700 Front, 3400 Rear	1.1 lbs (499g)	203.4 CFM (5.76m³/min)	Tubeaxial (Dual)	2 Wire Leads per Fan	Ball	0.820 in H2O (204.3 Pa)	Plastic	Plastic	Square - 120mm L x 120mm H x 50.8mm W	-	-	-	603-1092	Lead free / RoHS Compliant	Supplier Unconfirmed	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

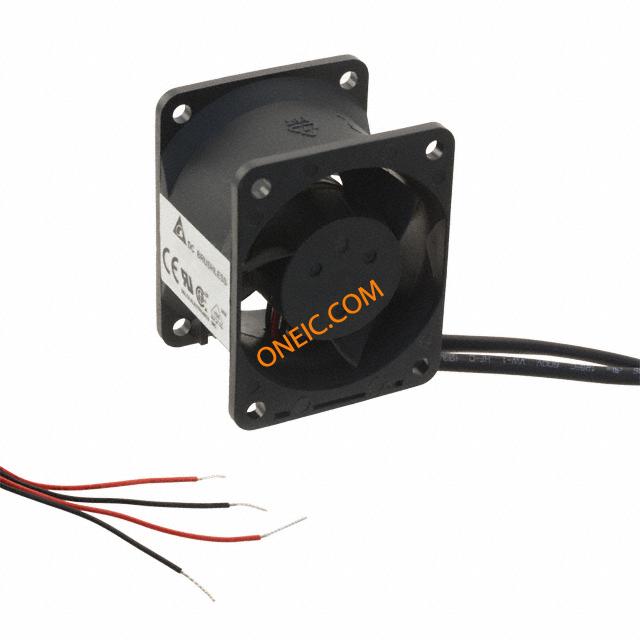

GFB0424VHF 24V DC FAN 40X50X32 MM Delta Electronics	10	1: ¥147.696	192	51.5 dB(A)	5.28W	14 ~ 26.4VDC	24VDC	0.220A	9500 Front, 9100 Rear	0.099 lb (44.91g)	19.7 CFM (0.557m³/min)	Tubeaxial (Dual)	2 Wire Leads per Fan	Ball	0.554 in H2O (138.0 Pa)	Plastic	Plastic	Rectangular - 40mm L x 50mm H x 32mm W	-	-	-	603-1446	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
GFB0412GHS-CF00 12V DC FAN 40X40X56 MM Delta Electronics	383	1: ¥193.732	128	66.5 dB(A)	21.4W	10.8 ~ 12.6VDC	12VDC	1.78A	16100 Front, 17100 Rear	0.185 lb (83.91g)	34.9 CFM (0.988m³/min)	Tubeaxial (Dual)	3 Wire Leads per Fan	Ball	2.397 in H2O (597.1 Pa)	Plastic	Plastic	Square - 40mm L x 40mm H x 56mm W	Speed Sensor (Tach)	14 ~ 140°F (-10 ~ 60°C)	50000 hrs @ 40°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
GFB0412HF 12V DC FAN 40X50X32 MM Delta Electronics	151	1: ¥147.696	192	41 dB(A)	1.68W	7 ~ 13.2VDC	12VDC	0.140A	6500 Front, 6200 Rear	0.099 lb (44.91g)	13.1 CFM (0.371m³/min)	Tubeaxial (Dual)	2 Wire Leads per Fan	Ball	0.253 in H2O (63.0 Pa)	Plastic	Plastic	Rectangular - 40mm L x 50mm H x 32mm W	-	-	-	603-1615	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

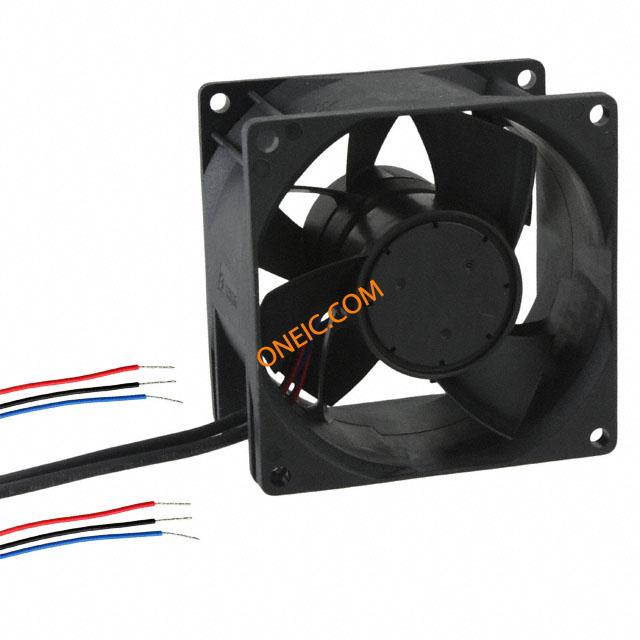

GFB0812SHG-F00 FAN DC AXIAL 12V 80X50.8 TAC OUT Delta Electronics	32	1: ¥184.212	48	53 dB(A)	8.76W	7 ~ 13.2VDC	12VDC	0.730A	4200 Front, 3750 Rear	0.364 lb (165.11g)	68.6 CFM (1.94m³/min)	Tubeaxial (Dual)	3 Wire Leads per Fan	Ball	0.445 in H2O (110.8 Pa)	Plastic	Plastic	Square - 80mm L x 80mm H x 50.8mm W	Speed Sensor (Tach)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

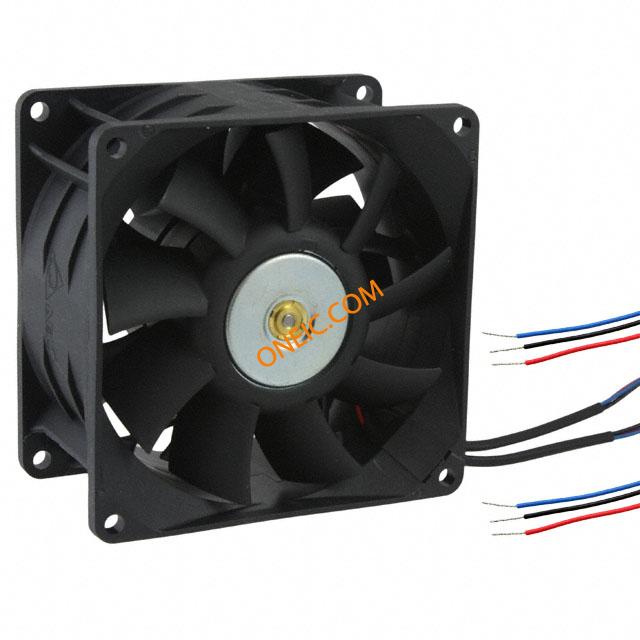

GFB0912SHG-F00 12V DC FAN 92X92X50.8 MM Delta Electronics	16	1: ¥190.808	32	61.5 dB(A)	15.6W	7 ~ 13.8VDC	12VDC	1.3A	4100 Front, 3700 Rear	0.375 lb (170.1g)	103.1 CFM (2.92m³/min)	Tubeaxial (Dual)	3 Wire Leads per Fan	Ball	0.651 in H2O (162.2 Pa)	Plastic	Plastic	Square - 92mm L x 92mm H x 50.8mm W	Speed Sensor (Tach)	14 ~ 158°F (-10 ~ 70°C)	70000 hrs @ 40°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
GFB1224SHG-F00 24V DC FAN 120X120X50.8 MM Delta Electronics	11	1: ¥354.552	24	67.6 dB(A)	35.0W	14 ~ 26.4VDC	24VDC	1.46A	3700 Front, 3400 Rear	1.3 lbs (589.7g)	203.9 CFM (5.76m³/min)	Tubeaxial (Dual)	3 Wire Leads per Fan	Ball	0.820 in H2O (204.3 Pa)	Plastic	Plastic	Square - 120mm L x 120mm H x 50.8mm W	Speed Sensor (Tach)	14 ~ 140°F (-10 ~ 60°C)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

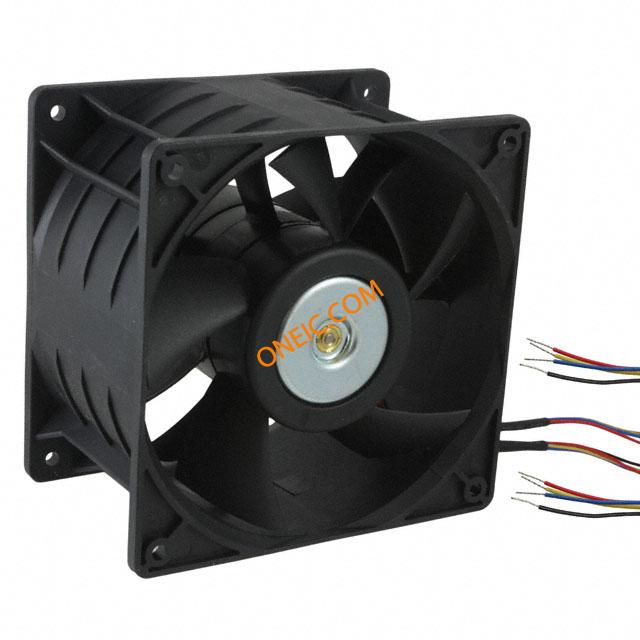

GFB1248VHW-TP15 FAN DC AXIAL 52V 120X76.2 MM PWM Delta Electronics	19	1: ¥423.98	24	59 dB(A)	20.8W	40 ~ 60VDC	52VDC	0.400A	3550 Front, 3200 Rear	1.3 lbs (589.7g)	220.3 CFM (6.24m³/min)	Tubeaxial (Dual)	4 Wire Leads per Fan	Ball	0.592 in H2O (147.5 Pa)	Plastic	Plastic	Square - 120mm L x 120mm H x 76.2mm W	PWM Control; Speed Sensor (Tach)	14 ~ 140°F (-10 ~ 60°C)	70000 hrs @ 40°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
GFB0412SHS-AF00 12V DC FAN 40X40X56 MM Delta Electronics	10	256: ¥123.318	128	58.5 dB(A)	12.2W	7 ~ 13.2VDC	12VDC	1.02A	16200 Front, 7800 Rear	0.185 lb (83.91g)	23.3 CFM (0.660m³/min)	Tubeaxial (Dual)	3 Wire Leads per Fan	Ball	1.748 in H2O (435.4 Pa)	Plastic	Plastic	Square - 40mm L x 40mm H x 56mm W	Speed Sensor (Tach)	14 ~ 140°F (-10 ~ 60°C)	50000 hrs @ 40°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
GFB0612HHG FAN DC AXIAL 12V 60X50.8 5000RPM Delta Electronics	10	72: ¥138.5704	72	50.5 dB(A)	5.16W	7 ~ 13.8VDC	12VDC	0.430A	5000 Front, 4600 Rear	0.275 lb (124.74g)	32.1 CFM (0.909m³/min)	Tubeaxial (Dual)	2 Wire Leads per Fan	Ball	0.378 in H2O (94.1 Pa)	Plastic	Plastic	Square - 60mm L x 60mm H x 50.8mm W	-	-	-	603-1042	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
GFB1212VHW FAN DC AXIAL 12V 120X76.2 3550RP Delta Electronics	10	1008: ¥195.50	24	59 dB(A)	31.8W	7 ~ 13.2VDC	12VDC	2.65A	3550 Front, 3200 Rear	1.3 lbs (589.7g)	220.3 CFM (6.24m³/min)	Tubeaxial (Dual)	2 Wire Leads per Fan	Ball	0.592 in H2O (147.5 Pa)	Plastic	Plastic	Square - 120mm L x 120mm H x 76.2mm W	-	14 ~ 140°F (-10 ~ 60°C)	70000 hrs @ 40°C	603-1093	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
GFB1212VHW-TP05 FAN DC AXL 12V 120X76.2 3550RPM Delta Electronics	10	96: ¥260.8616	24	59 dB(A)	20.4W	7 ~ 13.2VDC	12VDC	1.7A	3550 Front, 3200 Rear	1.3 lbs (589.7g)	220.3 CFM (6.24m³/min)	Tubeaxial (Dual)	4 Wire Leads per Fan	Ball	0.592 in H2O (147.5 Pa)	Plastic	Plastic	Square - 120mm L x 120mm H x 76.2mm W	PWM Control; Speed Sensor (Tach)	14 ~ 140°F (-10 ~ 60°C)	70000 hrs @ 40°C	603-1175	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
GFB1212VHW-F00 DC FAN BALL BEARING 12V 2.65A Delta Electronics	10	24: ¥316.20	24	59 dB(A)	31.8W	7 ~ 13.2VDC	12VDC	2.65A	3550 Front, 3200 Rear	1.3 lbs (589.7g)	220.3 CFM (6.24m³/min)	Tubeaxial (Dual)	3 Wire Leads per Fan	Ball	0.592 in H2O (147.5 Pa)	Plastic	Plastic	Square - 120mm L x 120mm H x 76.2mm W	Speed Sensor (Tach)	14 ~ 122°F (-10 ~ 50°C)	70000 hrs @ 40°C	Q5594123	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
GFB1212VHG FAN DC AXIAL 12V 120X50.8 3400RP Delta Electronics	10	24: ¥326.40	24	65 dB(A)	33.8W	7 ~ 13.2VDC	12VDC	2.82A	3400 Front, 3100 Rear	1.1 lbs (499g)	184.4 CFM (5.22m³/min)	Tubeaxial (Dual)	2 Wire Leads per Fan	Ball	0.687 in H2O (171.1 Pa)	Plastic	Plastic	Square - 120mm L x 120mm H x 50.8mm W	-	-	-	603-1091	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
GFB1212VHW-SP02 FAN DC AXL 12V 120X76.2 3550RPM Delta Electronics	10	1: ¥310.216	24	59 dB(A)	20.4W	7 ~ 13.2VDC	12VDC	1.7A	3550 Front, 3200 Rear	1.3 lbs (589.7g)	220.3 CFM (6.24m³/min)	Tubeaxial (Dual)	4 Wire Leads per Fan	Ball	0.592 in H2O (147.5 Pa)	Plastic	Plastic	Square - 120mm L x 120mm H x 76.2mm W	PWM Control; Speed Sensor (Tach)	14 ~ 140°F (-10 ~ 60°C)	70000 hrs @ 40°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
GFB0412EHS-DF00 FAN DC DUAL 12V 40X40X56 TAC OUT Delta Electronics	10	256: ¥126.48	128	64.5 dB(A)	15.6W	10.8 ~ 12.6VDC	12VDC	1.30A	16000 Front, 15400 Rear	0.183 lb (83.01g)	32.2 CFM (0.911m³/min)	Tubeaxial (Dual)	3 Wire Leads per Fan	Ball	2.631 in H2O (655.4 Pa)	Plastic	Plastic	Square - 40mm L x 40mm H x 56mm W	Speed Sensor (Tach)	14 ~ 140°F (-10 ~ 60°C)	50000 hrs @ 40°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
RL0816B-3-R010-FNH RES 1% 1/8W 0603 Delta Electronics/Cyntec	-		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Discontinued at DigiKey	Tape & Reel (TR)	Delta Electronics/Cyntec	-	-
RR0204S-2213-FNH RES 221K OHM 1% 1/32W 01005 Delta Electronics/Cyntec	10	20000: ¥0.0286	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Active	Tape & Reel (TR)	Delta Electronics/Cyntec	-	RR0204S
