CUI Inc.- 音频换能器

CUI公司由詹姆斯·麦肯齐在美国俄勒冈州比弗顿创立，最初是与日本电子公司的合资企业。公司总部位于俄勒冈州波特兰大都会区，已发展为全球知名的电子元器件供应商。CUI专注于电力电子、互连产品、运动控制和音频组件的研发与分销。其产品线丰富，包括VOF系列AC-DC电源、PBO系列DC-DC转换器、扬声器、麦克风等音频器件以及各类连接器。凭借在亚洲建立的长期合作关系，CUI构建了灵活且响应迅速的商业模式，让全球客户受益。公司在瑞典、中国和日本设有设计和销售支持机构，以贴近区域市场。2008年，CUI收购了Waytronx公司（场外代码：WYNX.OB），加速了新技术的商业化与创新。如今，CUI Inc.是纳斯达克上市公司CUI Global, Inc.（代码：CUI）的子公司。CUI以高效能、紧凑型电源设计见长，产品服务于工业、物联网、医疗和消费电子等领域。经过20余年的发展，CUI已成为电力与互连解决方案领域值得信赖的品牌，持续助力客户提升能效与环境绩效。

音频换能器 - 型号列表

共 216 个型号

制造商零件编号	库存	价格	标准包装数量	频率	端接方式	工作温度	输入类型	电压范围	工作模式	额定电压	输出电流	驱动电路	声压级 (SPL)	包装方式	安装类型	尺寸/外形	可清洗	技术	电容 @ 频率	尺寸	阻抗	最小输入电压	类型	供电电压	最大额定电流	系列	其他规格	其他名称
3 CEB-20D64 BUZZER PIEZO ELEMENT 6.5KHZ 20MM BUZZ ELEM PIEZO STD 6.5KHZ 30V CEB Series 20 mm round 0.43 mm deep P 6.5 kHz 30 V wire leads Buzzer CUI Inc	959	1: ¥9.384	600	6.5kHz	Wire Leads	-20°C ~ 70°C	-	-	-	-	-	-	-	-	-	-	-	-	13000pF @ 120Hz	0.79" Dia (20mm)	350 Ohm	30V p-p	Standard	-	-	-	-	-
3 CEB-27FD44 BUZZER PIEZO ELEMENT 4.5KHZ 27MM BUZZ ELEM PIEZO FEDBK 4.5KHZ 30V CUI Inc	121	1: ¥10.608	100	4.5kHz	Wire Leads	-20°C ~ 70°C	-	-	-	-	-	-	-	-	-	-	-	-	16000pF @ 1kHz	1.06" Dia (27mm)	500 Ohm	30V p-p	Feedback	-	-	-	-	-
3 CEB-27D44 BUZZER PIEZO ELEMENT 4.4KHZ 27MM BUZZ ELEM PIEZO STD 4.6KHZ 20V CEB Series 27 mm round 0.51 mm deep P 4.6 kHz 20 V wire leads Buzzer CUI Inc	5758	1: ¥10.20	100	4.6kHz	Wire Leads	-20°C ~ 70°C	-	-	-	-	-	-	-	-	-	-	-	-	16000pF @ 1kHz	1.06" Dia (27mm)	250 Ohm	20V p-p	Standard	-	-	-	-	-
3 CEB-35D26 BUZZER PIEZO ELEMENT 2.6KHZ 35MM BUZZ ELEM PIEZO STD 2.6KHZ 30V CEB Series 35 mm round 0.53 mm deep P 2.6 kHz 30 V wire leads Buzzer CUI Inc	843	1: ¥12.58	300	2.6kHz	Wire Leads	-20°C ~ 70°C	-	-	-	-	-	-	-	-	-	-	-	-	30000pF @ 1kHz	1.38" Dia (35mm)	300 Ohm	30V p-p	Standard	-	-	-	-	-
3 CEB-35FD29 BUZZER PIEZO ELEMENT 2.9KHZ 35MM BUZZ ELEM PIEZO FEDBK 2.9KHZ 30V CUI Inc	702	1: ¥14.144	100	2.9kHz	Wire Leads	-20°C ~ 70°C	-	-	-	-	-	-	-	-	-	-	-	-	25000pF @ 1kHz	1.38" Dia (35mm)	500 Ohm	30V p-p	Feedback	-	-	-	-	-
3 CEB-44D06 BUZZER PIEZO ELEMENT .6KHZ 44MM BUZZ ELEM PIEZO STD 0.6KHZ 20V CUI Inc	536	1: ¥14.28	100	600Hz	Wire Leads	-20°C ~ 70°C	-	-	-	-	-	-	-	-	-	-	-	-	70000pF @ 120Hz	1.73" Dia (44mm)	1 kOhm	20V p-p	Standard	-	-	-	-	-
3 CEB-20FD64 BUZZER PIEZO ELEMENT 6.4KHZ 20MM BUZZ ELEM PIEZO FEDBK 6.4KHZ 30V 20 mm Piezo Buzzer Element, w/Feedback Loop & Lead Wires CUI Inc	1200	7: ¥4.9361	100	6.4kHz	Wire Leads	-20°C ~ 70°C	-	-	-	-	-	-	-	-	-	-	-	-	10000pF @ 1kHz	0.79" Dia (20mm)	400 Ohm	30V p-p	Feedback	-	-	-	-	-
4 CEM-1201(42) BUZZER 2.048KHZ 12MM PC MOUNT BUZZER MAGNETIC 1.5V 12MM RADIAL CUI Inc	1950	1: ¥3.0396	500	2.048kHz	PC Pins	-20°C ~ 60°C	zero-peak Signal	1 ~ 2V	Continuous	1.5Vo-p	20mA	Transducer, Externally Driven	85dB @ 1.5V, 10cm	Bulk	Through Hole	Circular - 12.00mm Dia x 9.00mm H	No	Magnetic	-	Circular - 12.00mm Dia x 9.00mm H	-	-	-	1 ~ 2V	20mA	CEM	85dB @ 1.5V, 10cm	-
4 CEM-1201(50) BUZZER 2.048KHZ 12MM PC MOUNT BUZZER MAGNETIC 1.5V 12MM RADIAL CUI Inc	1911	1: ¥6.868	500	2.048kHz	PC Pins	-20°C ~ 60°C	zero-peak Signal	1 ~ 2V	Continuous	1.5Vo-p	20mA	Transducer, Externally Driven	80dB @ 1.5V, 10cm	Bulk	Through Hole	Circular - 12.00mm Dia x 9.00mm H	No	Magnetic	-	-	-	-	-	-	-	-	-	-
4 CSQ-601BP BUZZER MAGNETIC 12MM 1-2V RAD BUZZER MAGNETIC 1.5V 12MM RADIAL CUI Inc	191	1: ¥7.004	500	2.048kHz	PC Pins	-20°C ~ 60°C	zero-peak Signal	1 ~ 2V	Continuous	1.5Vo-p	35mA	Transducer, Externally Driven	70dB @ 1.5V, 10cm	Tray	Through Hole	Circular - 12.00mm Dia x 6.00mm H	No	Magnetic	-	-	-	-	-	-	-	-	-	102-1464
4 CEM-1203(42) BUZZER 2.048KHZ 12MM PC MOUNT BUZZER MAGNETIC 3.5V 12MM RADIAL CUI Inc	11099	15: ¥4.2609	500	2.048kHz	PC Pins	-20°C ~ 60°C	zero-peak Signal	3 ~ 5V	Continuous	3.5Vo-p	35mA	Transducer, Externally Driven	85dB @ 3.5V, 10cm	Bulk	Through Hole	Circular - 12.00mm Dia x 9.00mm H	No	Magnetic	-	-	-	-	-	-	-	-	-	-
4 CSQG703BP BUZZER MAG 2.0KHZ 3V 12MM BUZZER MAGNETIC 3V 12MM RADIAL buzzer, 12 mm round, 3.8 mm deep, M, 2 kHz, 3 V through hole no driving circuit CUI Inc	950	1: ¥4.76	500	2kHz	PC Pins	-30°C ~ 70°C	zero-peak Signal	2 ~ 4V	Continuous	3Vo-p	90mA	Transducer, Externally Driven	85dB @ 3V, 5cm	Bulk	Through Hole	Circular - 12.00mm Dia x 4.30mm H	No	Magnetic	-	-	-	-	-	-	-	-	-	-
3 CSQ-RP-E BUZZER MAGNETIC 12MM 1-2V RAD BUZZER MAGNETIC 1.5V 12MM RADIAL CUI Inc	1000	1: ¥4.5492	1,000	2.73kHz	PC Pins	-20°C ~ 60°C	zero-peak Signal	1 ~ 2V	Continuous	1.5Vo-p	80mA	Transducer, Externally Driven	85dB @ 1.5V, 10cm	Tray	Through Hole	Circular - 12.00mm Dia x 6.50mm H	No	Magnetic	-	-	-	-	-	-	-	-	-	-
4 CEM-1212S BUZZER 2.4KHZ 12MM PC MOUNT BUZZER MAGNETIC 12V 12MM RADIAL CEM Series 12V 12mm Radial Buzzer CUI Inc	10	1: ¥3.793	500	2.4kHz	PC Pins	-20°C ~ 60°C	zero-peak Signal	6 ~ 16V	Continuous	12Vo-p	40mA	Transducer, Externally Driven	85dB @ 12V, 10cm	Bulk	Through Hole	Circular - 12.00mm Dia x 10.00mm H	Yes	Magnetic	-	-	-	-	-	-	-	-	-	-
4 CEM-1206S BUZZER 2.4KHZ 12MM PC MOUNT BUZZER MAGNETIC 5V 12MM RADIAL CUI Inc	1000	1: ¥3.944	500	2.4kHz	PC Pins	-30°C ~ 70°C	zero-peak Signal	3 ~ 8V	Continuous	5Vo-p	45mA	Transducer, Externally Driven	85dB @ 5V, 10cm	Bulk	Through Hole	Circular - 12.00mm Dia x 10.00mm H	Yes	Magnetic	-	-	-	-	-	-	-	-	-	-
CPE-165 BUZZER PIEZO 30V 4.8KHZ W/WIRES BUZZER PIEZO 10V 14MM CUSTOM CUI Inc	2000	1: ¥5.5352	500	4.8kHz	Wire Leads	-30°C ~ 85°C	peak-peak Signal	30V (Max)	Continuous	10Vp-p	11mA	Transducer, Externally Driven	85dB @ 10V, 10cm	Bulk	Custom	Circular - 14.00mm Dia x 4.50mm H	No	Piezo	15000pF @ 1kHz	-	-	-	-	-	-	-	-	-

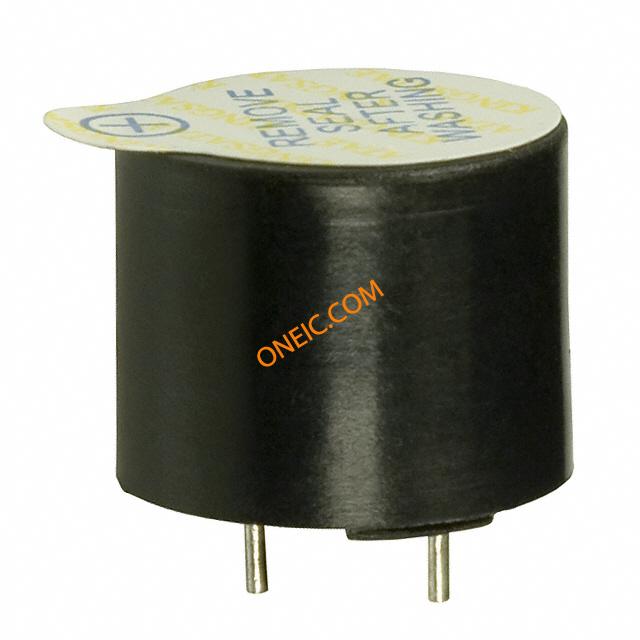

4 CEM-14R06CT BUZZER AUDIO 85DB 5MM PCB BUZZER MAGNETIC 1.5V 12MM RADIAL CUI Inc	1000	1: ¥10.472	500	2.8kHz	PC Pins	-30°C ~ 70°C	zero-peak Signal	1 ~ 1.7V	Continuous	1.5Vo-p	40mA	Transducer, Externally Driven	85dB @ 1.5V, 10cm	Bulk	Through Hole	Circular - 12.00mm Dia x 10.50mm H	Yes	Magnetic	-	-	-	-	-	-	-	-	-	-
3 CPE-813 BUZZER PIEZO 30V 4.0KHZ PCB BUZZER PIEZO 10V 22.1MM RADIAL CUI Inc	1100	2: ¥13.0648	600	4kHz	PC Pins	-30°C ~ 85°C	peak-peak Signal	30V (Max)	Continuous	10Vp-p	6mA	Transducer, Externally Driven	84dB @ 10V, 10cm	Bulk	Through Hole	Circular - 22.10mm Dia x 7.10mm H	No	Piezo	12000pF @ 1kHz	-	-	-	-	-	-	-	-	-
3 CPE-120 BUZZER PIEZO 30V 6.0KHZ PANEL BUZZER PIEZO 10V 24MM CHASSIS CUI Inc	10	1: ¥8.82	100	6kHz	Wire Leads	-30°C ~ 85°C	peak-peak Signal	30V (Max)	Continuous	10Vp-p	8mA	Transducer, Externally Driven	88dB @ 10V, 10cm	Bulk	Chassis Mount	Circular - 24.00mm Dia x 4.50mm H	No	Piezo	12000pF @ 1kHz	-	-	-	-	-	-	-	-	-

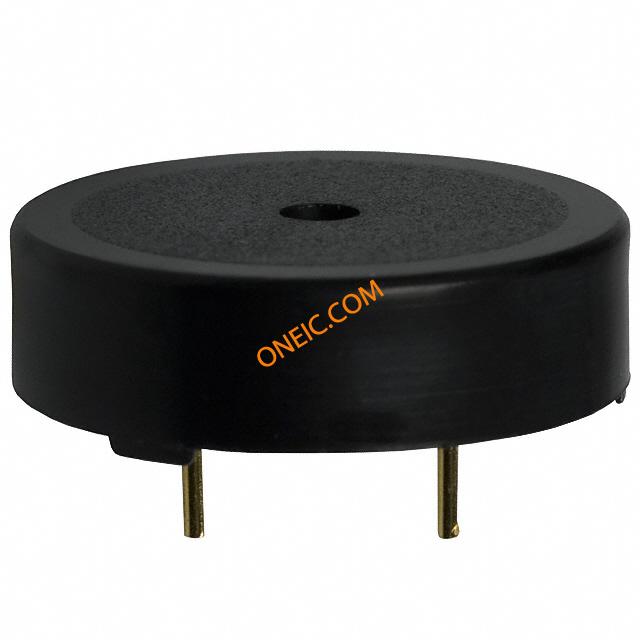

3 CEP-1112 BUZZER PIEZO 4KHZ 24MM EXT DRIVE BUZZER PIEZO 10V 24MM RADIAL CUI Inc	20	20: ¥9.4289	1,000	4kHz	PC Pins	-30°C ~ 85°C	peak-peak Signal	30V (Max)	Continuous	10Vp-p	11mA	Transducer, Externally Driven	92dB @ 10V, 10cm	Bulk	Through Hole	Circular - 24.00mm Dia x 7.80mm H	No	Piezo	25000pF @ 1kHz	-	-	-	-	-	-	-	-	-
