CUI公司由詹姆斯·麦肯齐在美国俄勒冈州比弗顿创立，最初是与日本电子公司的合资企业。公司总部位于俄勒冈州波特兰大都会区，已发展为全球知名的电子元器件供应商。CUI专注于电力电子、互连产品、运动控制和音频组件的研发与分销。其产品线丰富，包括VOF系列AC-DC电源、PBO系列DC-DC转换器、扬声器、麦克风等音频器件以及各类连接器。凭借在亚洲建立的长期合作关系，CUI构建了灵活且响应迅速的商业模式，让全球客户受益。公司在瑞典、中国和日本设有设计和销售支持机构，以贴近区域市场。2008年，CUI收购了Waytronx公司（场外代码：WYNX.OB），加速了新技术的商业化与创新。如今，CUI Inc.是纳斯达克上市公司CUI Global, Inc.（代码：CUI）的子公司。CUI以高效能、紧凑型电源设计见长，产品服务于工业、物联网、医疗和消费电子等领域。经过20余年的发展，CUI已成为电力与互连解决方案领域值得信赖的品牌，持续助力客户提升能效与环境绩效。

DC-DC电源混合模块 - 型号列表

共 79 个型号

制造商零件编号	库存	价格	标准包装数量	效率	最大功率	输出电流	输出数量	最大功率（瓦特）	隔离电压	最小输入电压	安装类型	封装形式	尺寸/外形	类型	产品特性	工作温度	供电电压	最大额定电流	直流输入电压（最大）	直流输入电压（最小）	每端口功率（瓦）	包装方式

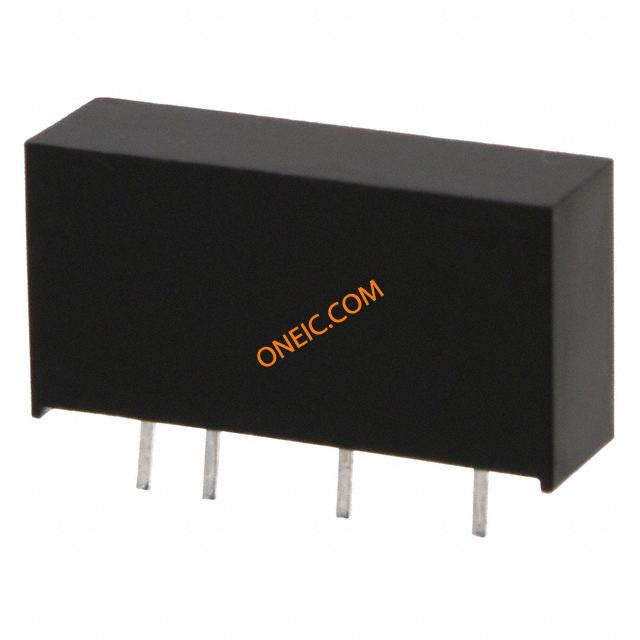

VIBLSD1-S24-S5-SIP CONVERTER DC/DC 5V REG 0.75W VIBLSD1-SIP Series 5 V 200 mA 1 W Single Output DC-DC Isolated Converter CUI Inc	1131	1: ¥39.304	25	70%	1W	200mA	1	0.75W	1kV (1000V)	5V	Through Hole	6-SIP Module (4 Leads)	0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm)	Isolated Module	SCP	-40°C ~ 85°C	5V	200mA	25.2V	22.8V	1W	-
VIBLSD1-S12-S15-SIP CONVERTER DC/DC 15V REG OUT 1W VIBLSD1-SIP Series 15 V 67 mA 1 W Single Output DC-DC Isolated Converter CUI Inc	1414	1: ¥39.304	25	72%	1W	67mA	1	1W	1kV (1000V)	15V	Through Hole	6-SIP Module (4 Leads)	0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm)	Isolated Module	SCP	-40°C ~ 85°C	15V	67mA	12.6V	11.4V	1W	-

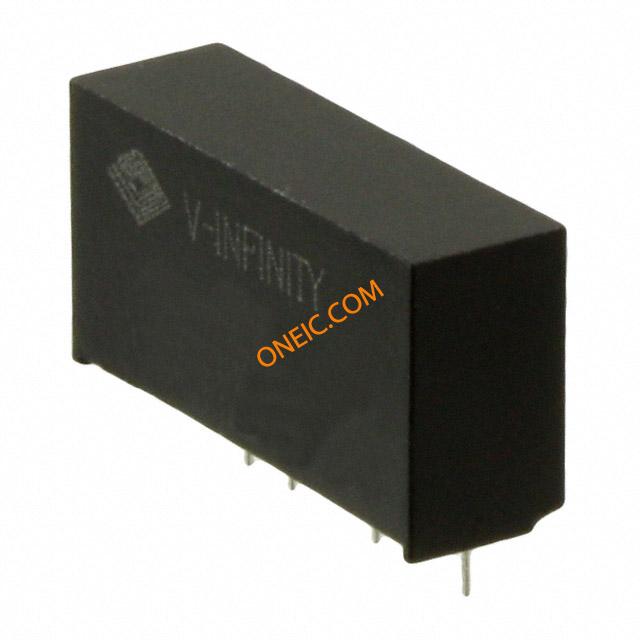

VIBLSD1-S12-S5-SIP CONVERTER DC/DC 5V REG 0.75W VIBLSD1-SIP Series 5 V 200 mA 1 W Single Output DC-DC Isolated Converter CUI Inc	70	2: ¥35.9067	25	69%	1W	150mA	1	0.75W	1kV (1000V)	5V	Through Hole	6-SIP Module (4 Leads)	0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm)	Isolated Module	SCP	-40°C ~ 85°C	5V	150mA	12.6V	11.4V	1W	-
VIBLSD1-S24-S12-SIP CONVERTER DC/DC 12V REG OUT 1W VIBLSD1-SIP Series 12 V 83 mA 1 W Single Output DC-DC Isolated Converter CUI Inc	778	1: ¥39.304	25	73%	1W	83mA	1	1W	1kV (1000V)	12V	Through Hole	6-SIP Module (4 Leads)	0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm)	Isolated Module	SCP	-40°C ~ 85°C	12V	83mA	25.2V	22.8V	1W	-
VIBLSD1-S24-S15-SIP CONVERTER DC/DC 15V REG OUT 1W VIBLSD1-SIP Series 15 V 67 mA 1 W Single Output DC-DC Isolated Converter CUI Inc	425	1: ¥39.304	25	73%	1W	67mA	1	1W	1kV (1000V)	15V	Through Hole	6-SIP Module (4 Leads)	0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm)	Isolated Module	SCP	-40°C ~ 85°C	15V	67mA	25.2V	22.8V	1W	-
VIBLSD1-S12-S12-SIP CONVERTER DC/DC 12V REG OUT 1W VIBLSD1-SIP Series 12 V 83 mA 1 W Single Output DC-DC Isolated Converter CUI Inc	35	2: ¥25.4504	25	72%	1W	83mA	1	1W	1kV (1000V)	12V	Through Hole	6-SIP Module (4 Leads)	0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm)	Isolated Module	SCP	-40°C ~ 85°C	12V	83mA	12.6V	11.4V	1W	-
VIBLSD1-S5-S12-SIP CONVERTER DC/DC 12V REG OUT 1W VIBLSD1-SIP Series 12 V 83 mA 1 W Single Output DC-DC Isolated Converter CUI Inc	987	1: ¥39.304	25	71%	1W	83mA	1	1W	1kV (1000V)	12V	Through Hole	6-SIP Module (4 Leads)	0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm)	Isolated Module	SCP	-40°C ~ 85°C	12V	83mA	5.25V	4.75V	1W	-
VIBLSD1-S5-S15-SIP CONVERTER DC/DC 15V REG OUT 1W VIBLSD1-SIP Series 15 V 67 mA 1 W Single Output DC-DC Isolated Converter CUI Inc	50	2: ¥25.4504	25	72%	1W	67mA	1	1W	1kV (1000V)	15V	Through Hole	6-SIP Module (4 Leads)	0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm)	Isolated Module	SCP	-40°C ~ 85°C	15V	67mA	5.25V	4.75V	1W	-

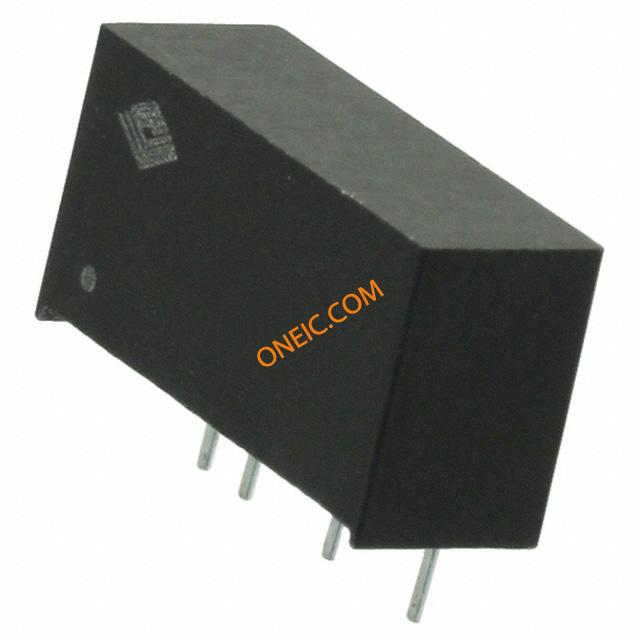

VBSD2-S24-S12-SIP CONVERTER DC/DC 2W 12V 167MA VBSD2-SIP Series 12 V 167 mA 2 W Single Output DC-DC Isolated Converter CUI Inc	10	1: ¥24.956	25	86%	2W	167mA	1	2W	1kV (1000V)	12V	Through Hole	7-SIP Module (4 Leads)	0.77" L x 0.28" W x 0.39" H (19.6mm x 7.0mm x 10.0mm)	Isolated Module	SCP	-40°C ~ 85°C	12V	167mA	26.4V	21.6V	2W	Tube
VAWQ6-Q24-S12H CONVERTER DC/DC 12V 470MA 5.6W VAWQ6 Series 470 mA 5.64 W 12 V Single Output DC-DC Isolated Converter CUI Inc	33	1: ¥142.596	64	80%	6W	470mA	1	5.6W	3kV (3000V)	12V	Through Hole	24-DIP Module (15 Leads)	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)	Isolated Module	SCP	-25°C ~ 71°C	12V	470mA	36V	9V	6W	Tube
VAWQ6-Q24-S15H CONVERTER DC/DC 15V 400MA 6W CUI Inc	1216	1: ¥167.96	64	80%	6W	400mA	1	6W	3kV (3000V)	15V	Through Hole	24-DIP Module (15 Leads)	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)	Isolated Module	SCP	-25°C ~ 71°C	-	-	-	-	-	Tube
VAWQ6-Q24-S5H CONVERTER DC/DC 5V 1A 5W CUI Inc	10	10: ¥230.5839	64	78%	6W	1A	1	5W	3kV (3000V)	5V	Through Hole	24-DIP Module	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)	Isolated Module	SCP	-25°C ~ 71°C	-	-	-	-	-	Tube
VAWQ6-Q24-D5H CONVERTER DC/DC +/-5V 500MA 6W CUI Inc	299	5: ¥153.408	64	80%	6W	500mA, 500mA	2	5W	3kV (3000V)	5V	Through Hole	24-DIP Module (15 Leads)	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)	Isolated Module	SCP	-25°C ~ 71°C	-	-	-	-	-	Tube
VAWQ6-Q24-D12H CONV DC/DC DUAL 12V 230MA 6W VAWQ6 Series ?30 mA 5.52 W ?2 V Dual Output DC-DC Isolated Converter CUI Inc	1231	1: ¥186.388	64	80%	6W	230mA, 230mA	2	6W	3kV (3000V)	12V	Through Hole	24-DIP Module (15 Leads)	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)	Isolated Module	SCP	-25°C ~ 71°C	12V	230mA, 230mA	36V	9V	6W	Tube
VAWQ6-Q48-S5H CONVERTER DC/DC 5V 1A 5W CUI Inc	48	1: ¥167.96	64	78%	6W	1A	1	5W	3kV (3000V)	5V	Through Hole	24-DIP Module	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)	Isolated Module	SCP	-25°C ~ 71°C	-	-	-	-	-	Tube
VAWQ6-Q48-S3R3H CONVERTER DC/DC 3.3V 1A 3.3W VAWQ6 Series 1 A 3.3 W 3.3 V Single Output DC-DC Isolated Converter CUI Inc	129	6: ¥135.66	64	70%	6W	1A	1	3.3W	3kV (3000V)	3.3V	Through Hole	24-DIP Module	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)	Isolated Module	SCP	-25°C ~ 71°C	3.3V	1A	72V	18V	6W	Tube
VAWQ6-Q48-S12H CONVERTER DC/DC 12V 470MA 5.6W CUI Inc	101	1: ¥167.96	64	79%	6W	470mA	1	5.6W	3kV (3000V)	12V	Through Hole	24-DIP Module	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)	Isolated Module	SCP	-25°C ~ 71°C	-	-	-	-	-	Tube
VAWQ6-Q48-S15H CONVERTER DC/DC 15V 400MA 6W CUI Inc	164	1: ¥167.96	64	80%	6W	400mA	1	6W	3kV (3000V)	15V	Through Hole	24-DIP Module	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)	Isolated Module	SCP	-25°C ~ 71°C	-	-	-	-	-	Tube
VAWQ6-Q48-D15H CONVERTER DC/DC +/-15V 190MA 6W CUI Inc	44	1: ¥186.388	64	77%	6W	190mA, 190mA	2	6W	3kV (3000V)	15V	Through Hole	24-DIP Module	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)	Isolated Module	SCP	-25°C ~ 71°C	-	-	-	-	-	Tube
VAWQ6-Q24-D15H CONV DC/DC DUAL 15V 190MA 6W CUI Inc	141	1: ¥186.388	64	78%	6W	190mA, 190mA	2	6W	3kV (3000V)	15V	Through Hole	24-DIP Module (15 Leads)	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)	Isolated Module	SCP	-25°C ~ 71°C	-	-	-	-	-	Tube
