CUI Inc.- DC-DC转换器

CUI公司由詹姆斯·麦肯齐在美国俄勒冈州比弗顿创立，最初是与日本电子公司的合资企业。公司总部位于俄勒冈州波特兰大都会区，已发展为全球知名的电子元器件供应商。CUI专注于电力电子、互连产品、运动控制和音频组件的研发与分销。其产品线丰富，包括VOF系列AC-DC电源、PBO系列DC-DC转换器、扬声器、麦克风等音频器件以及各类连接器。凭借在亚洲建立的长期合作关系，CUI构建了灵活且响应迅速的商业模式，让全球客户受益。公司在瑞典、中国和日本设有设计和销售支持机构，以贴近区域市场。2008年，CUI收购了Waytronx公司（场外代码：WYNX.OB），加速了新技术的商业化与创新。如今，CUI Inc.是纳斯达克上市公司CUI Global, Inc.（代码：CUI）的子公司。CUI以高效能、紧凑型电源设计见长，产品服务于工业、物联网、医疗和消费电子等领域。经过20余年的发展，CUI已成为电力与互连解决方案领域值得信赖的品牌，持续助力客户提升能效与环境绩效。

DC-DC转换器 - 型号列表

共 1,800 个型号

制造商零件编号	库存	价格	标准包装数量	效率	最大功率	输出电流	输出数量	最大功率（瓦特）	隔离电压	最小输入电压	安装类型	封装形式	尺寸/外形	类型	产品特性	工作温度	其他名称	RoHS	包装方式	供电电压	最大额定电流	直流输入电压（最大）	直流输入电压（最小）	每端口功率（瓦）

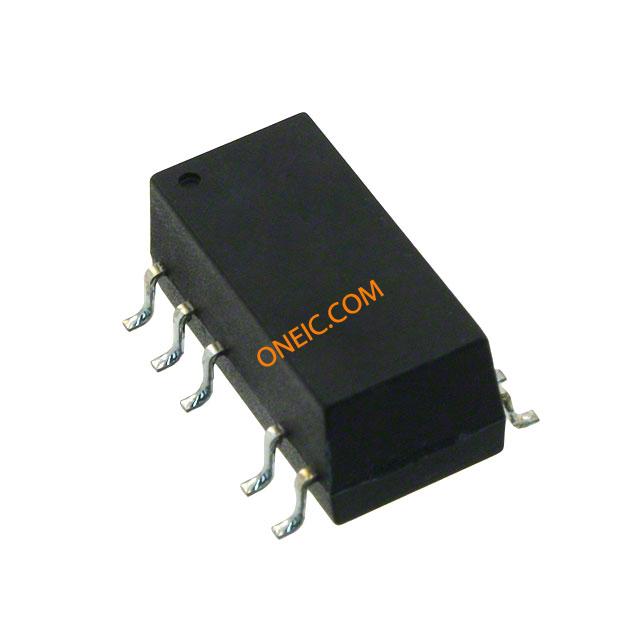

VEFT1-S12-S24-SMT CONVERTER DC/DC 1W 24V 42MA CUI Inc	-		500	79%	1W	42mA	1	1W	3kV (3000V)	24V	Surface Mount	12-SMD Module (10 Leads)	0.60" L x 0.30" W x 0.24" H (15.2mm x 7.5mm x 6.0mm)	Isolated Module	SCP	-40°C ~ 85°C	102-2090-2	Lead free / RoHS Compliant	Tape & Reel (TR)	-	-	-	-	-

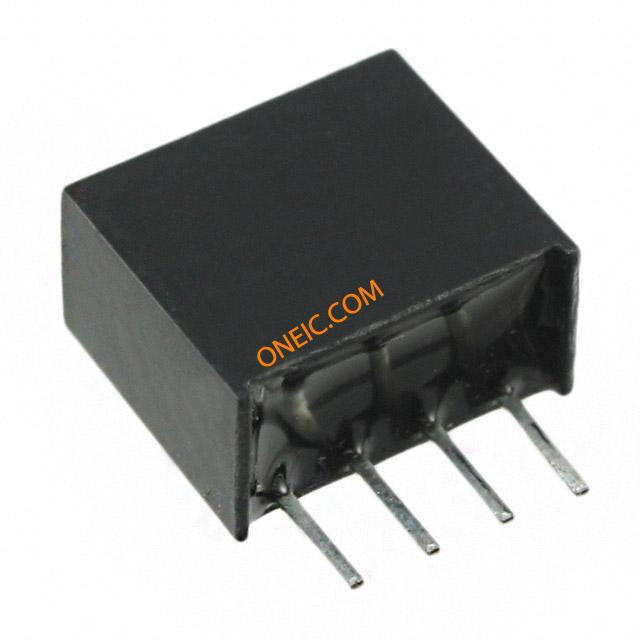

VBSD1-S5-S5-SIP CONVERTER DC/DC 5V OUT 1W CUI Inc	10	3: ¥52.2852	43	78%	1W	200mA	1	1W	1kV (1000V)	5V	Through Hole	4-SIP Module	0.46" L x 0.24" W x 0.39" H (11.7mm x 6.0mm x 10.0mm)	Isolated Module	SCP	-40°C ~ 85°C	-	-	-	-	-	-	-	-
VBSD1-S12-S5-SIP CONVERTER DC/DC 5V OUT 1W CUI Inc	2183	1: ¥33.592	43	78%	1W	200mA	1	1W	1kV (1000V)	5V	Through Hole	4-SIP Module	0.46" L x 0.24" W x 0.39" H (11.7mm x 6.0mm x 10.0mm)	Isolated Module	SCP	-40°C ~ 85°C	-	-	-	-	-	-	-	-
VBSD1-S5-S12-SIP CONVERTER DC/DC 12V OUT 1W CUI Inc	56	1: ¥58.14	43	80%	1W	83mA	1	1W	1kV (1000V)	12V	Through Hole	4-SIP Module	0.46" L x 0.24" W x 0.39" H (11.7mm x 6.0mm x 10.0mm)	Isolated Module	SCP	-40°C ~ 85°C	-	-	-	-	-	-	-	-
VBSD1-S12-S12-SIP CONVERTER DC/DC 12V OUT 1W CUI Inc	10	1: ¥33.592	43	81%	1W	83mA	1	1W	1kV (1000V)	12V	Through Hole	4-SIP Module	0.46" L x 0.24" W x 0.39" H (11.7mm x 6.0mm x 10.0mm)	Isolated Module	SCP	-40°C ~ 85°C	-	-	-	-	-	-	-	-
VBSD1-S3.3-S5-SIP CONVERTER DC/DC 5V OUT 1W CUI Inc	573	1: ¥16.796	43	73%	1W	200mA	1	1W	1kV (1000V)	5V	Through Hole	4-SIP Module	0.46" L x 0.24" W x 0.39" H (11.7mm x 6.0mm x 10.0mm)	Isolated Module	SCP	-40°C ~ 85°C	-	-	-	-	-	-	-	-
VBSD1-S24-S12-SIP CONVERTER DC/DC 12V OUT 1W CUI Inc	1611	1: ¥33.592	43	81%	1W	83mA	1	1W	1kV (1000V)	12V	Through Hole	4-SIP Module	0.46" L x 0.24" W x 0.39" H (11.7mm x 6.0mm x 10.0mm)	Isolated Module	SCP	-40°C ~ 85°C	-	-	-	-	-	-	-	-
VBSD1-S24-S15-SIP CONVERTER DC/DC 15V OUT 1W CUI Inc	245	1: ¥33.592	43	79%	1W	67mA	1	1W	1kV (1000V)	15V	Through Hole	4-SIP Module	0.46" L x 0.24" W x 0.39" H (11.7mm x 6.0mm x 10.0mm)	Isolated Module	SCP	-40°C ~ 85°C	-	-	-	-	-	-	-	-
VBSD1-S5-S15-SIP CONVERTER DC/DC 15V OUT 1W CUI Inc	903	1: ¥33.592	43	78%	1W	67mA	1	1W	1kV (1000V)	15V	Through Hole	4-SIP Module	0.46" L x 0.24" W x 0.39" H (11.7mm x 6.0mm x 10.0mm)	Isolated Module	SCP	-40°C ~ 85°C	-	-	-	-	-	-	-	-
VBSD1-S3.3-S3.3-SIP CONVERTER DC/DC 3.3V OUT 1W CUI Inc	703	1: ¥33.592	43	72%	1W	300mA	1	1W	1kV (1000V)	3.3V	Through Hole	4-SIP Module	0.46" L x 0.24" W x 0.39" H (11.7mm x 6.0mm x 10.0mm)	Isolated Module	SCP	-40°C ~ 85°C	-	-	-	-	-	-	-	-
VBSD1-S24-S5-SIP CONVERTER DC/DC 5V OUT 1W CUI Inc	1159	1: ¥33.592	43	79%	1W	200mA	1	1W	1kV (1000V)	5V	Through Hole	4-SIP Module	0.46" L x 0.24" W x 0.39" H (11.7mm x 6.0mm x 10.0mm)	Isolated Module	SCP	-40°C ~ 85°C	-	-	-	-	-	-	-	-
VBSD1-S12-S15-SIP CONVERTER DC/DC 15V OUT 1W CUI Inc	862	1: ¥33.592	43	79%	1W	67mA	1	1W	1kV (1000V)	15V	Through Hole	4-SIP Module	0.46" L x 0.24" W x 0.39" H (11.7mm x 6.0mm x 10.0mm)	Isolated Module	SCP	-40°C ~ 85°C	-	-	-	-	-	-	-	-
VBSD1-S5-S3.3-SIP CONVERTER DC/DC 3.3V OUT 1W CUI Inc	616	1: ¥33.592	43	74%	1W	300mA	1	1W	1kV (1000V)	3.3V	Through Hole	4-SIP Module	0.46" L x 0.24" W x 0.39" H (11.7mm x 6.0mm x 10.0mm)	Isolated Module	SCP	-40°C ~ 85°C	-	-	-	-	-	-	-	-
VBSD1-S24-S3.3-SIP CONVERTER DC/DC 3.3V OUT 1W VBSD1-SIP Series 300 mA 1 W 3.3 V Single Output DC-DC Isolated Converter CUI Inc	1030	1: ¥33.592	43	76%	1W	300mA	1	1W	1kV (1000V)	3.3V	Through Hole	4-SIP Module	0.46" L x 0.24" W x 0.39" H (11.7mm x 6.0mm x 10.0mm)	Isolated Module	SCP	-40°C ~ 85°C	-	-	-	3.3V	300mA	26.4V	21.6V	1W

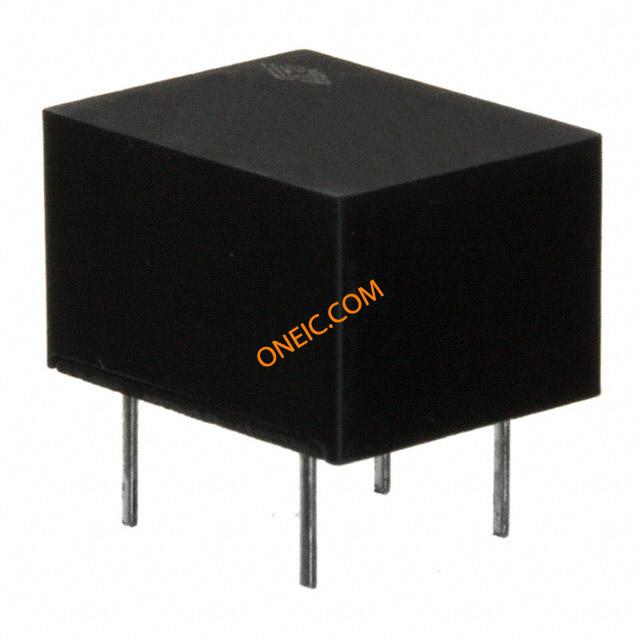

VBSD1-S5-S5-DIP CONVERTER DC/DC 5V OUT 1W CUI Inc	977	1: ¥35.564	43	70%	1W	200mA	1	1W	1kV (1000V)	5V	Through Hole	7-DIP Module (4 Leads)	0.50" L x 0.39" W x 0.30" H (12.8mm x 10.0mm x 7.7mm)	Isolated Module	SCP	-40°C ~ 85°C	-	-	-	-	-	-	-	-
VBSD1-S24-S5-DIP CONVERTER DC/DC 5V OUT 1W CUI Inc	781	1: ¥17.816	43	73%	1W	200mA	1	1W	1kV (1000V)	5V	Through Hole	7-DIP Module (4 Leads)	0.50" L x 0.39" W x 0.30" H (12.8mm x 10.0mm x 7.7mm)	Isolated Module	SCP	-40°C ~ 85°C	-	-	-	-	-	-	-	-
VBSD1-S5-S3.3-DIP CONVERTER DC/DC 3.3V OUT 1W CUI Inc	431	1: ¥17.816	43	72%	1W	300mA	1	1W	1kV (1000V)	3.3V	Through Hole	7-DIP Module (4 Leads)	0.50" L x 0.39" W x 0.30" H (12.8mm x 10.0mm x 7.7mm)	Isolated Module	SCP	-40°C ~ 85°C	-	-	-	-	-	-	-	-
VBSD1-S12-S5-DIP CONVERTER DC/DC 5V OUT 1W CUI Inc	330	1: ¥35.564	43	71%	1W	200mA	1	1W	1kV (1000V)	5V	Through Hole	7-DIP Module (4 Leads)	0.50" L x 0.39" W x 0.30" H (12.8mm x 10.0mm x 7.7mm)	Isolated Module	SCP	-40°C ~ 85°C	-	-	-	-	-	-	-	-
VBSD1-S12-S3.3-DIP CONVERTER DC/DC 3.3V OUT 1W CUI Inc	297	1: ¥35.564	43	72%	1W	300mA	1	1W	1kV (1000V)	3.3V	Through Hole	7-DIP Module (4 Leads)	0.50" L x 0.39" W x 0.30" H (12.8mm x 10.0mm x 7.7mm)	Isolated Module	SCP	-40°C ~ 85°C	-	-	-	-	-	-	-	-
VBSD1-S12-S15-DIP CONVERTER DC/DC 15V OUT 1W CUI Inc	196	1: ¥35.564	43	79%	1W	67mA	1	1W	1kV (1000V)	15V	Through Hole	7-DIP Module (4 Leads)	0.50" L x 0.39" W x 0.30" H (12.8mm x 10.0mm x 7.7mm)	Isolated Module	SCP	-40°C ~ 85°C	-	-	-	-	-	-	-	-

第 1 / 50 页
