CUI Inc.- 封闭式AC-DC转换器

CUI公司由詹姆斯·麦肯齐在美国俄勒冈州比弗顿创立，最初是与日本电子公司的合资企业。公司总部位于俄勒冈州波特兰大都会区，已发展为全球知名的电子元器件供应商。CUI专注于电力电子、互连产品、运动控制和音频组件的研发与分销。其产品线丰富，包括VOF系列AC-DC电源、PBO系列DC-DC转换器、扬声器、麦克风等音频器件以及各类连接器。凭借在亚洲建立的长期合作关系，CUI构建了灵活且响应迅速的商业模式，让全球客户受益。公司在瑞典、中国和日本设有设计和销售支持机构，以贴近区域市场。2008年，CUI收购了Waytronx公司（场外代码：WYNX.OB），加速了新技术的商业化与创新。如今，CUI Inc.是纳斯达克上市公司CUI Global, Inc.（代码：CUI）的子公司。CUI以高效能、紧凑型电源设计见长，产品服务于工业、物联网、医疗和消费电子等领域。经过20余年的发展，CUI已成为电力与互连解决方案领域值得信赖的品牌，持续助力客户提升能效与环境绩效。

封闭式AC-DC转换器 - 型号列表

共 86 个型号

制造商零件编号	库存	价格	标准包装数量	认证机构	效率	功率（瓦）	电源调整率	负载调整率	输出电流	输出数量	供电类型	最大功率（瓦特）	最小输入电压	安装类型	尺寸/外形	应用	工作温度	类型	最大功率	输入功率	供电电压	最大额定电流	尺寸	重量	产品特性	其他名称

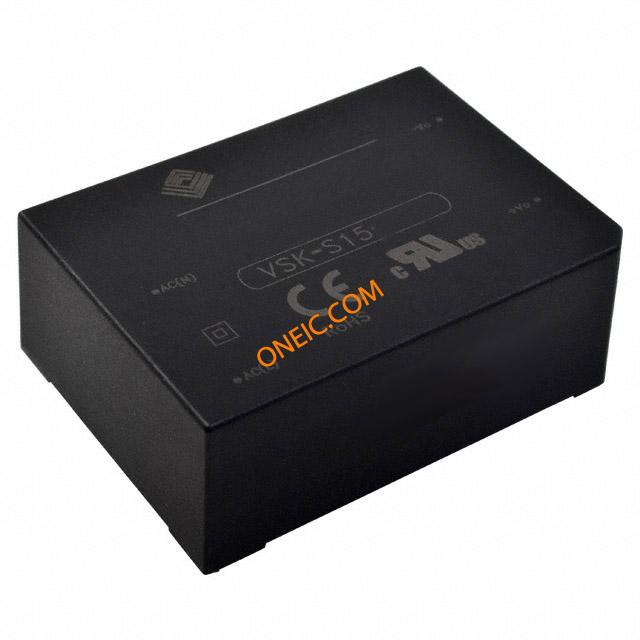

VSK-S15-48U CONV AC/DC 15W 48V 0.32A PCB VSK-S15 Series 15 W Single Output 48 V Encapsulated AC-DC Power Supply CUI Inc	63	1: ¥144.50	20	CE, cULus, EN	85%	15W	±0.5%	±1%	320mA	1	Switching (Closed Frame)	15W	48V	Through Hole	2.44" L x 1.77" W x 0.91" H (62.0mm x 45.0mm x 23.0mm)	Commercial	-25°C ~ 70°C	-	-	-	-	-	-	0.177 lb (80.29g)	OCP, OVP, SCP	-
VSK-S15-24U CONV AC/DC 15W 24V 0.625A PCB VSK-S15 Series 15 W Single Output 24 V Encapsulated AC-DC Power Supply CUI Inc	140	1: ¥151.0246	20	CE, cULus, EN	84%	15W	±0.5%	±1%	625mA	1	Switching (Closed Frame)	15W	24V	Through Hole	2.44" L x 1.77" W x 0.91" H (62.0mm x 45.0mm x 23.0mm)	Commercial	-25°C ~ 70°C	-	-	-	-	-	-	0.177 lb (80.29g)	OCP, OVP, SCP	-

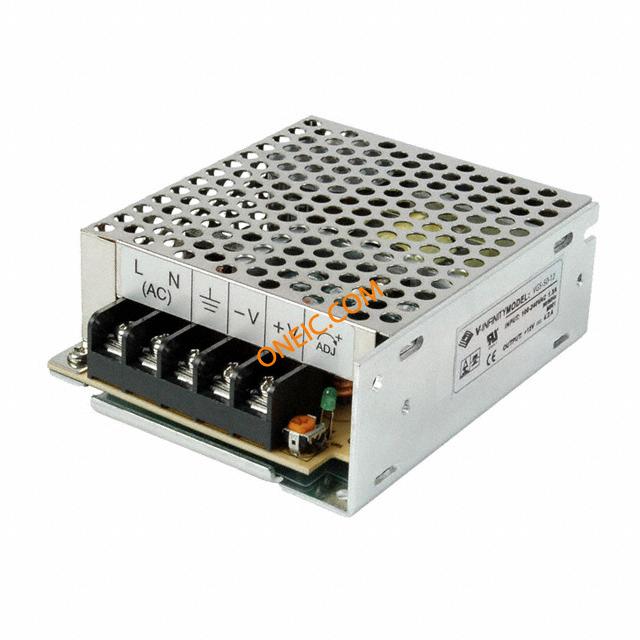

2 VGS-50-12 POWER SUPPLY 50.4W 12V 4.2AMETAL VGS-50 Series 50.4 W Single Output 12 V Encapsulated AC-DC Power Supply CUI Inc	348	2: ¥671.228	60	CE, TUV, UL	88%	50W	±0.5%	±0.5%	12 VDC @ 4.2A	1	Switching (Closed Frame)	50.4W	12V	Chassis Mount	3.90" L x 3.21" W x 1.40" H (99.0mm x 81.5mm x 35.5mm)	Commercial	-25°C ~ 70°C	Standard Product	50W	Switching (Closed Frame)	12V	12 VDC @ 4.2A	3.90" L x 3.21" W x 1.40" H (99.0mm x 81.5mm x 35.5mm)	-	-	-

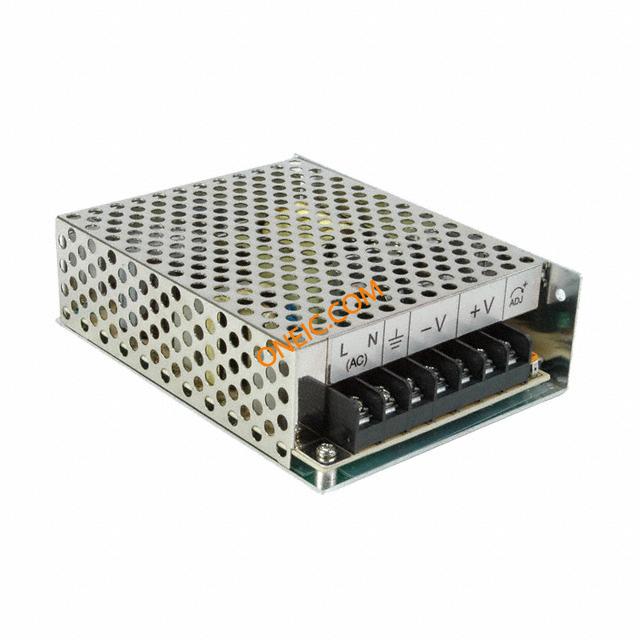

2 VGS-100-3.3 POWER SUPPLY 66W 3.3V 20A METAL CUI Inc	12	1: ¥346.596	21	CE, TUV, UL	70%	100W	±0.5%	±2%	3.3 VDC @ 20A	1	Switching (Closed Frame)	66W	3.3V	Chassis Mount	5.10" L x 3.84" W x 1.48" H (129.5mm x 97.5mm x 37.5mm)	Commercial	-25°C ~ 70°C	Standard Product	-	-	-	-	-	-	-	-
VDRS-40-24 POWER SUPPLY DIN RAIL 40W 24V VDRS-40 Series 40.8 W Single Output 24V Encapsulated AC-DC DIN Rail Power Supply CUI Inc	81	3: ¥256.428	27	EN, NEC, TUV, UL	84%	40W	±1%	±1%	24 VDC @ 1.7A	1	Switching (Closed Frame)	40.8W	24V	DIN Rail	3.90" L x 1.57" W x 3.54" H (99.0mm x 40.0mm x 90.0mm)	Commercial	-20°C ~ 70°C	Standard Product	40W	Switching (Closed Frame)	24V	24 VDC @ 1.7A	3.90" L x 1.57" W x 3.54" H (99.0mm x 40.0mm x 90.0mm)	-	-	-
VSUU-120-5 POWER SUPPLY W/PFC 110W 5V CUI Inc	10	60: ¥611.83	30	CB, CE, cUL, TUV	80%	120W	±0.5%	±3%	5 VDC @ 22A	1	Switching (Open Frame)	110W	5V	Chassis Mount	5.00" L x 3.00" W x 1.54" H (127.0mm x 81.4mm x 39.1mm)	Commercial	0°C ~ 70°C	Standard Product	-	-	-	-	-	-	-	102-1276

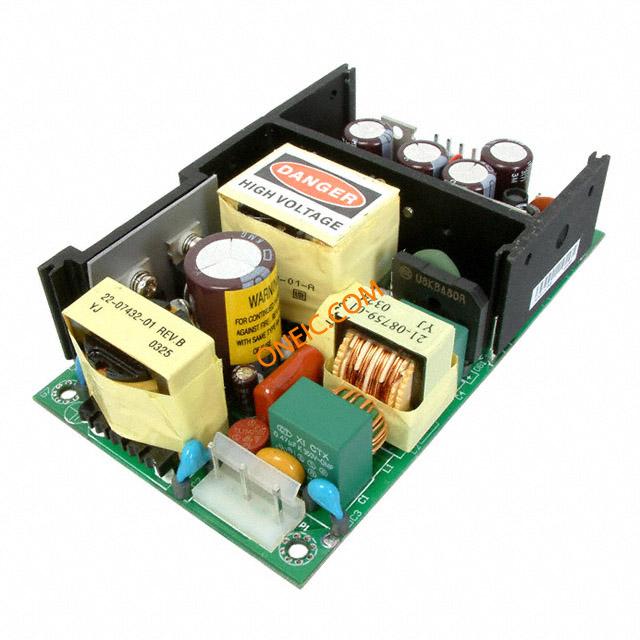

VSBU-120-D512 POWER SUPPLY W/PFC 120W 5/12V VSBU-120-D Series 120 W Dual Output 5 / 12 V Open Frame AC-DC Power Supply CUI Inc	36	1: ¥639.3319	40	CB, CE, cUL, TUV	80%	120W	±0.5%	±3%	12 VDC @ 6A	2	Switching (Open Frame)	120W	5V, 12V	Chassis Mount	5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm)	Commercial	0°C ~ 70°C	Standard Product	120W	Switching (Open Frame)	5V, 12V	5 VDC @ 15A	5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm)	-	-	-
VSBU-120-D524A POWER SUPPLY W/PFC 120W 5/24V VSBU-120-D Series 120 W Dual Output 5 / 24 V Open Frame AC-DC Power Supply CUI Inc	129	1: ¥673.268	40	CB, CE, cUL, TUV	80%	120W	±0.5%	±3%	24 VDC @ 3.5A	2	Switching (Open Frame)	120W	5V, 24V	Chassis Mount	5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm)	Commercial	0°C ~ 70°C	Standard Product	120W	Switching (Open Frame)	5V, 24V	5 VDC @ 15A	5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm)	-	-	-
VSUU-120-15 POWER SUPPLY W/PFC 120W 15V VSUU-120 Series 120 W Single Output 15 V Open Frame AC-DC Power Supply CUI Inc	95	1: ¥697.68	30	CB, CE, cUL, TUV	80%	120W	±0.5%	±3%	15 VDC @ 8A	1	Switching (Open Frame)	120W	15V	Chassis Mount	5.00" L x 3.00" W x 1.54" H (127.0mm x 81.4mm x 39.1mm)	Commercial	0°C ~ 70°C	Standard Product	120W	Switching (Open Frame)	15V	15 VDC @ 8A	5.00" L x 3.00" W x 1.54" H (127.0mm x 81.4mm x 39.1mm)	-	-	-
VSUU-120-24 POWER SUPPLY W/PFC 120W 24V VSUU-120 Series 120 W Single Output 24 V Open Frame AC-DC Power Supply CUI Inc	81	1: ¥697.68	30	CB, CE, cUL, TUV	80%	120W	±0.5%	±3%	24 VDC @ 5A	1	Switching (Open Frame)	120W	24V	Chassis Mount	5.00" L x 3.00" W x 1.54" H (127.0mm x 81.4mm x 39.1mm)	Commercial	0°C ~ 70°C	Standard Product	120W	Switching (Open Frame)	24V	24 VDC @ 5A	5.00" L x 3.00" W x 1.54" H (127.0mm x 81.4mm x 39.1mm)	-	-	-
2 VF-S320-12A PWR SUPPLY 320W 12V U-FRAME CUI Inc	40	1: ¥890.732	50	CB, CE, cUL, TUV, UL	80%	320W	±1%	±1%	12 VDC @ 26.67A	1	Switching (Open Frame)	320W	12V	Chassis Mount	6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm)	Commercial	0°C ~ 70°C	Standard Product	-	-	-	-	-	-	-	-
2 VF-S320-05A PWR SUPPLY 320W 5V U-FRAME CUI Inc	53	1: ¥896.24	50	CB, CE, cUL, TUV, UL	75%	320W	±1%	±1%	5 VDC @ 50A	1	Switching (Open Frame)	320W	5V	Chassis Mount	6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm)	Commercial	0°C ~ 70°C	Standard Product	-	-	-	-	-	-	-	-
2 VF-S320-36A PWR SUPPLY 320W 36V U-FRAME CUI Inc	168	1: ¥896.24	50	CB, CE, cUL, TUV, UL	83%	320W	±1%	±1%	36 VDC @ 9.14A	1	Switching (Open Frame)	320W	36V	Chassis Mount	6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm)	Commercial	0°C ~ 70°C	Standard Product	-	-	-	-	-	-	-	-
2 VF-S320-24A PWR SUPPLY 320W 24V U-FRAME CUI Inc	194	1: ¥896.24	50	CB, CE, cUL, TUV, UL	83%	320W	±1%	±1%	24 VDC @ 15.24A	1	Switching (Open Frame)	320W	24V	Chassis Mount	6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm)	Commercial	0°C ~ 70°C	Standard Product	-	-	-	-	-	-	-	-
2 VF-S320-15A PWR SUPPLY 320W 15V U-FRAME CUI Inc	179	1: ¥896.24	50	CB, CE, cUL, TUV, UL	83%	320W	±1%	±1%	15 VDC @ 23.53A	1	Switching (Open Frame)	320W	15V	Chassis Mount	6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm)	Commercial	0°C ~ 70°C	Standard Product	-	-	-	-	-	-	-	-
2 VF-D320-D1224A PWR SUPPLY 320W 12-24V DL OUTPUT CUI Inc	141	1: ¥945.88	50	CB, CE, cUL, TUV, UL	75%	320W	±5%	±5%	24 VDC @ 8.33A	2	Switching (Open Frame)	320W	12V, 24V	Chassis Mount	6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm)	Commercial	0°C ~ 70°C	Standard Product	-	-	-	-	-	-	-	-

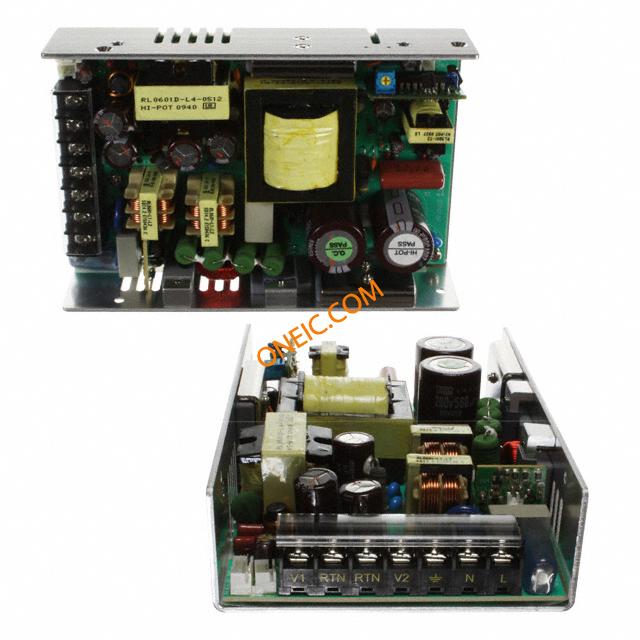

2 VF-D320-D512A PWR SUPPLY 320W 5-12V DL OUTPUT CUI Inc	10	250: ¥785.808	50	CB, CE, cUL, TUV, UL	75%	320W	±5%	±5%	12 VDC @ 16.67A	2	Switching (Open Frame)	320W	5V, 12V	Chassis Mount	6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm)	Commercial	0°C ~ 70°C	Standard Product	-	-	-	-	-	-	-	-

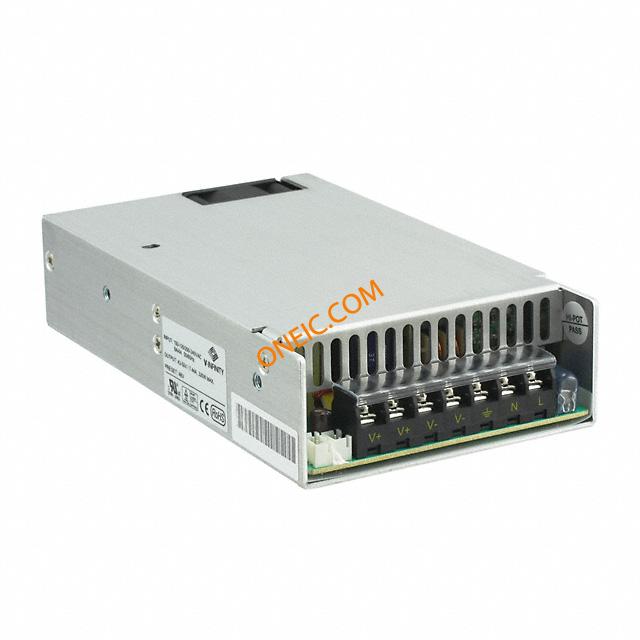

2 VF-S320-15A-CFS PWR SUPPLY 320W 15V W/FAN CUI Inc	124	1: ¥1,037.612	50	CB, CE, cUL, TUV, UL	83%	320W	±1%	±1%	15 VDC @ 23.53A	1	Switching (Closed Frame)	320W	15V	Chassis Mount	6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm)	Commercial	0°C ~ 50°C	Standard Product	-	-	-	-	-	-	-	-
2 VF-S320-36A-CFS PWR SUPPLY 320W 36V W/FAN CUI Inc	26	1: ¥1,037.612	50	CB, CE, cUL, TUV, UL	83%	320W	±1%	±1%	36 VDC @ 9.14A	1	Switching (Closed Frame)	320W	36V	Chassis Mount	6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm)	Commercial	0°C ~ 50°C	Standard Product	-	-	-	-	-	-	-	-
2 VF-S320-24A-CFS PWR SUPPLY 320W 24V W/FAN CUI Inc	177	1: ¥1,037.612	50	CB, CE, cUL, TUV, UL	83%	320W	±1%	±1%	24 VDC @ 15.24A	1	Switching (Closed Frame)	320W	24V	Chassis Mount	6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm)	Commercial	0°C ~ 50°C	Standard Product	-	-	-	-	-	-	-	-
