Bourns, Inc. 是一家全球领先的电子元件制造商，由 Marlan 和 Rosemary Bourns 于 1947 年创立，总部位于美国加利福尼亚州河滨市。公司专注于设计、制造各类被动元件、电路保护器件和传感器，服务于汽车、工业、通信、消费电子和医疗等行业。产品组合包括微调电位器、精密电位器、直线运动电位器和旋转刻度盘，广泛应用于工业和消费类设备。在电路保护领域，Bourns 提供晶闸管浪涌保护器、气体放电管、可恢复保险丝、电信保险丝及 ESD 保护器件等。电感元件产品线涵盖变压器、线圈和扼流圈，用于电源管理和信号处理。电阻类产品包括片式电阻、片式电阻阵列及特殊电阻，如电流检测电阻和大功率电阻。此外，公司还生产开关、编码器、面板控制、模块化接触件及网络接口设备，支持电信基础设施。近年新增产品线有微电子模块、功率半导体和定制化集成无源解决方案。Bourns 在电位器和电路保护领域拥有深厚的技术积累和市场份额，是全球被动元件市场的重要参与者。凭借全球化的制造基地和销售网络，Bourns 以高可靠性产品著称，尤其在汽车和工业应用中占据稳固地位。

MODELS

能源控制解决方案 - 型号列表共 23 个型号

制造商零件编号	价格/库存	Operating Temperature	Standard Package	Typical AC Discharge Current@1s@	Mounting	Termination Style	Maximum Capacitance@1MHz	Typical Impulse Life@10/1000us	Typical DC Sparkover Voltage@100V/s	Product Height	EU RoHS	Minimum Operating Temperature	Product Length	Maximum Operating Temperature	Maximum DC Holdover Voltage	Maximum Impulse Sparkover Voltage@100V/s	Typical Impulse Discharge Current@8/20us@10Times	Minimum Insulation Resistance@100V	Maximum Impulse Sparkover Voltage@1KV/s	Product Depth	Number of Terminals	DC Sparkover Voltage Tolerance	Number of Electrodes	Failsafe Protection	Packaging	Agency Approvals	Impulse Discharge Current (8/20us)	Mounting Type	Fail Short	Number of Poles	Voltage - DC Spark Over (Nom)	Tolerance	Current - AC Discharge (Nom)	Package/Case	rohs	Other Names	Series	Mounting Style	DC Breakover Voltage	Impulse Discharge Current	Impulse Sparkover Voltage	GDT Case Style	SVHC	Weight (kg)	Tariff No.	Factory Pack Quantity	Diameter	Operating Temperature Range	Brand	DC Sparkover	Length	Insulation Resistance	Peak Pulse Current	Failsafe Protection Y/N	Technology	RoHS	Operating Temperature Max Deg. C	Operating Temperature Min Deg. C	Product Depth (mm)	Product Height (mm)	DC Sparkover Voltage (Typ)@100V/s	Impulse Sparkover Voltage (Max)@100V/s	Impulse Sparkover Voltage (Max)@1KV/s	DC Holdover Voltage (Max)	Impulse Discharge Current (Typ)@8/20us@10Times	Capacitance (Max)@1MHz
2027-20-SM-RPLF Precision Gas Discharge Tube Surge Protector 2-Pin T/R bourns	询价	-55 to 85 °C	Tape & Reel	10	Surface Mount	Solder Pad	1	400	200	7.92	Compliant	-55	6.42	85	135@150ms	400	10	10	600	7.93	2	±15%	2	No	Tape and Reel	UL	25kA	Surface Mount	No	2	200V	±15%	10A	2-SMD Cylinder Square End	Lead free / RoHS Compliant	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

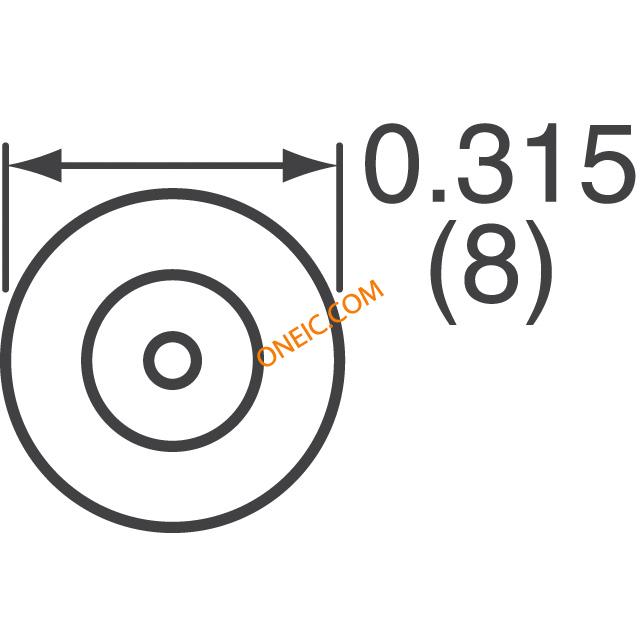

2027-15-SMLF Precision Gas Discharge Tube Surge Protector 2-Pin bourns	询价	-55 to 85 °C	Bulk	10	Surface Mount	Solder Pad	1	400	150	7.92	Compliant	-55	6.42	85	80@150ms	350	10	10	575	7.93	2	±15%	2	No	Bulk	UL	25kA	Surface Mount	No	2	150V	±15%	10A	2-SMD Cylinder Square End	Lead free / RoHS Compliant	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2027-20-SMLF Precision Gas Discharge Tube Surge Protector 2-Pin bourns	询价	-55 to 85 °C	Bulk	10	Surface Mount	Solder Pad	1	400	200	7.92	Compliant	-55	6.42	85	135@150ms	400	10	10	600	7.93	2	±15%	2	No	Bulk	UL	25kA	Surface Mount	No	2	200V	±15%	10A	2-SMD Cylinder Square End	Lead free / RoHS Compliant	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2027-25-SMLF Precision Gas Discharge Tube Surge Protector 2-Pin bourns	询价	-55 to 85 °C	Bulk	10	Surface Mount	Solder Pad	1	400	250	7.92	Compliant	-55	6.42	85	135@150ms	475	10	10	700	7.93	2	±15%	2	No	Bulk	UL	25kA	Surface Mount	No	2	250V	±15%	10A	2-SMD Cylinder Square End	Lead free / RoHS Compliant	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2027-60-SMLF Precision Gas Discharge Tube Surge Protector 2-Pin bourns	询价	-55 to 85 °C	Bulk	10	Surface Mount	Solder Pad	1	400	600	7.92	Compliant	-55	6.42	85	135@150ms	850	10	10	1100	7.93	2	±15%	2	No	Bulk	UL	25kA	Surface Mount	No	2	600V	±15%	10A	2-SMD Cylinder Square End	Lead free / RoHS Compliant	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2027-40-SM-RPLF Precision Gas Discharge Tube Surge Protector 2-Pin T/R bourns	询价	-55 to 85 °C	Tape & Reel	10	Surface Mount	Solder Pad	1	400	400	7.92	Compliant	-55	6.42	85	135@150ms	650	10	10	925	7.93	2	±15%	2	No	Tape and Reel	UL	25kA	Surface Mount	No	2	400V	±15%	10A	2-SMD Cylinder Square End	Lead free / RoHS Compliant	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 2027-09-SM-RPLF Precision Gas Discharge Tube Surge Protector 2-Pin T/R bourns	询价	-55 to 85 °C	Tape & Reel	10	Surface Mount	Solder Pad	1	400	90	7.92	Compliant	-55	6.42	85	52@150ms	300	10	10	500	7.93	2	±20%	2	No	Tape and Reel	UL	25kA	Surface Mount	No	2	90V	±15%	10A	2-SMD Cylinder Square End	Lead free / RoHS Compliant	2027-09-SM-RPLFCT	:2027	-	:90V	:25kA	:500V	:2 Terminal SMD	:No SVHC (16-Dec-2013)	0.01	85354000	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2027-25-SM-RPLF Precision Gas Discharge Tube Surge Protector 2-Pin T/R bourns	询价	-55 to 85 °C	Tape & Reel	10	Surface Mount	Solder Pad	1	400	250	7.92	Compliant	-55	6.42	85	135@150ms	475	10	10	700	7.93	2	±15%	2	No	Tape and Reel	UL	25kA	Surface Mount	No	2	250V	±15%	10A	2-SMD Cylinder Square End	Lead free / RoHS Compliant	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2027-35-SMLF Precision Gas Discharge Tube Surge Protector 2-Pin bourns	询价	-55 to 85 °C	Bulk	10	Surface Mount	Solder Pad	1	400	350	7.92	Compliant	-55	6.42	85	135@150ms	600	10	10	875	7.93	2	±15%	2	No	Bulk	UL	25kA	Surface Mount	No	2	350V	±15%	10A	2-SMD Cylinder Square End	Lead free / RoHS Compliant	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2027-40-SMLF Precision Gas Discharge Tube Surge Protector 2-Pin bourns	询价	-55 to 85 °C	Bulk	10	Surface Mount	Solder Pad	1	400	400	7.92	Compliant	-55	6.42	85	135@150ms	650	10	10	925	7.93	2	±15%	2	No	Bulk	UL	25kA	Surface Mount	No	2	400V	±15%	10A	2-SMD Cylinder Square End	Lead free / RoHS Compliant	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2027-09-SMLF Precision Gas Discharge Tube Surge Protector 2-Pin bourns	询价	-55 to 85 °C	Bulk	10	Surface Mount	Solder Pad	1	400	90	7.92	Compliant	-55	6.42	85	52@150ms	300	10	10	500	7.93	2	±20%	2	No	Bulk	UL	25kA	Surface Mount	No	2	90V	±15%	10A	2-SMD Cylinder Square End	Lead free / RoHS Compliant	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

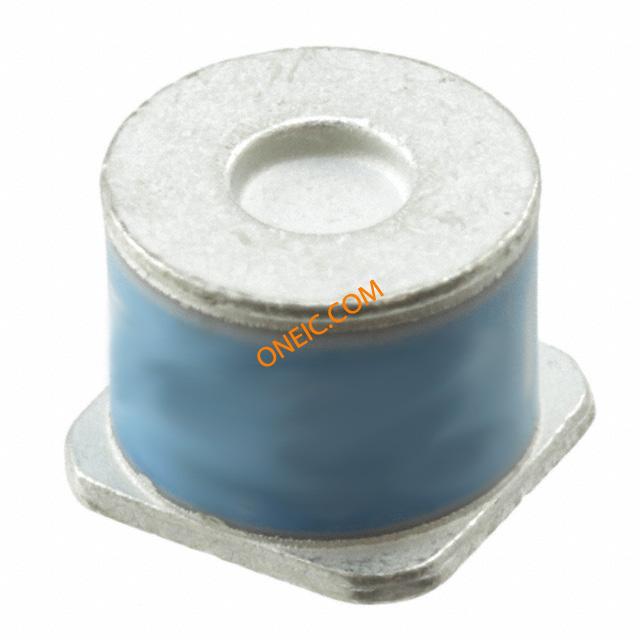

3 2027-15-SM-RPLF Precision Gas Discharge Tube Surge Protector 2-Pin T/R bourns	询价	-55 to 85 °C	Tape & Reel	10	Surface Mount	Solder Pad	1	400	150	7.92	Compliant	-55	6.42	85	80@150ms	350	10	10	575	7.93	2	±15%	2	No	Tape and Reel	UL	25kA	Surface Mount	No	2	150V	±15%	10A	2-SMD Cylinder Square End	Lead free / RoHS Compliant	2027-15-SM-RPLFCT	2027-xx-SM	SMD/SMT	-	-	-	-	-	-	-	500	8 mm	- 55 C to + 125 C	Bourns	150 V	6 mm	10 GOhms	25 kA	Failsafe Not Protected	Gas Discharge Tubes	RoHS Compliant	-	-	-	-	-	-	-	-	-	-
2027-23-SM-RPLF Precision Gas Discharge Tube Surge Protector 2-Pin T/R bourns	询价	-55 to 85 °C	Tape & Reel	10	Surface Mount	Solder Pad	1	400	230	7.92	Compliant	-55	6.42	85	135@150ms	450	10	10	675	7.93	2	±15%	2	No	Tape and Reel	UL	25kA	Surface Mount	No	2	230V	±15%	10A	2-SMD Cylinder Square End	Lead free / RoHS Compliant	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2027-35-SM-RPLF Precision Gas Discharge Tube Surge Protector 2-Pin T/R bourns	询价	-55 to 85 °C	Tape & Reel	10	Surface Mount	Solder Pad	1	400	350	7.92	Compliant	-55	6.42	85	135@150ms	600	10	10	875	7.93	2	±15%	2	No	Tape and Reel	UL	25kA	Surface Mount	No	2	350V	±15%	10A	2-SMD Cylinder Square End	Lead free / RoHS Compliant	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2027-42-SMLF Precision Gas Discharge Tube Surge Protector 2-Pin bourns	询价	-55 to 85 °C	Bulk	10	Surface Mount	Solder Pad	1	400	420	7.92	Compliant	-55	6.42	85	135@150ms	675	10	10	950	7.93	2	±15%	2	No	Bulk	UL	25kA	Surface Mount	No	2	420V	±15%	10A	2-SMD Cylinder Square End	Lead free / RoHS Compliant	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2027-47-SM-RPLF Precision Gas Discharge Tube Surge Protector 2-Pin T/R bourns	询价	-55 to 85 °C	Tape & Reel	10	Surface Mount	Solder Pad	1	400	470	7.92	Compliant	-55	6.42	85	135@150ms	725	10	10	1000	7.93	2	±15%	2	No	Tape and Reel	UL	25kA	Surface Mount	No	2	470V	±15%	10A	2-SMD Cylinder Square End	Lead free / RoHS Compliant	2027-47-SM-RPLFCT	*	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2027-60-SM-RPLF Precision Gas Discharge Tube Surge Protector 2-Pin T/R bourns	询价	-55 to 85 °C	Tape & Reel	10	Surface Mount	Solder Pad	1	400	600	7.92	Compliant	-55	6.42	85	135@150ms	850	10	10	1100	7.93	2	±15%	2	No	Tape and Reel	UL	25kA	Surface Mount	No	2	600V	±15%	10A	2-SMD Cylinder Square End	Lead free / RoHS Compliant	-	-	Surface Mount	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	85C	-55C	7.93 mm	7.92 mm	600	850	1100	135@150ms	10	1
BNSMX5A12SA Module DC-DC 1-OUT 0.75V to 5V 5A 5-Pin SMT bourns	询价	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BNSMXT6A12SA Module DC-DC 1-OUT 0.75V to 5.5V 6A 6-Pin SMT bourns	询价	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2036-07-SM-RPLF/BKN Surge Protector T/R bourns	询价	-55 to 85 °C	Cut Tape	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
