Bourns, Inc.- 通孔连接器

Bourns, Inc. 是一家全球领先的电子元件制造商，由 Marlan 和 Rosemary Bourns 于 1947 年创立，总部位于美国加利福尼亚州河滨市。公司专注于设计、制造各类被动元件、电路保护器件和传感器，服务于汽车、工业、通信、消费电子和医疗等行业。产品组合包括微调电位器、精密电位器、直线运动电位器和旋转刻度盘，广泛应用于工业和消费类设备。在电路保护领域，Bourns 提供晶闸管浪涌保护器、气体放电管、可恢复保险丝、电信保险丝及 ESD 保护器件等。电感元件产品线涵盖变压器、线圈和扼流圈，用于电源管理和信号处理。电阻类产品包括片式电阻、片式电阻阵列及特殊电阻，如电流检测电阻和大功率电阻。此外，公司还生产开关、编码器、面板控制、模块化接触件及网络接口设备，支持电信基础设施。近年新增产品线有微电子模块、功率半导体和定制化集成无源解决方案。Bourns 在电位器和电路保护领域拥有深厚的技术积累和市场份额，是全球被动元件市场的重要参与者。凭借全球化的制造基地和销售网络，Bourns 以高可靠性产品著称，尤其在汽车和工业应用中占据稳固地位。

MODELS

通孔连接器 - 型号列表共 400 个型号

制造商零件编号	价格/库存	Type	Resistance Value	Tolerance	Power Rating	Product Height	Product Length	Temperature Coefficient	Operating Temperature	Case Style	Lead Finish	Standard Package	Termination Style	Packaging	Technology	Package/Case	Resistance (Ohms)	Number of Terminations	Supplier Device Package	Height	Size / Dimension	Power (Watts)	Composition	rohs	Resistance	Dimensions	Product Category	RoHS	Series	Operating Temperature Range	Case Height	Case Length	Case Width	Product	Resistance Value	EU RoHS	Product Depth	Mounting	Temperature Coefficient	Product Length	Product Height	Power Rating	Fail Safe Fusible Resistor	Terminal Pitch	Factory Pack Quantity	Features	Lead Spacing	Depth	Lead Pitch	Length	Maximum Operating Temperature	Maximum Temperature Coefficient	Minimum Operating Temperature	Minimum Temperature Coefficient	Other Names	Resistance Tolerance	Resistor Case Style	Resistor Element Material	SVHC	Weight (kg)	Tariff No.	Package Type	Voltage Rating	Product Range	Resistor Mounting	External Length / Height	External Width	Operating Temperature Max	Operating Temperature Min	Temperature Coeff. +	Temperature Coeff. -	Tolerance +	Tolerance -	Lead Diameter	Operating Temp Range	Failure Rate	Tolerance (+ or -)	Lead Spacing (nom)	Power Rating(s)	Product Length (mm)	Product Depth (mm)	Product Height (mm)	Military Standard	No. of Elements	Resistor Terminals	Material,Element	Power,Rating	Termination	长度	额定功率	Board Level Components	外壳样式	最高工作温度	容差	高度	技术	最低工作温度	温度系数	最大温度系数	电阻值	尺寸	接端样式	深度	最小温度系数	引线节距	引线直径	封装/外壳	DELETED	Terminal pitch	Power	Resistor type	Temperature coefficient	Gross weight	Operating temperature	Multiplicity	Collective package [pcs]	spg
3 PWR220-2SBR100J Res Metal Foil 0.1 Ohm 5% 1.5W ±50ppm/°C Epoxy/PPS TO-220 RDL Thru-Hole Tube bourns	询价	Metal Foil	100 mOhm	5 %	1.5 W	17.3 mm	10.16 mm	±50 ppm/°C	-40 to 130 °C	Epoxy/PPS	Tin/Copper	Rail / Tube	Radial	Tube	Metal Foil	TO-220	0.1	2	TO-220-2	0.681" (17.30mm)	0.400" L x 0.157" W (10.16mm x 4.00mm)	15W	Metal Foil	Lead free / RoHS Compliant	100mΩ	10.16 x 4 x 17.3mm	-	-	-	-	-	-	-	-	100m	Compliant	4	Through Hole	±50	10.16	17.3	1.5	No	5.08	-	-	-	4mm	5.08mm	10.16mm	+130°C	+50ppm/°C	-40°C	-50ppm/°C	-	-	-	-	-	-	-	TO-220	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 PWR221-2FC2500F Res Thick Film 250 Ohm 1% 1.5W ±100ppm/°C Epoxy/PPS TO-221 RDL Thru-Hole Tube bourns	询价	Thick Film	250 Ohm	1 %	1.5 W	19.3 mm	10.16 mm	±100 ppm/°C	-40 to 155 °C	Epoxy/PPS	Tin/Copper	Rail / Tube	Radial	Tube	Thick Film	TO-221	250	2	TO-221	0.720" (18.30mm)	0.400" L x 0.157" W (10.16mm x 4.00mm)	50W	Thick Film	Lead free / RoHS Compliant	250 Ohms	4 mm W x 10.16 mm L x 18.3 mm H	Thick Film Resistors - Through Hole	RoHS Compliant	PWR220/PWR221 F	- 40 C to + 155 C	18.3 mm	10.16 mm	4 mm	Thick Film Resistors Leaded	250	Compliant	4	Through Hole	±100	10.16	19.3	1.5	No	5.08	50	-	5.08 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	TO-221	2 kV	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 PWR221-2FC2R50F Res Thick Film 2.5 Ohm 1% 1.5W ±100ppm/°C Epoxy/PPS TO-221 RDL Thru-Hole Tube bourns	询价	Thick Film	2.5 Ohm	1 %	1.5 W	19.3 mm	10.16 mm	±100 ppm/°C	-40 to 155 °C	Epoxy/PPS	Tin/Copper	Rail / Tube	Radial	Tube	Thick Film	TO-221	2.5	2	TO-221	0.720" (18.30mm)	0.400" L x 0.157" W (10.16mm x 4.00mm)	50W	Thick Film	Lead free / RoHS Compliant	2.5 Ohms	4 mm W x 10.16 mm L x 18.3 mm H	Thick Film Resistors - Through Hole	RoHS Compliant	PWR220/PWR221 F	- 40 C to + 155 C	18.3 mm	10.16 mm	4 mm	Thick Film Resistors Leaded	2.5	Compliant	4	Through Hole	±100	10.16	19.3	1.5	No	5.08	50	-	5.08 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	TO-221	2 kV	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PWR221-2SBR015J Res Metal Foil 0.015 Ohm 5% 15W ±50ppm/°C Epoxy/PPS TO-221 RDL Thru-Hole T/R bourns	询价	Metal Foil	15 mOhm	5 %	15 W	16.3 mm	10.16 mm	±50 ppm/°C	-40 to 130 °C	Epoxy/PPS	Tin/Copper	Rail / Tube	Radial	Tape and Reel	Metal Foil	TO-221	0.015	2	TO-221	0.720" (18.30mm)	0.400" L x 0.157" W (10.16mm x 4.00mm)	15W	Metal Foil	Lead free / RoHS Compliant	15 mOhms	4 mm W x 10.16 mm L x 18.3 mm H	Thick Film Resistors - Through Hole	RoHS Compliant	PWR220/PWR221 S	- 40 C to + 130 C	18.3 mm	10.16 mm	4 mm	Thick Film Resistors Leaded	15m	Compliant	4	Through Hole	±50	10.16	16.3	15	No	5.08	50	-	5.08 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	TO-221	300 V	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
7 PWR4412-2SBR0050F Res Metal Film 0.005 Ohm 1% 1W ±20ppm/°C Bare Metal RDL Thru-Hole Bag bourns	询价	Metal Film	5 mOhm	1 %	1 W	7.62 mm	12.44 mm	±20 ppm/°C	-55 to 270 °C	Bare Metal	Tin	Bulk	Radial	Bulk	Metal Film	Radial	0.005	2	Radial Lead	0.300" (7.62mm)	0.450" L x 0.189" W (11.43mm x 4.80mm)	1W	Metal Element	Lead free / RoHS Compliant	5 mOhms	4 mm W x 11.43 mm L x 13.5 mm H	Current Sense Resistors - Through Hole	RoHS Compliant	PWR4412-2S	- 55 C to + 270 C	13.5 mm	11.43 mm	4 mm	Thick Film Current Sensing Resistors	5m	Compliant	4.8	Through Hole	±20	12.44	7.62	1	No	11.43	250	Current Sense, Pulse Withstanding	-	4.8mm	11.43mm	12.44mm	+270°C	+20ppm/°C	-55°C	-20ppm/°C	PWR44122SBR0050F	:± 1%	:Radial Leaded	:Metal Strip	:No SVHC (20-Jun-2013)	0.0002	85332100	-	-	:BOURNS - PWR4412-2S Series	:Through Hole	:5.08mm	:11.43mm	:125°C	:-40°C	:20ppm/°C	:20ppm/°C	:1%	:1%	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
5 PWR4412-2SCR0300J Res Metal Film 0.03 Ohm 5% 3W ±20ppm/°C Bare Metal RDL Thru-Hole Bag bourns	询价	Metal Film	30 mOhm	5 %	3 W	25.4 mm	16.25 mm	±20 ppm/°C	-55 to 270 °C	Bare Metal	Tin	Bulk	Radial	Bulk	Metal Film	Radial	0.03	2	Radial Lead	1.000" (25.40mm)	0.600" L x 0.189" W (15.24mm x 4.80mm)	3W	Metal Element	Lead free / RoHS Compliant	30 mOhms	4 mm W x 15.24 mm L x 16 mm H	Current Sense Resistors - Through Hole	RoHS Compliant	PWR4412-2S	- 55 C to + 270 C	16 mm	15.24 mm	4 mm	Thick Film Current Sensing Resistors	30m	Compliant	4.8	Through Hole	±20	16.25	25.4	3	No	15.24	250	Current Sense, Pulse Withstanding	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PWR221-2FCR040F Res Thick Film 0.04 Ohm 1% 1.5W ±600ppm/°C Epoxy/PPS TO-221 RDL Thru-Hole Tube bourns	询价	Thick Film	40 mOhm	1 %	1.5 W	19.3 mm	10.16 mm	±600 ppm/°C	-40 to 155 °C	Epoxy/PPS	Tin/Copper	Rail / Tube	Radial	Tube	Thick Film	TO-221	0.04	2	TO-221	0.720" (18.30mm)	0.400" L x 0.157" W (10.16mm x 4.00mm)	50W	Thick Film	Lead free / RoHS Compliant	40 mOhms	4 mm W x 10.16 mm L x 18.3 mm H	Thick Film Resistors - Through Hole	RoHS Compliant	PWR220/PWR221 F	- 40 C to + 155 C	18.3 mm	10.16 mm	4 mm	Thick Film Resistors Leaded	40m	Compliant	4	Through Hole	±600	10.16	19.3	1.5	No	5.08	50	-	5.08 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	TO-221	2 kV	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PWR221-2FCR100F Res Thick Film 0.1 Ohm 1% 1.5W ±100ppm/°C Epoxy/PPS TO-221 RDL Thru-Hole Tube bourns	询价	Thick Film	100 mOhm	1 %	1.5 W	19.3 mm	10.16 mm	±100 ppm/°C	-40 to 155 °C	Epoxy/PPS	Tin/Copper	Rail / Tube	Radial	Tube	Thick Film	TO-221	0.1	2	TO-221	0.720" (18.30mm)	0.400" L x 0.157" W (10.16mm x 4.00mm)	50W	Thick Film	Lead free / RoHS Compliant	100 mOhms	4 mm W x 10.16 mm L x 18.3 mm H	Thick Film Resistors - Through Hole	RoHS Compliant	PWR220/PWR221 F	- 40 C to + 155 C	18.3 mm	10.16 mm	4 mm	Thick Film Resistors Leaded	100m	Compliant	4	Through Hole	±100	10.16	19.3	1.5	No	5.08	50	-	5.08 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	TO-221	2 kV	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 PWR221-2FCR250F Res Thick Film 0.25 Ohm 1% 1.5W ±100ppm/°C Epoxy/PPS TO-221 RDL Thru-Hole Tube bourns	询价	Thick Film	250 mOhm	1 %	1.5 W	19.3 mm	10.16 mm	±100 ppm/°C	-40 to 155 °C	Epoxy/PPS	Tin/Copper	Rail / Tube	Radial	Tube	Thick Film	TO-221	0.25	2	TO-221	0.720" (18.30mm)	0.400" L x 0.157" W (10.16mm x 4.00mm)	50W	Thick Film	Lead free / RoHS Compliant	250 mOhms	4 mm W x 10.16 mm L x 18.3 mm H	Thick Film Resistors - Through Hole	RoHS Compliant	PWR220/PWR221 F	- 40 C to + 155 C	18.3 mm	10.16 mm	4 mm	Thick Film Resistors Leaded	250m	Compliant	4	Through Hole	±100	10.16	19.3	1.5	No	5.08	50	-	5.08 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	TO-221	2 kV	-	-	-	-	-	-	-	-	-	-	0.76 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
6 PWR4412-2SBR0250F Res Metal Film 0.025 Ohm 1% 1W ±20ppm/°C Bare Metal RDL Thru-Hole Bag bourns	询价	Metal Film	25 mOhm	1 %	1 W	7.62 mm	12.44 mm	±20 ppm/°C	-55 to 270 °C	Bare Metal	Tin	Bulk	Radial	Bulk	Metal Film	Radial	0.025	2	Radial Lead	0.300" (7.62mm)	0.450" L x 0.189" W (11.43mm x 4.80mm)	1W	Metal Element	Lead free / RoHS Compliant	25 mOhms	4 mm W x 11.43 mm L x 13.5 mm H	Current Sense Resistors - Through Hole	RoHS Compliant	PWR4412-2S	- 55 C to + 270 C	13.5 mm	11.43 mm	4 mm	Thick Film Current Sensing Resistors	-	-	-	-	-	-	-	-	-	-	250	Current Sense, Pulse Withstanding	-	4.8mm	11.43mm	12.44mm	+270°C	+20ppm/°C	-55°C	-20ppm/°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	11.43mm	1W	Y	金属	+270°C	1%	7.62mm	金属箔	-55°C	±20ppm/°C	+20ppm/°C	25 mΩ	11.43 x 4.8 x 7.62mm	径向	4.8mm	-20ppm/°C	11.43mm	1.01mm	户外分流器	-	-	-	-	-	-	-	-	-	-
7 PWR4412-2SBR0500F Res Metal Film 0.05 Ohm 1% 1W ±20ppm/°C Bare Metal RDL Thru-Hole Bag bourns	询价	Metal Film	50 mOhm	1 %	1 W	7.62 mm	12.44 mm	±20 ppm/°C	-55 to 270 °C	Bare Metal	Tin	Bulk	Radial	Bulk	Metal Film	Radial	0.05	2	Radial Lead	0.300" (7.62mm)	0.450" L x 0.189" W (11.43mm x 4.80mm)	1W	Metal Element	Lead free / RoHS Compliant	50 mOhms	4 mm W x 11.43 mm L x 13.5 mm H	Current Sense Resistors - Through Hole	RoHS Compliant	PWR4412-2S	- 55 C to + 270 C	13.5 mm	11.43 mm	4 mm	Thick Film Current Sensing Resistors	50m	Compliant	4.8	Through Hole	±20	12.44	7.62	1	No	11.43	250	Current Sense, Pulse Withstanding	-	4.8mm	11.43mm	12.44mm	+270°C	+20ppm/°C	-55°C	-20ppm/°C	PWR44122SBR0500F	:± 1%	:Open Element	:Metal Strip	:No SVHC (20-Jun-2013)	0.0002	85332100	-	-	:BOURNS - PWR4412-2S Series	:Through Hole	:5.08mm	:11.43mm	:125°C	:-40°C	:20ppm/°C	:20ppm/°C	:1%	:1%	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 PWR4412-2SBR1000F Res Metal Film 0.1 Ohm 1% 1W ±20ppm/°C Bare Metal RDL Thru-Hole Bag bourns	询价	Metal Film	100 mOhm	1 %	1 W	7.62 mm	12.44 mm	±20 ppm/°C	-55 to 270 °C	Bare Metal	Tin	Bulk	Radial	Bulk	Metal Film	Radial	0.1	2	Radial Lead	0.300" (7.62mm)	0.450" L x 0.189" W (11.43mm x 4.80mm)	1W	Metal Element	Lead free / RoHS Compliant	100 mOhms	4 mm W x 11.43 mm L x 13.5 mm H	Current Sense Resistors - Through Hole	RoHS Compliant	PWR4412-2S	- 55 C to + 270 C	13.5 mm	11.43 mm	4 mm	Thick Film Current Sensing Resistors	100m	Compliant	4.8	Through Hole	±20	12.44	7.62	1	No	11.43	-	Current Sense, Pulse Withstanding	11.43 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-40C to 125C	Not Required	1%	11.43 mm	1 W	12.44 mm	4.8 mm	7.62 mm	Not Required	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Compliant	-	-	-	-	-	-	-	-	-
7 PWR4412-2SCR0150F Res Metal Film 0.015 Ohm 1% 3W ±20ppm/°C Bare Metal RDL Thru-Hole Bag bourns	询价	Metal Film	15 mOhm	1 %	3 W	25.4 mm	16.25 mm	±20 ppm/°C	-55 to 270 °C	Bare Metal	Tin	Bulk	Radial	Bulk	Metal Film	Radial	0.015	2	Radial Lead	1.000" (25.40mm)	0.600" L x 0.189" W (15.24mm x 4.80mm)	3W	Metal Element	Lead free / RoHS Compliant	15 mOhms	4 mm W x 15.24 mm L x 16 mm H	Current Sense Resistors - Through Hole	RoHS Compliant	PWR4412-2S	- 55 C to + 270 C	16 mm	15.24 mm	4 mm	Thick Film Current Sensing Resistors	15m	Compliant	4.8	Through Hole	±20	16.25	25.4	3	No	15.24	250	Current Sense, Pulse Withstanding	15.24 mm	4.8mm	15.24mm	16.25mm	+270°C	+20ppm/°C	-55°C	-20ppm/°C	PWR44122SCR0150F	:± 1%	:Radial Leaded	:Metal Strip	:No SVHC (20-Jun-2013)	0.0002	85332100	-	-	:BOURNS - PWR4412-2S Series	:Through Hole	:25.4mm	:15.24mm	:125°C	:-40°C	:20ppm/°C	:20ppm/°C	:1%	:1%	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 PWR4412-2SBR0100J Res Metal Film 0.01 Ohm 5% 1W ±20ppm/°C Bare Metal RDL Thru-Hole Bag bourns	询价	Metal Film	10 mOhm	5 %	1 W	7.62 mm	12.44 mm	±20 ppm/°C	-55 to 270 °C	Bare Metal	Tin	Bulk	Radial	Bag	Metal Film	Radial	0.01	2	Radial Lead	0.300" (7.62mm)	0.450" L x 0.189" W (11.43mm x 4.80mm)	1W	Metal Element	Lead free / RoHS Compliant	10 mOhms	-	Current Sense Resistors - Through Hole	RoHS Compliant	PWR4412-2S	- 55 C to + 270 C	13.5 mm	11.43 mm	4 mm	Thick Film Current Sensing Resistors	10m	Compliant	4.8	Through Hole	±20	12.44	7.62	1	No	11.43	250	Current Sense, Pulse Withstanding	11.43 mm	-	-	-	-	-	-	-	PWR44122SBR0100J	:± 5%	:Open Element	:Metal Strip	:No SVHC (16-Dec-2013)	0.0002	85331000	-	-	:BOURNS - PWR4412-2S Series	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
8 PWR4412-2SCR0050F Res Metal Film 0.005 Ohm 1% 3W ±20ppm/°C Bare Metal RDL Thru-Hole Bag bourns	询价	Metal Film	5 mOhm	1 %	3 W	25.4 mm	16.25 mm	±20 ppm/°C	-55 to 270 °C	Bare Metal	Tin	Bulk	Radial	Bulk	Metal Film	Radial	0.005	2	Radial Lead	1.000" (25.40mm)	0.600" L x 0.189" W (15.24mm x 4.80mm)	3W	Metal Element	Lead free / RoHS Compliant	5 mOhms	4 mm W x 15.24 mm L x 16 mm H	Current Sense Resistors - Through Hole	RoHS Compliant	PWR4412-2S	- 55 C to + 270 C	16 mm	15.24 mm	4 mm	Thick Film Current Sensing Resistors	5m	Compliant	4.8	Through Hole	±20	16.25	25.4	3	No	15.24	250	Current Sense, Pulse Withstanding	15.24 mm	4.8mm	15.24mm	16.25mm	+270°C	+20ppm/°C	-55°C	-20ppm/°C	PWR44122SCR0050F	:± 1%	:Radial Leaded	:Metal Strip	:No SVHC (20-Jun-2013)	0.0002	85332100	-	-	:BOURNS - PWR4412-2S Series	:Through Hole	:25.4mm	:15.24mm	:155°C	:-55°C	:20ppm/°C	:20ppm/°C	:1%	:1%	-	-40C to 125C	Not Required	1%	15.24 mm	3 W	16.25 mm	4.8 mm	25.4 mm	Not Required	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

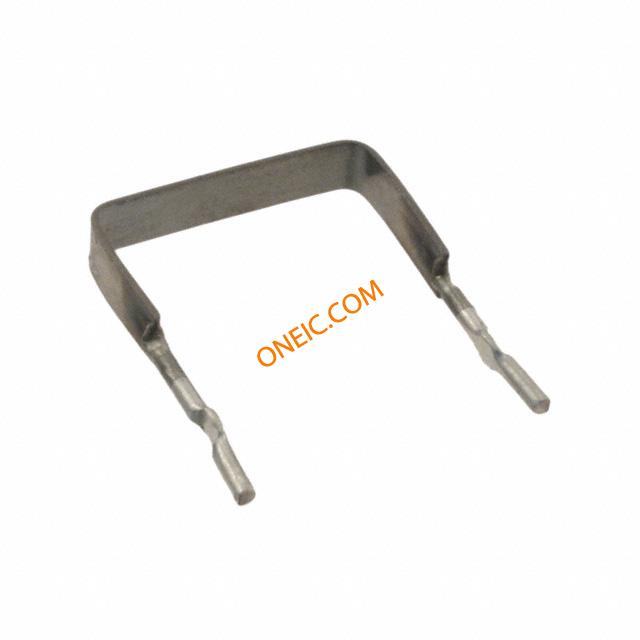

8 PWR4412-2SCR0100F Res Metal Film 0.01 Ohm 1% 3W ±20ppm/°C Bare Metal RDL Thru-Hole Bag bourns	询价	Metal Film	10 mOhm	1 %	3 W	25.4 mm	16.25 mm	±20 ppm/°C	-55 to 270 °C	Bare Metal	Tin	Bulk	Radial	Bag	Metal Film	Radial	0.01	2	Radial Lead	1.000" (25.40mm)	0.600" L x 0.189" W (15.24mm x 4.80mm)	3W	Metal Element	Lead free / RoHS Compliant	10mΩ	16.25 x 4.8 x 25.4mm	Current Sense Resistors - Through Hole	RoHS Compliant	PWR4412-2S	- 55 C to + 270 C	16 mm	15.24 mm	4 mm	Thick Film Current Sensing Resistors	10m	Compliant	4.8	Through Hole	±20	16.25	25.4	3	No	15.24	250	Current Sense, Pulse Withstanding	-	4.8mm	15.24mm	16.25mm	+270°C	+20ppm/°C	-55°C	-20ppm/°C	PWR44122SCR0100F	:± 1%	:-	:Metal Foil	:No SVHC (20-Jun-2013)	0.01	85332100	-	-	-	:Through Hole	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	:1	:Radial Leaded	MetalElement	3W	Through-Hole	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	15.24mm	3W	wire-wound	20ppm/°C	0.57 g	-55...270°C	1	250	250
5 PWR4412-2SCR0400F Res Metal Film 0.04 Ohm 1% 3W ±20ppm/°C Bare Metal RDL Thru-Hole Bag bourns	询价	Metal Film	40 mOhm	1 %	3 W	25.4 mm	16.25 mm	±20 ppm/°C	-55 to 270 °C	Bare Metal	Tin	Bulk	Radial	Bulk	Metal Film	Radial	0.04	2	Radial Lead	1.000" (25.40mm)	0.600" L x 0.189" W (15.24mm x 4.80mm)	3W	Metal Element	Lead free / RoHS Compliant	40 mOhms	4 mm W x 15.24 mm L x 16 mm H	Current Sense Resistors - Through Hole	RoHS Compliant	PWR4412-2S	- 55 C to + 270 C	16 mm	15.24 mm	4 mm	Thick Film Current Sensing Resistors	40m	Compliant	4.8	Through Hole	±20	16.25	25.4	3	No	15.24	250	Current Sense, Pulse Withstanding	15.24 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
5 PWR4412-2SDR0050J Res Metal Film 0.005 Ohm 5% 5W ±20ppm/°C Bare Metal RDL Thru-Hole Bag bourns	询价	Metal Film	5 mOhm	5 %	5 W	25.4 mm	21.33 mm	±20 ppm/°C	-55 to 270 °C	Bare Metal	Tin	Bulk	Radial	Bulk	Metal Film	Radial	0.005	2	Radial Lead	1.000" (25.40mm)	0.800" L x 0.189" W (20.32mm x 4.80mm)	5W	Metal Element	Lead free / RoHS Compliant	5 mOhms	4 mm W x 20.32 mm L x 26 mm H	Current Sense Resistors - Through Hole	RoHS Compliant	PWR4412-2S	- 55 C to + 270 C	26 mm	20.32 mm	4 mm	Thick Film Current Sensing Resistors	5m	Compliant	4.8	Through Hole	±20	21.33	25.4	5	No	20.32	250	Current Sense, Pulse Withstanding	20.32 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

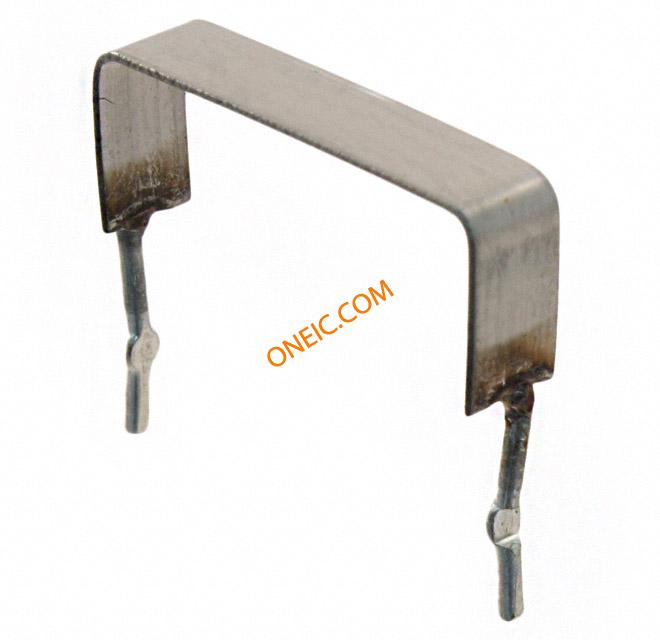

7 PWR4412-2SDR0100J Res Metal Film 0.01 Ohm 5% 5W ±20ppm/°C Bare Metal RDL Thru-Hole Bag bourns	询价	Metal Film	10 mOhm	5 %	5 W	25.4 mm	21.33 mm	±20 ppm/°C	-55 to 270 °C	Bare Metal	Tin	Bulk	Radial	Bag	Metal Film	Radial	0.01	2	Radial Lead	1.000" (25.40mm)	0.800" L x 0.189" W (20.32mm x 4.80mm)	5W	Metal Element	Lead free / RoHS Compliant	10mΩ	21.33 x 4.8 x 25.4mm	Current Sense Resistors - Through Hole	RoHS Compliant	PWR4412-2S	- 55 C to + 270 C	26 mm	20.32 mm	4 mm	Thick Film Current Sensing Resistors	10m	Compliant	4.8	Through Hole	±20	21.33	25.4	5	No	20.32	250	Current Sense, Pulse Withstanding	-	4.8mm	20.32mm	21.33mm	+270°C	+20ppm/°C	-55°C	-20ppm/°C	PWR44122SDR0100J	:± 5%	:Open Element	:Metal Strip	:No SVHC (16-Dec-2013)	0.0002	85331000	-	-	:BOURNS - PWR4412-2S Series	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
7 PWR4412-2SDR0300F Res Metal Film 0.03 Ohm 1% 5W ±20ppm/°C Bare Metal RDL Thru-Hole Bag bourns	询价	Metal Film	30 mOhm	1 %	5 W	25.4 mm	21.33 mm	±20 ppm/°C	-55 to 270 °C	Bare Metal	Tin	Bulk	Radial	Bulk	Metal Alloy	Radial	0.03	2	Radial Lead	1.000" (25.40mm)	0.800" L x 0.189" W (20.32mm x 4.80mm)	5W	Metal Element	Lead free / RoHS Compliant	30mΩ	21.34 x 4.8 x 25.4mm	Current Sense Resistors - Through Hole	RoHS Compliant	PWR4412-2S	- 55 C to + 270 C	26 mm	20.32 mm	4 mm	Thick Film Current Sensing Resistors	-	-	-	-	-	-	-	-	-	-	250	Current Sense, Pulse Withstanding	-	4.8mm	20.32mm	21.34mm	+270°C	+20ppm/°C	-55°C	-20ppm/°C	PWR44122SDR0300F	:± 1%	:-	:Metal Foil	:No SVHC (20-Jun-2013)	0.01	85332100	-	-	-	:Through Hole	-	-	-	-	-	-	-	-	1.01mm	-	-	-	-	-	-	-	-	-	:1	:Radial Leaded	MetalElement	5W	Through-Hole	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

第 1 / 20 页
