AVX公司是全球公认的被动电子元件和互连解决方案设计、制造和供应领域的领导者。公司成立于1972年，总部位于美国南卡罗来纳州喷泉客栈，1990年成为京瓷株式会社的子公司。AVX的产品组合极为广泛，涵盖陶瓷电容、钽电容、薄膜电容，以及压敏电阻、磁珠、电感、滤波器、电路保护器件和各种连接器。重点产品系列包括TAJ和TPS系列钽电容、TransGuard多层压敏电阻，以及全面的MLCC片式多层陶瓷电容系列。公司服务于汽车、工业、医疗、消费电子和通信等多个市场领域。凭借遍布全球四大洲十七个国家的制造基地，AVX能够提供全球供应链支持和本地化的工程服务。其电容器和元件以高可靠性和在严苛应用中的卓越性能而著称。AVX持续投入尖端研究和材料科学，以帮助客户降低总成本并提升系统性能。作为京瓷集团成员，AVX充分利用先进陶瓷和电子技术的协同效应来保持竞争优势。作为全球顶尖的被动元件供应商之一，AVX依靠创新和以客户为中心的战略占据了强有力的市场地位。

MODELS

板载连接器 - 型号列表共 195 个型号

制造商零件编号	价格/库存	Pitch	Packaging	Standard Package	Factory Pack Quantity	Product Category	Series	Product Type	RoHS	Type	Number of Contacts	Number of Rows	Body Orientation	Mounting	Current Rating	Voltage Rating	Number of Positions / Contacts	Mounting Angle	Termination Style	Actuation Type	Contact Plating	Features	Mounting Type	FFC, FCB Thickness	Connector Type	Contact Finish	Housing Material	Operating Temperature	Height Above Board	Termination	Number of Positions	Cable End Type	rohs	Locking Feature	Other Names	Contact Material	Contact Location	Contact Finish Thickness	Mounting Style
046214030010800+ Conn FFC/FPC Connector SKT 30 POS 1mm Solder ST SMD T/R avx / elco	询价	1 mm	Reel	Tape & Reel	1000	FFC & FPC Connectors	6214	Board Mount	RoHS Compliant	FFC/FPC Connector	30	1	Straight	Surface Mount	-	-	-	-	-	ZIF	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 006207341914000+ Conn FFC/FPC Connector SKT 14 POS 1.25mm Solder RA SMD Tube avx / elco	询价	1.25 mm	Tube	Rail / Tube	21	FFC & FPC Connectors	6207	Board Mount	No RoHS Version Available	FFC/FPC Connector	14	2	Right Angle	Surface Mount	1A	125V	14	Right	SMD	LIF	Tin	Board Guide, Low Insertion Force (LIF)	Surface Mount, Right Angle	0.30mm	Top and Bottom Contacts	Tin	Plastic	-20°C ~ 85°C	0.138" (3.50mm)	Solder	14	Straight	Lead free / RoHS Compliant	-	-	-	-	-	-
3 046240054005800+ Conn FFC/FPC Connector SKT 54 POS 0.5mm Solder RA SMD T/R avx / elco	询价	0.5 mm	Tape & Reel (TR)	Cut Tape	2000	FFC & FPC Connectors	6240	Board Mount	RoHS Compliant	FFC/FPC Connector	54	1	Right Angle	Surface Mount	0.4A	50V	54	Right	SMD	-	Tin over Copper	Zero Insertion Force (ZIF)	Surface Mount, Right Angle	0.30mm	Bottom Contacts	Tin Copper	Plastic	-40°C ~ 85°C	0.079" (2.00mm)	Solder	54	Straight	Lead free / RoHS Compliant	Flip Lock	478-5598-1	-	Bottom Contact	-	-
4 046288010000846+ FPC/FFC CONNECTOR, 10 POS, BOTTOM CONTACT,.5MM PITCH,ZIF,RA avx / elco	询价	0.020" (0.50mm)	Tape & Reel (TR)	2,000	2000	FFC & FPC Connectors	6288	Board Mount	RoHS Compliant	-	-	-	-	-	0.4A	50V	10	Right	SMD	-	Gold	Zero Insertion Force (ZIF)	Surface Mount, Right Angle	0.30mm	Bottom Contacts	Gold	Plastic	-40°C ~ 105°C	0.079" (2.00mm)	Solder	10	Tabbed	Lead free / RoHS Compliant	Flip Lock	478-5455-2	-	Bottom Contact	3.9µin (0.10µm)	-
046214020010800+ FPC 0.5 MM avx / elco	询价	0.5 mm	Bulk	-	1000	FFC & FPC Connectors	6214	Board Mount	No RoHS Version Available	-	-	-	-	-	400 mA	50 V	20	Vertical	SMD	ZIF	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Phosphor Bronze	-	-	-
2 046232116103800 Conn FFC/FPC Connector SKT 16 POS 1mm Solder RA SMD T/R avx / elco	询价	1 mm	Tape & Reel (TR)	Tape & Reel	1000	FFC & FPC Connectors	6232	Board Mount	RoHS Compliant	FFC/FPC Connector	16	1	Right Angle	Surface Mount	0.5A	50V	-	-	-	-	-	Low Insertion Force (LIF)	Surface Mount, Right Angle	0.30mm	Top Contacts	Tin Copper	Plastic	-20°C ~ 85°C	0.118" (3.00mm)	Solder	16	Straight	Lead free / RoHS Compliant	-	478-1979-2	-	-	-	-
006229040001800+ Conn FFC/FPC Connector SKT 40 POS 2mm Solder ST SMD Tray avx / elco	询价	2 mm	Tray	Trays	-	-	-	-	-	FFC/FPC Connector	40	1	Straight	Surface Mount	1A	50V	-	-	-	-	-	Board Guide, Zero Insertion Force (ZIF)	Surface Mount	0.30mm	Vertical Contacts, 1 Sided	Tin Copper	Thermoplastic	-40°C ~ 85°C	0.224" (5.70mm)	Solder	40	Straight	Lead free / RoHS Compliant	Slide Lock	-	-	-	-	-
006200147012800 Conn FFC/FPC Connector SKT 14 POS 2mm Solder RA Thru-Hole Tray avx / elco	询价	2 mm	Tray	Trays	1700	FFC & FPC Connectors	6200	Board Mount	No RoHS Version Available	FFC/FPC Connector	14	1	Right Angle	Through Hole	-	-	14	Right	Through Hole	ZIF	Tin	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Bottom Contact	-	-

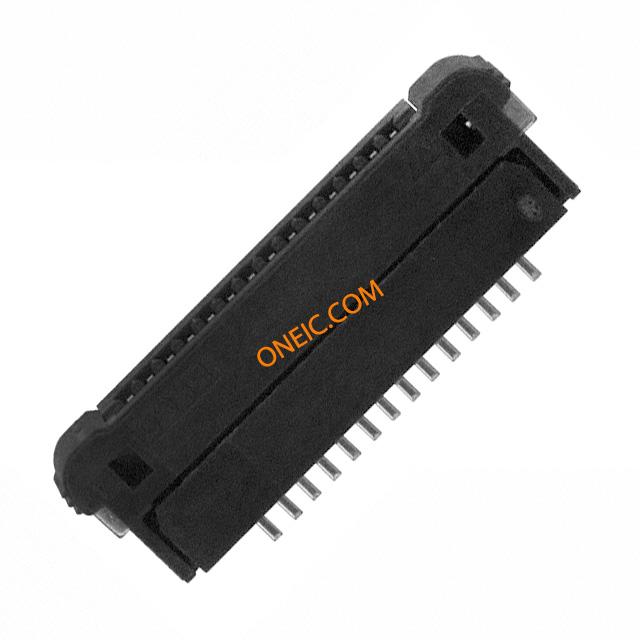

3 006200514230000 Conn FFC/FPC Connector SKT 14 POS 2mm Solder RA T/R avx / elco	询价	2 mm	Tape & Reel (TR)	Tape & Reel	-	-	-	-	-	FFC/FPC Connector	14	1	Right Angle	-	1A	50V	-	-	-	-	-	Zero Insertion Force (ZIF)	Surface Mount, Right Angle	0.30mm	Bottom Contacts	Gold	Plastic	-20°C ~ 85°C	0.114" (2.90mm)	Solder	14	Straight	Lead free / RoHS Compliant	Slide Lock	478-1970-2	-	-	3.9µin (0.10µm)	-
006200515230000 Conn FFC/FPC Connector SKT 15 POS 2mm Solder RA T/R avx / elco	询价	2 mm	Reel	Tape & Reel	1000	FFC & FPC Connectors	6200	Board Mount	No	FFC/FPC Connector	15	1	Right Angle	-	-	-	15	Right	SMD	ZIF	Tin	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
006208010110001 Conn FFC/FPC Connector SKT 10 POS 2mm Solder ST Thru-Hole Tray avx / elco	询价	2 mm	Tray	Trays	2200	FFC & FPC Connectors	6208	Board Mount	RoHS Compliant	FFC/FPC Connector	10	1	Straight	Through Hole	1 A	50 V	10	Vertical	Through Hole	ZIF	Tin	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Copper Alloy	-	-	-
006208530410006 Conn FFC/FPC Connector SKT 30 POS 2mm Solder ST SMD T/R avx / elco	询价	2 mm	Reel	Tape & Reel	1000	FFC & FPC Connectors	6208	Board Mount	No	FFC/FPC Connector	30	1	Straight	Surface Mount	1 A	50 V	10	Vertical	SMD	ZIF	Tin	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Copper Alloy	-	-	-
008370121000800 Conn FFC/FPC Connector SKT 12 POS 2.5mm Solder ST Thru-Hole Tray avx / elco	询价	2.5 mm	Tray	Trays	1900	FFC & FPC Connectors	8370	Board Mount	No RoHS Version Available	FFC/FPC Connector	12	1	Straight	Through Hole	-	-	121	Right	SMD	LIF	Tin	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
008370167000800 Conn FFC/FPC Connector SKT 16 POS 2.5mm Solder RA Thru-Hole Tray avx / elco	询价	2.5 mm	-	Trays	1500	FFC & FPC Connectors	8370	Board Mount	In Transition	FFC/FPC Connector	16	1	Right Angle	Through Hole	-	-	167	Right	SMD	LIF	Tin	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 086212033340800 Conn FFC/FPC Connector SKT 33 POS 0.5mm Solder RA SMD T/R avx / elco	询价	0.5 mm	Tape & Reel (TR)	Tape & Reel	2000	FFC & FPC Connectors	6212	Board Mount	No RoHS Version Available	FFC/FPC Connector	33	1	Right Angle	Surface Mount	0.4A	50V	33	Right	SMD	-	Tin	Zero Insertion Force (ZIF)	Surface Mount, Right Angle	0.30mm	Top Contacts	Tin Copper	Plastic	-40°C ~ 85°C	0.079" (2.00mm)	Solder	33	Straight	Lead free / RoHS Compliant	Slide Lock	478-5601-1	-	-	-	-
006208508110000 Conn FFC/FPC Connector SKT 8 POS 2mm Solder ST SMD T/R avx / elco	询价	2 mm	Tape & Reel (TR)	Tape & Reel	1000	FFC & FPC Connectors	6208	Board Mount	No	FFC/FPC Connector	8	1	Straight	Surface Mount	1A	50V	10	Vertical	SMD	ZIF	Tin Lead	Zero Insertion Force (ZIF)	Surface Mount	0.30mm	Vertical Contacts, 1 Sided	Tin Copper	Plastic	-30°C ~ 85°C	0.197" (5.00mm)	Solder	8	Straight	Lead free / RoHS Compliant	Slide Lock	478-1960-2	Copper Alloy	-	-	-
046214027000800 Conn FFC/FPC Connector SKT 27 POS 1mm Solder ST SMD T/R avx / elco	询价	1 mm	Tape & Reel (TR)	Tape & Reel	1000	FFC & FPC Connectors	6214	Board Mount	RoHS Compliant	FFC/FPC Connector	27	1	Straight	Surface Mount	0.4A	50V	27	-	-	ZIF	Tin Lead	Zero Insertion Force (ZIF)	Surface Mount	0.30mm	Vertical Contacts, 1 Sided	Tin Copper	Plastic	-40°C ~ 85°C	0.161" (4.10mm)	Solder	27	Straight	Lead free / RoHS Compliant	Slide Lock	-	Phosphor Bronze	-	-	-
04-6293-613-005-829+ Conn FPC Connector SKT 13 POS 0.6mm Solder RA SMD T/R avx / elco	询价	0.6 mm	Tape & Reel (TR)	Tape & Reel	-	-	-	-	-	FPC Connector	13	1	Right Angle	Surface Mount	0.200A	50V	-	-	-	-	-	Zero Insertion Force (ZIF)	Surface Mount, Right Angle	0.15mm	Top and Bottom Contacts	Gold	Plastic	-40°C ~ 85°C	0.033" (0.84mm)	Solder	13	Straight	Lead free / RoHS Compliant	Flip Lock	Q5659828	-	-	3.9µin (0.10µm)	-
4 006200509130000+ FFC & FPC Connectors 9P 1.0mm R/A SMT AVX Connectors	询价	1 mm	Reel	1,000	1000	FFC & FPC Connectors	6200	Board Mount	RoHS Compliant	-	-	-	-	-	1A	50V	9	Right	Solder	ZIF	-	Zero Insertion Force (ZIF)	Surface Mount, Right Angle	0.30mm	Bottom Contacts	Gold	Plastic	-20°C ~ 85°C	0.114" (2.90mm)	Solder	9	Straight	Lead free / RoHS Compliant	Slide Lock	478-5536-2	-	Bottom Contact	3.9µin (0.10µm)	Through Hole
086210018340800+ FFC & FPC Connectors 18P R/A SMT AVX Connectors	询价	0.5 mm	Reel	-	2000	FFC & FPC Connectors	6210	Board Mount	RoHS Compliant	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
