3M Company- 背板连接器

3M公司创建于1902年，总部位于美国明尼苏达州梅普尔伍德，是一家全球领先的多元化科技企业。公司业务涵盖安全与工业、交通运输与电子、医疗健康和消费品四大领域，以勇于创新和产品繁多著称于世。在电子元器件行业，3M并非半导体制造商，而是提供关键的材料与组件方案，如互连系统、热管理、电磁屏蔽和电子组装粘合剂。其代表性的电子类产品系列包括3M™ Textool™测试座与连接器、3M™ Twin Ax高速线缆组件、3M™ 导电胶转移胶带以及3M™ 导热界面材料。此外，公司还提供氟聚合物和光学膜等用于芯片制造和显示屏生产的先进材料。依托在51个核心技术平台的深厚积累，3M为智能手机、数据中心、汽车电子和航空航天等领域开发高性能产品。在全球电子材料市场，3M凭借技术优势和可靠品质占据重要地位，与众多电子设备制造商保持长期合作。3M的产品种类超过6万种，服务遍布近200个国家和地区。其电子相关业务受益于5G、人工智能和新能源汽车等趋势，增长潜力显著。总体而言，3M虽不参与传统元器件市场排名，但在电子材料与互连解决方案领域是公认的领导者。

MODELS

背板连接器 - 型号列表共 1,729 个型号

制造商零件编号	价格/库存	Standard Package	Part # Aliases	Pitch	Number of Rows	Mounting Type	Connector Type	Packaging	Connector Style	Number of Positions	Type	Contact Finish	Operating Temperature	Number of Positions Loaded	Termination	Contact Finish Thickness	rohs	Number of Contacts	Termination Method	Mounting	Contact Plating	Current Rating	Features	Connector Usage	Color	Series	Material Flammability Rating	Product Type	Product Category	Mounting Style	Housing Material	Number of Positions / Contacts	Mounting Angle	Termination Style	Contact Material	Factory Pack Quantity	Contact Layout, Typical	Family	Note	RoHS
MP2-HP10-51P1-LR Conn Hard Metric HDR 10 POS 2mm Press Fit ST Thru-Hole 3m interconnect solutions	询价	Bulk	05111195964 70010025222	2 mm	5	Through Hole	Header, Male Blades	Bulk	Blade Power	10	Hard Metric	Gold	-55°C ~ 125°C	All	Press-Fit	3µin (0.08µm)	Lead free / RoHS Compliant	10	Press Fit	Through Hole	Gold Over Palladium Nickel	-	-	Backplane	Beige	MP2	UL94 V-0	-	-	-	-	-	-	-	-	-	10 Power	-	-	-
MP2-R180-51S1-LR Conn Hard Metric SKT 180 POS 2mm Solder ST Thru-Hole 3m interconnect solutions	询价	Bulk	05111194391 70010018078	2 mm	5	Through Hole	Receptacle, Female Sockets	Bulk	Futurebus+®	180	Hard Metric	Gold	-55°C ~ 125°C	All	Solder	3µin (0.08µm)	Lead free / RoHS Compliant	180	Solder	Through Hole	Gold Over Palladium Nickel Over Nickel	1.5A	Inverse	Backplane	Beige	MP2	UL94 V-0	-	-	-	-	-	-	-	-	-	-	-	-	-
2 MP2-S120-51M1-C-LR Conn Hard Metric SKT 120 POS 2mm Solder RA Thru-Hole 3m interconnect solutions	询价	Bulk	05111174462 80000916611	2 mm	5	Board Edge, Through Hole, Right Angle	Receptacle, Female Sockets	Tube	Futurebus+®	120	Hard Metric	Gold	-55°C ~ 125°C	All	Solder	3µin (0.08µm)	Lead free / RoHS Compliant	120	Solder	Through Hole	Gold Over Palladium Nickel Over Nickel	1.5A	Board Guide, Board Lock, Spacer	Backplane	Beige	MP2	UL94 V-0	-	High Speed / Modular Connectors	PCB	Liquid Crystal Polymer (LCP)	120	Right	Solder	Copper Alloy	-	-	-	-	-
MP2-SS096-41S1-LR Conn Hard Metric SKT 96 POS 2mm Solder ST Thru-Hole 3m interconnect solutions	询价	Bulk	05111194057 70010022757	2 mm	4	Board Edge, Through Hole, Right Angle	Receptacle, Female Sockets	Bulk	Futurebus+®	96	Hard Metric	Gold	-55°C ~ 125°C	All	Solder	3µin (0.08µm)	Lead free / RoHS Compliant	96	Solder	Through Hole	Gold Over Palladium Nickel Over Nickel	1.5A	Board Guide, Spacer	Backplane	Beige	-	UL94 V-0	Sockets	-	-	-	-	-	-	-	-	-	-	-	-
HSHM-REC-S-5-B TOOL 3m interconnect solutions	询价	1	05111156952 15000010585	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	*	-	Tools	-	-	-	-	-	-	-	-	-	-	-	-

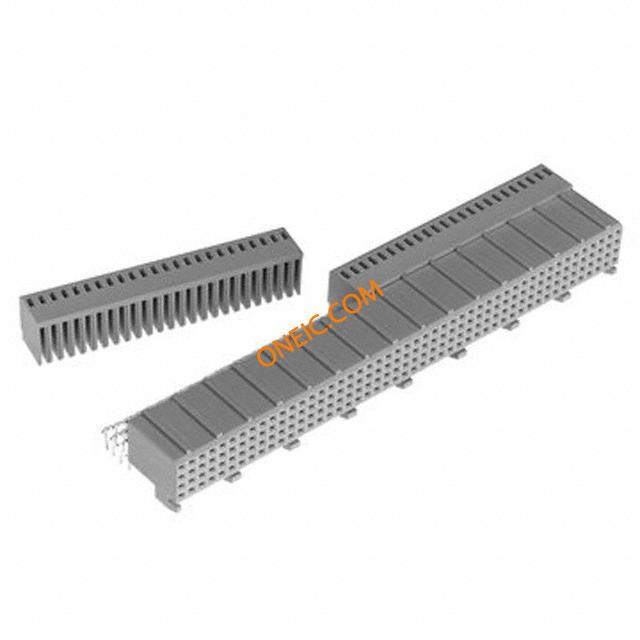

MP2-S030-51P1-LR Conn Hard Metric SKT 30 POS 2mm Press Fit RA Thru-Hole 3m interconnect solutions	询价	Bulk	05111147024 70010021577	2 mm	5	Board Edge, Through Hole, Right Angle	Receptacle, Female Sockets	Bulk	Futurebus+®	30	Hard Metric	Gold	-55°C ~ 125°C	All	Press-Fit	3µin (0.08µm)	Lead free / RoHS Compliant	30	Press Fit	Through Hole	Gold Over Palladium Nickel Over Nickel	1.5A	Board Guide, Cap, Spacer	Backplane	Beige	MP2	UL94 V-0	-	-	-	-	-	-	-	-	-	-	-	-	-
MP2-P180-51M1-LR Conn Hard Metric HDR 180 POS 2mm Solder RA Thru-Hole 3m interconnect solutions	询价	Bulk	05111194390 70010017757	2 mm	5	Board Edge, Through Hole, Right Angle	Header, Male Pins	Bulk	Futurebus+®	180	Hard Metric	Gold	-55°C ~ 125°C	All	Solder	30µin (0.76µm)	Lead free / RoHS Compliant	180	Solder	Through Hole	Gold Over Palladium Nickel Over Nickel	1.5A	Board Guide, Inverse	Backplane	Beige	MP2	UL94 V-0	-	-	-	-	-	-	-	-	-	-	-	-	-

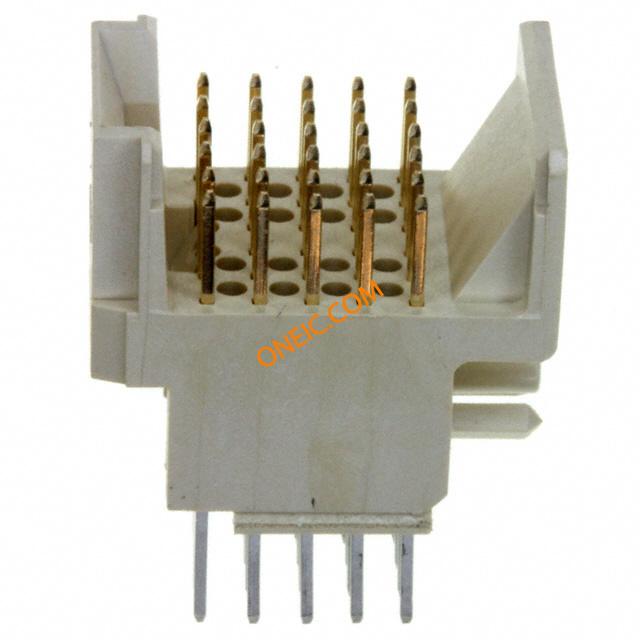

2 MP2-PS030-51S1-LR Conn Hard Metric HDR 30 POS 2mm Solder ST Thru-Hole 3m interconnect solutions	询价	Bulk	05111174474 80000916702	2 mm	5	Through Hole	Header, Male Pins	Tube	Futurebus+®	30	Hard Metric	Gold	-55°C ~ 125°C	All	Solder	3µin (0.08µm)	Lead free / RoHS Compliant	30	Solder	Through Hole	Gold Over Palladium Nickel Over Nickel	1.5A	Board Guide, Inverse	Backplane	Beige	MP2	UL94 V-0	-	-	-	-	-	-	-	-	-	-	-	-	-
MP2-HS024-42 Connector Accessories Shroud 4Row 24 POS Liquid Crystal Polymer Beige 3m interconnect solutions	询价	Bulk	05111153456 15030202913	0.079" (2.00mm)	4	Varies by Contact	Shroud for Male Pins	Tube	Backplane	24	Shroud	-	-	-	-	-	Lead free / RoHS non-compliant	-	-	-	-	-	-	-	Beige	MP2	-	-	High Speed / Modular Connectors	PCB	Liquid Crystal Polymer (LCP)	24	Straight	-	-	42	-	MP2	Contacts Not Provided	-
MP2-S096-41M1-C-FJ Conn Hard Metric SKT 96 POS 2mm Solder RA Thru-Hole 3m interconnect solutions	询价	Bulk	05111105568 70010001827	2 mm	4	Board Edge, Through Hole, Right Angle	Receptacle, Female Sockets	Bulk	Futurebus+®	96	Hard Metric	Gold	-55°C ~ 125°C	All	Solder	10µin (0.25µm)	Lead free / RoHS Compliant	96	Solder	Through Hole	Gold Over Nickel	1.5A	Board Guide, Board Lock, Spacer	Backplane	Beige	-	UL94 V-0	Sockets	-	-	-	-	-	-	-	-	-	-	-	-
HSHM-REC-H-5-A TOOL 3m interconnect solutions	询价	1	05111156949 15000010551	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	*	-	Tools	-	-	-	-	-	-	-	-	-	-	-	-
MP2-SS120-51P1-LR Conn Hard Metric SKT 120 POS 2mm Press Fit ST Thru-Hole 3m interconnect solutions	询价	Bulk	05111175180 80000912750	2 mm	5	Board Edge, Through Hole, Right Angle	Receptacle, Female Sockets	Bulk	Futurebus+®	120	Hard Metric	Gold	-55°C ~ 125°C	All	Press-Fit	3µin (0.08µm)	Lead free / RoHS Compliant	120	Press Fit	Through Hole	Gold Over Palladium Nickel Over Nickel	1.5A	Board Guide, Cap, Spacer	Backplane	Beige	MP2	UL94 V-0	-	-	-	-	-	-	-	-	-	-	-	-	-
MP2-H150-51S1-S-LR Conn Hard Metric HDR 150 POS 2mm Solder ST Thru-Hole 3m interconnect solutions	询价	Bulk	05111558483 70010026931	2 mm	5	Through Hole	Header, Male Pins	Bulk	Futurebus+®	150	Hard Metric	Gold	-55°C ~ 125°C	All	Solder	3µin (0.08µm)	Lead free / RoHS Compliant	150	Solder	Through Hole	Gold Over Palladium Nickel Over Nickel	1.5A	Board Guide	Backplane	Beige	-	UL94 V-0	Headers	-	-	-	-	-	-	-	-	-	-	-	-
2 MP2-S090G-51M1-C-LR Conn Hard Metric SKT 90 POS 2mm Solder RA Thru-Hole 3m interconnect solutions	询价	Bulk	05111174470 80000916660	2 mm	5	Board Edge, Through Hole, Right Angle	Receptacle, Female Sockets	Tube	Futurebus+®	90	Hard Metric	Gold	-55°C ~ 125°C	All	Solder	3µin (0.08µm)	Lead free / RoHS Compliant	90	Solder	Through Hole	Gold Over Palladium Nickel Over Nickel	1.5A	Board Guide, Board Lock, Spacer	Backplane	Beige	MP2	UL94 V-0	-	High Speed / Modular Connectors	PCB	Liquid Crystal Polymer (LCP)	90	Right	Solder	Copper Alloy	-	-	-	-	-
HM-H176DPWR1-8CP2-TG30 Conn Hard Metric HDR 4Power/176Signal POS 2mm Press Fit ST Thru-Hole 3m interconnect solutions	询价	Bulk	05111105717 70010023599	2 mm	8/2	Through Hole	Header, Male Pins and Blades	Bulk	D 22	180 (176 + 4 Power)	Hard Metric	Gold	-55°C ~ 125°C	All	Press-Fit	30µin (0.76µm)	Lead free / RoHS Compliant	4Power/176Signal	Press Fit	Through Hole	Gold Over Nickel	1A	Board Guide, Guide Pin	-	-	-	-	Headers	Hard Metric Connectors	-	-	-	-	-	-	-	-	-	-	-

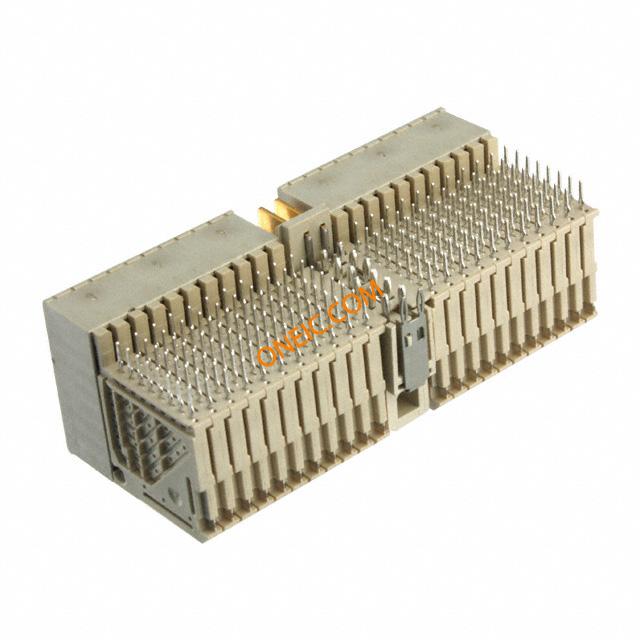

HM-S176DPWR1-8AP1-TG30 Conn Hard Metric SKT 4Power/176Signal POS 2mm Press Fit RA Thru-Hole 3m interconnect solutions	询价	Bulk	05111105705 70010023276	2 mm	8/2	Through Hole, Right Angle	Receptacle, Female Sockets and Blade Sockets	Bulk	D 22	180 (176 + 4 Power)	Hard Metric	Gold	-55°C ~ 125°C	All	Press-Fit	30µin (0.76µm)	Lead free / RoHS Compliant	4Power/176Signal	Press Fit	Through Hole	Gold Over Nickel	1A	Mating Guide	-	-	HM	-	Sockets	Hard Metric Connectors	Through Hole	Liquid Crystal Polymer (LCP)	180	-	Press Fit	Copper Alloy	8	-	-	-	No
HM-H176DPWR1-8CP1-TG30 Conn Hard Metric HDR 4Power/176Signal POS 2mm Press Fit ST Thru-Hole 3m interconnect solutions	询价	Bulk	05111558621 70010023565	2 mm	8/2	Through Hole	Header, Male Pins and Blades	Bulk	D 22	180 (176 + 4 Power)	Hard Metric	Gold	-55°C ~ 125°C	All	Press-Fit	30µin (0.76µm)	Lead free / RoHS Compliant	4Power/176Signal	Press Fit	Through Hole	Gold Over Nickel	1A	Board Guide, Guide Pin	-	-	-	-	Headers	-	-	-	-	-	-	-	-	-	-	-	-
HM-S110APWR1-5AP1-TG30L HARD METRIC BACKPLANE 3m interconnect solutions	询价	210	05111557815 80001252826	0.079" (2.00mm)	5	Through Hole, Right Angle	Receptacle, Female Sockets and Blade Sockets	Bulk	A 22	114 (110 + 4 Power)	-	Gold	-55°C ~ 125°C	All	Press-Fit	30µin (0.76µm)	-	-	-	-	-	1A	-	-	-	-	-	Sockets	-	-	-	-	-	-	-	-	-	-	-	-
HM-S176DPWR1-8AP1-TG30L Conn Hard Metric F 4Power/176Signal POS 2mm Press Fit RA Thru-Hole 3m interconnect solutions	询价	Bulk	05111557808 80001252750	2 mm	8	Through Hole, Right Angle	Receptacle, Female Sockets and Blade Sockets	Bulk	D 22	180 (176 + 4 Power)	Hard Metric	Gold	-55°C ~ 125°C	All	Press-Fit	30µin (0.76µm)	Lead free / RoHS Compliant	4Power/176Signal	Press Fit	Through Hole	Gold Over Nickel	1A	Mating Guide	-	-	-	-	Sockets	-	-	-	-	-	-	-	-	-	-	-	-
HSHM-H125B4-5CP1-TG30L Conn Hard Metric M 125 POS 2mm Press Fit ST Thru-Hole 3m interconnect solutions	询价	Bulk	05111557830 80001252974	2 mm	5	Through Hole	Header, Male Pins	Bulk	B 25	125	Hard Metric	Gold	-55°C ~ 125°C	All	Press-Fit	30µin (0.76µm)	Lead free / RoHS Compliant	125	Press Fit	Through Hole	Gold Over Nickel	1A	Shielded	Backplane	-	-	-	Headers	-	-	-	-	-	-	-	-	-	-	-	-
