Semikron

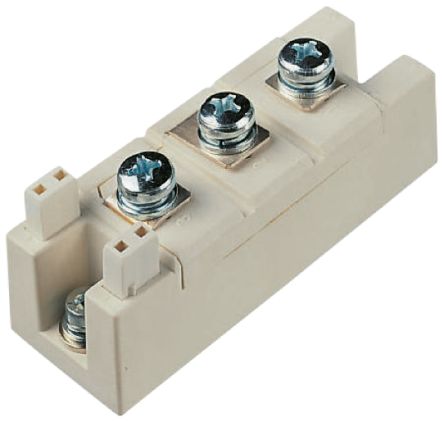

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Dimensions | 94 x 34 x 30mm |
| Height | 30mm |
| Length | 94mm |
| Maximum Gate Trigger Current | 150mA |
| Maximum Gate Trigger Voltage | 2V |
| Maximum Holding Current | 400mA |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Screw |
| Package Type | A 22 |
| Peak On-State Voltage | 1.6V |
| Pin Count | 5 |
| Rated Average On-State Current | 156A |
| Repetitive Peak Forward Blocking Voltage | 1800V |
| Repetitive Peak Off-State Current | 40mA |
| Repetitive Peak Reverse Voltage | 1800V |
| Surge Current Rating | 5.4kA |
| Thyristor Type | SCR Module |
| Width | 34mm |
| Case | SEMIPACK2 |
| Multiplicity | 1 |
| Gross weight | 0.43 g |
| Type of semiconductor component | diode-thyristor power module |
| Load current max | 156A |
| Off state voltage max | 1.8kV |
| Collective package [pcs] | 1 |
| spg | 1 |
| 重复峰值反向电压 | 1800V |
| 峰值通态电压 | 1.6V |
| 浪涌电流额定值 | 5.4kA |
| 闸流晶体管类型 | SCR 模块 |
| 长度 | 94mm |
| 最大栅极触发电流 | 150mA |
| 最高工作温度 | +125 °C |
| 高度 | 30mm |
| 安装类型 | 面板安装 |
| 最低工作温度 | -40 °C |
| 重复峰值正向阻断电压 | 1800V |
| 宽度 | 34mm |
| 封装类型 | SEMIPACK2 |
| 额定平均通态电流 | 156A |
| 引脚数目 | 5 |
| 尺寸 | 94 x 34 x 30mm |
| 重复峰值断态电流 | 40mA |
| 最大保持电流 | 400mA |
| 最大栅极触发电压 | 2V |
