SEMIKRON

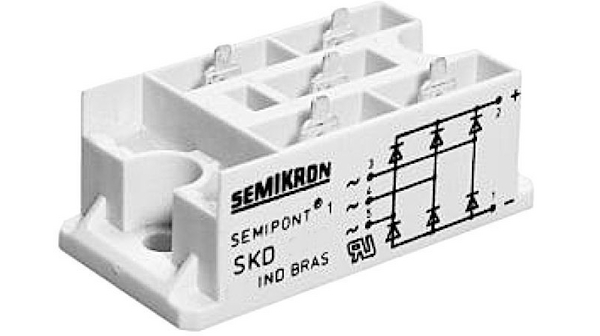

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| No. of Phases | :Three |
| Repetitive Reverse Voltage Vrrm Max | :800V |
| Forward Current If(AV) | :31A |
| Forward Voltage VF Max | :1.75V |
| Bridge Rectifier Case Style | :G26 |
| No. of Pins | :5 |
| Diode Mounting Type | :Panel |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :125°C |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Body Height Max | :23.5mm |
| Current Temperature | :100°C |
| Diode Type | :Bridge Rectifier, Three Phase |
| External Depth | :32mm |
| External Length / Height | :23.5mm |
| External Width | :63mm |
| Forward Surge Current Ifsm Max | :370A |
| Output Current Max | :30A |
| Weight (kg) | 0.01 |
| Tariff No. | 85415000 |
| Case | SEMIPONT1 |
| Rated current | 31A |
| Multiplicity | 1 |
| Gross weight | 0.08 kg |
| Type of semiconductor component | three phase bridge rectifier |
| Off state voltage max | 8V |
| Collective package [pcs] | 1 |
| spg | 1 |
